IslandPathversion 1.0

IslandPath Analysis: Shigella flexneri 2a str. 2457T

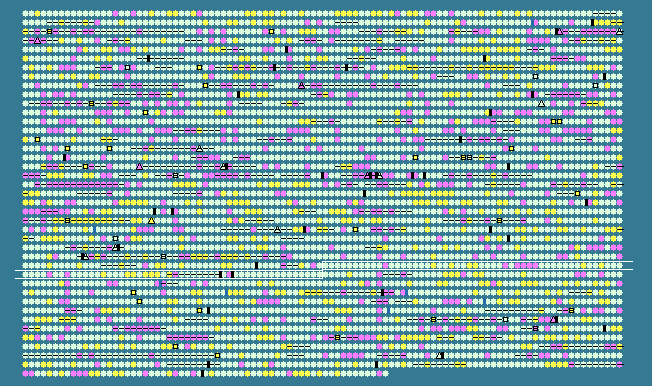

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2851	 50.74	0	3214826..3215365	+	179	30064428	ygjP	S3332	-	hypothetical protein
2852	 51.95	0	3215442..3216134	+	230	30064429	ygjQ	S3333	-	hypothetical protein
2853	 52.61	0	3216195..3217211	+	338	30064430	ygjR	S3334	-	hypothetical protein
2854	 54.14	0	3217482..3218447	+	321	30064431	ygjT	S3335	-	putative transport protein
2855	 54.86	0	3219032..3220276	+	414	30064432	ygjU	S3336	-	serine/threonine transporter SstT
2856	 50.00	0	3220281..3220832	-	183	30064433	ygjV	S3337	-	hypothetical protein
2857	 54.23	0	3220915..3222402	-	495	30064434	uxaA	S3338	-	altronate hydrolase
2858	 54.00	0	3222417..3223829	-	470	30064435	uxaC	S3339	-	glucuronate isomerase
2859	 54.35	0	3224314..3225612	+	432	30064436	exuT	S3340	-	transport protein of hexuronates
2860	 49.92	0	3225700..3226332	-	210	30064437	-	S3341	-	hypothetical protein
2861	 47.84	0	3226785..3228776	-	663	30064438	-	S3342	-	hypothetical protein
2862	 52.90	0	3228942..3229217	+	91	30064439	-	S3343	-	IS1 orfA
2863	 52.98	0	3229136..3229639	+	167	30064440	-	S3344	-	IS1 orfB
2864	 49.81	0	3229747..3230523	+	258	30064441	exuR	S3345	-	DNA-binding transcriptional repressor ExuR
2865	 50.38	0	3230868..3231530	+	220	30064442	yqjA	S3346	-	hypothetical protein
2866	 54.20	0	3231549..3231917	+	122	30064443	yqjB	S3347	-	hypothetical protein
2867	 54.25	0	3232456..3232761	+	101	30064444	yqjD	S3349	-	hypothetical protein
2868	 52.84	0	3232764..3233168	+	134	30064445	yqjE	S3350	-	hypothetical protein
2869	 56.00	+1	3233158..3233457	+	99	30064446	-	S3351	-	hypothetical protein
2870	 51.57	0	3234009..3234995	+	328	30064447	yqjG	S3353	-	putative transferase
2871	 51.22	0	3235288..3235656	+	122	30064448	yhaH	S3354	-	putative cytochrome
2872	 55.74	+1	3235863..3236759	-	298	30064449	yhaJ	S3356	-	putative LYSR-type transcriptional regulator
2873	 52.85	0	3236864..3237565	+	233	30064450	yhaK	S3357	-	hypothetical protein
2874	 52.12	0	3237588..3237752	+	54	30064451	yhaL	S3358	-	hypothetical protein
2875	 56.08	+1	3237964..3238530	-	188	30064452	yhaM	S3359	-	hypothetical protein
2876	 56.54	+1	3238466..3239275	-	269	30064453	yhaN	S3360	-	hypothetical protein
2877	 50.23	0	3239303..3240634	-	443	30064454	yhaO	S3361	-	putative transport system permease protein
2878	 53.41	0	3240909..3242273	-	454	30064455	-	S3363	-	putative L-serine deaminase
2879	 52.56	0	3242345..3242734	-	129	30064456	yhaR	S3365	-	hypothetical protein
2880	 53.12	0	3242748..3245042	-	764	30064457	tdcE	S3366	-	formate acetyltransferase 3
2881	 47.58	0	3245076..3246296	-	406	161486433	tdcD	S3367	-	propionate/acetate kinase
2882	 49.62	0	3246310..3247641	-	443	30064459	tdcC	S3368	-	threonine/serine transporter TdcC
2883	 46.06	-1	3247663..3248652	-	329	30064460	tdcB	S3369	-	threonine dehydratase
2884	 42.17	-2	3248751..3249689	-	312	30064461	tdcA	S3370	-	DNA-binding transcriptional activator TdcA
2885	 31.88	-2	3249879..3250223	+	114	30064462	tdcR	S3371	-	DNA-binding transcriptional activator TdcR
2886	 47.27	-1	3252275..3252439	+	54	30064463	-	S3374	-	hypothetical protein
2887	 53.40	0	3253237..3254382	-	381	161486432	yhaD	S3376	-	glycerate kinase I
2888	 52.97	0	3254479..3255369	-	296	161486431	garR	S3377	-	tartronate semialdehyde reductase
2889	 50.64	0	3256185..3257519	-	444	30064466	yhaU	S3379	-	putative transport protein
2890	 52.93	0	3257894..3259465	+	523	30064467	yhaG	S3380	-	putative hydrolase
2891	 52.24	0	3259517..3260341	-	274	30064468	agaR	S3381	-	DNA-binding transcriptional regulator AgaR
2892	 55.04	0	3260590..3261870	+	426	30064469	agaZ	S3382	-	putative tagatose 6-phosphate kinase 2
2893	 50.39	0	3261857..3262366	+	169	30064470	agaV	S3383	-	N-acetylgalactosamine-specific PTS system transporter subunit IIB
2894	 55.77	+1	3262377..3263156	+	259	30064471	agaW	S3384	-	N-acetylgalactosameine-specific IIC component 2
2895	 52.47	0	3263146..3263955	+	269	30064472	agaE	S3385	-	putative transport enzyme subunit
2896	 53.10	0	3264042..3264476	+	144	30064473	agaF	S3386	-	putative transport enzyme subunit
2897	 57.21	+1	3264473..3264916	+	147	30064474	agaA	S3387	-	N-acetylglucosamine-6-phosphate deacetylase
2898	 52.90	0	3264945..3265220	+	91	30064475	-	S3388	-	IS1 orfA
2899	 52.98	0	3265139..3265642	+	167	30064476	-	S3389	-	IS1 orfB
2900	 51.24	0	3265897..3266700	+	267	30064477	agaC	S3391	-	N-acetylgalactosamine-specific PTS system transporter subunit IIC
2901	 49.49	0	3266690..3267481	+	263	30064478	agaD	S3392	-	N-acetylgalactosamine-specific PTS system transporter subunit IID
2902	 49.74	0	3267482..3268237	+	251	30064479	agaI	S3393	-	galactosamine-6-phosphate isomerase
2903	 52.58	0	3268746..3269249	-	167	30064480	-	S3394	-	IS1 ORF2
2904	 52.90	0	3269168..3269443	-	91	30064481	-	S3395	-	IS1 orfA
2905	 44.83	-1	3270079..3270774	+	231	30064482	yraI	S3397	-	putative chaperone
2906	 52.96	0	3272539..3272961	-	140	30064483	-	S3399	-	IS2 orfB
2907	 53.01	0	3273400..3273765	-	121	161486430	-	S3401	-	insertion sequence 2 OrfA protein
2908	 47.89	0	3274664..3275755	+	363	30064485	yraK	S3403	-	putative fimbrial protein
2909	 54.01	0	3275798..3276658	-	286	30064486	yraL	S3404	-	hypothetical protein
2910	 54.34	0	3276723..3278759	+	678	30064487	yraM	S3405	-	putative glycosylase
2911	 54.80	0	3278717..3279112	+	131	30064488	yraN	S3406	-	hypothetical protein
2912	 50.25	0	3279132..3279722	+	196	30064489	yraO	S3407	-	DnaA initiator-associating protein DiaA
2913	 53.99	0	3279732..3280307	+	191	30064490	yraP	S3408	-	hypothetical protein
2914	 57.25	+1	3280421..3281461	-	346	30064491	yraQ	S3409	-	hypothetical protein
2915	 54.77	0	3281534..3282214	-	226	30064492	yraR	S3410	-	hypothetical protein
2916	 49.38	0	3282255..3282815	+	186	30064493	yhbO	S3411	-	hypothetical protein
2917	 54.05	0	3282795..3283238	-	147	30064494	yhbP	S3412	-	hypothetical protein
2918	 55.45	0	3283289..3283591	+	100	30064495	yhbQ	S3413	-	GIY-YIG nuclease superfamily protein
2919	 55.36	0	3283578..3284081	-	167	30064496	yhbS	S3414	-	hypothetical protein
2920	 51.62	0	3284075..3284599	-	174	30064497	yhbT	S3415	-	hypothetical protein
2921	 57.23	+1	3284808..3285803	+	331	30064498	yhbU	S3416	-	putative collagenase
2922	 55.86	+1	3285812..3286690	+	292	30064499	yhbV	S3417	-	hypothetical protein
2923	 55.36	0	3286771..3287778	+	335	30064500	yhbW	S3418	-	hypothetical protein
2924	 53.49	0	3287896..3289140	-	414	30064501	mtr	S3419	-	tryptophan permease
2925	 55.87	+1	3289294..3291183	-	629	161486429	deaD	S3420	-	ATP-dependent RNA helicase DeaD
2926	 48.02	0	3291363..3292247	-	294	30064503	yhbM	S3421	-	lipoprotein NlpI
2927	 53.51	0	3292356..3294560	-	734	30064504	pnp	S3422	-	polynucleotide phosphorylase/polyadenylase
2928	 51.48	0	3294738..3295007	-	89	30064505	rpsO	S3423	-	30S ribosomal protein S15
2929	 52.06	0	3295156..3296100	-	314	30064506	truB	S3424	-	tRNA pseudouridine synthase B
2930	 52.99	0	3296100..3296501	-	133	30064507	rbfA	S3425	-	ribosome-binding factor A
2931	 53.45	0	3296665..3299313	-	882	30064508	infB	S3426	-	translation initiation factor IF-2
2932	 52.69	0	3299338..3300825	-	495	30064509	nusA	S3427	-	transcription elongation factor NusA
2933	 48.57	0	3300853..3301305	-	150	161486428	yhbC	S3428	-	hypothetical protein
2934	 52.31	0	3301936..3303279	+	447	30064511	argG	S3430	-	argininosuccinate synthase
2935	 47.62	0	3303287..3303769	-	160	30064512	yhbX	S3431	-	putative alkaline phosphatase I
2936	 50.15	0	3305473..3305805	-	110	30064513	secG	S3433	-	preprotein translocase subunit SecG
2937	 54.48	0	3306033..3307370	-	445	30064514	glmM	S3434	-	phosphoglucosamine mutase
2938	 51.59	0	3307363..3308211	-	282	161486427	folP	S3435	-	dihydropteroate synthase
2939	 53.44	0	3308301..3310235	-	644	30064516	hflB	S3436	-	ATP-dependent metalloprotease
2940	 50.16	0	3310335..3310964	-	209	30064517	rrmJ	S3437	-	23S rRNA methyltransferase J
2941	 48.64	0	3311090..3311383	+	97	30064518	yhbY	S3438	-	RNA-binding protein YhbY
2942	 48.64	0	3311539..3312015	-	158	30064519	greA	S3439	-	transcription elongation factor GreA
2943	 53.14	0	3312263..3313696	+	477	30064520	dacB	S3440	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
2944	 52.77	0	3313882..3315054	-	390	30064521	obgE	S3441	-	GTPase ObgE
2945	 52.69	0	3315070..3316035	-	321	30064522	yhbE	S3442	-	hypothetical protein
2946	 49.61	0	3316162..3316419	-	85	30064523	rpmA	S3443	-	50S ribosomal protein L27
2947	 48.40	0	3316440..3316751	-	103	30064524	rplU	S3444	-	50S ribosomal protein L21
2948	 52.67	0	3317009..3317980	+	323	30064525	ispB	S3445	-	octaprenyl diphosphate synthase
2949	 49.46	0	3318207..3318485	+	92	30064526	nlp	S3446	-	DNA-binding transcriptional regulator Nlp
2950	 53.33	0	3318533..3319792	-	419	30064527	murA	S3447	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
51.60	MEAN

4.04	STD DEV
