IslandPath Analysis: Shigella flexneri 2a str. 2457T

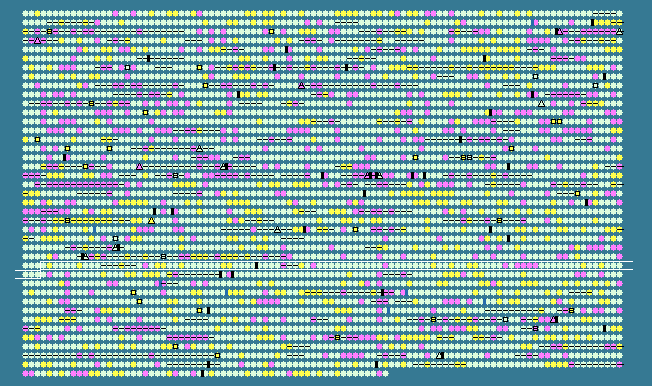

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2804	 53.61	0	3157224..3157805	-	193	30064381	yqiA	S3276	-	esterase YqiA
2805	 56.28	+1	3157805..3158632	-	275	30064382	icc	S3277	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
2806	 48.70	0	3158657..3159079	-	140	30064383	yqiB	S3278	-	hypothetical protein
2807	 50.63	0	3159080..3159709	-	209	30064384	nudF	S3279	-	ADP-ribose pyrophosphatase NudF
2808	 51.42	0	3159914..3161395	+	493	30064385	tolC	S3280	-	outer membrane channel protein
2809	 52.87	0	3161395..3161655	+	86	30064386	ygiA	S3281	-	hypothetical protein
2810	 56.10	+1	3161543..3162214	+	223	161486437	ygiB	S3282	-	hypothetical protein
2811	 50.47	0	3162220..3163380	+	386	30064388	ygiC	S3283	-	putative synthetase/amidase
2812	 53.68	0	3163418..3164233	-	271	30064389	ygiD	S3284	-	hypothetical protein
2813	 53.36	0	3164349..3165122	+	257	30064390	ygiE	S3285	-	zinc transporter ZupT
2814	 52.75	0	3165611..3166264	-	217	30064391	ribB	S3286	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
2815	 48.15	0	3166578..3166928	+	116	30064392	-	S3287	-	hypothetical protein
2816	 52.73	0	3167184..3167549	+	121	161486436	-	S3288	-	insertion sequence 2 OrfA protein
2817	 55.99	+1	3167507..3168358	+	283	161486435	-	S3289	-	insertion sequence 2 OrfB protein
2818	 52.90	0	3168409..3168684	+	91	30064395	-	S3290	-	IS1 orfA
2819	 52.98	0	3168603..3169106	+	167	30064396	-	S3291	-	IS1 orfB
2820	 49.28	0	3169116..3169391	+	91	30064397	-	S3292	-	IS4 orf
2821	 45.77	-1	3169778..3169978	-	66	30064398	glgS	S3294	-	glycogen synthesis protein GlgS
2822	 54.00	0	3170300..3170599	+	99	30064399	-	S3295	-	IS1 orfA
2823	 56.42	+1	3173108..3174541	-	477	30064400	-	S3298	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
2824	 55.30	0	3174589..3177429	-	946	30064401	glnE	S3299	-	bifunctional glutamine-synthetase adenylyltransferase/deadenyltransferase
2825	 54.69	0	3177452..3178753	-	433	30064402	ygiF	S3300	-	hypothetical protein
2826	 52.33	0	3178995..3179615	+	206	30064403	ygiM	S3301	-	putative signal transduction protein
2827	 56.17	+1	3179679..3180917	+	412	30064404	cca	S3302	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
2828	 52.55	0	3181079..3181900	-	273	30064405	uppP	S3303	-	undecaprenyl pyrophosphate phosphatase
2829	 50.68	0	3181991..3182359	-	122	30064406	folB	S3304	-	bifunctional dihydroneopterin aldolase/dihydroneopterin triphosphate 2'-epimerase
2830	 53.40	0	3182464..3183081	+	205	30064407	ygiH	S3305	-	putative glycerol-3-phosphate acyltransferase PlsY
2831	 49.10	0	3183024..3184025	-	333	30064408	ygiP	S3306	-	transcriptional activator TtdR
2832	 53.33	0	3184235..3185044	+	269	30064409	ttdA	S3307	-	tartrate dehydratase subunit alpha
2833	 53.30	0	3185072..3185677	+	201	30064410	ttdB	S3308	-	L(+)-tartrate dehydratase subunit beta
2834	 55.53	0	3185725..3187188	+	487	30064411	ygjE	S3309	-	hypothetical protein
2835	 57.00	+1	3187231..3188244	-	337	30064412	ygjD	S3310	-	O-sialoglycoprotein endopeptidase
2836	 51.85	0	3188482..3188697	+	71	30064413	rpsU	S3311	-	30S ribosomal protein S21
2837	 52.29	0	3188808..3190553	+	581	30064414	dnaG	S3312	-	DNA primase
2838	 53.04	0	3190748..3192574	+	608	30064415	rpoD	S3313	-	RNA polymerase sigma factor RpoD
2839	 54.33	0	3192746..3194074	+	442	30064416	-	S3314	-	IS4 orf
2840	 53.69	0	3195888..3196511	+	207	30064417	yqjI	S3318	-	hypothetical protein
2841	 55.08	0	3198576..3199982	+	468	161486434	ygjG	S3320	-	putrescine--2-oxoglutarate aminotransferase
2842	 51.32	0	3200573..3201556	+	327	30064419	ebgR	S3322	-	DNA-binding transcriptional repressor EbgR
2843	 54.49	0	3201739..3204825	+	1028	30064420	ebgA	S3323	-	cryptic beta-D-galactosidase subunit alpha
2844	 44.89	-1	3204822..3205271	+	149	30064421	ebgC	S3324	-	cryptic beta-D-galactosidase subunit beta
2845	 49.86	0	3205334..3206767	+	477	30064422	ygjI	S3325	-	putative oxidoreductase
2846	 54.42	0	3207989..3210340	+	783	30064423	ygjK	S3327	-	glycosyl hydrolase
2847	 57.50	+1	3210566..3212584	+	672	30064424	ygjL	S3328	-	putative NADPH dehydrogenase
2848	 48.44	0	3212629..3213045	-	138	30064425	ygjM	S3329	-	hypothetical protein
2849	 38.41	-2	3213042..3213356	-	104	30064426	ygjN	S3330	-	hypothetical protein
2850	 53.56	0	3213641..3214777	-	378	30064427	ygjO	S3331	-	putative enzyme
2851	 50.74	0	3214826..3215365	+	179	30064428	ygjP	S3332	-	hypothetical protein
2852	 51.95	0	3215442..3216134	+	230	30064429	ygjQ	S3333	-	hypothetical protein
2853	 52.61	0	3216195..3217211	+	338	30064430	ygjR	S3334	-	hypothetical protein
2854	 54.14	0	3217482..3218447	+	321	30064431	ygjT	S3335	-	putative transport protein
2855	 54.86	0	3219032..3220276	+	414	30064432	ygjU	S3336	-	serine/threonine transporter SstT
2856	 50.00	0	3220281..3220832	-	183	30064433	ygjV	S3337	-	hypothetical protein
2857	 54.23	0	3220915..3222402	-	495	30064434	uxaA	S3338	-	altronate hydrolase
2858	 54.00	0	3222417..3223829	-	470	30064435	uxaC	S3339	-	glucuronate isomerase
2859	 54.35	0	3224314..3225612	+	432	30064436	exuT	S3340	-	transport protein of hexuronates
2860	 49.92	0	3225700..3226332	-	210	30064437	-	S3341	-	hypothetical protein
2861	 47.84	0	3226785..3228776	-	663	30064438	-	S3342	-	hypothetical protein
2862	 52.90	0	3228942..3229217	+	91	30064439	-	S3343	-	IS1 orfA
2863	 52.98	0	3229136..3229639	+	167	30064440	-	S3344	-	IS1 orfB
2864	 49.81	0	3229747..3230523	+	258	30064441	exuR	S3345	-	DNA-binding transcriptional repressor ExuR
2865	 50.38	0	3230868..3231530	+	220	30064442	yqjA	S3346	-	hypothetical protein
2866	 54.20	0	3231549..3231917	+	122	30064443	yqjB	S3347	-	hypothetical protein
2867	 54.25	0	3232456..3232761	+	101	30064444	yqjD	S3349	-	hypothetical protein
2868	 52.84	0	3232764..3233168	+	134	30064445	yqjE	S3350	-	hypothetical protein
2869	 56.00	+1	3233158..3233457	+	99	30064446	-	S3351	-	hypothetical protein
2870	 51.57	0	3234009..3234995	+	328	30064447	yqjG	S3353	-	putative transferase
2871	 51.22	0	3235288..3235656	+	122	30064448	yhaH	S3354	-	putative cytochrome
2872	 55.74	+1	3235863..3236759	-	298	30064449	yhaJ	S3356	-	putative LYSR-type transcriptional regulator
2873	 52.85	0	3236864..3237565	+	233	30064450	yhaK	S3357	-	hypothetical protein
2874	 52.12	0	3237588..3237752	+	54	30064451	yhaL	S3358	-	hypothetical protein
2875	 56.08	+1	3237964..3238530	-	188	30064452	yhaM	S3359	-	hypothetical protein
2876	 56.54	+1	3238466..3239275	-	269	30064453	yhaN	S3360	-	hypothetical protein
2877	 50.23	0	3239303..3240634	-	443	30064454	yhaO	S3361	-	putative transport system permease protein
2878	 53.41	0	3240909..3242273	-	454	30064455	-	S3363	-	putative L-serine deaminase
2879	 52.56	0	3242345..3242734	-	129	30064456	yhaR	S3365	-	hypothetical protein
2880	 53.12	0	3242748..3245042	-	764	30064457	tdcE	S3366	-	formate acetyltransferase 3
2881	 47.58	0	3245076..3246296	-	406	161486433	tdcD	S3367	-	propionate/acetate kinase
2882	 49.62	0	3246310..3247641	-	443	30064459	tdcC	S3368	-	threonine/serine transporter TdcC
2883	 46.06	-1	3247663..3248652	-	329	30064460	tdcB	S3369	-	threonine dehydratase
2884	 42.17	-2	3248751..3249689	-	312	30064461	tdcA	S3370	-	DNA-binding transcriptional activator TdcA
2885	 31.88	-2	3249879..3250223	+	114	30064462	tdcR	S3371	-	DNA-binding transcriptional activator TdcR
2886	 47.27	-1	3252275..3252439	+	54	30064463	-	S3374	-	hypothetical protein
2887	 53.40	0	3253237..3254382	-	381	161486432	yhaD	S3376	-	glycerate kinase I
2888	 52.97	0	3254479..3255369	-	296	161486431	garR	S3377	-	tartronate semialdehyde reductase
2889	 50.64	0	3256185..3257519	-	444	30064466	yhaU	S3379	-	putative transport protein
2890	 52.93	0	3257894..3259465	+	523	30064467	yhaG	S3380	-	putative hydrolase
2891	 52.24	0	3259517..3260341	-	274	30064468	agaR	S3381	-	DNA-binding transcriptional regulator AgaR
2892	 55.04	0	3260590..3261870	+	426	30064469	agaZ	S3382	-	putative tagatose 6-phosphate kinase 2
2893	 50.39	0	3261857..3262366	+	169	30064470	agaV	S3383	-	N-acetylgalactosamine-specific PTS system transporter subunit IIB
2894	 55.77	+1	3262377..3263156	+	259	30064471	agaW	S3384	-	N-acetylgalactosameine-specific IIC component 2
2895	 52.47	0	3263146..3263955	+	269	30064472	agaE	S3385	-	putative transport enzyme subunit
2896	 53.10	0	3264042..3264476	+	144	30064473	agaF	S3386	-	putative transport enzyme subunit
2897	 57.21	+1	3264473..3264916	+	147	30064474	agaA	S3387	-	N-acetylglucosamine-6-phosphate deacetylase
2898	 52.90	0	3264945..3265220	+	91	30064475	-	S3388	-	IS1 orfA
2899	 52.98	0	3265139..3265642	+	167	30064476	-	S3389	-	IS1 orfB
2900	 51.24	0	3265897..3266700	+	267	30064477	agaC	S3391	-	N-acetylgalactosamine-specific PTS system transporter subunit IIC
2901	 49.49	0	3266690..3267481	+	263	30064478	agaD	S3392	-	N-acetylgalactosamine-specific PTS system transporter subunit IID
2902	 49.74	0	3267482..3268237	+	251	30064479	agaI	S3393	-	galactosamine-6-phosphate isomerase
2903	 52.58	0	3268746..3269249	-	167	30064480	-	S3394	-	IS1 ORF2
51.60	MEAN

4.04	STD DEV
