IslandPath Analysis: Shigella flexneri 2a str. 2457T

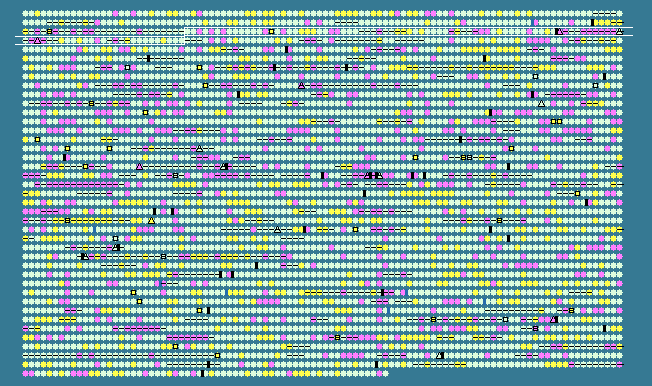

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
228	 54.74	0	254826..255152	+	108	30061801	-	S0249	-	IS629 orfA
229	 54.78	0	255387..256034	+	215	30061802	-	S0250	-	IS629 orfB
230	 47.49	-1	256085..256423	-	112	30061803	psiF	S0251	-	hypothetical protein
231	 52.19	0	256524..258008	-	494	30061804	phoA	S0252	-	alkaline phosphatase
232	 45.59	-1	258040..258300	-	86	30061805	yaiB	S0253	-	hypothetical protein
233	 51.32	0	258763..259857	+	364	30061806	ddl	S0254	-	D-alanyl-alanine synthetase A
234	 44.35	-1	259881..260225	-	114	30061807	-	S0255	-	hypothetical protein
235	 52.75	0	260353..260661	+	102	30061808	-	S0256	-	hypothetical protein
236	 53.24	0	260720..261814	-	364	30061809	yaiW	S0257	-	hypothetical protein
237	 51.02	0	261827..263047	-	406	30061810	sbmA	S0258	-	transport protein
238	 54.75	0	263399..264556	+	385	30061811	yaiH	S0259	-	beta-lactamase/D-alanine carboxypeptidase
239	 50.43	0	265695..266507	-	270	30061812	-	S0262	-	ISEhe3 orfB
240	 52.10	0	266781..267494	-	237	30061813	-	S0263	-	IS600 orfB
241	 46.53	-1	267635..267937	-	100	30061814	is600a	S0264	-	IS600 orfA
242	 55.19	0	268714..269619	-	301	161486542	yi22_6	S0266	-	insertion element IS2 transposase InsD
243	 53.01	0	269577..269942	-	121	161486541	yi21_6	S0267	-	insertion sequence 2 OrfA protein
244	 29.63	-2	270487..270756	+	89	30061817	-	S0269	-	hypothetical protein
245	 53.77	0	270893..271900	+	335	30061818	hemB	S0270	-	delta-aminolevulinic acid dehydratase
246	 54.58	0	272006..272857	-	283	30061819	tauD	S0271	-	taurine dioxygenase
247	 58.33	+1	272854..273681	-	275	30061820	tauC	S0272	-	taurine transporter subunit
248	 55.99	+1	273678..274445	-	255	30061821	tauB	S0273	-	taurine transporter ATP-binding subunit
249	 56.52	+1	274458..275354	-	298	30061822	tauA	S0274	-	taurine transporter substrate binding subunit
250	 52.98	0	275912..276415	-	167	30061823	-	S0275	-	IS1 orfB
251	 52.90	0	276334..276609	-	91	30061824	-	S0276	-	IS1 orfA
252	 37.22	-2	276754..277422	+	222	30061825	ykgH	S0277	-	hypothetical protein
253	 42.25	-2	277498..277710	+	70	30061826	-	S0278	-	hypothetical protein
254	 52.30	0	277665..278360	-	231	161486540	ykgG	S0279	-	putative transporter
255	 50.42	0	278353..279780	-	475	30061828	ykgF	S0280	-	hypothetical protein
256	 50.14	0	279791..280510	-	239	30061829	ykgE	S0281	-	putative dehydrogenase subunit
257	 52.90	0	280929..281204	+	91	30061830	-	S0282	-	IS1 orfA
258	 52.98	0	281123..281626	+	167	30061831	-	S0283	-	IS1 orfB
259	 54.11	0	282704..284917	+	737	30061832	rhsG	S0284	-	putative Rhs-family protein
260	 47.26	-1	284940..285140	+	66	30061833	-	S0285	-	cytoplasmic protein
261	 48.68	0	285197..285385	+	62	30061834	-	S0286	-	putative cytoplasmic protein
262	 54.17	0	285407..285814	+	135	30061835	-	S0287	-	putative Rhs-family protein
263	 59.50	+1	285811..288099	+	762	30061836	rhsD	S0288	-	putative Rhs-family protein
264	 56.36	+1	288096..289085	+	329	30061837	rhs-like	S0289	-	putative Rhs-family protein
265	 55.12	0	290134..290904	-	256	30061838	yafV	S0290	-	hypothetical protein
266	 50.42	0	291058..291531	+	157	30061839	ykfE	S0291	-	vertebrate C-lysozyme inhibitor
267	 55.99	+1	291574..294018	-	814	161486539	fadE	S0292	-	acyl-CoA dehydrogenase
268	 50.78	0	294258..294836	+	192	30061841	gmhA	S0293	-	phosphoheptose isomerase
269	 53.65	0	295042..295809	+	255	30061842	yafJ	S0294	-	putative amidotransferase
270	 49.26	0	295780..296520	-	246	30061843	yafK	S0295	-	hypothetical protein
271	 54.95	0	296871..297425	+	184	30061844	yafL	S0296	-	putative lipoprotein
272	 45.18	-1	297601..298098	+	165	30061845	yafM	S0297	-	hypothetical protein
273	 58.39	+1	298315..300054	-	579	30061846	fhiA	S0299	-	flagellar biosynthetic protein FlhA
274	 52.29	0	299999..300784	+	261	30061847	mbhA	S0298	-	hypothetical protein
275	 53.88	0	300855..301910	+	351	30061848	dinP	S0300	-	DNA polymerase IV
276	 41.16	-2	301962..302255	+	97	30061849	yafN	S0301	-	putative antitoxin of the YafO-YafN toxin-antitoxin system
277	 43.36	-2	302258..302656	+	132	30061850	yafO	S0302	-	putative toxin YafO
278	 42.83	-2	302666..303118	+	150	30061851	yafP	S0303	-	hypothetical protein
279	 52.87	0	303364..304407	+	347	30061852	-	S0304	-	hypothetical protein
280	 56.36	+1	304523..304978	+	151	30061853	prfH	S0305	-	peptide chain release factor 2
281	 51.44	0	305140..306597	-	485	30061854	pepD	S0306	-	aminoacyl-histidine dipeptidase (peptidase D)
282	 52.07	0	306859..307317	+	152	30061855	gpt	S0307	-	xanthine-guanine phosphoribosyltransferase
283	 53.25	0	307409..308653	+	414	30061856	frsA	S0308	-	fermentation/respiration switch protein
284	 50.00	0	308711..309112	+	133	30061857	crl	S0309	-	DNA-binding transcriptional regulator Crl
285	 45.17	-1	309151..310206	-	351	30061858	phoE	S0310	-	outer membrane phosphoporin protein E
286	 52.54	0	310382..310657	+	91	30061859	-	S0311	-	IS1 orfA
287	 52.78	0	310576..311079	+	167	30061860	-	S0312	-	IS1 orfB
288	 55.80	+1	311270..312373	+	367	30061861	proB	S0313	-	gamma-glutamyl kinase
289	 54.31	0	312385..313638	+	417	30061862	proA	S0314	-	gamma-glutamyl phosphate reductase
290	 46.48	-1	313843..315006	-	387	30061863	-	S0316	-	putative phage integrase
291	 46.20	-1	315192..315494	+	100	30061864	-	S0317	-	IS600 orfA
292	 52.24	0	315635..316348	+	237	30061865	-	S0318	-	IS600 orfB
293	 50.69	0	316401..317051	+	216	30061866	-	S0319	-	hypothetical protein
294	 40.69	-2	316960..317421	+	153	30061867	-	S4801	-	putative phage tail fibre protein
295	 31.62	-2	318229..319278	-	349	30061868	-	S4802	-	hypothetical protein
296	 45.17	-1	319729..320919	+	396	30061869	-	S4808	-	hypothetical protein
297	 31.83	-2	321309..322769	-	486	30061870	gtrII	S4803	-	putative glucosyl tranferase II
298	 42.26	-2	322766..323695	-	309	30061871	gtrBI	S0320	-	putative bactoprenol glucosyl transferase
299	 42.70	-2	323692..324054	-	120	30061872	gtrAI	S0321	-	putative flippase
300	 50.68	0	324316..324609	-	97	30061873	-	S0322	-	integrase fragment
301	 52.24	0	324718..325431	-	237	30061874	-	S0323	-	IS600 orfB
302	 46.53	-1	325572..325874	-	100	30061875	-	S0324	-	IS600 orfA
303	 46.82	-1	326060..327223	+	387	30061876	-	S0325	-	putative phage integrase
304	 33.93	-2	327572..328744	+	390	30061877	-	S4804	-	hypothetical protein
305	 49.43	0	329548..329988	-	146	30061878	-	S0326	-	IS600 orfB
306	 54.43	0	330729..331349	-	206	30061879	-	S0327	-	IS629 orfB
307	 55.25	0	331711..331929	-	72	30061880	-	S0328	-	IS629, orfA
308	 53.67	0	332080..333195	+	371	30061881	yaiC	S0329	-	diguanylate cyclase AdrA
309	 54.81	0	333212..334021	-	269	30061882	proC	S0330	-	pyrroline-5-carboxylate reductase
310	 56.21	+1	334141..334599	+	152	161486538	yaiI	S0331	-	hypothetical protein
311	 52.00	0	334782..335306	+	174	30061884	aroL	S0332	-	shikimate kinase II
312	 48.44	0	335356..335547	+	63	30061885	yaiA	S0333	-	hypothetical protein
313	 46.17	-1	335805..336482	+	225	30061886	aroM	S0334	-	hypothetical protein
314	 51.23	0	336554..336838	+	94	30061887	yaiE	S0335	-	hypothetical protein
315	 48.94	0	337047..337328	+	93	30061888	-	S0336	-	hypothetical protein
316	 43.64	-1	337325..337780	+	151	30061889	-	S0337	-	hypothetical protein
317	 51.54	0	337858..338769	-	303	30061890	rdgC	S0339	-	recombination associated protein
318	 55.70	+1	338894..339787	+	297	161486537	yajF	S0338	-	fructokinase
319	 50.51	0	339945..341126	-	393	30061892	araJ	S0341	-	protein AraJ
320	 54.04	0	341252..344395	-	1047	30061893	sbcC	S0342	-	exonuclease subunit SbcC
321	 53.20	0	344392..345594	-	400	30061894	sbcD	S0343	-	exonuclease subunit SbcD
322	 53.91	0	345784..346473	+	229	30061895	phoB	S0344	-	transcriptional regulator PhoB
323	 53.24	0	346531..347826	+	431	30061896	phoR	S0345	-	phosphate regulon sensor protein
324	 55.53	0	348233..349552	+	439	30061897	brnQ	S0346	-	branched-chain amino-acid transport system II carrier protein
325	 52.55	0	349628..351001	+	457	30061898	proY	S0347	-	putative proline-specific permease
326	 54.35	0	351157..352974	+	605	30061899	malZ	S0348	-	maltodextrin glucosidase
327	 53.97	0	353645..354715	+	356	30061900	queA	S0350	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
51.60	MEAN

4.04	STD DEV
