IslandPathversion 1.0

IslandPath Analysis: Shigella flexneri 2a str. 2457T

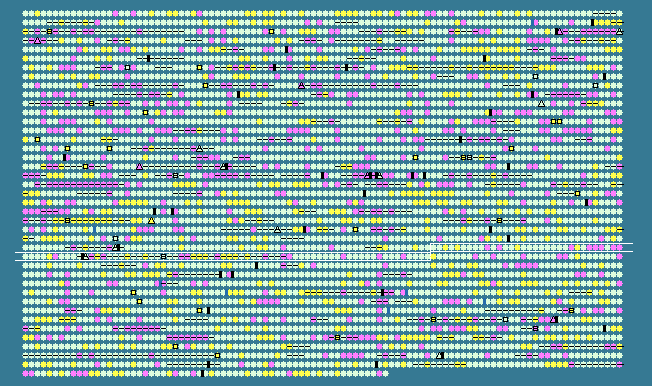

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2669	 52.17	0	3007161..3007436	-	91	30064246	-	S3125	-	IS1 orfA
2670	 48.84	0	3007927..3008835	+	302	30064247	-	S3126	-	putative serine protease
2671	 56.07	+1	3008881..3010872	-	663	30064248	tktA	S3127	-	transketolase
2672	 52.09	0	3011024..3011908	+	294	30064249	yggG	S3128	-	hypothetical protein
2673	 55.59	0	3012114..3013034	-	306	30064250	speB	S3129	-	agmatinase
2674	 50.13	0	3013170..3013544	-	124	30064251	-	S3130	-	lipoprotein
2675	 52.58	0	3013570..3014073	-	167	30064252	-	S3131	-	IS1 orfB
2676	 52.54	0	3013992..3014267	-	91	30064253	-	S3132	-	IS1 orfA
2677	 53.82	0	3014414..3016390	-	658	30064254	speA	S3133	-	arginine decarboxylase
2678	 40.82	-2	3016399..3016545	-	48	30064255	yqgB	S3134	-	hypothetical protein
2679	 48.61	0	3016666..3016881	+	71	30064256	yqgC	S3135	-	hypothetical protein
2680	 43.25	-2	3016878..3017129	-	83	30064257	yqgD	S3136	-	hypothetical protein
2681	 53.25	0	3017185..3018339	+	384	30064258	metK	S3137	-	S-adenosylmethionine synthetase
2682	 53.32	0	3018815..3020170	+	451	30064259	galP	S3138	-	major facilitator superfamily galactose-proton symporter
2683	 55.22	0	3020247..3020744	+	165	30064260	sprT	S3139	-	hypothetical protein
2684	 54.52	0	3020839..3021546	+	235	30064261	endA	S3140	-	DNA-specific endonuclease I
2685	 53.01	0	3021626..3022357	+	243	30064262	yggJ	S3141	-	hypothetical protein
2686	 53.52	0	3022370..3023320	+	316	30064263	gshB	S3142	-	glutathione synthetase
2687	 51.42	0	3023429..3023992	+	187	161486443	yqgE	S3143	-	hypothetical protein
2688	 53.24	0	3023992..3024408	+	138	30064265	yqgF	S3144	-	Holliday junction resolvase-like protein
2689	 54.09	0	3024584..3025609	-	341	30064266	yggR	S3146	-	putative transport protein
2690	 51.21	0	3025582..3026286	+	234	30064267	yggS	S3145	-	hypothetical protein
2691	 51.32	0	3026304..3026870	+	188	30064268	yggT	S3147	-	putative resistance protein
2692	 48.11	0	3026867..3027157	+	96	161486442	yggU	S3148	-	hypothetical protein
2693	 55.72	+1	3027165..3027758	+	197	30064270	yggV	S3149	-	putative deoxyribonucleotide triphosphate pyrophosphatase
2694	 52.33	0	3027751..3028887	+	378	30064271	yggW	S3150	-	coproporphyrinogen III oxidase
2695	 42.66	-2	3029201..3029554	+	117	30064272	-	S3151	-	hypothetical protein
2696	 42.09	-2	3029571..3030164	+	197	30064273	-	S3152	-	hypothetical protein
2697	 43.25	-2	3030209..3030712	+	167	30064274	-	S3153	-	hypothetical protein
2698	 52.90	0	3031144..3031419	-	91	30064275	-	S3154	-	IS1 orfA
2699	 46.01	-1	3031476..3032777	+	433	30064276	-	S3155	-	hypothetical protein
2700	 44.76	-1	3032878..3033840	-	320	30064277	yggM	S3156	-	putative alpha helix chain
2701	 52.53	0	3033957..3035003	-	348	30064278	ansB	S3157	-	L-asparaginase II
2702	 52.72	0	3035179..3035895	-	238	30064279	yggN	S3158	-	hypothetical protein
2703	 48.32	0	3036082..3036408	-	108	161486441	yggL	S3159	-	hypothetical protein
2704	 52.64	0	3036408..3037127	-	239	30064281	trmB	S3160	-	tRNA (guanine-N(7))-methyltransferase
2705	 55.56	0	3037288..3038340	+	350	30064282	mutY	S3161	-	adenine DNA glycosylase
2706	 47.46	-1	3038368..3038643	+	91	30064283	yggX	S3162	-	hypothetical protein
2707	 50.88	0	3038705..3039787	+	360	30064284	mltC	S3163	-	murein transglycosylase C
2708	 49.58	0	3039941..3041245	+	434	30064285	nupG	S3164	-	permease protein for nucleosides
2709	 52.00	0	3041294..3043489	-	731	30064286	speC	S3165	-	ornithine decarboxylase
2710	 51.55	0	3043827..3044534	+	235	30064287	yqgA	S3166	-	putative transport protein
2711	 48.77	0	3044913..3046175	+	420	30064288	-	S4822	-	putative P4-type integrase
2712	 47.16	-1	3046628..3050143	+	1171	30064289	-	S3169	-	superfamily I DNA helicase
2713	 56.56	+1	3051492..3052253	+	253	30064290	-	S4823	-	hypothetical protein
2714	 41.76	-2	3052614..3056471	+	1285	30064291	sigA	S4824	-	serine protease
2715	 52.51	0	3059545..3059763	+	72	30064292	-	S3177	-	hypothetical protein
2716	 51.20	0	3059914..3063126	-	1070	30064293	pic	S3178	-	serine protease precurser
2717	 51.44	0	3064760..3065593	-	277	30064294	-	S3180	-	reverse transcriptase-like protein
2718	 55.95	+1	3065587..3066267	-	226	30064295	-	S3181	-	reverse transcriptase-like protein
2719	 53.21	0	3067353..3067679	-	108	30064296	-	S3184	-	IS629 orfA
2720	 51.64	0	3067962..3068387	-	141	30064297	-	S3185	-	hypothetical protein
2721	 55.21	0	3068384..3068767	-	127	30064298	-	S3186	-	hypothetical protein
2722	 48.50	0	3069140..3069739	-	199	30064299	-	S3187	-	hypothetical protein
2723	 53.01	0	3070456..3070821	+	121	161486440	-	S3188	-	insertion sequence 2 OrfA protein
2724	 55.08	0	3070779..3071684	+	301	161486439	-	S3189	-	insertion element IS2 transposase InsD
2725	 53.62	0	3073538..3073744	+	68	30064302	-	S3190	-	hypothetical protein
2726	 51.83	0	3073830..3074402	+	190	30064303	-	S3191	-	hypothetical protein
2727	 47.02	-1	3074404..3074688	-	94	30064304	-	S4825	-	hypothetical protein
2728	 37.45	-2	3075971..3076990	+	339	30064305	-	S4826	-	hypothetical protein
2729	 57.96	+1	3077100..3077972	+	290	30064306	sap	S3193	-	hypothetical protein
2730	 56.26	+1	3078306..3079199	+	297	30064307	-	S3194	-	outer membrane fluffing protein
2731	 58.51	+1	3079305..3081425	+	706	30064308	-	S3195	-	outer membrane fluffing protein
2732	 52.24	0	3081546..3084062	+	838	30064309	-	S3196	-	hypothetical protein
2733	 48.03	0	3084138..3084593	+	151	30064310	-	S3197	-	hypothetical protein
2734	 56.78	+1	3085004..3085822	+	272	30064311	-	S3199	-	hypothetical protein
2735	 55.70	+1	3086164..3086637	+	157	30064312	-	S3200	-	hypothetical protein
2736	 58.33	+1	3086638..3087129	+	163	30064313	yeeS	S3201	-	RADC family DNA repair protein
2737	 52.70	0	3087216..3087437	+	73	30064314	yeeT	S3202	-	hypothetical protein
2738	 60.85	+2	3087517..3087894	+	125	30064315	yeeU	S3203	-	putative structural protein
2739	 54.76	0	3087941..3088318	+	125	30064316	yeeV	S3204	-	hypothetical protein
2740	 53.99	0	3088315..3088803	+	162	30064317	yeeW	S3205	-	hypothetical protein
2741	 47.92	0	3089105..3089947	+	280	30064318	-	S3207	-	hypothetical protein
2742	 50.33	0	3091372..3091671	+	99	30064319	-	S3209	-	IS3 orfA
2743	 55.02	0	3091668..3092534	+	288	30064320	-	S3210	-	IS3 orfB
2744	 42.92	-2	3093171..3093410	-	79	30064321	-	S3211	-	hypothetical protein
2745	 41.58	-2	3093545..3094150	-	201	30064322	-	S3212	-	hypothetical protein
2746	 52.98	0	3094265..3094768	-	167	30064323	-	S3213	-	IS1 orfB
2747	 52.90	0	3094687..3094962	-	91	30064324	-	S3214	-	IS1 orfA
2748	 52.55	0	3096365..3097951	-	528	30064325	yghK	S3215	-	putative permease
2749	 53.50	0	3098306..3100477	-	723	30064326	glcB	S3216	-	malate synthase G
2750	 54.81	0	3100499..3100903	-	134	30064327	glcG	S3217	-	hypothetical protein
2751	 54.99	0	3104940..3105710	+	256	30064328	glcC	S3220	-	DNA-binding transcriptional regulator GlcC
2752	 52.93	0	3107379..3109067	+	562	30064329	-	S3222	-	acyl-CoA synthetase
2753	 54.63	0	3109082..3109978	+	298	30064330	-	S3223	-	hypothetical protein
2754	 40.56	-2	3110011..3110259	+	82	30064331	-	S3224	-	hypothetical protein
2755	 50.71	0	3110259..3110609	+	116	30064332	-	S3225	-	putative class II aminotransferase
2756	 52.72	0	3110642..3111430	+	262	30064333	-	S3226	-	putative class II aminotransferase
2757	 51.30	0	3111466..3112545	-	359	30064334	-	S3227	-	hypothetical protein
2758	 51.26	0	3112542..3113612	-	356	30064335	-	S3228	-	hypothetical protein
2759	 48.66	0	3113643..3114203	-	186	30064336	-	S3229	-	hypothetical protein
2760	 45.70	-1	3114215..3115039	-	274	30064337	-	S3230	-	hypothetical protein
2761	 52.89	0	3115039..3116388	-	449	30064338	yghQ	S3231	-	hypothetical protein
2762	 53.23	0	3116434..3117192	-	252	30064339	yghR	S3232	-	hypothetical protein
2763	 49.58	0	3117224..3117937	-	237	30064340	yghS	S3233	-	hypothetical protein
2764	 47.33	-1	3118111..3118803	+	230	30064341	yghT	S3234	-	hypothetical protein
2765	 51.87	0	3118852..3120351	-	499	30064342	pitB	S3235	-	low-affinity phosphate transport protein
2766	 52.26	0	3120643..3122502	-	619	30064343	gsp	S3236	-	bifunctional glutathionylspermidine amidase/glutathionylspermidine synthetase
2767	 53.66	0	3122659..3123573	+	304	30064344	-	S3237	-	putative glutathione S-transferase YghU
2768	 53.41	0	3123696..3123944	-	82	30064345	hybG	S3238	-	hydrogenase 2 accessory protein HypG
51.60	MEAN

4.04	STD DEV
