IslandPath Analysis: Shigella flexneri 2a str. 2457T

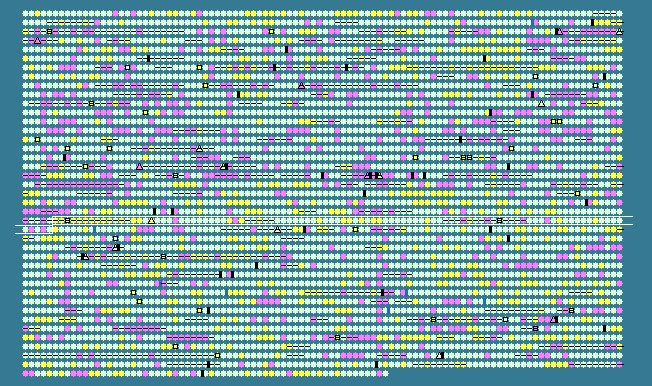

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2306	 60.78	+2	2598850..2599665	+	271	30063882	-	S2703	-	dihydropteroate synthase
2307	 58.09	+1	2599752..2600054	+	100	30063883	-	S2704	-	phosphoglucosamine mutase
2308	 60.78	+2	2600230..2601723	-	497	30063884	-	S2705	-	putative transposase
2309	 60.89	+2	2601934..2602158	-	74	30063885	-	S2706	-	hypothetical protein
2310	 67.48	+2	2602155..2602892	-	245	30063886	parA	S2707	-	resolvase
2311	 62.16	+2	2603040..2603372	+	110	30063887	-	S2708	-	putative transcriptional regulator
2312	 62.11	+2	2603369..2604136	+	255	30063888	-	S2709	-	putative arsenical resistance protein
2313	 60.55	+2	2604133..2604639	+	168	30063889	-	S2710	-	arsenate reductase
2314	 62.83	+2	2604636..2605703	+	355	30063890	-	S2711	-	putative sodium bile acid symporter family protein
2315	 60.12	+2	2606599..2607087	-	162	30063891	-	S2715	-	hypothetical protein
2316	 53.04	0	2607237..2608043	-	268	30063892	trbL	S2716	-	putative mating pair formation protein
2317	 59.87	+2	2608282..2609061	-	259	30063893	trbJ	S2718	-	putative mating pair formation protein
2318	 52.38	0	2609202..2609390	-	62	30063894	-	S2719	-	putative stabilization protein
2319	 59.07	+1	2610423..2611304	-	293	30063895	repC	S2720	-	putative replication protein C
2320	 55.68	+1	2611291..2612118	-	275	30063896	-	S2721	-	putative DNA helicase
2321	 50.00	0	2612123..2612344	-	73	30063897	-	S2722	-	hypothetical protein
2322	 58.02	+1	2612492..2613694	-	400	30063898	-	S2723	-	putative integrase
2323	 53.99	0	2613999..2615576	-	525	30063899	guaA	S2725	-	bifunctional GMP synthase/glutamine amidotransferase protein
2324	 54.33	0	2615645..2617111	-	488	30063900	guaB	S2726	-	inositol-5-monophosphate dehydrogenase
2325	 53.25	0	2617273..2618643	+	456	30063901	xseA	S2727	-	exodeoxyribonuclease VII large subunit
2326	 47.22	-1	2618640..2618891	-	83	30063902	-	S2728	-	hypothetical protein
2327	 52.21	0	2618925..2620397	-	490	30063903	engA	S2729	-	GTP-binding protein EngA
2328	 53.35	0	2620515..2621693	-	392	30063904	-	S2730	-	outer membrane protein assembly complex subunit YfgL
2329	 49.92	0	2621704..2622324	-	206	30063905	-	S2731	-	hypothetical protein
2330	 54.35	0	2622342..2623616	-	424	30063906	hisS	S2732	-	histidyl-tRNA synthetase
2331	 53.19	0	2623719..2624846	-	375	30063907	ispG	S2733	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2332	 54.34	0	2624873..2625886	-	337	30063908	yfgA	S2734	-	hypothetical protein
2333	 52.73	0	2626171..2627325	-	384	30063909	yfgB	S2735	-	hypothetical protein
2334	 52.55	0	2627475..2627906	-	143	30063910	ndk	S2736	-	nucleoside diphosphate kinase
2335	 57.81	+1	2630171..2631367	-	398	30063911	-	S2738	-	ISSfl4 orf
2336	 47.23	-1	2632898..2633674	-	258	30063912	sseB	S2741	-	enhanced serine sensitivity protein SseB
2337	 56.07	+1	2633816..2635099	-	427	30063913	pepB	S2742	-	aminopeptidase B
2338	 50.75	0	2635158..2635358	-	66	30063914	yfhJ	S2743	-	hypothetical protein
2339	 52.68	0	2635370..2635705	-	111	30063915	fdx	S2744	-	[2FE-2S] ferredoxin, electron carrer protein
2340	 57.59	+1	2635707..2637557	-	616	30063916	hscA	S2745	-	chaperone protein HscA
2341	 51.94	0	2637574..2638089	-	171	30063917	hscB	S2746	-	co-chaperone HscB
2342	 50.62	0	2638185..2638508	-	107	30063918	iscA	S2747	-	iron-sulfur cluster assembly protein
2343	 49.35	0	2638525..2638911	-	128	30063919	-	S2748	-	scaffold protein
2344	 53.25	0	2638939..2640153	-	404	30063920	yfhO	S2749	-	cysteine desulfurase
2345	 53.78	0	2640265..2640753	-	162	30063921	-	S2750	-	DNA-binding transcriptional regulator IscR
2346	 54.79	0	2641023..2641763	-	246	30063922	-	S2751	-	putative ATP synthase beta subunit
2347	 53.86	0	2641882..2642685	+	267	30063923	suhB	S2752	-	inositol monophosphatase
2348	 50.41	0	2642830..2643684	+	284	30063924	-	S2753	-	putative enzyme
2349	 51.44	0	2643875..2645155	+	426	30063925	csiE	S2754	-	stationary phase inducible protein CsiE
2350	 56.40	+1	2645147..2646286	-	379	30063926	hcaT	S2755	-	putative 3-phenylpropionic acid transporter
2351	 49.94	0	2646446..2647336	-	296	30063927	hcaR	S2756	-	DNA-binding transcriptional regulator HcaR
2352	 53.08	0	2647472..2648833	+	453	30063928	hcaA1	S2757	-	large terminal subunit of phenylpropionate dioxygenase
2353	 52.79	0	2648830..2649348	+	172	30063929	hcaA2	S2758	-	3-phenylpropionate dioxygenase subunit beta
2354	 55.45	0	2649348..2649668	+	106	30063930	hcaC	S2759	-	3-phenylpropionate dioxygenase ferredoxin subunit
2355	 56.09	+1	2649665..2650477	+	270	30063931	hcaB	S2760	-	2,3-dihydroxy-2,3-dihydrophenylpropionate dehydrogenase
2356	 48.89	0	2651734..2652228	+	164	30063932	yphA	S2762	-	hypothetical protein
2357	 55.10	0	2652276..2653148	-	290	30063933	yphB	S2763	-	hypothetical protein
2358	 54.16	0	2653160..2654254	-	364	30063934	yphC	S2764	-	putative oxidoreductase
2359	 55.26	0	2654287..2655285	-	332	30063935	yphD	S2765	-	putative transport system permease protein
2360	 55.16	0	2655310..2656821	-	503	30063936	yphE	S2766	-	putative ATP-binding component of a transport system
2361	 51.26	0	2661322..2662515	+	397	30063937	yphH	S2769	-	putative NAGC-like transcriptional regulator
2362	 53.11	0	2662713..2663966	-	417	30063938	glyA	S2770	-	serine hydroxymethyltransferase
2363	 52.39	0	2664293..2665483	+	396	30063939	hmpA	S2771	-	nitric oxide dioxygenase
2364	 51.03	0	2665528..2665866	-	112	30063940	glnB	S2772	-	nitrogen regulatory protein P-II 1
2365	 54.31	0	2665927..2667261	-	444	30063941	yfhA	S2773	-	putative 2-component transcriptional regulator
2366	 54.34	0	2667251..2667964	-	237	30063942	yfhG	S2774	-	hypothetical protein
2367	 52.38	0	2668129..2669619	-	496	30063943	yfhK	S2775	-	putative 2-component sensor protein
2368	 56.64	+1	2670114..2674001	-	1295	30063944	purL	S2776	-	phosphoribosylformylglycinamidine synthase
2369	 50.39	0	2674398..2675816	+	472	30063945	yfhD	S2777	-	putative transglycosylase
2370	 54.00	0	2675813..2676349	-	178	30063946	yfhC	S2778	-	tRNA-specific adenosine deaminase
2371	 52.52	0	2676374..2677009	-	211	161486454	yfhB	S2779	-	hypothetical protein
2372	 51.83	0	2677218..2678066	+	282	161486453	yfhH	S2780	-	putative DNA-binding transcriptional regulator
2373	 49.89	0	2678519..2678959	-	146	30063949	-	S2781	-	DNA-invertase
2374	 46.36	-1	2679457..2681283	+	608	30063950	ipaH_7	S2782	-	invasion plasmid antigen
2375	 56.96	+1	2681284..2681829	-	181	30063951	-	S2783	-	hypothetical protein
2376	 53.33	0	2681874..2683163	-	429	30063952	-	S2784	-	putative tail fiber protein
2377	 49.69	0	2683187..2683675	-	162	30063953	-	S2785	-	putative tail fiber assembly protein
2378	 45.95	-1	2683735..2683845	-	36	30063954	-	S2786	-	putative tail fiber protein
2379	 53.01	0	2684317..2684682	+	121	161486452	-	S2787	-	insertion sequence 2 OrfA protein
2380	 55.19	0	2684640..2685545	+	301	161486451	-	S2788	-	insertion element IS2 transposase InsD
2381	 51.17	0	2685470..2686456	-	328	30063957	-	S2789	-	putative tail fiber protein
2382	 49.83	0	2686443..2687048	-	201	30063958	-	S2790	-	hypothetical protein
2383	 52.14	0	2687050..2687517	-	155	30063959	-	S2791	-	putative bacteriophage protein
2384	 45.87	-1	2687812..2688114	+	100	30063960	-	S2793	-	IS600 orfA
2385	 52.24	0	2688255..2688968	+	237	30063961	-	S2794	-	IS600 orfB
2386	 51.75	0	2689009..2689665	-	218	30063962	-	S2795	-	hypothetical protein
2387	 51.49	0	2689707..2690108	-	133	30063963	-	S2796	-	hypothetical protein
2388	 43.68	-1	2690323..2690583	+	86	30063964	yfhL	S2797	-	hypothetical protein
2389	 50.39	0	2691277..2691657	-	126	30063965	acpS	S2798	-	4'-phosphopantetheinyl transferase
2390	 55.33	0	2691657..2692388	-	243	30063966	pdxJ	S2799	-	pyridoxal phosphate biosynthetic protein PdxJ
2391	 53.36	0	2692400..2693128	-	242	30063967	recO	S2800	-	DNA repair protein RecO
2392	 52.54	0	2693140..2694045	-	301	30063968	era	S2801	-	GTP-binding protein Era
2393	 50.81	0	2694042..2694722	-	226	30063969	rnc	S2802	-	ribonuclease III
2394	 52.00	0	2694994..2695968	-	324	30063970	lepB	S2803	-	lsignal peptidase I
2395	 53.67	0	2695984..2697783	-	599	30063971	lepA	S2804	-	GTP-binding protein LepA
2396	 55.83	+1	2697981..2698460	-	159	30063972	rseC	S2805	-	SoxR reducing system protein RseC
2397	 50.78	0	2698457..2699413	-	318	30063973	rseB	S2806	-	periplasmic negative regulator of sigmaE
2398	 51.92	0	2699413..2700063	-	216	30063974	rseA	S2807	-	anti-RNA polymerase sigma factor SigE
2399	 48.96	0	2700096..2700671	-	191	30063975	rpoE	S2808	-	RNA polymerase sigma factor RpoE
2400	 52.56	0	2702686..2703543	-	285	30063976	yfiC	S2810	-	putative enzyme
2401	 54.91	0	2703555..2704889	+	444	30063977	srmB	S2811	-	ATP-dependent RNA helicase SrmB
2402	 48.11	0	2704924..2705850	-	308	30063978	yfiE	S2812	-	putative LYSR-type transcriptional regulator
2403	 51.19	0	2705908..2706495	+	195	30063979	yfiK	S2813	-	neutral amino-acid efflux protein
2404	 47.66	0	2706551..2706934	-	127	30063980	yfiD	S2814	-	autonomous glycyl radical cofactor GrcA
2405	 52.03	0	2707239..2707928	+	229	30063981	ung	S2815	-	uracil-DNA glycosylase
51.60	MEAN

4.04	STD DEV
