IslandPath Analysis: Shigella flexneri 2a str. 2457T

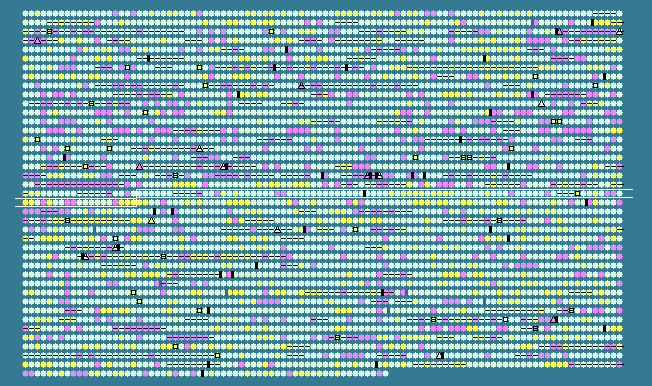

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2020	 52.45	0	2242644..2243684	-	346	30063594	galS	S2365	-	DNA-binding transcriptional regulator GalS
2021	 54.60	0	2243826..2244902	-	358	30063595	yeiB	S2366	-	hypothetical protein
2022	 50.97	0	2244919..2245587	-	222	30063596	folE	S2367	-	GTP cyclohydrolase I
2023	 53.06	0	2248995..2250464	-	489	30063597	lysP	S2370	-	lysine transporter
2024	 53.51	0	2250670..2251551	-	293	30063598	yeiE	S2371	-	putative DNA-binding transcriptional regulator
2025	 52.95	0	2251650..2252699	+	349	30063599	yeiH	S2372	-	hypothetical protein
2026	 51.52	0	2252773..2253630	+	285	30063600	nfo	S2373	-	endonuclease IV
2027	 51.24	0	2253633..2254721	+	362	30063601	yeiI	S2374	-	hypothetical protein
2028	 50.28	0	2254777..2256027	-	416	30063602	yeiJ	S2375	-	putative transport system permease protein
2029	 51.59	0	2256127..2257068	-	313	30063603	rihB	S2376	-	ribonucleoside hydrolase 2
2030	 43.52	-1	2257238..2257816	+	192	30063604	yeiL	S2377	-	DNA-binding transcriptional activator YeiL
2031	 51.16	0	2257964..2259214	-	416	30063605	yeiM	S2378	-	putative transport system permease protein
2032	 49.20	0	2259308..2260246	-	312	30063606	yeiN	S2379	-	hypothetical protein
2033	 46.92	-1	2260234..2261175	-	313	30063607	yeiC	S2380	-	hypothetical protein
2034	 55.97	+1	2261599..2263290	-	563	30063608	fruA	S2381	-	fructose-specific PTS system IIBC component
2035	 53.25	0	2263307..2264245	-	312	30063609	fruK	S2382	-	1-phosphofructokinase
2036	 55.53	0	2264245..2265375	-	376	30063610	fruB	S2383	-	bifunctional fructose-specific PTS IIA/HPr protein
2037	 53.01	0	2265743..2266921	+	392	30063611	yeiO	S2384	-	putative transport
2038	 52.58	0	2266915..2267418	-	167	30063612	-	S2385	-	IS1 orfB
2039	 52.54	0	2267337..2267612	-	91	30063613	-	S2386	-	IS1 orfA
2040	 50.09	0	2268106..2268678	+	190	161486467	yeiP	S2387	-	elongation factor P
2041	 51.26	0	2268901..2270367	+	488	30063615	yeiQ	S2388	-	putative oxidoreductase
2042	 54.51	0	2270485..2271471	+	328	30063616	yeiR	S2389	-	hypothetical protein
2043	 43.84	-1	2271510..2272223	+	237	30063617	-	S2390	-	hypothetical protein
2044	 46.74	-1	2272635..2273201	+	188	30063618	spr	S2391	-	putative outer membrane lipoprotein
2045	 50.10	0	2273382..2274938	+	518	30063619	rtn	S2392	-	hypothetical protein
2046	 50.63	0	2275020..2276834	+	604	30063620	yejA	S2393	-	hypothetical protein
2047	 50.96	0	2276835..2277929	+	364	30063621	yejB	S2394	-	putative transport system permease protein
2048	 52.73	0	2277929..2278954	+	341	30063622	yejE	S2395	-	putative transport system permease protein
2049	 51.76	0	2278956..2280545	+	529	30063623	yejF	S2396	-	putative ATP-binding component of a transport system
2050	 48.41	0	2280549..2280893	-	114	30063624	yejG	S2397	-	hypothetical protein
2051	 53.06	0	2281226..2282416	-	396	30063625	bcr	S2398	-	bicyclomycin/multidrug efflux system
2052	 53.30	0	2282444..2283139	-	231	30063626	rsuA	S2399	-	16S rRNA pseudouridylate synthase A
2053	 53.15	0	2283289..2285049	+	586	30063627	yejH	S2400	-	putative ATP-dependent helicase
2054	 49.82	0	2285174..2285458	+	94	30063628	rplY	S2401	-	50S ribosomal protein L25
2055	 52.18	0	2285597..2286604	-	335	30063629	yejK	S2402	-	nucleoid-associated protein NdpA
2056	 49.56	0	2286786..2287013	+	75	30063630	yejL	S2403	-	hypothetical protein
2057	 52.19	0	2287033..2288793	+	586	30063631	yejM	S2404	-	putative sulfatase
2058	 48.67	0	2289047..2291557	-	836	30063632	yejO	S2406	-	putative ATP-binding component of a transport system
2059	 52.31	0	2291958..2292605	+	215	30063633	narP	S2407	-	transcriptional regulator NarP
2060	 54.51	0	2292816..2293868	-	350	30063634	ccmH	S2408	-	subunit of heme lyase
2061	 54.30	0	2293865..2294422	-	185	30063635	dsbE	S2409	-	disulfide oxidoreductase
2062	 57.00	+1	2294419..2296362	-	647	30063636	ccmF	S2410	-	cytochrome c-type biogenesis protein
2063	 54.37	0	2296359..2296838	-	159	30063637	ccmE	S2411	-	cytochrome c-type biogenesis protein CcmE
2064	 56.67	+1	2296835..2297044	-	69	30063638	ccmD	S2412	-	heme exporter protein C
2065	 55.56	0	2297041..2297778	-	245	30063639	ccmC	S2413	-	heme exporter protein C
2066	 55.66	+1	2297820..2298482	-	220	30063640	ccmB	S2414	-	heme exporter protein B, cytochrome c-type biogenesis protein
2067	 55.61	0	2298479..2299102	-	207	30063641	ccmA	S2415	-	cytochrome c biogenesis protein CcmA
2068	 51.74	0	2299115..2299717	-	200	30063642	napC	S2416	-	cytochrome c-type protein NapC
2069	 55.78	+1	2299727..2300176	-	149	30063643	napB	S2417	-	diheme cytochrome c550
2070	 55.67	+1	2300173..2301036	-	287	30063644	napH	S2418	-	quinol dehydrogenase membrane component
2071	 58.91	+1	2301023..2301718	-	231	30063645	napG	S2419	-	quinol dehydrogenase periplasmic component
2072	 56.01	+1	2301725..2304211	-	828	30063646	napA	S2420	-	nitrate reductase
2073	 54.55	0	2304208..2304471	-	87	30063647	napD	S2421	-	assembly protein for periplasmic nitrate reductase
2074	 54.75	0	2304461..2304955	-	164	30063648	napF	S2422	-	ferredoxin-type protein
2075	 49.69	0	2305363..2305851	+	162	30063649	eco	S2423	-	ecotin precursor
2076	 53.28	0	2307815..2309458	-	547	30063650	yojI	S2425	-	multidrug transporter membrane component/ATP-binding component
2077	 52.23	0	2309534..2310184	-	216	30063651	alkB	S2426	-	alkylated DNA repair protein
2078	 57.09	+1	2310184..2311248	-	354	30063652	ada	S2427	-	O6-methylguanine-DNA methyltransferase; transcription activator/repressor
2079	 53.41	0	2311322..2312377	-	351	30063653	yojL	S2428	-	thiamine biosynthesis lipoprotein ApbE
2080	 50.36	0	2312489..2313610	-	373	30063654	ompC	S2429	-	outer membrane porin protein C
2081	 49.20	0	2314348..2317020	+	890	30063655	yojN	S2431	-	phosphotransfer intermediate protein in two-component regulatory system with RcsBC
2082	 47.77	0	2317037..2317687	+	216	30063656	rcsB	S2432	-	transcriptional regulator RcsB
2083	 50.91	0	2317887..2320736	-	949	30063657	rcsC	S2433	-	hybrid sensory kinase in two-component regulatory system with RcsB and YojN
2084	 52.38	0	2321011..2321787	-	258	30063658	-	S2434	-	hypothetical protein
2085	 54.42	0	2321792..2323441	-	549	30063659	-	S2435	-	hypothetical protein
2086	 54.46	0	2323442..2323957	-	171	30063660	-	S2436	-	hypothetical protein
2087	 53.59	0	2325716..2326342	-	208	30063661	-	S2438	-	IS911 orfB
2088	 44.88	-1	2326582..2326884	-	100	30063662	-	S2440	-	IS911 orfA
2089	 51.12	0	2329233..2329856	-	207	30063663	-	S2442	-	hypothetical protein
2090	 53.81	0	2331690..2334317	-	875	30063664	gyrA	S2444	-	DNA gyrase subunit A
2091	 54.36	0	2334464..2335186	+	240	30063665	ubiG	S2445	-	3-demethylubiquinone-9 3-methyltransferase
2092	 50.61	0	2338932..2339342	+	136	30063666	-	S2447	-	insertion sequence 2 OrfA protein
2093	 55.30	0	2339300..2340205	+	301	161486466	-	S2448	-	insertion element IS2 transposase InsD
2094	 53.63	0	2341076..2343361	+	761	30063668	nrdA	S2449	-	ribonucleotide-diphosphate reductase subunit alpha
2095	 50.75	0	2343595..2344725	+	376	161486465	nrdB	S2450	-	ribonucleotide-diphosphate reductase subunit beta
2096	 57.65	+1	2344725..2344979	+	84	30063670	yfaE	S2451	-	2Fe-2S ferredoxin YfaE
2097	 49.77	0	2345033..2345683	-	216	30063671	inaA	S2452	-	hypothetical protein
2098	 41.55	-2	2345898..2346104	+	68	30063672	yfaH	S2453	-	hypothetical protein
2099	 45.68	-1	2346146..2347222	-	358	30063673	glpQ	S2454	-	glycerophosphodiester phosphodiesterase
2100	 53.05	0	2347227..2348585	-	452	30063674	glpT	S2455	-	sn-glycerol-3-phosphate transporter
2101	 57.34	+1	2348858..2350486	+	542	30063675	glpA	S2456	-	sn-glycerol-3-phosphate dehydrogenase subunit A
2102	 55.79	+1	2350476..2351735	+	419	30063676	glpB	S2457	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
2103	 53.82	0	2351732..2352922	+	396	30063677	glpC	S2458	-	sn-glycerol-3-phosphate dehydrogenase subunit C
2104	 47.63	0	2353115..2354065	+	316	30063678	yfaD	S2459	-	hypothetical protein
2105	 55.20	0	2354106..2354576	-	156	30063679	-	S2460	-	hypothetical protein
2106	 54.11	0	2354631..2355833	-	400	30063680	-	S2461	-	competence damage-inducible protein A
2107	 53.59	0	2355920..2356462	-	180	30063681	-	S2462	-	hypothetical protein
2108	 47.93	0	2356804..2357166	+	120	30063682	yfaO	S2463	-	hypothetical protein
2109	 43.18	-2	2357205..2357783	-	192	30063683	ais	S2464	-	protein induced by aluminum
2110	 51.84	0	2358115..2359254	+	379	161486464	-	S2465	-	UDP-4-amino-4-deoxy-L-arabinose--oxoglutarate aminotransferase
2111	 49.54	0	2359258..2360226	+	322	30063685	-	S2466	-	undecaprenyl phosphate 4-deoxy-4-formamido-L-arabinose transferase
2112	 51.32	0	2360657..2362207	+	516	30063686	ybfG	S2467	-	hypothetical protein
2113	 52.75	0	2362204..2363094	+	296	30063687	-	S2468	-	hypothetical protein
2114	 51.12	0	2363094..2364746	+	550	30063688	arnT	S2469	-	4-amino-4-deoxy-L-arabinose transferase
2115	 53.27	0	2364743..2365078	+	111	30063689	-	S2567	-	sucrose-6 phosphate hydrolase
2116	 47.80	0	2365078..2365464	+	128	161486463	-	S2471	-	hypothetical protein
2117	 56.19	+1	2365835..2367190	-	451	30063691	menE	S2473	-	O-succinylbenzoic acid--CoA ligase
2118	 59.19	+1	2367187..2368149	-	320	30063692	menC	S2474	-	O-succinylbenzoate synthase
2119	 55.13	0	2368149..2369006	-	285	30063693	menB	S2475	-	naphthoate synthase
51.60	MEAN

4.04	STD DEV
