IslandPathversion 1.0

IslandPath Analysis: Shigella flexneri 2a str. 2457T

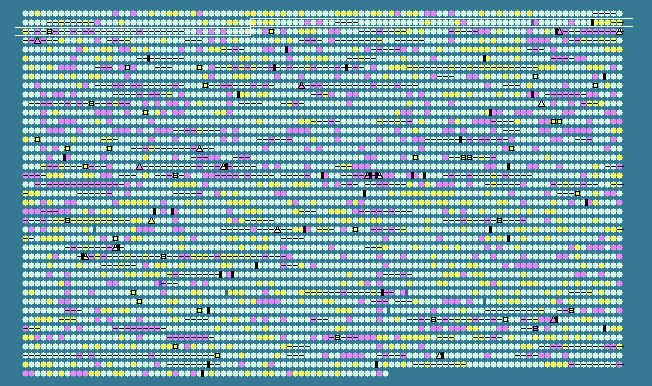

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
139	 56.14	+1	161047..161844	+	265	30061711	fhuC	S0146	-	iron-hydroxamate transporter ATP-binding subunit
140	 54.21	0	161844..162734	+	296	30061712	fhuD	S0147	-	iron-hydroxamate transporter substrate-binding subunit
141	 59.46	+1	162731..164713	+	660	30061713	fhuB	S0148	-	iron-hydroxamate transporter permease subunit
142	 55.74	+1	164748..166028	-	426	30061714	hemL	S0149	-	glutamate-1-semialdehyde aminotransferase
143	 53.80	0	166253..167674	+	473	30061715	yadQ	S0150	-	chloride channel protein
144	 51.59	0	167756..168100	+	114	30061716	yadR	S0151	-	iron-sulfur cluster insertion protein ErpA
145	 53.04	0	168147..168770	-	207	30061717	yadS	S0152	-	hypothetical protein
146	 52.68	0	168808..169608	-	266	30061718	yadT	S0153	-	vitamin B12-transporter protein BtuF
147	 52.93	0	169601..170299	-	232	30061719	pfs	S0154	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
148	 47.89	0	170383..171900	+	505	30061720	dgt	S0155	-	deoxyguanosinetriphosphate triphosphohydrolase
149	 53.96	0	172030..173454	+	474	30061721	htrA	S0156	-	serine endoprotease
150	 44.19	-1	174854..175240	-	128	30061722	yaeH	S0158	-	hypothetical protein
151	 52.85	0	175554..176378	-	274	30061723	dapD	S0159	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
152	 53.42	0	176409..179081	-	890	30061724	glnD	S0160	-	PII uridylyl-transferase
153	 50.57	0	179143..179937	-	264	30061725	map	S0161	-	methionine aminopeptidase
154	 51.10	0	180305..181030	+	241	30061726	rpsB	S0162	-	30S ribosomal protein S2
155	 49.65	0	181288..182139	+	283	30061727	tsf	S0163	-	elongation factor Ts
156	 52.62	0	182286..183011	+	241	30061728	pyrH	S0164	-	uridylate kinase
157	 50.90	0	183303..183860	+	185	30061729	frr	S0165	-	ribosome recycling factor
158	 52.46	0	183952..185148	+	398	30061730	yaeM	S0166	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
159	 49.34	0	185334..186095	+	253	30061731	yaeS	S0167	-	undecaprenyl pyrophosphate synthase
160	 50.58	0	186108..186965	+	285	161486544	cdsA	S0168	-	CDP-diglyceride synthase
161	 50.85	0	186977..188329	+	450	30061733	yaeL	S0169	-	zinc metallopeptidase
162	 50.31	0	188359..190791	+	810	30061734	yaeT	S0170	-	outer membrane protein assembly factor YaeT
163	 49.59	0	190913..191398	+	161	30061735	hlpA	S0171	-	periplasmic chaperone
164	 53.02	0	191402..192427	+	341	30061736	lpxD	S0172	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
165	 50.44	0	192532..192987	+	151	30061737	fabZ	S0173	-	(3R)-hydroxymyristoyl-ACP dehydratase
166	 52.47	0	192991..193779	+	262	30061738	lpxA	S0174	-	UDP-N-acetylglucosamine acyltransferase
167	 53.96	0	193779..194927	+	382	30061739	lpxB	S0175	-	lipid-A-disaccharide synthase
168	 55.95	+1	194924..195520	+	198	30061740	rnhB	S0176	-	ribonuclease HII
169	 55.04	0	195557..199039	+	1160	30061741	dnaE	S0177	-	DNA polymerase III subunit alpha
170	 52.71	0	199052..200011	+	319	30061742	accA	S0178	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
171	 50.79	0	200110..202251	+	713	30061743	ldcC	S0179	-	lysine decarboxylase 2
172	 51.79	0	202308..202697	+	129	161486543	yaeR	S0180	-	hypothetical protein
173	 58.12	+1	202762..204060	+	432	30061745	tilS	S0181	-	tRNA(Ile)-lysidine synthetase
174	 46.36	-1	204109..204369	-	86	30061746	yaeO	S0182	-	Rho-binding antiterminator
175	 51.65	0	204722..205267	+	181	30061747	yaeQ	S0183	-	hypothetical protein
176	 54.14	0	205264..205686	+	140	30061748	yaeJ	S0184	-	hypothetical protein
177	 51.34	0	205700..206410	+	236	30061749	cutF	S0185	-	lipoprotein involved with copper homeostasis and adhesion
178	 48.73	0	206565..207389	-	274	30061750	yaeF	S0186	-	hypothetical protein
179	 54.45	0	207442..209160	-	572	30061751	proS	S0187	-	prolyl-tRNA synthetase
180	 54.94	0	209271..209978	-	235	30061752	yaeB	S0188	-	hypothetical protein
181	 53.33	0	209975..210379	-	134	30061753	rcsF	S0189	-	outer membrane lipoprotein
182	 48.53	0	210497..211312	-	271	30061754	metQ	S0190	-	DL-methionine transporter substrate-binding subunit
183	 51.68	0	211352..212005	-	217	30061755	yaeE	S0191	-	DL-methionine transporter permease subunit
184	 52.33	0	211998..213029	-	343	30061756	metN	S0192	-	DL-methionine transporter ATP-binding subunit
185	 50.17	0	213217..213792	+	191	30061757	yaeD	S0193	-	D,D-heptose 1,7-bisphosphate phosphatase
186	 45.77	-1	219551..220354	+	267	30061758	dkgB	S0200	-	2,5-diketo-D-gluconate reductase B
187	 54.18	0	220393..221721	-	442	30061759	-	S0201	-	IS4 orf
188	 49.29	0	221789..222703	-	304	30061760	yafC	S0202	-	putative transcriptional regulator LYSR-type
189	 52.81	0	222944..223744	+	266	30061761	yafD	S0203	-	hypothetical protein
190	 49.28	0	223972..224592	+	206	30061762	yafE	S0204	-	putative biotin synthesis protein
191	 51.82	0	224640..225986	-	448	30061763	dniR	S0205	-	membrane-bound lytic murein transglycosylase D
192	 39.95	-2	226058..226813	-	251	30061764	gloB	S0206	-	hydroxyacylglutathione hydrolase
193	 49.59	0	226844..227569	+	241	30061765	yafS	S0207	-	hypothetical protein
194	 50.43	0	227566..228033	-	155	30061766	rnhA	S0208	-	ribonuclease H
195	 50.27	0	228098..228829	+	243	30061767	dnaQ	S0209	-	DNA polymerase III subunit epsilon
196	 59.69	+2	229169..230215	-	348	30061768	safA	S0211	-	putative cytoplasmic protein
197	 67.54	+2	230226..230339	-	37	30061769	-	S0212	-	hypothetical protein
198	 61.76	+2	230483..230788	-	101	30061770	safB	S0213	-	periplasmic chaperone of fimbral assembly machinery
199	 59.13	+1	230785..232668	-	627	30061771	safC	S0214	-	outer membrane usher protein
200	 55.76	+1	232684..233178	-	164	30061772	-	S0215	-	putative cytoplasmic protein
201	 59.08	+1	233373..234005	-	210	30061773	sat1	S0217	-	putative cytoplasmic protein
202	 48.15	0	233992..234369	-	125	30061774	sat2	S0218	-	putative cytoplasmic protein
203	 45.00	-1	234607..234906	-	99	30061775	-	S0219	-	putative cytoplasmic protein
204	 50.36	0	234959..235369	+	136	30061776	-	S0220	-	insertion sequence 2 OrfA protein
205	 55.41	0	235327..236232	+	301	30061777	-	S0221	-	insertion element IS2 transposase InsD
206	 45.21	-1	236654..236956	+	100	30061778	-	S0223	-	IS911 orfA
207	 54.29	0	236983..237822	+	279	30061779	-	S0224	-	IS911 orfB
208	 50.37	0	238511..238780	-	89	30061781	-	S0229	-	putative endolysin R of prophage CP-933V
209	 46.98	-1	239101..239415	-	104	30061782	-	S0230	-	hypothetical protein
210	 50.00	0	239420..239635	-	71	30061783	-	S0231	-	lysis protein S
211	 46.13	-1	239992..240366	+	124	30061784	-	S0232	-	hypothetical protein
212	 47.30	-1	240390..240797	-	135	30061785	-	S0233	-	hypothetical protein
213	 52.80	0	240794..241846	-	350	30061786	-	S0235	-	IS911 orfA
214	 54.52	0	240794..241633	-	279	30061787	-	S0234	-	IS911 orfB
215	 51.87	0	242170..242730	+	186	30061788	-	S0236	-	putative terminase large subunit
216	 50.93	0	242699..243073	+	124	30061789	-	S0237	-	putative terminase large subunit
217	 51.15	0	243074..245239	+	721	30061790	-	S0238	-	putative packaging glycoprotein
218	 53.40	0	245253..246164	+	303	30061791	-	S0239	-	putative scaffolding protein
219	 51.85	0	246164..247459	+	431	30061792	-	S0240	-	putative coat protein
220	 47.62	0	247504..247734	+	76	30061793	-	S0241	-	hypothetical protein
221	 48.50	0	247712..248212	+	166	30061794	-	S0242	-	putative DNA stabilization protein
222	 50.74	0	248212..249630	+	472	30061795	-	S0243	-	putative packaged DNA stabilization protein
223	 50.65	0	249630..250478	+	282	30061796	-	S0244	-	putative packaged DNA stabilization protein
224	 49.12	0	250478..250933	+	151	30061797	-	S0245	-	putative head assembly protein
225	 51.66	0	250936..251628	+	230	30061798	-	S0246	-	putative DNA transfer protein
226	 51.35	0	251638..252969	+	443	30061799	-	S0247	-	putative prophage DNA injection protein
227	 50.78	0	252970..254700	+	576	30061800	-	S0248	-	putative DNA transfer protein
228	 54.74	0	254826..255152	+	108	30061801	-	S0249	-	IS629 orfA
229	 54.78	0	255387..256034	+	215	30061802	-	S0250	-	IS629 orfB
230	 47.49	-1	256085..256423	-	112	30061803	psiF	S0251	-	hypothetical protein
231	 52.19	0	256524..258008	-	494	30061804	phoA	S0252	-	alkaline phosphatase
232	 45.59	-1	258040..258300	-	86	30061805	yaiB	S0253	-	hypothetical protein
233	 51.32	0	258763..259857	+	364	30061806	ddl	S0254	-	D-alanyl-alanine synthetase A
234	 44.35	-1	259881..260225	-	114	30061807	-	S0255	-	hypothetical protein
235	 52.75	0	260353..260661	+	102	30061808	-	S0256	-	hypothetical protein
236	 53.24	0	260720..261814	-	364	30061809	yaiW	S0257	-	hypothetical protein
237	 51.02	0	261827..263047	-	406	30061810	sbmA	S0258	-	transport protein
238	 54.75	0	263399..264556	+	385	30061811	yaiH	S0259	-	beta-lactamase/D-alanine carboxypeptidase
51.60	MEAN

4.04	STD DEV



Last Updated: Dec 04, 2008
