IslandPath Analysis: Shigella flexneri 2a str. 2457T

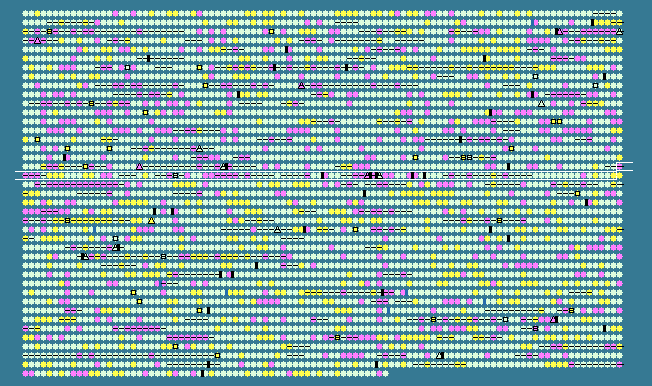

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1800	 44.14	-1	1985546..1986628	+	360	30063374	nmpC	S2073	-	putative outer membrane porin protein C precurser
1801	 37.13	-2	1987178..1987915	-	245	30063375	-	S4819	-	putative regulator
1802	 42.39	-2	1987925..1988476	-	183	30063376	ybcL	S4820	-	putative kinase inhibitor
1803	 43.24	-2	1988645..1988977	-	110	30063377	emrE	S4821	-	multidrug efflux protein
1804	 54.92	0	1989322..1989636	-	104	30063378	fliE	S2076	-	flagellar hook-basal body protein FliE
1805	 56.22	+1	1991502..1992497	+	331	30063379	fliG	S2078	-	flagellar motor switch protein G
1806	 57.21	+1	1992490..1993176	+	228	30063380	fliH	S2079	-	flagellar assembly protein H
1807	 58.01	+1	1993176..1994549	+	457	30063381	fliI	S2080	-	flagellum-specific ATP synthase
1808	 54.43	0	1994909..1996036	+	375	30063382	fliK	S2082	-	flagellar hook-length control protein
1809	 52.90	0	1996141..1996605	+	154	30063383	fliL	S2083	-	flagellar basal body-associated protein FliL
1810	 53.03	0	1996610..1997614	+	334	30063384	fliM	S2084	-	flagellar motor switch protein FliM
1811	 55.80	+1	1997611..1998024	+	137	30063385	fliN	S2085	-	flagellar motor switch protein FliN
1812	 55.74	+1	1998027..1998392	+	121	161486472	fliO	S2086	-	flagellar biosynthesis protein FliO
1813	 51.11	0	1999167..1999436	+	89	30063387	fliQ	S2088	-	flagellar biosynthesis protein FliQ
1814	 47.20	-1	1999445..2000230	+	261	30063388	fliR	S2089	-	flagellar biosynthesis protein FliR
1815	 38.30	-2	2000515..2001138	+	207	30063389	rcsA	S2090	-	positive regulator for ctr capsule biosynthesis, positive transcription factor
1816	 50.79	0	2001182..2001370	-	62	30063390	dsrB	S2091	-	hypothetical protein
1817	 48.68	0	2001533..2001760	+	75	30063391	-	S2092	-	hypothetical protein
1818	 51.91	0	2004735..2004917	-	60	30063392	-	S2096	-	hypothetical protein
1819	 52.72	0	2004996..2005913	-	305	30063393	yedI	S2097	-	hypothetical protein
1820	 53.64	0	2006086..2007006	+	306	30063394	yedA	S2098	-	hypothetical protein
1821	 56.26	+1	2006995..2007465	-	156	30063395	vsr	S2099	-	DNA mismatch endonuclease, patch repair protein
1822	 51.87	0	2007446..2008864	-	472	30063396	dcm	S2100	-	DNA cytosine methylase
1823	 50.43	0	2009769..2010581	-	270	30063397	-	S2103	-	ISEhe3 orfB
1824	 49.10	0	2010638..2010916	-	92	30063398	-	S2104	-	ISEhe3 orfA
1825	 45.27	-1	2010943..2011830	+	295	30063399	-	S2105	-	putative outer membrane pore protein
1826	 54.86	0	2011755..2012660	-	301	161486471	-	S2106	-	insertion element IS2 transposase InsD
1827	 52.46	0	2012618..2012983	-	121	161486470	-	S2107	-	insertion sequence 2 OrfA protein
1828	 41.43	-2	2013047..2013256	+	69	30063402	-	S2108	-	putative outer membrane protein
1829	 52.90	0	2013884..2014159	+	91	30063403	-	S2109	-	IS1 orfA
1830	 53.37	0	2014078..2014581	+	167	30063404	-	S2110	-	IS1 orfB
1831	 48.11	0	2014627..2015499	+	290	30063405	yedU	S2111	-	chaperone protein HchA
1832	 39.44	-2	2015585..2016943	-	452	30063406	yedV	S2112	-	putative 2-component sensor protein
1833	 44.64	-1	2016943..2017614	-	223	30063407	yedW	S2113	-	transcriptional regulatory protein YedW
1834	 42.27	-2	2017747..2018160	+	137	30063408	-	S2114	-	hypothetical protein
1835	 47.96	0	2019274..2019909	+	211	30063409	-	S2116	-	putative sulfite oxidase subunit YedZ
1836	 38.86	-2	2020167..2020817	+	216	30063410	-	S2117	-	hypothetical protein
1837	 49.63	0	2021895..2022164	-	89	30063411	-	S2118	-	putative bacteriophage protein
1838	 47.93	0	2023205..2024848	+	547	30063412	ipaH_5	S2119	-	invasion plasmid antigen
1839	 54.76	0	2025028..2025405	-	125	30063413	-	S2121	-	hypothetical protein
1840	 52.90	0	2026462..2026737	+	91	30063414	-	S2122	-	IS1 orfA
1841	 52.98	0	2026656..2027159	+	167	30063415	-	S2123	-	IS1 orfB
1842	 52.10	0	2027802..2029751	-	649	30063416	-	S2124	-	putative tail protein
1843	 49.11	0	2029836..2030171	-	111	30063417	-	S2126	-	bacteriophage protein
1844	 51.54	0	2030171..2030527	-	118	30063418	-	S2127	-	hypothetical protein
1845	 53.77	0	2030527..2032023	-	498	30063419	-	S2128	-	putative sheath protein
1846	 50.59	0	2032191..2032445	-	84	30063420	-	S2129	-	hypothetical protein
1847	 52.38	0	2032575..2033288	-	237	30063421	-	S2130	-	IS600 orfB
1848	 46.20	-1	2033429..2033731	-	100	30063422	-	S2131	-	IS600 orfA
1849	 54.70	0	2034606..2034956	-	116	30063423	-	S2133	-	ISSfl3 orfB
1850	 51.81	0	2034953..2035450	-	165	30063424	-	S2134	-	ISSfl3 orfA
1851	 46.20	-1	2036742..2037425	-	227	30063425	-	S2139	-	putative Q antiterminator of prophage
1852	 52.19	0	2037422..2037787	-	121	30063426	-	S2140	-	putative crossover junction endodeoxyribonuclease
1853	 53.09	0	2037788..2038774	-	328	30063427	-	S2142	-	hypothetical protein
1854	 54.37	0	2038773..2039252	+	159	30063428	-	S2141	-	hypothetical protein
1855	 51.17	0	2039294..2039506	-	70	30063429	-	S2143	-	putative cell killing protein of prophage
1856	 47.32	-1	2040101..2040436	-	111	30063430	-	S2144	-	hypothetical protein
1857	 47.15	-1	2040562..2040684	+	40	30063431	-	S2145	-	hypothetical protein
1858	 43.97	-1	2040864..2041709	+	281	30063432	-	S2146	-	putative integrase for prophage CP-933U
1859	 45.16	-1	2041906..2042742	+	278	30063433	-	S2148	-	hypothetical protein
1860	 52.93	0	2043593..2044342	+	249	30063434	-	S2152	-	putative integrase
1861	 46.75	-1	2045315..2045545	-	76	30063435	-	S2155	-	IS911 orfA
1862	 46.20	-1	2046243..2046545	+	100	30063436	-	S2157	-	IS600 orfA
1863	 52.24	0	2046686..2047399	+	237	30063437	-	S2158	-	IS600 orfB
1864	 49.48	0	2047751..2049205	+	484	30063438	amn	S2160	-	AMP nucleosidase
1865	 39.61	-2	2049548..2050264	+	238	30063439	-	S2161	-	hypothetical protein
1866	 47.42	-1	2052641..2053591	-	316	30063440	cbl	S2165	-	transcriptional regulator Cbl
1867	 48.37	0	2053693..2054610	-	305	30063441	nac	S2166	-	nitrogen assimilation transcriptional regulator
1868	 49.04	0	2055069..2056004	-	311	30063442	erfK	S2168	-	hypothetical protein
1869	 51.20	0	2056066..2057145	-	359	30063443	cobT	S2169	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
1870	 53.36	0	2057157..2057900	-	247	30063444	cobS	S2170	-	cobalamin synthase
1871	 52.38	0	2058418..2059131	-	237	30063445	-	S2172	-	IS600 orfB
1872	 46.20	-1	2059272..2059574	-	100	30063446	-	S2173	-	IS600 orfA
1873	 54.74	0	2059817..2060143	+	108	30063447	is629a	S2175	-	IS629 orfA
1874	 54.78	0	2060379..2061026	+	215	30063448	is629b	S2176	-	IS629 orfB
1875	 46.46	-1	2061887..2062282	-	131	30063449	yeeX	S2177	-	hypothetical protein
1876	 50.22	0	2062757..2063431	+	224	30063450	-	S2179	-	ISSfl3 orfA
1877	 52.58	0	2063428..2063640	+	70	30063451	-	S2180	-	ISSfl3 orfB
1878	 53.18	0	2063643..2064161	-	172	30063452	-	S2181	-	IS629 orfA
1879	 55.37	0	2064173..2064526	-	117	30063453	-	S2182	-	IS629 orfB
1880	 52.37	0	2065084..2066685	+	533	30063454	-	S2184	-	ISSfl3 orfC
1881	 45.40	-1	2066754..2067068	+	104	30063455	-	S2185	-	hypothetical protein
1882	 49.40	0	2067528..2067776	-	82	30063456	-	S2187	-	ISSfl3 orfD
1883	 50.79	0	2068553..2069125	-	190	30063457	-	S2189	-	ISSfl3 orfC
1884	 54.99	0	2069122..2069472	-	116	30063458	-	S2190	-	ISSfl3 orfB
1885	 51.81	0	2069469..2069966	-	165	30063459	-	S2191	-	ISSfl3 orfA
1886	 50.11	0	2071243..2072667	+	474	30063460	sbcB	S2193	-	exonuclease I
1887	 51.32	0	2072710..2072937	-	75	30063461	yeeD	S2194	-	hypothetical protein
1888	 50.71	0	2072951..2074009	-	352	30063462	yeeE	S2195	-	putative transport system permease protein
1889	 52.91	0	2074188..2075546	-	452	30063463	yeeF	S2196	-	putative amino acid/amine transport protein
1890	 49.90	0	2075759..2076742	-	327	30063464	yeeY	S2197	-	putative LYSR-type transcriptional regulator
1891	 51.15	0	2076788..2077612	-	274	30063465	-	S2198	-	putative enzyme of sugar metabolism
1892	 52.04	0	2077971..2078264	-	97	30063466	-	S2199	-	IS1 orfB
1893	 52.54	0	2078392..2078667	-	91	30063467	-	S2200	-	IS1 orfA
1894	 47.62	0	2078701..2078973	-	90	30063468	yefM	S2201	-	antitoxin YefM
1895	 54.56	0	2079443..2080342	+	299	30063469	hisG	S2202	-	ATP phosphoribosyltransferase
1896	 57.78	+1	2080348..2081652	+	434	30063470	hisD	S2203	-	histidinol dehydrogenase
1897	 54.81	0	2081649..2082719	+	356	30063471	hisC	S2204	-	histidinol-phosphate aminotransferase
1898	 53.18	0	2082719..2083786	+	355	30063472	hisB	S2205	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
1899	 55.67	+1	2083786..2084376	+	196	30063473	hisH	S2206	-	imidazole glycerol phosphate synthase subunit HisH
51.60	MEAN

4.04	STD DEV
