IslandPath Analysis: Shigella flexneri 2a str. 2457T

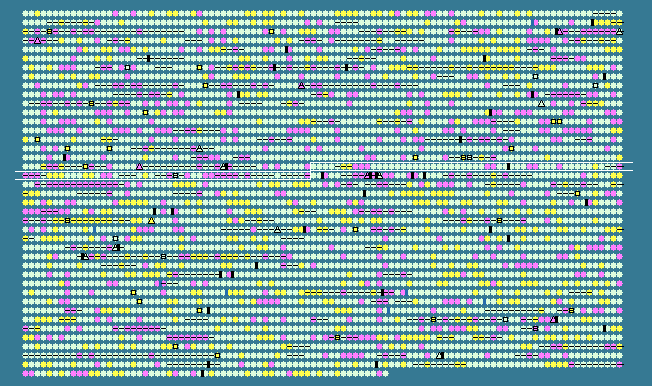

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1749	 49.89	0	1928680..1929120	-	146	30063322	cutC	S2005	-	copper homeostasis protein
1750	 50.79	0	1929440..1930006	-	188	30063323	yecM	S2006	-	hypothetical protein
1751	 53.00	0	1930222..1931955	+	577	30063324	argS	S2007	-	arginyl-tRNA synthetase
1752	 52.18	0	1932840..1933274	-	144	30063325	-	S2009	-	IS629 orfB
1753	 53.21	0	1933709..1934035	-	108	30063326	-	S2011	-	IS629 orfA
1754	 55.75	+1	1934087..1934425	-	112	30063327	flhE	S2012	-	flagellar protein
1755	 55.11	0	1936449..1937642	-	397	30063328	flhB	S2014	-	flagellar biosynthesis protein FlhB
1756	 47.06	-1	1937878..1938336	+	152	30063329	-	S2015	-	hypothetical protein
1757	 44.88	-1	1939126..1939428	-	100	30063330	-	S2018	-	IS911 orfA
1758	 45.20	-1	1939569..1939964	+	131	30063331	-	S2019	-	hypothetical protein
1759	 52.24	0	1940459..1941172	+	237	30063332	-	S2020	-	IS600 orfB
1760	 53.33	0	1941677..1942321	-	214	30063333	cheZ	S2021	-	chemotaxis regulator CheZ
1761	 48.97	0	1942332..1942721	-	129	30063334	cheY	S2022	-	chemotaxis regulatory protein CheY
1762	 53.71	0	1942736..1943785	-	349	30063335	cheB	S2023	-	chemotaxis-specific methylesterase
1763	 53.89	0	1943788..1944648	-	286	30063336	cheR	S2024	-	chemotaxis methyltransferase CheR
1764	 53.87	0	1944667..1946268	-	533	30063337	tap	S2025	-	methyl-accepting protein IV
1765	 52.71	0	1946314..1947975	-	553	30063338	tar	S2026	-	methyl-accepting chemotaxis protein II, aspartate sensor receptor
1766	 51.59	0	1948120..1948623	-	167	30063339	cheW	S2027	-	purine-binding chemotaxis protein
1767	 53.18	0	1948644..1950608	-	654	30063340	cheA	S2028	-	chemotaxis protein CheA
1768	 53.07	0	1950613..1951539	-	308	30063341	motB	S2029	-	flagellar motor protein MotB
1769	 51.69	0	1951536..1952423	-	295	30063342	motA	S2030	-	flagellar motor protein MotA
1770	 49.05	0	1952550..1953128	-	192	30063343	flhC	S2031	-	transcriptional activator FlhC
1771	 52.90	0	1953391..1953666	+	91	30063344	-	S2033	-	IS1 orfA
1772	 52.78	0	1953585..1954088	+	167	30063345	-	S2034	-	IS1 orfB
1773	 50.81	0	1954526..1955326	-	266	30063346	otsB	S2036	-	trehalose-6-phosphate phosphatase
1774	 50.81	0	1955493..1956482	-	329	30063347	araH	S2038	-	L-arabinose transporter permease protein
1775	 52.48	0	1956494..1958008	-	504	30063348	araG	S2039	-	L-arabinose transporter ATP-binding protein
1776	 48.21	0	1959864..1960367	+	167	30063349	yecI	S2041	-	ferritin-like protein
1777	 50.62	0	1961162..1961485	+	107	30063351	-	S2043	-	hypothetical protein
1778	 42.97	-2	1961656..1962153	+	165	30063352	ftn	S2044	-	ferritin
1779	 47.08	-1	1962190..1962429	-	79	30063353	yecH	S2045	-	hypothetical protein
1780	 50.91	0	1962619..1963830	+	403	30063354	tyrP	S2046	-	tyrosine-specific transport protein
1781	 52.40	0	1963892..1964557	-	221	30063355	yecA	S2047	-	hypothetical protein
1782	 52.46	0	1965207..1965755	-	182	30063356	pgsA	S2051	-	phosphatidylglycerophosphate synthetase
1783	 51.72	0	1965812..1967644	-	610	161486474	uvrC	S2052	-	excinuclease ABC subunit C
1784	 49.01	0	1967641..1968297	-	218	30063358	uvrY	S2053	-	response regulator
1785	 48.00	0	1968756..1968980	+	74	30063359	yecF	S2054	-	hypothetical protein
1786	 47.05	-1	1969007..1969633	-	208	30063360	sdiA	S2055	-	transcriptional regulator of ftsQAZ gene cluster
1787	 54.58	0	1969863..1970615	-	250	30063361	yecC	S2056	-	putative amino-acid ABC transporter ATP-binding protein YecC
1788	 53.36	0	1970612..1971280	-	222	30063362	yecS	S2057	-	putative transport system permease protein (former yecC)
1789	 54.10	0	1971295..1972281	-	328	161486473	yedO	S2058	-	D-cysteine desulfhydrase
1790	 46.26	-1	1973275..1973862	-	195	30063364	fliZ	S2060	-	protein FliZ
1791	 48.22	0	1974756..1976408	-	550	30063365	fliC	S2062	-	flagellin
1792	 52.24	0	1976674..1978080	+	468	30063366	fliD	S2063	-	flagellar capping protein
1793	 48.18	0	1978105..1978515	+	136	30063367	fliS	S2064	-	flagellar protein FliS
1794	 51.91	0	1978515..1978880	+	121	30063368	fliT	S2065	-	flagellar biosynthesis protein FliT
1795	 49.80	0	1978958..1980445	+	495	30063369	amyA	S2066	-	cytoplasmic alpha-amylase
1796	 57.00	+1	1980479..1980892	-	137	30063370	yedD	S2067	-	hypothetical protein
1797	 54.48	0	1981079..1982284	+	401	30063371	yedE	S2068	-	putative inner membrane protein
1798	 48.29	0	1982281..1982514	+	77	30063372	yedF	S2069	-	hypothetical protein
1799	 52.17	0	1983331..1984137	-	268	30063373	-	S2072	-	putative virulence protein
1800	 44.14	-1	1985546..1986628	+	360	30063374	nmpC	S2073	-	putative outer membrane porin protein C precurser
1801	 37.13	-2	1987178..1987915	-	245	30063375	-	S4819	-	putative regulator
1802	 42.39	-2	1987925..1988476	-	183	30063376	ybcL	S4820	-	putative kinase inhibitor
1803	 43.24	-2	1988645..1988977	-	110	30063377	emrE	S4821	-	multidrug efflux protein
1804	 54.92	0	1989322..1989636	-	104	30063378	fliE	S2076	-	flagellar hook-basal body protein FliE
1805	 56.22	+1	1991502..1992497	+	331	30063379	fliG	S2078	-	flagellar motor switch protein G
1806	 57.21	+1	1992490..1993176	+	228	30063380	fliH	S2079	-	flagellar assembly protein H
1807	 58.01	+1	1993176..1994549	+	457	30063381	fliI	S2080	-	flagellum-specific ATP synthase
1808	 54.43	0	1994909..1996036	+	375	30063382	fliK	S2082	-	flagellar hook-length control protein
1809	 52.90	0	1996141..1996605	+	154	30063383	fliL	S2083	-	flagellar basal body-associated protein FliL
1810	 53.03	0	1996610..1997614	+	334	30063384	fliM	S2084	-	flagellar motor switch protein FliM
1811	 55.80	+1	1997611..1998024	+	137	30063385	fliN	S2085	-	flagellar motor switch protein FliN
1812	 55.74	+1	1998027..1998392	+	121	161486472	fliO	S2086	-	flagellar biosynthesis protein FliO
1813	 51.11	0	1999167..1999436	+	89	30063387	fliQ	S2088	-	flagellar biosynthesis protein FliQ
1814	 47.20	-1	1999445..2000230	+	261	30063388	fliR	S2089	-	flagellar biosynthesis protein FliR
1815	 38.30	-2	2000515..2001138	+	207	30063389	rcsA	S2090	-	positive regulator for ctr capsule biosynthesis, positive transcription factor
1816	 50.79	0	2001182..2001370	-	62	30063390	dsrB	S2091	-	hypothetical protein
1817	 48.68	0	2001533..2001760	+	75	30063391	-	S2092	-	hypothetical protein
1818	 51.91	0	2004735..2004917	-	60	30063392	-	S2096	-	hypothetical protein
1819	 52.72	0	2004996..2005913	-	305	30063393	yedI	S2097	-	hypothetical protein
1820	 53.64	0	2006086..2007006	+	306	30063394	yedA	S2098	-	hypothetical protein
1821	 56.26	+1	2006995..2007465	-	156	30063395	vsr	S2099	-	DNA mismatch endonuclease, patch repair protein
1822	 51.87	0	2007446..2008864	-	472	30063396	dcm	S2100	-	DNA cytosine methylase
1823	 50.43	0	2009769..2010581	-	270	30063397	-	S2103	-	ISEhe3 orfB
1824	 49.10	0	2010638..2010916	-	92	30063398	-	S2104	-	ISEhe3 orfA
1825	 45.27	-1	2010943..2011830	+	295	30063399	-	S2105	-	putative outer membrane pore protein
1826	 54.86	0	2011755..2012660	-	301	161486471	-	S2106	-	insertion element IS2 transposase InsD
1827	 52.46	0	2012618..2012983	-	121	161486470	-	S2107	-	insertion sequence 2 OrfA protein
1828	 41.43	-2	2013047..2013256	+	69	30063402	-	S2108	-	putative outer membrane protein
1829	 52.90	0	2013884..2014159	+	91	30063403	-	S2109	-	IS1 orfA
1830	 53.37	0	2014078..2014581	+	167	30063404	-	S2110	-	IS1 orfB
1831	 48.11	0	2014627..2015499	+	290	30063405	yedU	S2111	-	chaperone protein HchA
1832	 39.44	-2	2015585..2016943	-	452	30063406	yedV	S2112	-	putative 2-component sensor protein
1833	 44.64	-1	2016943..2017614	-	223	30063407	yedW	S2113	-	transcriptional regulatory protein YedW
1834	 42.27	-2	2017747..2018160	+	137	30063408	-	S2114	-	hypothetical protein
1835	 47.96	0	2019274..2019909	+	211	30063409	-	S2116	-	putative sulfite oxidase subunit YedZ
1836	 38.86	-2	2020167..2020817	+	216	30063410	-	S2117	-	hypothetical protein
1837	 49.63	0	2021895..2022164	-	89	30063411	-	S2118	-	putative bacteriophage protein
1838	 47.93	0	2023205..2024848	+	547	30063412	ipaH_5	S2119	-	invasion plasmid antigen
1839	 54.76	0	2025028..2025405	-	125	30063413	-	S2121	-	hypothetical protein
1840	 52.90	0	2026462..2026737	+	91	30063414	-	S2122	-	IS1 orfA
1841	 52.98	0	2026656..2027159	+	167	30063415	-	S2123	-	IS1 orfB
1842	 52.10	0	2027802..2029751	-	649	30063416	-	S2124	-	putative tail protein
1843	 49.11	0	2029836..2030171	-	111	30063417	-	S2126	-	bacteriophage protein
1844	 51.54	0	2030171..2030527	-	118	30063418	-	S2127	-	hypothetical protein
1845	 53.77	0	2030527..2032023	-	498	30063419	-	S2128	-	putative sheath protein
1846	 50.59	0	2032191..2032445	-	84	30063420	-	S2129	-	hypothetical protein
1847	 52.38	0	2032575..2033288	-	237	30063421	-	S2130	-	IS600 orfB
1848	 46.20	-1	2033429..2033731	-	100	30063422	-	S2131	-	IS600 orfA
51.60	MEAN

4.04	STD DEV
