IslandPath Analysis: Shigella flexneri 2a str. 2457T

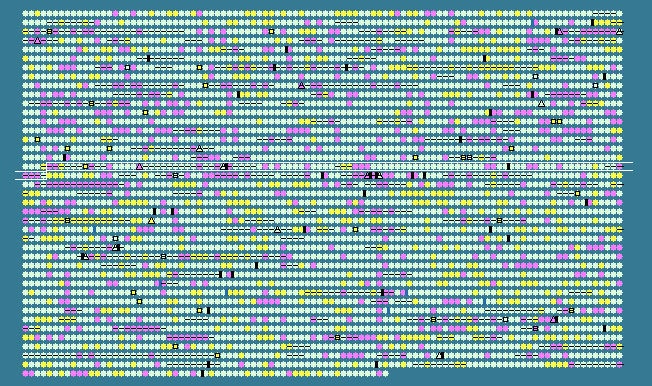

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1705	 44.18	-1	1886271..1886519	+	82	30063278	-	S1946	-	hypothetical protein
1706	 47.03	-1	1887119..1888870	+	583	30063279	ipaH_4	S1947	-	invasion plasmid antigen
1707	 60.00	+2	1888871..1889050	-	59	30063280	-	S1948	-	hypothetical protein
1708	 53.53	0	1889050..1889673	-	207	30063281	-	S1949	-	hypothetical protein
1709	 50.09	0	1891397..1891939	+	180	30063282	-	S1950	-	hypothetical protein
1710	 50.85	0	1892281..1892691	+	136	30063283	-	S1952	-	insertion sequence 2 OrfA protein
1711	 55.30	0	1892649..1893554	+	301	161486475	-	S1953	-	insertion element IS2 transposase InsD
1712	 39.13	-2	1894097..1894372	+	91	30063285	-	S1954	-	hypothetical protein
1713	 50.32	0	1894472..1895896	+	474	30063286	-	S1955	-	putative exodeoxyribonuclease VIII
1714	 48.91	0	1897139..1897459	+	106	30063287	-	S1957	-	putative host-nuclease inhibitor protein Gam
1715	 47.32	-1	1897519..1898562	+	347	30063288	-	S1958	-	putative bacteriophage protein
1716	 54.43	0	1898637..1898963	+	108	30063289	-	S1959	-	IS629 orfA
1717	 54.78	0	1899199..1899846	+	215	30063290	-	S1960	-	IS629 orfB
1718	 52.78	0	1900250..1900753	-	167	30063291	-	S1961	-	IS1 orfB
1719	 52.90	0	1900672..1900947	-	91	30063292	-	S1962	-	IS1 orfA
1720	 47.69	0	1901037..1901642	+	201	30063293	-	S1963	-	putative integrase for prophage CP-933R
1721	 48.48	0	1902098..1902988	+	296	30063294	sitA	S1964	-	Iron transport protein
1722	 51.33	0	1902988..1903815	+	275	30063295	sitB	S1965	-	Iron transport protein, ATP-binding component
1723	 51.86	0	1903812..1904669	+	285	30063296	sitC	S1966	-	Iron transport protein
1724	 49.42	0	1904666..1905523	+	285	30063297	sitD	S1967	-	Iron transport protein, inner membrane component
1725	 52.30	0	1905724..1906287	-	187	30063298	-	S1968	-	hypothetical protein
1726	 53.66	0	1906298..1907566	-	422	30063299	-	S1969	-	putative tail fiber protein
1727	 49.69	0	1907590..1908078	-	162	30063300	-	S1970	-	putative tail fiber assembly protein
1728	 49.51	0	1908138..1908341	-	67	30063301	-	S1971	-	hypothetical protein
1729	 52.10	0	1908558..1909271	-	237	30063302	-	S1972	-	IS600 orfB
1730	 48.10	0	1909479..1909688	-	69	30063303	-	S1973	-	IS1 orfB
1731	 52.54	0	1909901..1910176	-	91	30063304	-	S1975	-	IS1 orfA
1732	 53.43	0	1910765..1911391	-	208	30063305	-	S1978	-	IS911 orfB
1733	 44.88	-1	1911631..1911933	-	100	30063306	-	S1980	-	IS911 orfA
1734	 48.54	0	1912634..1914238	-	534	30063307	-	S1981	-	putative integrase
1735	 46.52	-1	1914839..1915528	-	229	30063308	-	S1986	-	putative Q antiterminator encoded by prophage CP-933P
1736	 51.11	0	1915525..1915884	-	119	30063309	-	S1987	-	putative crossover junction endodeoxyribonuclease
1737	 52.10	0	1916531..1917244	+	237	30063310	-	S1989	-	IS600 orfB
1738	 51.93	0	1917742..1918569	+	275	30063311	-	S1990	-	putative serine protease
1739	 52.00	0	1918613..1919362	+	249	30063312	-	S1991	-	hypothetical protein
1740	 50.18	0	1919359..1919928	+	189	30063313	-	S1992	-	hypothetical protein
1741	 47.33	-1	1920052..1920294	+	80	30063314	-	S1994	-	hypothetical protein
1742	 50.34	0	1920298..1920444	+	48	30063315	-	S1995	-	putative bacteriophage protein
1743	 44.88	-1	1921491..1921793	-	100	30063316	-	S1998	-	IS911 orfA
1744	 49.24	0	1922426..1922821	+	131	30063317	yecN	S2000	-	hypothetical protein
1745	 50.54	0	1922862..1923605	+	247	30063318	yecO	S2001	-	hypothetical protein
1746	 52.06	0	1923602..1924573	+	323	30063319	yecP	S2002	-	putative enzyme
1747	 52.06	0	1924738..1927167	-	809	30063320	bisZ	S2003	-	biotin sulfoxide reductase 2
1748	 47.68	0	1927192..1928292	-	366	30063321	yecK	S2004	-	putative cytochrome C-type protein
1749	 49.89	0	1928680..1929120	-	146	30063322	cutC	S2005	-	copper homeostasis protein
1750	 50.79	0	1929440..1930006	-	188	30063323	yecM	S2006	-	hypothetical protein
1751	 53.00	0	1930222..1931955	+	577	30063324	argS	S2007	-	arginyl-tRNA synthetase
1752	 52.18	0	1932840..1933274	-	144	30063325	-	S2009	-	IS629 orfB
1753	 53.21	0	1933709..1934035	-	108	30063326	-	S2011	-	IS629 orfA
1754	 55.75	+1	1934087..1934425	-	112	30063327	flhE	S2012	-	flagellar protein
1755	 55.11	0	1936449..1937642	-	397	30063328	flhB	S2014	-	flagellar biosynthesis protein FlhB
1756	 47.06	-1	1937878..1938336	+	152	30063329	-	S2015	-	hypothetical protein
1757	 44.88	-1	1939126..1939428	-	100	30063330	-	S2018	-	IS911 orfA
1758	 45.20	-1	1939569..1939964	+	131	30063331	-	S2019	-	hypothetical protein
1759	 52.24	0	1940459..1941172	+	237	30063332	-	S2020	-	IS600 orfB
1760	 53.33	0	1941677..1942321	-	214	30063333	cheZ	S2021	-	chemotaxis regulator CheZ
1761	 48.97	0	1942332..1942721	-	129	30063334	cheY	S2022	-	chemotaxis regulatory protein CheY
1762	 53.71	0	1942736..1943785	-	349	30063335	cheB	S2023	-	chemotaxis-specific methylesterase
1763	 53.89	0	1943788..1944648	-	286	30063336	cheR	S2024	-	chemotaxis methyltransferase CheR
1764	 53.87	0	1944667..1946268	-	533	30063337	tap	S2025	-	methyl-accepting protein IV
1765	 52.71	0	1946314..1947975	-	553	30063338	tar	S2026	-	methyl-accepting chemotaxis protein II, aspartate sensor receptor
1766	 51.59	0	1948120..1948623	-	167	30063339	cheW	S2027	-	purine-binding chemotaxis protein
1767	 53.18	0	1948644..1950608	-	654	30063340	cheA	S2028	-	chemotaxis protein CheA
1768	 53.07	0	1950613..1951539	-	308	30063341	motB	S2029	-	flagellar motor protein MotB
1769	 51.69	0	1951536..1952423	-	295	30063342	motA	S2030	-	flagellar motor protein MotA
1770	 49.05	0	1952550..1953128	-	192	30063343	flhC	S2031	-	transcriptional activator FlhC
1771	 52.90	0	1953391..1953666	+	91	30063344	-	S2033	-	IS1 orfA
1772	 52.78	0	1953585..1954088	+	167	30063345	-	S2034	-	IS1 orfB
1773	 50.81	0	1954526..1955326	-	266	30063346	otsB	S2036	-	trehalose-6-phosphate phosphatase
1774	 50.81	0	1955493..1956482	-	329	30063347	araH	S2038	-	L-arabinose transporter permease protein
1775	 52.48	0	1956494..1958008	-	504	30063348	araG	S2039	-	L-arabinose transporter ATP-binding protein
1776	 48.21	0	1959864..1960367	+	167	30063349	yecI	S2041	-	ferritin-like protein
1777	 50.62	0	1961162..1961485	+	107	30063351	-	S2043	-	hypothetical protein
1778	 42.97	-2	1961656..1962153	+	165	30063352	ftn	S2044	-	ferritin
1779	 47.08	-1	1962190..1962429	-	79	30063353	yecH	S2045	-	hypothetical protein
1780	 50.91	0	1962619..1963830	+	403	30063354	tyrP	S2046	-	tyrosine-specific transport protein
1781	 52.40	0	1963892..1964557	-	221	30063355	yecA	S2047	-	hypothetical protein
1782	 52.46	0	1965207..1965755	-	182	30063356	pgsA	S2051	-	phosphatidylglycerophosphate synthetase
1783	 51.72	0	1965812..1967644	-	610	161486474	uvrC	S2052	-	excinuclease ABC subunit C
1784	 49.01	0	1967641..1968297	-	218	30063358	uvrY	S2053	-	response regulator
1785	 48.00	0	1968756..1968980	+	74	30063359	yecF	S2054	-	hypothetical protein
1786	 47.05	-1	1969007..1969633	-	208	30063360	sdiA	S2055	-	transcriptional regulator of ftsQAZ gene cluster
1787	 54.58	0	1969863..1970615	-	250	30063361	yecC	S2056	-	putative amino-acid ABC transporter ATP-binding protein YecC
1788	 53.36	0	1970612..1971280	-	222	30063362	yecS	S2057	-	putative transport system permease protein (former yecC)
1789	 54.10	0	1971295..1972281	-	328	161486473	yedO	S2058	-	D-cysteine desulfhydrase
1790	 46.26	-1	1973275..1973862	-	195	30063364	fliZ	S2060	-	protein FliZ
1791	 48.22	0	1974756..1976408	-	550	30063365	fliC	S2062	-	flagellin
1792	 52.24	0	1976674..1978080	+	468	30063366	fliD	S2063	-	flagellar capping protein
1793	 48.18	0	1978105..1978515	+	136	30063367	fliS	S2064	-	flagellar protein FliS
1794	 51.91	0	1978515..1978880	+	121	30063368	fliT	S2065	-	flagellar biosynthesis protein FliT
1795	 49.80	0	1978958..1980445	+	495	30063369	amyA	S2066	-	cytoplasmic alpha-amylase
1796	 57.00	+1	1980479..1980892	-	137	30063370	yedD	S2067	-	hypothetical protein
1797	 54.48	0	1981079..1982284	+	401	30063371	yedE	S2068	-	putative inner membrane protein
1798	 48.29	0	1982281..1982514	+	77	30063372	yedF	S2069	-	hypothetical protein
1799	 52.17	0	1983331..1984137	-	268	30063373	-	S2072	-	putative virulence protein
1800	 44.14	-1	1985546..1986628	+	360	30063374	nmpC	S2073	-	putative outer membrane porin protein C precurser
1801	 37.13	-2	1987178..1987915	-	245	30063375	-	S4819	-	putative regulator
1802	 42.39	-2	1987925..1988476	-	183	30063376	ybcL	S4820	-	putative kinase inhibitor
1803	 43.24	-2	1988645..1988977	-	110	30063377	emrE	S4821	-	multidrug efflux protein
1804	 54.92	0	1989322..1989636	-	104	30063378	fliE	S2076	-	flagellar hook-basal body protein FliE
51.60	MEAN

4.04	STD DEV
