IslandPath Analysis: Shigella flexneri 2a str. 2457T

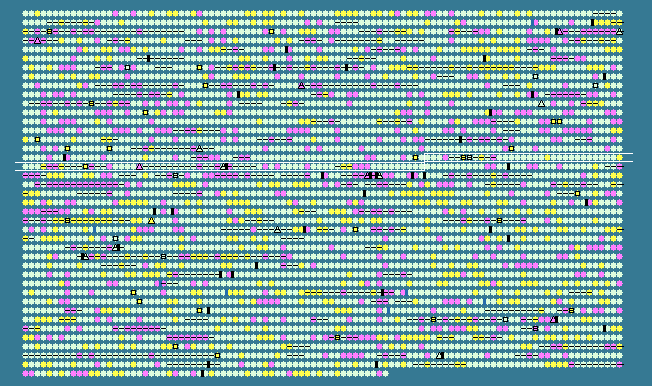

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1668	 52.02	0	1844699..1845217	+	172	30063241	-	S1901	-	putative resistance protein
1669	 52.89	0	1845214..1845663	+	149	30063242	-	S1902	-	hypothetical protein
1670	 53.42	0	1845664..1845897	-	77	30063243	-	S1903	-	hypothetical protein
1671	 44.58	-1	1845983..1846231	-	82	30063244	-	S1904	-	hypothetical protein
1672	 53.19	0	1847867..1849291	-	474	30063245	-	S1905	-	gamma-aminobutyraldehyde dehydrogenase
1673	 54.34	0	1849313..1850107	-	264	30063246	-	S1906	-	putative transport system permease protein
1674	 55.12	0	1850946..1851560	+	204	30063247	-	S1908	-	IS1294 transposase
1675	 52.80	0	1851560..1852006	+	148	30063248	-	S1909	-	IS1294 transposase
1676	 50.24	0	1852484..1852690	-	68	30063249	-	S1910	-	IS629 orfB
1677	 56.67	+1	1852746..1853105	-	119	30063250	-	S1911	-	IS629 orfB
1678	 53.52	0	1853368..1853694	-	108	30063251	-	S1912	-	IS629 orfA
1679	 46.20	-1	1856431..1856772	-	113	30063252	-	S1915	-	hypothetical protein
1680	 50.40	0	1857661..1858035	-	124	30063253	-	S1917	-	hypothetical protein
1681	 48.48	0	1858174..1858404	+	76	30063254	holE	S1918	-	DNA polymerase III subunit theta
1682	 51.88	0	1858737..1859162	+	141	30063255	-	S1919	-	hypothetical protein
1683	 51.43	0	1859186..1859848	+	220	30063256	-	S1920	-	exodeoxyribonuclease X
1684	 49.93	0	1859845..1861905	-	686	30063257	ptrB	S1921	-	protease 2
1685	 52.58	0	1862115..1862774	-	219	30063258	yebE	S1922	-	hypothetical protein
1686	 50.42	0	1863101..1863457	-	118	30063259	yebF	S1923	-	hypothetical protein
1687	 53.69	0	1863948..1865126	+	392	30063260	purT	S1925	-	phosphoribosylglycinamide formyltransferase 2
1688	 56.07	+1	1865182..1865823	-	213	30063261	eda	S1926	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1689	 53.59	0	1865860..1867671	-	603	30063262	edd	S1927	-	phosphogluconate dehydratase
1690	 51.42	0	1867906..1869381	-	491	30063263	zwf	S1928	-	glucose-6-phosphate 1-dehydrogenase
1691	 50.36	0	1869719..1870540	+	273	30063264	yebK	S1929	-	DNA-binding transcriptional regulator HexR
1692	 52.60	0	1870718..1872160	+	480	30063265	pykA	S1930	-	pyruvate kinase
1693	 51.34	0	1872291..1873262	-	323	30063266	msbB	S1931	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
1694	 52.15	0	1873382..1874704	-	440	30063267	yebA	S1932	-	hypothetical protein
1695	 49.20	0	1874720..1875652	-	310	161486476	znuA	S1933	-	high-affinity zinc transporter periplasmic component
1696	 48.81	0	1875731..1876486	+	251	30063269	znuC	S1934	-	high-affinity zinc transporter ATPase
1697	 51.02	0	1876483..1877268	+	261	30063270	znuB	S1935	-	high-affinity zinc transporter membrane component
1698	 52.32	0	1877415..1878425	-	336	30063271	ruvB	S1936	-	Holliday junction DNA helicase B
1699	 52.61	0	1878434..1879045	-	203	30063272	ruvA	S1937	-	Holliday junction DNA helicase motor protein
1700	 56.13	+1	1879923..1880444	-	173	30063273	ruvC	S1939	-	Holliday junction resolvase
1701	 52.77	0	1880479..1881219	-	246	30063274	yebC	S1940	-	hypothetical protein
1702	 52.38	0	1881248..1881730	-	160	30063275	ntpA	S1941	-	dATP pyrophosphohydrolase
1703	 53.81	0	1881818..1883590	-	590	30063276	aspS	S1942	-	aspartyl-tRNA synthetase
1704	 57.64	+1	1884346..1885542	+	398	30063277	-	S1944	-	ISSfl4 orf
1705	 44.18	-1	1886271..1886519	+	82	30063278	-	S1946	-	hypothetical protein
1706	 47.03	-1	1887119..1888870	+	583	30063279	ipaH_4	S1947	-	invasion plasmid antigen
1707	 60.00	+2	1888871..1889050	-	59	30063280	-	S1948	-	hypothetical protein
1708	 53.53	0	1889050..1889673	-	207	30063281	-	S1949	-	hypothetical protein
1709	 50.09	0	1891397..1891939	+	180	30063282	-	S1950	-	hypothetical protein
1710	 50.85	0	1892281..1892691	+	136	30063283	-	S1952	-	insertion sequence 2 OrfA protein
1711	 55.30	0	1892649..1893554	+	301	161486475	-	S1953	-	insertion element IS2 transposase InsD
1712	 39.13	-2	1894097..1894372	+	91	30063285	-	S1954	-	hypothetical protein
1713	 50.32	0	1894472..1895896	+	474	30063286	-	S1955	-	putative exodeoxyribonuclease VIII
1714	 48.91	0	1897139..1897459	+	106	30063287	-	S1957	-	putative host-nuclease inhibitor protein Gam
1715	 47.32	-1	1897519..1898562	+	347	30063288	-	S1958	-	putative bacteriophage protein
1716	 54.43	0	1898637..1898963	+	108	30063289	-	S1959	-	IS629 orfA
1717	 54.78	0	1899199..1899846	+	215	30063290	-	S1960	-	IS629 orfB
1718	 52.78	0	1900250..1900753	-	167	30063291	-	S1961	-	IS1 orfB
1719	 52.90	0	1900672..1900947	-	91	30063292	-	S1962	-	IS1 orfA
1720	 47.69	0	1901037..1901642	+	201	30063293	-	S1963	-	putative integrase for prophage CP-933R
1721	 48.48	0	1902098..1902988	+	296	30063294	sitA	S1964	-	Iron transport protein
1722	 51.33	0	1902988..1903815	+	275	30063295	sitB	S1965	-	Iron transport protein, ATP-binding component
1723	 51.86	0	1903812..1904669	+	285	30063296	sitC	S1966	-	Iron transport protein
1724	 49.42	0	1904666..1905523	+	285	30063297	sitD	S1967	-	Iron transport protein, inner membrane component
1725	 52.30	0	1905724..1906287	-	187	30063298	-	S1968	-	hypothetical protein
1726	 53.66	0	1906298..1907566	-	422	30063299	-	S1969	-	putative tail fiber protein
1727	 49.69	0	1907590..1908078	-	162	30063300	-	S1970	-	putative tail fiber assembly protein
1728	 49.51	0	1908138..1908341	-	67	30063301	-	S1971	-	hypothetical protein
1729	 52.10	0	1908558..1909271	-	237	30063302	-	S1972	-	IS600 orfB
1730	 48.10	0	1909479..1909688	-	69	30063303	-	S1973	-	IS1 orfB
1731	 52.54	0	1909901..1910176	-	91	30063304	-	S1975	-	IS1 orfA
1732	 53.43	0	1910765..1911391	-	208	30063305	-	S1978	-	IS911 orfB
1733	 44.88	-1	1911631..1911933	-	100	30063306	-	S1980	-	IS911 orfA
1734	 48.54	0	1912634..1914238	-	534	30063307	-	S1981	-	putative integrase
1735	 46.52	-1	1914839..1915528	-	229	30063308	-	S1986	-	putative Q antiterminator encoded by prophage CP-933P
1736	 51.11	0	1915525..1915884	-	119	30063309	-	S1987	-	putative crossover junction endodeoxyribonuclease
1737	 52.10	0	1916531..1917244	+	237	30063310	-	S1989	-	IS600 orfB
1738	 51.93	0	1917742..1918569	+	275	30063311	-	S1990	-	putative serine protease
1739	 52.00	0	1918613..1919362	+	249	30063312	-	S1991	-	hypothetical protein
1740	 50.18	0	1919359..1919928	+	189	30063313	-	S1992	-	hypothetical protein
1741	 47.33	-1	1920052..1920294	+	80	30063314	-	S1994	-	hypothetical protein
1742	 50.34	0	1920298..1920444	+	48	30063315	-	S1995	-	putative bacteriophage protein
1743	 44.88	-1	1921491..1921793	-	100	30063316	-	S1998	-	IS911 orfA
1744	 49.24	0	1922426..1922821	+	131	30063317	yecN	S2000	-	hypothetical protein
1745	 50.54	0	1922862..1923605	+	247	30063318	yecO	S2001	-	hypothetical protein
1746	 52.06	0	1923602..1924573	+	323	30063319	yecP	S2002	-	putative enzyme
1747	 52.06	0	1924738..1927167	-	809	30063320	bisZ	S2003	-	biotin sulfoxide reductase 2
1748	 47.68	0	1927192..1928292	-	366	30063321	yecK	S2004	-	putative cytochrome C-type protein
1749	 49.89	0	1928680..1929120	-	146	30063322	cutC	S2005	-	copper homeostasis protein
1750	 50.79	0	1929440..1930006	-	188	30063323	yecM	S2006	-	hypothetical protein
1751	 53.00	0	1930222..1931955	+	577	30063324	argS	S2007	-	arginyl-tRNA synthetase
1752	 52.18	0	1932840..1933274	-	144	30063325	-	S2009	-	IS629 orfB
1753	 53.21	0	1933709..1934035	-	108	30063326	-	S2011	-	IS629 orfA
1754	 55.75	+1	1934087..1934425	-	112	30063327	flhE	S2012	-	flagellar protein
1755	 55.11	0	1936449..1937642	-	397	30063328	flhB	S2014	-	flagellar biosynthesis protein FlhB
1756	 47.06	-1	1937878..1938336	+	152	30063329	-	S2015	-	hypothetical protein
1757	 44.88	-1	1939126..1939428	-	100	30063330	-	S2018	-	IS911 orfA
1758	 45.20	-1	1939569..1939964	+	131	30063331	-	S2019	-	hypothetical protein
1759	 52.24	0	1940459..1941172	+	237	30063332	-	S2020	-	IS600 orfB
1760	 53.33	0	1941677..1942321	-	214	30063333	cheZ	S2021	-	chemotaxis regulator CheZ
1761	 48.97	0	1942332..1942721	-	129	30063334	cheY	S2022	-	chemotaxis regulatory protein CheY
1762	 53.71	0	1942736..1943785	-	349	30063335	cheB	S2023	-	chemotaxis-specific methylesterase
1763	 53.89	0	1943788..1944648	-	286	30063336	cheR	S2024	-	chemotaxis methyltransferase CheR
1764	 53.87	0	1944667..1946268	-	533	30063337	tap	S2025	-	methyl-accepting protein IV
1765	 52.71	0	1946314..1947975	-	553	30063338	tar	S2026	-	methyl-accepting chemotaxis protein II, aspartate sensor receptor
1766	 51.59	0	1948120..1948623	-	167	30063339	cheW	S2027	-	purine-binding chemotaxis protein
1767	 53.18	0	1948644..1950608	-	654	30063340	cheA	S2028	-	chemotaxis protein CheA
51.60	MEAN

4.04	STD DEV
