IslandPath Analysis: Shigella flexneri 2a str. 2457T

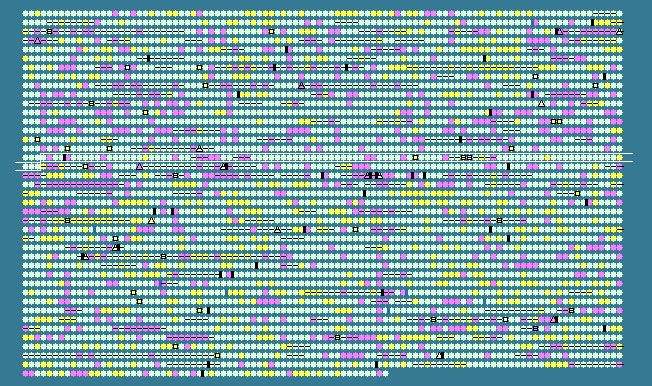

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1604	 48.22	0	1760692..1761840	+	382	30063177	cfa	S1821	-	cyclopropane fatty acyl phospholipid synthase
1605	 47.82	0	1761880..1762521	-	213	30063178	ribE	S1822	-	riboflavin synthase subunit alpha
1606	 52.98	0	1762736..1764109	+	457	30063179	ydhE	S1823	-	multidrug efflux protein
1607	 51.87	0	1764150..1765406	-	418	30063180	-	S1824	-	hypothetical protein
1608	 44.77	-1	1765979..1766284	+	101	30063181	-	S1827	-	hypothetical protein
1609	 52.89	0	1767844..1768656	-	270	30063182	-	S1829	-	hypothetical protein
1610	 49.36	0	1768660..1769445	-	261	30063183	ydhU	S1830	-	hypothetical protein
1611	 49.72	0	1769442..1770161	-	239	30063184	-	S1831	-	putative oxidoreductase, Fe-S subunit
1612	 52.43	0	1770174..1770812	-	212	30063185	-	S1832	-	hypothetical protein
1613	 49.12	0	1772947..1773573	-	208	30063186	-	S1834	-	hypothetical protein
1614	 46.67	-1	1774029..1774238	-	69	30063187	-	S1835	-	hypothetical protein
1615	 52.90	0	1774325..1774600	+	91	30063188	-	S1836	-	IS1 orfA
1616	 53.17	0	1774519..1775022	+	167	30063189	-	S1837	-	IS1 orfB
1617	 50.04	0	1775571..1776983	+	470	30063190	pykF	S1838	-	pyruvate kinase
1618	 50.63	0	1777294..1777530	+	78	30063191	lpp	S1839	-	murein lipoprotein
1619	 51.54	0	1777593..1778597	-	334	30063192	ynhG	S1840	-	hypothetical protein
1620	 49.64	0	1778746..1779162	-	138	30063193	ynhA	S1841	-	cysteine desufuration protein SufE
1621	 55.12	0	1779175..1780395	-	406	30063194	-	S1842	-	selenocysteine lyase
1622	 52.99	0	1780392..1781663	-	423	30063195	ynhC	S1843	-	cysteine desulfurase activator complex subunit SufD
1623	 50.20	0	1781638..1782384	-	248	30063196	sufC	S1844	-	cysteine desulfurase ATPase component
1624	 51.81	0	1782394..1783881	-	495	30063197	ynhE	S1845	-	cysteine desulfurase activator complex subunit SufB
1625	 52.85	0	1783890..1784258	-	122	30063198	sufA	S1846	-	iron-sulfur cluster assembly scaffold protein
1626	 44.44	-1	1784806..1785075	-	89	30063199	-	S1847	-	hypothetical protein
1627	 50.85	0	1785094..1785504	-	136	30063200	-	S1848	-	hypothetical protein
1628	 53.81	0	1785501..1788557	-	1018	30063201	ydiJ	S1849	-	putative oxidase
1629	 54.99	0	1788946..1790058	+	370	30063202	-	S1850	-	putative inner membrane protein
1630	 45.94	-1	1790487..1790843	+	118	30063203	-	S1851	-	hypothetical protein
1631	 44.68	-1	1791003..1792148	+	381	30063204	-	S1852	-	putative transport system permease protein
1632	 45.91	-1	1792442..1793602	+	386	30063205	-	S1853	-	putative amino acid/amine transport protein
1633	 47.75	0	1793614..1794480	+	288	30063206	aroE	S1854	-	quinate/shikimate dehydrogenase
1634	 50.99	0	1794511..1795269	+	252	30063207	aroD	S1855	-	3-dehydroquinate dehydratase
1635	 52.58	0	1795351..1795854	-	167	30063208	-	S1857	-	IS1 orfB
1636	 52.54	0	1795773..1796048	-	91	30063209	-	S1856	-	IS1 orfA
1637	 38.17	-2	1797701..1798858	+	385	30063210	-	S1859	-	putative enzyme
1638	 45.66	-1	1800872..1803232	+	786	30063211	yddB	S1861	-	hypothetical protein
1639	 52.78	0	1803502..1804005	-	167	30063212	-	S1862	-	IS1 orfB
1640	 52.90	0	1803924..1804199	-	91	30063213	-	S1863	-	IS1 orfA
1641	 52.90	0	1806810..1807085	+	91	30063214	-	S1865	-	IS1 orfA
1642	 53.37	0	1807004..1807507	+	167	30063215	-	S1866	-	IS1 orfB
1643	 53.89	0	1807985..1809385	+	466	30063216	gadB	S1867	-	glutamate decarboxylase isozyme
1644	 48.31	0	1809541..1811076	+	511	30063217	xasA	S1868	-	acid sensitivity protein, putative transporter
1645	 51.82	0	1811207..1812526	+	439	30063218	-	S1869	-	hypothetical protein
1646	 53.51	0	1815194..1816090	+	298	30063219	-	S1873	-	ATP-dependent peptide transporter membrane subunit
1647	 54.10	0	1816087..1817073	+	328	30063220	-	S1874	-	putative ATP-binding component of a transport system
1648	 50.23	0	1818048..1818479	-	143	30063221	osmC	S1876	-	osmotically inducible protein
1649	 52.78	0	1818652..1819155	-	167	30063222	-	S1877	-	IS1 orfB
1650	 52.90	0	1819074..1819349	-	91	30063223	-	S1878	-	IS1 orfA
1651	 51.88	0	1819537..1821234	+	565	30063224	sfcA	S1879	-	malate dehydrogenase
1652	 52.52	0	1821368..1822378	+	336	30063225	adhP	S1880	-	alcohol dehydrogenase
1653	 49.04	0	1822446..1822808	+	120	30063226	yddM	S1881	-	hypothetical protein
1654	 50.15	0	1823036..1823689	-	217	30063227	fdnI	S1882	-	formate dehydrogenase-N subunit gamma
1655	 54.92	0	1823682..1824566	-	294	30063228	fdnH	S1883	-	formate dehydrogenase-N, nitrate-inducible, iron-sulfur beta subunit
1656	 53.84	0	1824579..1827626	-	1015	30063229	fdnG	S1884	-	formate dehydrogenase-N, nitrate-inducible, alpha subunit
1657	 49.77	0	1827858..1828739	+	293	30063230	yddG	S1885	-	hypothetical protein
1658	 44.50	-1	1828994..1830094	+	366	30063231	-	S1887	-	putative outer membrane porin protein
1659	 32.22	-2	1830853..1831842	+	329	30063232	-	S1888	-	putative glycoprotein
1660	 52.90	0	1832130..1832405	+	91	30063233	-	S1890	-	IS1 orfA
1661	 53.37	0	1832324..1832827	+	167	30063234	-	S1891	-	IS1 orfB
1662	 49.10	0	1833285..1834673	+	462	30063235	narU	S1892	-	nitrite extrusion protein 2
1663	 54.63	0	1839823..1841043	+	406	30063236	-	S1896	-	IS91 orf
1664	 43.71	-1	1841282..1842004	-	240	30063237	-	S1897	-	putative DNA-binding transcriptional regulator
1665	 52.52	0	1842145..1843275	-	376	30063238	yncB	S1898	-	putative oxidoreductase
1666	 55.30	0	1843312..1844217	-	301	161486478	-	S1899	-	insertion element IS2 transposase InsD
1667	 53.01	0	1844175..1844540	-	121	161486477	-	S1900	-	insertion sequence 2 OrfA protein
1668	 52.02	0	1844699..1845217	+	172	30063241	-	S1901	-	putative resistance protein
1669	 52.89	0	1845214..1845663	+	149	30063242	-	S1902	-	hypothetical protein
1670	 53.42	0	1845664..1845897	-	77	30063243	-	S1903	-	hypothetical protein
1671	 44.58	-1	1845983..1846231	-	82	30063244	-	S1904	-	hypothetical protein
1672	 53.19	0	1847867..1849291	-	474	30063245	-	S1905	-	gamma-aminobutyraldehyde dehydrogenase
1673	 54.34	0	1849313..1850107	-	264	30063246	-	S1906	-	putative transport system permease protein
1674	 55.12	0	1850946..1851560	+	204	30063247	-	S1908	-	IS1294 transposase
1675	 52.80	0	1851560..1852006	+	148	30063248	-	S1909	-	IS1294 transposase
1676	 50.24	0	1852484..1852690	-	68	30063249	-	S1910	-	IS629 orfB
1677	 56.67	+1	1852746..1853105	-	119	30063250	-	S1911	-	IS629 orfB
1678	 53.52	0	1853368..1853694	-	108	30063251	-	S1912	-	IS629 orfA
1679	 46.20	-1	1856431..1856772	-	113	30063252	-	S1915	-	hypothetical protein
1680	 50.40	0	1857661..1858035	-	124	30063253	-	S1917	-	hypothetical protein
1681	 48.48	0	1858174..1858404	+	76	30063254	holE	S1918	-	DNA polymerase III subunit theta
1682	 51.88	0	1858737..1859162	+	141	30063255	-	S1919	-	hypothetical protein
1683	 51.43	0	1859186..1859848	+	220	30063256	-	S1920	-	exodeoxyribonuclease X
1684	 49.93	0	1859845..1861905	-	686	30063257	ptrB	S1921	-	protease 2
1685	 52.58	0	1862115..1862774	-	219	30063258	yebE	S1922	-	hypothetical protein
1686	 50.42	0	1863101..1863457	-	118	30063259	yebF	S1923	-	hypothetical protein
1687	 53.69	0	1863948..1865126	+	392	30063260	purT	S1925	-	phosphoribosylglycinamide formyltransferase 2
1688	 56.07	+1	1865182..1865823	-	213	30063261	eda	S1926	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1689	 53.59	0	1865860..1867671	-	603	30063262	edd	S1927	-	phosphogluconate dehydratase
1690	 51.42	0	1867906..1869381	-	491	30063263	zwf	S1928	-	glucose-6-phosphate 1-dehydrogenase
1691	 50.36	0	1869719..1870540	+	273	30063264	yebK	S1929	-	DNA-binding transcriptional regulator HexR
1692	 52.60	0	1870718..1872160	+	480	30063265	pykA	S1930	-	pyruvate kinase
1693	 51.34	0	1872291..1873262	-	323	30063266	msbB	S1931	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
1694	 52.15	0	1873382..1874704	-	440	30063267	yebA	S1932	-	hypothetical protein
1695	 49.20	0	1874720..1875652	-	310	161486476	znuA	S1933	-	high-affinity zinc transporter periplasmic component
1696	 48.81	0	1875731..1876486	+	251	30063269	znuC	S1934	-	high-affinity zinc transporter ATPase
1697	 51.02	0	1876483..1877268	+	261	30063270	znuB	S1935	-	high-affinity zinc transporter membrane component
1698	 52.32	0	1877415..1878425	-	336	30063271	ruvB	S1936	-	Holliday junction DNA helicase B
1699	 52.61	0	1878434..1879045	-	203	30063272	ruvA	S1937	-	Holliday junction DNA helicase motor protein
1700	 56.13	+1	1879923..1880444	-	173	30063273	ruvC	S1939	-	Holliday junction resolvase
1701	 52.77	0	1880479..1881219	-	246	30063274	yebC	S1940	-	hypothetical protein
1702	 52.38	0	1881248..1881730	-	160	30063275	ntpA	S1941	-	dATP pyrophosphohydrolase
1703	 53.81	0	1881818..1883590	-	590	30063276	aspS	S1942	-	aspartyl-tRNA synthetase
51.60	MEAN

4.04	STD DEV
