IslandPath Analysis: Shigella flexneri 2a str. 2457T

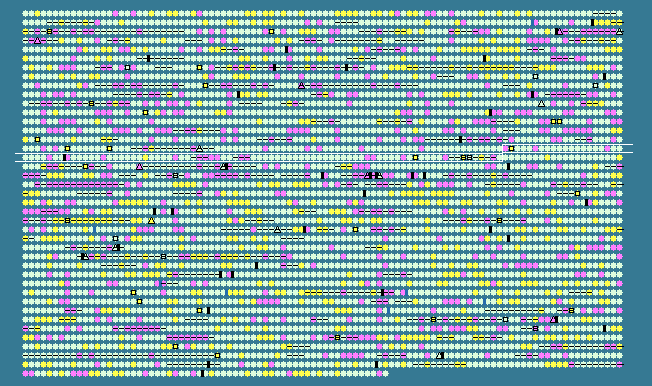

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.60 STD DEV: 4.04
Shigella flexneri 2a str. 2457T, complete genome - 1..4599354
4061 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1581	 46.99	-1	1734422..1734670	-	82	30063154	ydhA	S1796	-	hypothetical protein
1582	 55.30	0	1734692..1735597	-	301	161486481	-	S1797	-	insertion element IS2 transposase InsD
1583	 53.28	0	1735555..1735920	-	121	161486480	-	S1798	-	insertion sequence 2 OrfA protein
1584	 54.95	0	1736185..1737294	-	369	30063157	anmK	S1799	-	anhydro-N-acetylmuramic acid kinase
1585	 51.28	0	1737568..1738035	+	155	30063158	slyB	S1800	-	putative outer membrane protein
1586	 48.05	0	1738082..1738516	-	144	161486479	slyA	S1801	-	transcriptional regulator SlyA
1587	 48.52	0	1738717..1738953	+	78	30063160	-	S1802	-	hypothetical protein
1588	 49.83	0	1738947..1739813	+	288	30063161	-	S1803	-	hypothetical protein
1589	 53.07	0	1741826..1742362	-	178	30063162	sodC	S1805	-	superoxide dismutase
1590	 52.62	0	1742428..1743324	-	298	30063163	-	S1806	-	hypothetical protein
1591	 48.68	0	1743373..1743750	-	125	30063164	-	S1808	-	hypothetical protein
1592	 52.00	0	1743715..1744314	+	199	30063165	-	S1807	-	hypothetical protein
1593	 53.55	0	1744351..1745448	+	365	30063166	nemA	S1809	-	N-ethylmaleimide reductase
1594	 51.23	0	1745529..1745936	+	135	30063167	gloA	S1810	-	glyoxalase I
1595	 54.63	0	1746039..1746686	+	215	30063168	rnt	S1811	-	ribonuclease T
1596	 51.52	0	1751281..1752429	-	382	30063169	-	S1813	-	putative virulence protein
1597	 52.59	0	1753036..1753383	-	115	30063170	ydhD	S1814	-	hypothetical protein
1598	 47.95	0	1753718..1754545	+	275	30063171	ydhO	S1815	-	putative lipoprotein
1599	 49.83	0	1754673..1755254	+	193	30063172	sodB	S1816	-	superoxide dismutase
1600	 53.33	0	1755400..1756569	-	389	30063173	-	S1817	-	putative transport protein
1601	 53.70	0	1757123..1758148	+	341	30063174	purR	S1818	-	DNA-binding transcriptional repressor PurR
1602	 53.48	0	1758145..1759077	-	310	30063175	ydhB	S1819	-	putative DNA-binding transcriptional regulator
1603	 53.55	0	1759190..1760401	+	403	30063176	ydhC	S1820	-	inner membrane transport protein YdhC
1604	 48.22	0	1760692..1761840	+	382	30063177	cfa	S1821	-	cyclopropane fatty acyl phospholipid synthase
1605	 47.82	0	1761880..1762521	-	213	30063178	ribE	S1822	-	riboflavin synthase subunit alpha
1606	 52.98	0	1762736..1764109	+	457	30063179	ydhE	S1823	-	multidrug efflux protein
1607	 51.87	0	1764150..1765406	-	418	30063180	-	S1824	-	hypothetical protein
1608	 44.77	-1	1765979..1766284	+	101	30063181	-	S1827	-	hypothetical protein
1609	 52.89	0	1767844..1768656	-	270	30063182	-	S1829	-	hypothetical protein
1610	 49.36	0	1768660..1769445	-	261	30063183	ydhU	S1830	-	hypothetical protein
1611	 49.72	0	1769442..1770161	-	239	30063184	-	S1831	-	putative oxidoreductase, Fe-S subunit
1612	 52.43	0	1770174..1770812	-	212	30063185	-	S1832	-	hypothetical protein
1613	 49.12	0	1772947..1773573	-	208	30063186	-	S1834	-	hypothetical protein
1614	 46.67	-1	1774029..1774238	-	69	30063187	-	S1835	-	hypothetical protein
1615	 52.90	0	1774325..1774600	+	91	30063188	-	S1836	-	IS1 orfA
1616	 53.17	0	1774519..1775022	+	167	30063189	-	S1837	-	IS1 orfB
1617	 50.04	0	1775571..1776983	+	470	30063190	pykF	S1838	-	pyruvate kinase
1618	 50.63	0	1777294..1777530	+	78	30063191	lpp	S1839	-	murein lipoprotein
1619	 51.54	0	1777593..1778597	-	334	30063192	ynhG	S1840	-	hypothetical protein
1620	 49.64	0	1778746..1779162	-	138	30063193	ynhA	S1841	-	cysteine desufuration protein SufE
1621	 55.12	0	1779175..1780395	-	406	30063194	-	S1842	-	selenocysteine lyase
1622	 52.99	0	1780392..1781663	-	423	30063195	ynhC	S1843	-	cysteine desulfurase activator complex subunit SufD
1623	 50.20	0	1781638..1782384	-	248	30063196	sufC	S1844	-	cysteine desulfurase ATPase component
1624	 51.81	0	1782394..1783881	-	495	30063197	ynhE	S1845	-	cysteine desulfurase activator complex subunit SufB
1625	 52.85	0	1783890..1784258	-	122	30063198	sufA	S1846	-	iron-sulfur cluster assembly scaffold protein
1626	 44.44	-1	1784806..1785075	-	89	30063199	-	S1847	-	hypothetical protein
1627	 50.85	0	1785094..1785504	-	136	30063200	-	S1848	-	hypothetical protein
1628	 53.81	0	1785501..1788557	-	1018	30063201	ydiJ	S1849	-	putative oxidase
1629	 54.99	0	1788946..1790058	+	370	30063202	-	S1850	-	putative inner membrane protein
1630	 45.94	-1	1790487..1790843	+	118	30063203	-	S1851	-	hypothetical protein
1631	 44.68	-1	1791003..1792148	+	381	30063204	-	S1852	-	putative transport system permease protein
1632	 45.91	-1	1792442..1793602	+	386	30063205	-	S1853	-	putative amino acid/amine transport protein
1633	 47.75	0	1793614..1794480	+	288	30063206	aroE	S1854	-	quinate/shikimate dehydrogenase
1634	 50.99	0	1794511..1795269	+	252	30063207	aroD	S1855	-	3-dehydroquinate dehydratase
1635	 52.58	0	1795351..1795854	-	167	30063208	-	S1857	-	IS1 orfB
1636	 52.54	0	1795773..1796048	-	91	30063209	-	S1856	-	IS1 orfA
1637	 38.17	-2	1797701..1798858	+	385	30063210	-	S1859	-	putative enzyme
1638	 45.66	-1	1800872..1803232	+	786	30063211	yddB	S1861	-	hypothetical protein
1639	 52.78	0	1803502..1804005	-	167	30063212	-	S1862	-	IS1 orfB
1640	 52.90	0	1803924..1804199	-	91	30063213	-	S1863	-	IS1 orfA
1641	 52.90	0	1806810..1807085	+	91	30063214	-	S1865	-	IS1 orfA
1642	 53.37	0	1807004..1807507	+	167	30063215	-	S1866	-	IS1 orfB
1643	 53.89	0	1807985..1809385	+	466	30063216	gadB	S1867	-	glutamate decarboxylase isozyme
1644	 48.31	0	1809541..1811076	+	511	30063217	xasA	S1868	-	acid sensitivity protein, putative transporter
1645	 51.82	0	1811207..1812526	+	439	30063218	-	S1869	-	hypothetical protein
1646	 53.51	0	1815194..1816090	+	298	30063219	-	S1873	-	ATP-dependent peptide transporter membrane subunit
1647	 54.10	0	1816087..1817073	+	328	30063220	-	S1874	-	putative ATP-binding component of a transport system
1648	 50.23	0	1818048..1818479	-	143	30063221	osmC	S1876	-	osmotically inducible protein
1649	 52.78	0	1818652..1819155	-	167	30063222	-	S1877	-	IS1 orfB
1650	 52.90	0	1819074..1819349	-	91	30063223	-	S1878	-	IS1 orfA
1651	 51.88	0	1819537..1821234	+	565	30063224	sfcA	S1879	-	malate dehydrogenase
1652	 52.52	0	1821368..1822378	+	336	30063225	adhP	S1880	-	alcohol dehydrogenase
1653	 49.04	0	1822446..1822808	+	120	30063226	yddM	S1881	-	hypothetical protein
1654	 50.15	0	1823036..1823689	-	217	30063227	fdnI	S1882	-	formate dehydrogenase-N subunit gamma
1655	 54.92	0	1823682..1824566	-	294	30063228	fdnH	S1883	-	formate dehydrogenase-N, nitrate-inducible, iron-sulfur beta subunit
1656	 53.84	0	1824579..1827626	-	1015	30063229	fdnG	S1884	-	formate dehydrogenase-N, nitrate-inducible, alpha subunit
1657	 49.77	0	1827858..1828739	+	293	30063230	yddG	S1885	-	hypothetical protein
1658	 44.50	-1	1828994..1830094	+	366	30063231	-	S1887	-	putative outer membrane porin protein
1659	 32.22	-2	1830853..1831842	+	329	30063232	-	S1888	-	putative glycoprotein
1660	 52.90	0	1832130..1832405	+	91	30063233	-	S1890	-	IS1 orfA
1661	 53.37	0	1832324..1832827	+	167	30063234	-	S1891	-	IS1 orfB
1662	 49.10	0	1833285..1834673	+	462	30063235	narU	S1892	-	nitrite extrusion protein 2
1663	 54.63	0	1839823..1841043	+	406	30063236	-	S1896	-	IS91 orf
1664	 43.71	-1	1841282..1842004	-	240	30063237	-	S1897	-	putative DNA-binding transcriptional regulator
1665	 52.52	0	1842145..1843275	-	376	30063238	yncB	S1898	-	putative oxidoreductase
1666	 55.30	0	1843312..1844217	-	301	161486478	-	S1899	-	insertion element IS2 transposase InsD
1667	 53.01	0	1844175..1844540	-	121	161486477	-	S1900	-	insertion sequence 2 OrfA protein
1668	 52.02	0	1844699..1845217	+	172	30063241	-	S1901	-	putative resistance protein
1669	 52.89	0	1845214..1845663	+	149	30063242	-	S1902	-	hypothetical protein
1670	 53.42	0	1845664..1845897	-	77	30063243	-	S1903	-	hypothetical protein
1671	 44.58	-1	1845983..1846231	-	82	30063244	-	S1904	-	hypothetical protein
1672	 53.19	0	1847867..1849291	-	474	30063245	-	S1905	-	gamma-aminobutyraldehyde dehydrogenase
1673	 54.34	0	1849313..1850107	-	264	30063246	-	S1906	-	putative transport system permease protein
1674	 55.12	0	1850946..1851560	+	204	30063247	-	S1908	-	IS1294 transposase
1675	 52.80	0	1851560..1852006	+	148	30063248	-	S1909	-	IS1294 transposase
1676	 50.24	0	1852484..1852690	-	68	30063249	-	S1910	-	IS629 orfB
1677	 56.67	+1	1852746..1853105	-	119	30063250	-	S1911	-	IS629 orfB
1678	 53.52	0	1853368..1853694	-	108	30063251	-	S1912	-	IS629 orfA
1679	 46.20	-1	1856431..1856772	-	113	30063252	-	S1915	-	hypothetical protein
1680	 50.40	0	1857661..1858035	-	124	30063253	-	S1917	-	hypothetical protein
51.60	MEAN

4.04	STD DEV
