IslandPathversion 1.0

IslandPath Analysis: Salinispora tropica CNB-440

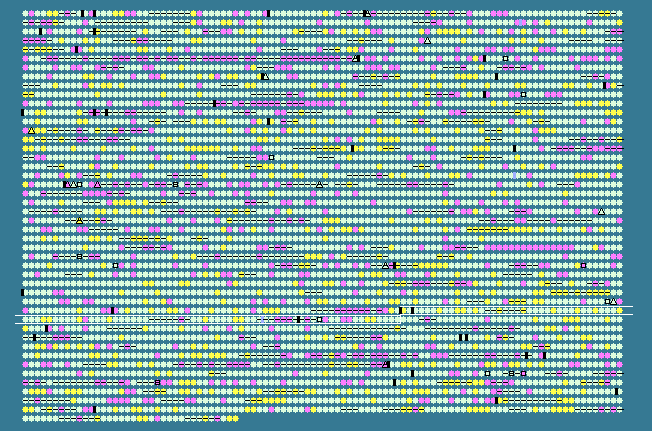

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.44 STD DEV: 3.32
Salinispora tropica CNB-440, complete genome - 1..5183331
4536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3364	 73.27	+1	3921508..3922749	-	413	145595930	-	Strop_3418	-	amine oxidase
3365	 70.54	0	3922739..3924883	-	714	145595931	-	Strop_3419	-	MMPL domain-containing protein
3366	 68.54	0	3925378..3925698	+	106	145595932	-	Strop_3420	-	hypothetical protein
3367	 66.54	0	3925658..3926467	-	269	145595933	-	Strop_3421	-	ABC-2 type transporter
3368	 71.08	0	3926480..3927295	-	271	145595934	-	Strop_3422	-	ABC-2 type transporter
3369	 68.70	0	3927331..3928263	-	310	145595935	-	Strop_3423	-	ABC transporter related
3370	 74.30	+1	3928370..3928906	-	178	145595936	-	Strop_3424	-	hypothetical protein
3371	 69.98	0	3928956..3930854	-	632	145595937	-	Strop_3425	-	DNA primase
3372	 69.99	0	3930964..3932559	-	531	145595938	-	Strop_3426	-	choline/carnitine/betaine transporter
3373	 73.38	+1	3932665..3933498	-	277	145595939	-	Strop_3427	-	siderophore-interacting protein
3374	 73.06	+1	3933508..3934773	-	421	145595940	-	Strop_3428	-	putative deoxyguanosinetriphosphate triphosphohydrolase
3375	 68.79	0	3934910..3937645	-	911	145595941	-	Strop_3429	-	pyruvate phosphate dikinase
3376	 73.28	+1	3937947..3939701	+	584	145595942	-	Strop_3430	-	Beta-N-acetylhexosaminidase
3377	 70.23	0	3940117..3940761	+	214	145595943	-	Strop_3431	-	hypothetical protein
3378	 71.36	0	3940828..3941934	-	368	145595944	-	Strop_3432	-	nifR3 family TIM-barrel protein
3379	 66.23	0	3942071..3943450	-	459	145595945	-	Strop_3433	-	glycyl-tRNA synthetase
3380	 73.00	+1	3943561..3944034	-	157	145595946	-	Strop_3434	-	hypothetical protein
3381	 72.81	+1	3944163..3944504	-	113	145595947	-	Strop_3435	-	antibiotic biosynthesis monooxygenase
3382	 67.83	0	3944532..3944789	+	85	145595948	-	Strop_3436	-	hypothetical protein
3383	 69.64	0	3944844..3945920	+	358	145595949	-	Strop_3437	-	periplasmic solute binding protein
3384	 74.02	+1	3945917..3946678	+	253	145595950	-	Strop_3438	-	ABC transporter related
3385	 71.23	0	3946680..3947555	+	291	145595951	-	Strop_3439	-	ABC-3 protein
3386	 70.19	0	3947593..3947904	+	103	145595952	-	Strop_3440	-	regulatory protein, ArsR
3387	 72.90	+1	3947909..3948838	-	309	145595953	-	Strop_3441	-	alpha/beta hydrolase fold
3388	 69.85	0	3949021..3949617	+	198	145595954	-	Strop_3442	-	hypothetical protein
3389	 75.35	+1	3949724..3951151	+	475	145595955	-	Strop_3443	-	ABC transporter related
3390	 72.81	+1	3951148..3951945	+	265	145595956	-	Strop_3444	-	cobalt transport protein
3391	 69.87	0	3952057..3953493	+	478	145595957	-	Strop_3445	-	6-phosphogluconate dehydrogenase
3392	 69.86	0	3953509..3954321	-	270	145595958	-	Strop_3446	-	undecaprenyl diphosphate synthase
3393	 74.64	+1	3954327..3955166	-	279	145595959	-	Strop_3447	-	DNA repair protein RecO
3394	 67.06	0	3955231..3956493	-	420	145595960	-	Strop_3448	-	acyltransferase 3
3395	 68.33	0	3956552..3957451	-	299	145595961	era	Strop_3449	-	GTP-binding protein Era
3396	 75.13	+1	3957448..3957825	-	125	145595962	-	Strop_3450	-	hypothetical protein
3397	 70.54	0	3957818..3959212	-	464	145595963	-	Strop_3451	-	CBS domain-containing protein
3398	 68.57	0	3959209..3959682	-	157	145595964	-	Strop_3452	-	putative metalloprotease
3399	 68.15	0	3959700..3960842	-	380	145595965	-	Strop_3453	-	PhoH family protein
3400	 75.37	+1	3961335..3962069	-	244	145595966	-	Strop_3454	-	hypothetical protein
3401	 70.51	0	3962134..3963279	-	381	145595967	-	Strop_3455	-	chaperone protein DnaJ
3402	 68.37	0	3963350..3964405	-	351	145595968	hrcA	Strop_3456	-	heat-inducible transcription repressor
3403	 66.08	-1	3964833..3965174	+	113	145595969	-	Strop_3457	-	hypothetical protein
3404	 73.04	+1	3965358..3966581	-	407	145595970	-	Strop_3458	-	putative oxygen-independent coproporphyrinogen III oxidase
3405	 73.95	+1	3966601..3967383	+	260	145595971	-	Strop_3459	-	enoyl-CoA hydratase/isomerase
3406	 70.99	0	3967555..3968409	+	284	145595972	-	Strop_3460	-	hypothetical protein
3407	 70.53	0	3968854..3969138	-	94	145595973	-	Strop_3461	-	hypothetical protein
3408	 66.26	0	3969303..3971255	-	650	145595974	-	Strop_3462	-	GTP-binding protein LepA
3409	 71.34	0	3971380..3972000	-	206	145595975	-	Strop_3463	-	hypothetical protein
3410	 74.49	+1	3972071..3973156	+	361	145595976	-	Strop_3464	-	aminoglycoside phosphotransferase
3411	 63.30	-1	3973342..3973608	+	88	145595977	-	Strop_3465	-	ribosomal protein S20
3412	 70.98	0	3973686..3974126	-	146	145595978	-	Strop_3466	-	hypothetical protein
3413	 71.05	0	3974123..3975103	-	326	145595979	-	Strop_3467	-	DNA polymerase III, delta subunit
3414	 71.75	0	3975217..3977637	-	806	145595980	-	Strop_3468	-	ComEC/Rec2-related protein
3415	 74.50	+1	3977634..3978476	-	280	145595981	-	Strop_3469	-	helix-hairpin-helix repeat-containing competence protein ComEA
3416	 71.43	0	3978632..3979492	-	286	145595982	-	Strop_3470	-	degV family protein
3417	 68.21	0	3979729..3980313	-	194	145595983	-	Strop_3471	-	hypothetical protein
3418	 70.69	0	3980679..3981299	-	206	145595984	-	Strop_3472	-	phosphoglycerate mutase
3419	 67.17	0	3981296..3981694	-	132	145595985	-	Strop_3473	-	iojap-like protein
3420	 66.49	0	3981804..3982370	-	188	145595986	-	Strop_3474	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
3421	 70.84	0	3982542..3985055	-	837	145595987	-	Strop_3475	-	aminopeptidase N
3422	 68.95	0	3985121..3985339	+	72	145595988	-	Strop_3476	-	hypothetical protein
3423	 71.91	0	3985302..3985625	+	107	145595989	-	Strop_3477	-	hypothetical protein
3424	 67.52	0	3985738..3986208	+	156	145595990	-	Strop_3478	-	hypothetical protein
3425	 70.75	0	3986294..3987739	-	481	145595991	obgE	Strop_3479	-	GTPase ObgE
3426	 66.27	0	3987832..3988086	-	84	145595992	rpmA	Strop_3480	-	50S ribosomal protein L27
3427	 64.76	-1	3988098..3988412	-	104	145595993	-	Strop_3481	-	ribosomal protein L21
3428	 72.46	0	3988653..3991727	-	1024	145595994	-	Strop_3482	-	ribonuclease
3429	 70.49	0	3991858..3992484	-	208	145595995	-	Strop_3483	-	hypothetical protein
3430	 68.42	0	3992685..3994676	-	663	145595996	-	Strop_3484	-	radical SAM domain-containing protein
3431	 72.95	+1	3994778..3995827	+	349	145595997	-	Strop_3485	-	hypothetical protein
3432	 70.67	0	3995905..3996603	-	232	145595998	-	Strop_3486	-	phospholipid/glycerol acyltransferase
3433	 69.12	0	3996797..3999976	-	1059	145595999	ileS	Strop_3487	-	isoleucyl-tRNA synthetase
3434	 71.15	0	4000313..4001875	-	520	145596000	-	Strop_3488	-	alkaline phosphatase
3435	 66.43	0	4002029..4002454	-	141	145596001	-	Strop_3489	-	nucleoside-diphosphate kinase
3436	 73.03	+1	4002597..4003916	+	439	145596002	-	Strop_3490	-	glyoxalase/bleomycin resistance protein/dioxygenase
3437	 73.24	+1	4003927..4004337	-	136	145596003	-	Strop_3491	-	hypothetical protein
3438	 70.04	0	4004334..4005668	-	444	145596004	-	Strop_3492	-	FolC bifunctional protein
3439	 69.00	0	4005665..4008283	-	872	145596005	valS	Strop_3493	-	valyl-tRNA synthetase
3440	 68.99	0	4008344..4009033	+	229	145596006	-	Strop_3494	-	hypothetical protein
3441	 66.22	0	4015106..4015327	+	73	145596007	-	Strop_3495	-	hypothetical protein
3442	 67.65	0	4015393..4016205	-	270	145596008	-	Strop_3496	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
3443	 63.18	-1	4016295..4017584	-	429	145596009	clpX	Strop_3497	-	ATP-dependent protease ATP-binding subunit
3444	 64.25	-1	4017787..4018449	-	220	145596010	-	Strop_3498	-	endopeptidase Clp
3445	 65.26	-1	4018464..4019105	-	213	145596011	-	Strop_3499	-	endopeptidase Clp
3446	 67.38	0	4019278..4020675	-	465	145596012	-	Strop_3500	-	trigger factor
3447	 66.23	0	4021469..4021930	+	153	145596013	-	Strop_3501	-	hypothetical protein
3448	 63.80	-1	4022185..4022916	+	243	145596014	-	Strop_3502	-	cell wall anchor domain-containing protein
3449	 68.86	0	4023424..4024062	-	212	145596015	-	Strop_3503	-	hypothetical protein
3450	 68.15	0	4024101..4024640	+	179	145596016	-	Strop_3504	-	transposase, IS4 family protein
3451	 65.74	-1	4024641..4025177	-	178	145596017	-	Strop_3505	-	hypothetical protein
3452	 68.12	0	4025666..4026490	+	274	145596018	-	Strop_3506	-	transcription activator, effector binding
3453	 66.25	0	4026804..4027772	-	322	145596019	-	Strop_3507	-	alcohol dehydrogenase
3454	 63.83	-1	4027783..4028064	-	93	145596020	-	Strop_3508	-	hypothetical protein
3455	 64.39	-1	4028064..4028414	-	116	145596021	-	Strop_3509	-	regulatory protein, ArsR
3456	 70.50	0	4028615..4028953	-	112	145596022	-	Strop_3510	-	hypothetical protein
3457	 71.57	0	4029172..4029762	-	196	145596023	-	Strop_3511	-	hypothetical protein
3458	 73.01	+1	4029895..4031124	+	409	145596024	-	Strop_3512	-	hypothetical protein
3459	 76.73	+2	4031147..4031464	+	105	145596025	-	Strop_3513	-	hypothetical protein
3460	 67.31	0	4031475..4031942	-	155	145596026	-	Strop_3514	-	ribose-5-phosphate isomerase B
3461	 71.89	0	4032056..4033261	-	401	145596027	-	Strop_3515	-	hypothetical protein
3462	 70.19	0	4033397..4034020	-	207	145596028	-	Strop_3516	-	hypothetical protein
3463	 69.41	0	4034228..4036783	+	851	145596029	-	Strop_3517	-	aminopeptidase N
69.44	MEAN

3.32	STD DEV
