IslandPathversion 1.0

IslandPath Analysis: Salinispora tropica CNB-440

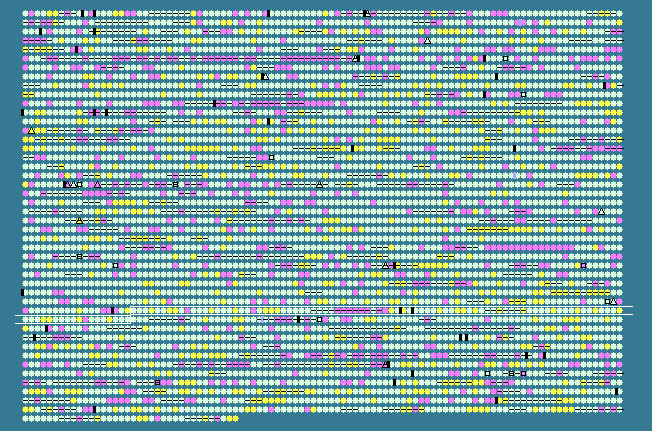

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.44 STD DEV: 3.32
Salinispora tropica CNB-440, complete genome - 1..5183331
4536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3319	 69.36	0	3867826..3868308	-	160	145595885	-	Strop_3371	-	regulatory protein, MarR
3320	 69.30	0	3868447..3868902	-	151	145595886	-	Strop_3372	-	hypothetical protein
3321	 68.20	0	3869042..3871780	+	912	145595887	aceE	Strop_3373	-	pyruvate dehydrogenase subunit E1
3322	 73.38	+1	3871963..3872409	-	148	145595888	-	Strop_3374	-	cyclase/dehydrase
3323	 68.88	0	3872610..3874007	+	465	145595889	-	Strop_3375	-	glutamyl-tRNA synthetase
3324	 68.36	0	3874262..3874912	+	216	145595890	-	Strop_3376	-	hypothetical protein
3325	 73.49	+1	3875360..3876781	+	473	145595891	-	Strop_3377	-	hypothetical protein
3326	 73.76	+1	3876887..3878056	+	389	145595892	-	Strop_3378	-	acyl transferase domain-containing protein
3327	 71.32	0	3878097..3879041	+	314	145595893	-	Strop_3379	-	3-oxoacyl-(acyl carrier protein) synthase III
3328	 63.33	-1	3879113..3879352	+	79	145595894	-	Strop_3380	-	phosphopantetheine-binding
3329	 71.64	0	3879355..3880581	+	408	145595895	-	Strop_3381	-	beta-ketoacyl synthase
3330	 72.77	+1	3880604..3882028	+	474	145595896	-	Strop_3382	-	propionyl-CoA carboxylase
3331	 72.57	0	3882146..3882823	+	225	145595897	-	Strop_3383	-	hypothetical protein
3332	 72.97	+1	3882858..3884585	-	575	145595898	-	Strop_3384	-	glycoside hydrolase family 3 protein
3333	 72.76	+1	3884692..3885183	-	163	145595899	-	Strop_3385	-	hypothetical protein
3334	 68.79	0	3885495..3885824	+	109	145595900	-	Strop_3386	-	hypothetical protein
3335	 71.88	0	3886072..3886992	+	306	145595901	-	Strop_3387	-	alpha/beta hydrolase fold
3336	 73.41	+1	3887101..3889221	+	706	145595902	-	Strop_3388	-	hypothetical protein
3337	 68.08	0	3889370..3890287	+	305	145595903	-	Strop_3389	-	cation diffusion facilitator family transporter
3338	 69.37	0	3890599..3891669	+	356	145595904	-	Strop_3390	-	hypothetical protein
3339	 65.29	-1	3891746..3892108	-	120	145595905	-	Strop_3391	-	anti-anti-sigma factor
3340	 68.85	0	3892652..3893200	+	182	145595906	-	Strop_3392	-	DSBA oxidoreductase
3341	 75.84	+1	3893312..3896014	-	900	145595907	-	Strop_3393	-	regulatory protein, LuxR
3342	 74.35	+1	3896591..3897775	+	394	145595908	-	Strop_3395	-	alcohol dehydrogenase
3343	 73.68	+1	3897788..3898957	+	389	145595909	-	Strop_3396	-	saccharopine dehydrogenase (NAD(+), L-glutamate-forming)
3344	 69.94	0	3899053..3900336	+	427	145595910	-	Strop_3397	-	seryl-tRNA synthetase
3345	 70.96	0	3900636..3901637	+	333	145595911	-	Strop_3398	-	alcohol dehydrogenase
3346	 68.39	0	3901724..3903175	-	483	145595912	-	Strop_3399	-	polymorphic outer membrane protein
3347	 70.42	0	3903392..3904537	+	381	145595913	-	Strop_3400	-	peptidase M50
3348	 69.75	0	3904718..3905755	-	345	145595914	-	Strop_3401	-	hypothetical protein
3349	 67.04	0	3905755..3906024	-	89	145595915	-	Strop_3402	-	hypothetical protein
3350	 72.45	0	3906311..3907330	-	339	145595916	-	Strop_3403	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
3351	 68.67	0	3907354..3908001	+	215	145595917	-	Strop_3404	-	cupin 2 domain-containing protein
3352	 67.32	0	3908125..3909039	+	304	145595918	-	Strop_3405	-	aldo/keto reductase
3353	 65.42	-1	3909243..3910682	+	479	145595919	-	Strop_3406	-	parallel beta-helix repeat-containing protein
3354	 64.03	-1	3910860..3912224	+	454	145595920	-	Strop_3407	-	hypothetical protein
3355	 64.36	-1	3912499..3913884	-	461	145595921	-	Strop_3408	-	polymorphic outer membrane protein
3356	 62.27	-2	3914159..3914545	-	128	145595922	-	Strop_3409	-	glyoxalase/bleomycin resistance protein/dioxygenase
3357	 60.26	-2	3914545..3914934	-	129	145595923	-	Strop_3410	-	regulatory protein, ArsR
3358	 65.93	-1	3915180..3916679	+	499	145595924	-	Strop_3411	-	amidase
3359	 67.52	0	3917000..3917587	-	195	145595925	-	Strop_3412	-	hypothetical protein
3360	 64.93	-1	3917897..3918241	-	114	145595926	-	Strop_3413	-	hypothetical protein
3361	 63.60	-1	3919181..3920548	+	455	145595927	-	Strop_3415	-	hypothetical protein
3362	 72.94	+1	3920642..3920944	+	100	145595928	-	Strop_3416	-	hypothetical protein
3363	 66.29	0	3920988..3921251	+	87	145595929	-	Strop_3417	-	hypothetical protein
3364	 73.27	+1	3921508..3922749	-	413	145595930	-	Strop_3418	-	amine oxidase
3365	 70.54	0	3922739..3924883	-	714	145595931	-	Strop_3419	-	MMPL domain-containing protein
3366	 68.54	0	3925378..3925698	+	106	145595932	-	Strop_3420	-	hypothetical protein
3367	 66.54	0	3925658..3926467	-	269	145595933	-	Strop_3421	-	ABC-2 type transporter
3368	 71.08	0	3926480..3927295	-	271	145595934	-	Strop_3422	-	ABC-2 type transporter
3369	 68.70	0	3927331..3928263	-	310	145595935	-	Strop_3423	-	ABC transporter related
3370	 74.30	+1	3928370..3928906	-	178	145595936	-	Strop_3424	-	hypothetical protein
3371	 69.98	0	3928956..3930854	-	632	145595937	-	Strop_3425	-	DNA primase
3372	 69.99	0	3930964..3932559	-	531	145595938	-	Strop_3426	-	choline/carnitine/betaine transporter
3373	 73.38	+1	3932665..3933498	-	277	145595939	-	Strop_3427	-	siderophore-interacting protein
3374	 73.06	+1	3933508..3934773	-	421	145595940	-	Strop_3428	-	putative deoxyguanosinetriphosphate triphosphohydrolase
3375	 68.79	0	3934910..3937645	-	911	145595941	-	Strop_3429	-	pyruvate phosphate dikinase
3376	 73.28	+1	3937947..3939701	+	584	145595942	-	Strop_3430	-	Beta-N-acetylhexosaminidase
3377	 70.23	0	3940117..3940761	+	214	145595943	-	Strop_3431	-	hypothetical protein
3378	 71.36	0	3940828..3941934	-	368	145595944	-	Strop_3432	-	nifR3 family TIM-barrel protein
3379	 66.23	0	3942071..3943450	-	459	145595945	-	Strop_3433	-	glycyl-tRNA synthetase
3380	 73.00	+1	3943561..3944034	-	157	145595946	-	Strop_3434	-	hypothetical protein
3381	 72.81	+1	3944163..3944504	-	113	145595947	-	Strop_3435	-	antibiotic biosynthesis monooxygenase
3382	 67.83	0	3944532..3944789	+	85	145595948	-	Strop_3436	-	hypothetical protein
3383	 69.64	0	3944844..3945920	+	358	145595949	-	Strop_3437	-	periplasmic solute binding protein
3384	 74.02	+1	3945917..3946678	+	253	145595950	-	Strop_3438	-	ABC transporter related
3385	 71.23	0	3946680..3947555	+	291	145595951	-	Strop_3439	-	ABC-3 protein
3386	 70.19	0	3947593..3947904	+	103	145595952	-	Strop_3440	-	regulatory protein, ArsR
3387	 72.90	+1	3947909..3948838	-	309	145595953	-	Strop_3441	-	alpha/beta hydrolase fold
3388	 69.85	0	3949021..3949617	+	198	145595954	-	Strop_3442	-	hypothetical protein
3389	 75.35	+1	3949724..3951151	+	475	145595955	-	Strop_3443	-	ABC transporter related
3390	 72.81	+1	3951148..3951945	+	265	145595956	-	Strop_3444	-	cobalt transport protein
3391	 69.87	0	3952057..3953493	+	478	145595957	-	Strop_3445	-	6-phosphogluconate dehydrogenase
3392	 69.86	0	3953509..3954321	-	270	145595958	-	Strop_3446	-	undecaprenyl diphosphate synthase
3393	 74.64	+1	3954327..3955166	-	279	145595959	-	Strop_3447	-	DNA repair protein RecO
3394	 67.06	0	3955231..3956493	-	420	145595960	-	Strop_3448	-	acyltransferase 3
3395	 68.33	0	3956552..3957451	-	299	145595961	era	Strop_3449	-	GTP-binding protein Era
3396	 75.13	+1	3957448..3957825	-	125	145595962	-	Strop_3450	-	hypothetical protein
3397	 70.54	0	3957818..3959212	-	464	145595963	-	Strop_3451	-	CBS domain-containing protein
3398	 68.57	0	3959209..3959682	-	157	145595964	-	Strop_3452	-	putative metalloprotease
3399	 68.15	0	3959700..3960842	-	380	145595965	-	Strop_3453	-	PhoH family protein
3400	 75.37	+1	3961335..3962069	-	244	145595966	-	Strop_3454	-	hypothetical protein
3401	 70.51	0	3962134..3963279	-	381	145595967	-	Strop_3455	-	chaperone protein DnaJ
3402	 68.37	0	3963350..3964405	-	351	145595968	hrcA	Strop_3456	-	heat-inducible transcription repressor
3403	 66.08	-1	3964833..3965174	+	113	145595969	-	Strop_3457	-	hypothetical protein
3404	 73.04	+1	3965358..3966581	-	407	145595970	-	Strop_3458	-	putative oxygen-independent coproporphyrinogen III oxidase
3405	 73.95	+1	3966601..3967383	+	260	145595971	-	Strop_3459	-	enoyl-CoA hydratase/isomerase
3406	 70.99	0	3967555..3968409	+	284	145595972	-	Strop_3460	-	hypothetical protein
3407	 70.53	0	3968854..3969138	-	94	145595973	-	Strop_3461	-	hypothetical protein
3408	 66.26	0	3969303..3971255	-	650	145595974	-	Strop_3462	-	GTP-binding protein LepA
3409	 71.34	0	3971380..3972000	-	206	145595975	-	Strop_3463	-	hypothetical protein
3410	 74.49	+1	3972071..3973156	+	361	145595976	-	Strop_3464	-	aminoglycoside phosphotransferase
3411	 63.30	-1	3973342..3973608	+	88	145595977	-	Strop_3465	-	ribosomal protein S20
3412	 70.98	0	3973686..3974126	-	146	145595978	-	Strop_3466	-	hypothetical protein
3413	 71.05	0	3974123..3975103	-	326	145595979	-	Strop_3467	-	DNA polymerase III, delta subunit
3414	 71.75	0	3975217..3977637	-	806	145595980	-	Strop_3468	-	ComEC/Rec2-related protein
3415	 74.50	+1	3977634..3978476	-	280	145595981	-	Strop_3469	-	helix-hairpin-helix repeat-containing competence protein ComEA
3416	 71.43	0	3978632..3979492	-	286	145595982	-	Strop_3470	-	degV family protein
3417	 68.21	0	3979729..3980313	-	194	145595983	-	Strop_3471	-	hypothetical protein
3418	 70.69	0	3980679..3981299	-	206	145595984	-	Strop_3472	-	phosphoglycerate mutase
69.44	MEAN

3.32	STD DEV
