IslandPath Analysis: Salinispora tropica CNB-440

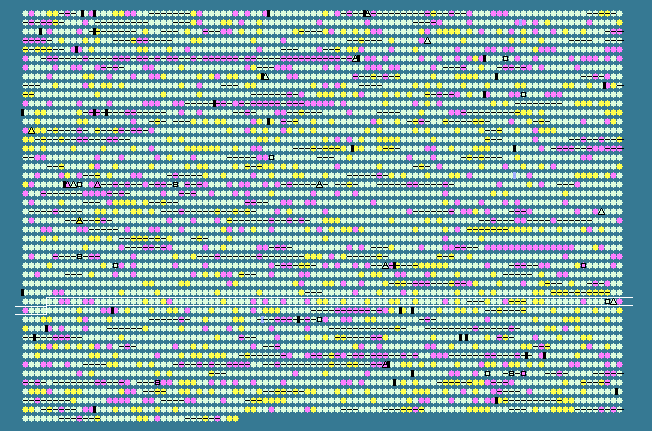

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.44 STD DEV: 3.32
Salinispora tropica CNB-440, complete genome - 1..5183331
4536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3205	 66.73	0	3732566..3734053	-	495	145595771	-	Strop_3256	-	phospho-2-dehydro-3-deoxyheptonate aldolase
3206	 69.51	0	3734098..3734625	-	175	145595772	-	Strop_3257	-	hypothetical protein
3207	 65.13	-1	3734773..3736395	-	540	145595773	-	Strop_3258	-	glycoside hydrolase family protein
3208	 64.41	-1	3736972..3737988	+	338	145595774	-	Strop_3259	-	alanine racemase
3209	 71.24	0	3738068..3739030	-	320	145595775	-	Strop_3260	-	ribokinase-like domain-containing protein
3210	 68.94	0	3739027..3740304	-	425	145595776	-	Strop_3261	-	N-acylglucosamine 2-epimerase
3211	 62.75	-2	3740306..3741199	-	297	145595777	-	Strop_3262	-	binding-protein-dependent transport systems inner membrane component
3212	 61.32	-2	3741196..3742092	-	298	145595778	-	Strop_3263	-	binding-protein-dependent transport systems inner membrane component
3213	 68.43	0	3742197..3743447	-	416	145595779	-	Strop_3264	-	extracellular solute-binding protein
3214	 66.46	0	3743744..3748027	+	1427	145595780	-	Strop_3265	-	putative alpha-1,2-mannosidase
3215	 70.94	0	3748085..3748903	-	272	145595781	-	Strop_3266	-	pyrroline-5-carboxylate reductase
3216	 67.83	0	3748976..3750004	-	342	145595782	-	Strop_3267	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
3217	 67.06	0	3750194..3750700	-	168	145595783	-	Strop_3268	-	hypothetical protein
3218	 70.42	0	3750960..3751652	+	230	145595784	-	Strop_3269	-	CRP/FNR family transcriptional regulator
3219	 71.14	0	3751844..3752647	+	267	145595785	-	Strop_3270	-	hypothetical protein
3220	 70.12	0	3752911..3754329	+	472	145595786	-	Strop_3271	-	Alpha,alpha-trehalose-phosphate synthase (UDP-forming)
3221	 74.79	+1	3754304..3755140	-	278	145595787	-	Strop_3272	-	hypothetical protein
3222	 68.37	0	3755271..3756677	-	468	145595788	-	Strop_3273	-	flavin-containing monooxygenase FMO
3223	 71.52	0	3757024..3757971	-	315	145595789	-	Strop_3274	-	ROK family glucokinase
3224	 74.84	+1	3758041..3758664	-	207	145595790	-	Strop_3275	-	hypothetical protein
3225	 63.96	-1	3758703..3759146	-	147	145595791	-	Strop_3276	-	cyclase/dehydrase
3226	 69.17	0	3759273..3761072	+	599	145595792	-	Strop_3277	-	AMP-dependent synthetase and ligase
3227	 71.22	0	3761087..3762778	+	563	145595793	-	Strop_3278	-	ATPase domain-containing protein
3228	 69.52	0	3762786..3763451	+	221	145595794	-	Strop_3279	-	response regulator receiver
3229	 68.27	0	3763584..3764393	+	269	145595795	-	Strop_3280	-	hypothetical protein
3230	 70.19	0	3764386..3766143	+	585	145595796	-	Strop_3281	-	diguanylate cyclase
3231	 72.40	0	3766202..3767335	-	377	145595797	-	Strop_3282	-	glycosyl transferase, group 1
3232	 72.72	0	3767332..3768819	-	495	145595798	-	Strop_3283	-	Ste24 endopeptidase
3233	 71.79	0	3768847..3769119	-	90	145595799	-	Strop_3284	-	hypothetical protein
3234	 75.26	+1	3769275..3770834	-	519	145595800	-	Strop_3285	-	hypothetical protein
3235	 71.00	0	3770948..3772771	+	607	145595801	-	Strop_3286	-	hypothetical protein
3236	 68.18	0	3772895..3774682	+	595	145595802	-	Strop_3287	-	GTP diphosphokinase
3237	 71.27	0	3774736..3775278	+	180	145595803	-	Strop_3288	-	NUDIX hydrolase
3238	 72.76	0	3775275..3776144	+	289	145595804	-	Strop_3289	-	nucleotidyl transferase
3239	 64.58	-1	3776181..3776468	+	95	145595805	-	Strop_3290	-	AsnC/Lrp family regulatory protein
3240	 66.37	0	3776554..3777228	-	224	145595806	-	Strop_3291	-	hypothetical protein
3241	 65.11	-1	3777373..3778983	-	536	145595807	-	Strop_3292	-	cytochrome b/b6 domain-containing protein
3242	 66.57	0	3778980..3780065	-	361	145595808	-	Strop_3293	-	Rieske (2Fe-2S) domain-containing protein
3243	 69.06	0	3780133..3780966	-	277	145595809	-	Strop_3294	-	cytochrome c, class I
3244	 61.33	-2	3781039..3781638	-	199	145595810	-	Strop_3295	-	cytochrome c oxidase, subunit III
3245	 70.69	0	3781746..3782714	+	322	145595811	-	Strop_3296	-	hypothetical protein
3246	 69.44	0	3782797..3783192	+	131	145595812	-	Strop_3297	-	hypothetical protein
3247	 72.32	0	3783272..3784333	+	353	145595813	trpD	Strop_3298	-	anthranilate phosphoribosyltransferase
3248	 65.02	-1	3784429..3784854	-	141	145595814	-	Strop_3299	-	cytochrome-c oxidase
3249	 66.15	0	3784865..3785836	-	323	145595815	-	Strop_3300	-	cytochrome c oxidase, subunit II
3250	 73.18	+1	3785864..3787183	+	439	145595816	-	Strop_3301	-	aminotransferase, class V
3251	 76.19	+2	3787180..3787410	+	76	145595817	-	Strop_3302	-	SirA family protein
3252	 69.12	0	3787443..3788420	-	325	145595818	-	Strop_3303	-	ribokinase-like domain-containing protein
3253	 68.60	0	3788577..3788939	-	120	145595819	-	Strop_3304	-	iron-sulfur cluster assembly accessory protein
3254	 76.17	+2	3789077..3790213	-	378	145595820	-	Strop_3305	-	glycerate kinase
3255	 67.75	0	3790281..3791483	+	400	145595821	-	Strop_3306	-	quinolinate synthetase
3256	 68.78	0	3791577..3793046	+	489	145595822	-	Strop_3307	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3257	 69.63	0	3793193..3793732	+	179	145595823	-	Strop_3308	-	hypothetical protein
3258	 73.79	+1	3794190..3797417	+	1075	145595824	-	Strop_3309	-	TPR repeat-containing protein
3259	 67.07	0	3797560..3798558	+	332	145595825	-	Strop_3310	-	aldo/keto reductase
3260	 68.89	0	3798631..3799395	-	254	145595826	-	Strop_3311	-	peptidase M50
3261	 70.15	0	3799428..3799628	-	66	145595827	-	Strop_3312	-	hypothetical protein
3262	 75.90	+1	3799799..3801682	+	627	145595828	-	Strop_3313	-	cobalbumin biosynthesis protein
3263	 75.19	+1	3801672..3802445	+	257	145595829	-	Strop_3314	-	cobalamin-5-phosphate synthase CobS
3264	 72.61	0	3802511..3803806	+	431	145595830	-	Strop_3315	-	hypothetical protein
3265	 72.34	0	3803860..3805023	-	387	145595831	gcvT	Strop_3316	-	glycine cleavage system aminomethyltransferase T
3266	 73.44	+1	3805146..3806711	+	521	145595832	-	Strop_3317	-	leucyl aminopeptidase
3267	 70.18	0	3806789..3807130	-	113	145595833	-	Strop_3318	-	hypothetical protein
3268	 67.70	0	3807237..3808682	+	481	145595834	-	Strop_3319	-	dihydrolipoamide dehydrogenase
3269	 72.51	0	3808749..3810578	+	609	145595835	-	Strop_3320	-	dihydrolipoyllysine-residue succinyltransferase
3270	 70.47	0	3811191..3813374	+	727	145595836	-	Strop_3321	-	protein of unknown function DUF893, YccS/YhfK
3271	 64.23	-1	3813371..3813739	-	122	145595837	-	Strop_3322	-	regulatory protein, MerR
3272	 69.15	0	3813870..3814877	+	335	145595838	-	Strop_3323	-	aldo/keto reductase
3273	 73.03	+1	3814923..3815834	+	303	145595839	-	Strop_3324	-	hypothetical protein
3274	 70.18	0	3815937..3817760	+	607	145595840	-	Strop_3325	-	hypothetical protein
3275	 70.87	0	3817836..3818477	+	213	145595841	-	Strop_3326	-	lipoate-protein ligase B
3276	 67.82	0	3818496..3819104	-	202	145595842	-	Strop_3327	-	hypothetical protein
3277	 70.08	0	3819328..3820323	+	331	145595843	-	Strop_3328	-	lipoyl synthase
3278	 73.12	+1	3820382..3821992	+	536	145595844	-	Strop_3329	-	hypothetical protein
3279	 66.96	0	3822088..3822777	+	229	145595845	-	Strop_3330	-	hypothetical protein
3280	 69.95	0	3822821..3823216	-	131	145595846	-	Strop_3331	-	RDD domain-containing protein
3281	 65.61	-1	3823496..3824920	+	474	145595847	-	Strop_3332	-	glutamine synthetase, type I
3282	 74.58	+1	3824985..3826487	-	500	145595848	-	Strop_3333	-	hypothetical protein
3283	 74.48	+1	3826557..3828194	+	545	145595849	-	Strop_3334	-	hypothetical protein
3284	 74.15	+1	3828277..3831324	-	1015	145595850	-	Strop_3335	-	glutamate-ammonia ligase adenylyltransferase
3285	 72.70	0	3831321..3832115	-	264	145595851	-	Strop_3336	-	glutamine amidotransferase class-I
3286	 73.55	+1	3832142..3833071	+	309	145595852	-	Strop_3337	-	peptidase U61, LD-carboxypeptidase A
3287	 74.85	+1	3833208..3833696	+	162	145595853	-	Strop_3338	-	hypothetical protein
3288	 68.22	0	3833836..3835191	-	451	145595854	-	Strop_3339	-	glutamine synthetase, type I
3289	 69.56	0	3835390..3837186	+	598	145595855	-	Strop_3340	-	NAD+ synthetase
3290	 70.45	0	3837344..3838189	+	281	145595856	-	Strop_3341	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
3291	 67.28	0	3838198..3838845	+	215	145595857	-	Strop_3342	-	hypothetical protein
3292	 69.53	0	3839041..3839739	-	232	145595858	-	Strop_3343	-	NADPH-dependent F420 reductase
3293	 68.67	0	3839915..3840613	-	232	145595859	-	Strop_3344	-	helix-turn-helix domain-containing protein
3294	 64.84	-1	3840715..3841098	-	127	145595860	-	Strop_3345	-	glyoxalase/bleomycin resistance protein/dioxygenase
3295	 72.50	0	3841186..3841974	+	262	145595861	-	Strop_3346	-	regulatory protein, TetR
3296	 72.77	+1	3842017..3842622	-	201	145595862	-	Strop_3347	-	methyltransferase type 12
3297	 67.86	0	3842822..3843406	-	194	145595863	-	Strop_3348	-	hypothetical protein
3298	 66.02	-1	3845473..3845781	+	102	145595864	-	Strop_3350	-	transposase IS3/IS911 family protein
3299	 67.01	0	3845778..3846641	+	287	145595865	-	Strop_3351	-	integrase catalytic subunit
3300	 64.68	-1	3846805..3847056	-	83	145595866	-	Strop_3352	-	hypothetical protein
3301	 65.81	-1	3847190..3847423	-	77	145595867	-	Strop_3353	-	hypothetical protein
3302	 70.47	0	3848342..3849103	+	253	145595868	-	Strop_3354	-	hypothetical protein
3303	 72.64	0	3849141..3850379	-	412	145595869	-	Strop_3355	-	phosphoglycerate mutase
3304	 70.87	0	3850382..3851119	-	245	145595870	-	Strop_3356	-	hypothetical protein
69.44	MEAN

3.32	STD DEV
