IslandPath Analysis: Salinispora tropica CNB-440

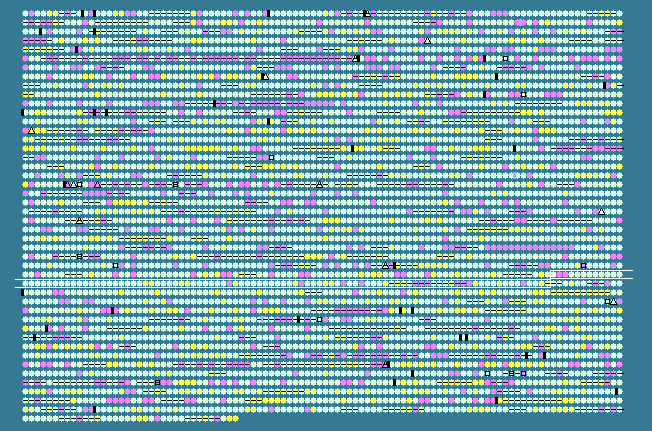

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.44 STD DEV: 3.32
Salinispora tropica CNB-440, complete genome - 1..5183331
4536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2989	 67.59	0	3468422..3469504	+	360	145595555	-	Strop_3037	-	chitin-binding domain-containing protein
2990	 64.07	-1	3469602..3470063	-	153	145595556	-	Strop_3038	-	hypothetical protein
2991	 64.99	-1	3470076..3470672	-	198	145595557	-	Strop_3039	-	sigma-70 region 2 domain-containing protein
2992	 67.85	0	3470672..3471850	-	392	145595558	-	Strop_3040	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
2993	 72.05	0	3472079..3474751	+	890	145595559	-	Strop_3041	-	tetratricopeptide TPR_4
2994	 68.78	0	3475046..3475660	+	204	145595560	-	Strop_3042	-	NADPH-dependent FMN reductase
2995	 68.67	0	3475691..3475939	+	82	145595561	-	Strop_3043	-	hypothetical protein
2996	 69.06	0	3475927..3477726	+	599	145595562	-	Strop_3044	-	hypothetical protein
2997	 72.37	0	3477729..3480164	+	811	145595563	-	Strop_3045	-	lantibiotic dehydratase domain-containing protein
2998	 70.91	0	3480161..3482446	+	761	145595564	-	Strop_3046	-	lantibiotic dehydratase domain-containing protein
2999	 71.90	0	3482443..3483912	+	489	145595565	-	Strop_3047	-	hypothetical protein
3000	 70.71	0	3483909..3486158	+	749	145595566	-	Strop_3048	-	lantibiotic dehydratase domain-containing protein
3001	 71.75	0	3486155..3487414	+	419	145595567	-	Strop_3049	-	peptidase U62, modulator of DNA gyrase
3002	 72.79	+1	3487407..3488483	+	358	145595568	-	Strop_3050	-	hypothetical protein
3003	 71.66	0	3488458..3489558	+	366	145595569	-	Strop_3051	-	FAD dependent oxidoreductase
3004	 72.02	0	3489558..3490229	+	223	145595570	-	Strop_3052	-	hypothetical protein
3005	 72.62	0	3490262..3491470	-	402	145595571	-	Strop_3053	-	amidohydrolase
3006	 71.79	0	3491572..3494067	+	831	145595572	-	Strop_3054	-	lantibiotic dehydratase domain-containing protein
3007	 68.88	0	3494094..3494951	+	285	145595573	-	Strop_3055	-	methyltransferase type 11
3008	 70.50	0	3495062..3502192	+	2376	145595574	-	Strop_3056	-	thioester reductase domain-containing protein
3009	 66.97	0	3502319..3504280	-	653	145595575	-	Strop_3057	-	asparagine synthase (glutamine-hydrolyzing)
3010	 70.25	0	3504401..3505879	+	492	145595576	-	Strop_3058	-	Xaa-Pro aminopeptidase
3011	 69.02	0	3506161..3507732	+	523	145595577	-	Strop_3059	-	hypothetical protein
3012	 67.11	0	3508078..3510099	+	673	145595578	-	Strop_3060	-	hypothetical protein
3013	 69.90	0	3510166..3513006	-	946	145595579	-	Strop_3061	-	alpha-1,6-glucosidase, pullulanase-type
3014	 68.99	0	3513294..3516128	+	944	145595580	-	Strop_3062	-	aconitate hydratase 1
3015	 70.21	0	3516255..3516536	+	93	145595581	-	Strop_3063	-	hypothetical protein
3016	 69.80	0	3516645..3517571	-	308	145595582	-	Strop_3064	-	protein of unknown function RIO1
3017	 69.92	0	3517727..3518371	-	214	145595583	-	Strop_3065	-	HAD family hydrolase
3018	 70.86	0	3518566..3519138	+	190	145595584	-	Strop_3066	-	TetR family transcriptional regulator
3019	 70.08	0	3519229..3520137	+	302	145595585	-	Strop_3067	-	hypothetical protein
3020	 72.53	0	3520134..3520952	+	272	145595586	-	Strop_3068	-	hypothetical protein
3021	 77.32	+2	3520949..3521455	+	168	145595587	-	Strop_3069	-	hypothetical protein
3022	 75.69	+1	3521497..3522261	+	254	145595588	-	Strop_3070	-	short-chain dehydrogenase/reductase SDR
3023	 68.99	0	3522302..3524278	-	658	145595589	-	Strop_3071	-	ABC transporter related
3024	 72.27	0	3524400..3525167	-	255	145595590	-	Strop_3072	-	enoyl-CoA hydratase/isomerase
3025	 69.74	0	3525208..3525435	-	75	145595591	-	Strop_3073	-	hypothetical protein
3026	 69.50	0	3525588..3527246	-	552	145595592	-	Strop_3074	-	ABC transporter related
3027	 74.47	+1	3527268..3528254	+	328	145595593	-	Strop_3075	-	hypothetical protein
3028	 74.34	+1	3528126..3528803	-	225	145595594	-	Strop_3076	-	lysine exporter protein LysE/YggA
3029	 70.02	0	3528979..3529395	-	138	145595595	-	Strop_3077	-	hypothetical protein
3030	 69.18	0	3529392..3529868	-	158	145595596	-	Strop_3078	-	NifU family SUF system FeS assembly protein
3031	 67.66	0	3529868..3531172	-	434	145595597	-	Strop_3079	-	SufS subfamily cysteine desulfurase
3032	 68.48	0	3531198..3531971	-	257	145595598	-	Strop_3080	-	FeS assembly ATPase SufC
3033	 68.70	0	3531971..3532315	-	114	145595599	-	Strop_3081	-	Rieske (2Fe-2S) domain-containing protein
3034	 71.60	0	3532315..3533511	-	398	145595600	-	Strop_3082	-	FeS assembly protein SufD
3035	 65.13	-1	3533590..3535020	-	476	145595601	-	Strop_3083	-	FeS assembly protein SufB
3036	 74.03	+1	3535017..3535763	-	248	145595602	-	Strop_3084	-	regulatory protein, ArsR
3037	 71.97	0	3535871..3536851	+	326	145595603	-	Strop_3085	-	cytochrome oxidase assembly
3038	 71.43	0	3536997..3537920	-	307	145595604	-	Strop_3086	-	hypothetical protein
3039	 68.03	0	3537931..3538296	-	121	145595605	-	Strop_3087	-	hypothetical protein
3040	 69.39	0	3538520..3539548	-	342	145595606	-	Strop_3088	-	protoheme IX farnesyltransferase
3041	 69.63	0	3539652..3541877	+	741	145595607	-	Strop_3089	-	transketolase
3042	 69.89	0	3541893..3543071	+	392	145595608	-	Strop_3090	-	transaldolase
3043	 71.88	0	3543068..3544735	+	555	145595609	-	Strop_3091	-	phosphoglucose isomerase (PGI)
3044	 68.97	0	3544767..3546284	+	505	145595610	-	Strop_3092	-	glucose-6-phosphate 1-dehydrogenase
3045	 72.19	0	3546319..3547332	+	337	145595611	-	Strop_3093	-	hypothetical protein
3046	 74.32	+1	3547329..3548099	+	256	145595612	-	Strop_3094	-	6-phosphogluconolactonase
3047	 62.45	-2	3548186..3548446	-	86	145595613	-	Strop_3095	-	preprotein translocase, SecG subunit
3048	 69.44	0	3548543..3549334	-	263	145595614	-	Strop_3096	-	Triose-phosphate isomerase
3049	 71.92	0	3549335..3550534	-	399	145595615	-	Strop_3097	-	phosphoglycerate kinase
3050	 67.06	0	3550587..3551591	-	334	145595616	-	Strop_3098	-	glyceraldehyde-3-phosphate dehydrogenase, type I
3051	 73.19	+1	3551857..3552837	-	326	145595617	-	Strop_3099	-	hypothetical protein
3052	 73.59	+1	3552892..3553887	-	331	145595618	-	Strop_3100	-	protein of unknown function UPF0052 and CofD
3053	 69.86	0	3553884..3554792	-	302	145595619	-	Strop_3101	-	hypothetical protein
3054	 65.85	-1	3555371..3556225	-	284	145595620	-	Strop_3103	-	helix-turn-helix domain-containing protein
3055	 72.10	0	3556377..3556910	+	177	145595621	-	Strop_3104	-	hypothetical protein
3056	 71.12	0	3557214..3559055	+	613	145595622	-	Strop_3105	-	ATP-dependent DNA helicase RecQ
3057	 62.24	-2	3559134..3559517	-	127	145595623	-	Strop_3106	-	PilT domain-containing protein
3058	 68.06	0	3559514..3559801	-	95	145595624	-	Strop_3107	-	prevent-host-death family protein
3059	 71.29	0	3559830..3560672	-	280	145595625	-	Strop_3108	-	alpha/beta hydrolase fold
3060	 70.67	0	3560712..3562709	-	665	145595626	-	Strop_3109	-	excinuclease ABC, C subunit
3061	 74.05	+1	3562780..3563280	-	166	145595627	-	Strop_3110	-	Rieske (2Fe-2S) domain-containing protein
3062	 68.69	0	3563421..3566384	-	987	145595628	uvrA	Strop_3111	-	excinuclease ABC subunit A
3063	 77.61	+2	3566694..3567479	-	261	145595629	-	Strop_3112	-	GTPase EngC
3064	 74.90	+1	3567603..3568319	+	238	145595630	-	Strop_3113	-	mycothiol-dependent maleylpyruvate isomerase
3065	 69.57	0	3568327..3568980	+	217	145595631	-	Strop_3114	-	beta-lactamase domain-containing protein
3066	 61.57	-2	3569223..3569477	+	84	145595632	-	Strop_3115	-	hypothetical protein
3067	 64.37	-1	3570278..3574405	+	1375	145595633	-	Strop_3116	-	hypothetical protein
3068	 59.71	-2	3575645..3576205	-	186	145595634	-	Strop_3118	-	hypothetical protein
3069	 67.71	0	3576297..3578495	-	732	145595635	-	Strop_3119	-	peptidase S1 and S6, chymotrypsin/Hap
3070	 72.64	0	3578766..3580373	-	535	145595636	-	Strop_3120	-	FAD linked oxidase domain-containing protein
3071	 72.18	0	3580413..3581174	-	253	145595637	-	Strop_3121	-	hypothetical protein
3072	 75.04	+1	3581242..3581922	-	226	145595638	-	Strop_3122	-	methyltransferase small
3073	 62.25	-2	3582108..3582311	+	67	145595639	-	Strop_3123	-	cold-shock protein, DNA-binding
3074	 64.83	-1	3582542..3585148	-	868	145595640	-	Strop_3124	-	peptidase S1 and S6, chymotrypsin/Hap
3075	 65.24	-1	3586267..3586617	+	116	145595641	-	Strop_3126	-	hypothetical protein
3076	 73.19	+1	3586614..3588329	-	571	145595642	-	Strop_3127	-	peptidase S15
3077	 68.29	0	3588334..3588948	-	204	145595643	-	Strop_3128	-	regulatory protein, MarR
3078	 72.27	0	3589002..3591125	+	707	145595644	-	Strop_3129	-	MMPL domain-containing protein
3079	 68.94	0	3591172..3592005	-	277	145595645	-	Strop_3130	-	lytic transglycosylase, catalytic
3080	 73.66	+1	3592062..3593477	-	471	145595646	-	Strop_3131	-	hypothetical protein
3081	 67.81	0	3593563..3595488	+	641	145595647	-	Strop_3132	-	GTP-binding protein TypA
3082	 72.42	0	3595558..3596409	+	283	145595648	-	Strop_3133	-	beta-lactamase
3083	 72.18	0	3596465..3597262	-	265	145595649	-	Strop_3134	-	hypothetical protein
3084	 63.96	-1	3597466..3598464	-	332	145595650	-	Strop_3135	-	integral membrane protein TerC
3085	 69.50	0	3598780..3599202	+	140	145595651	-	Strop_3136	-	antibiotic biosynthesis monooxygenase
3086	 66.52	0	3599444..3601549	-	701	145595652	-	Strop_3137	-	excinuclease ABC subunit B
3087	 73.68	+1	3601568..3603334	+	588	145595653	-	Strop_3138	-	hypothetical protein
3088	 73.06	+1	3603368..3604384	-	338	145595654	coaE	Strop_3139	-	fused dephospho-CoA kinase/unknown domain-containing protein
69.44	MEAN

3.32	STD DEV
