IslandPathversion 1.0

IslandPath Analysis: Salinispora tropica CNB-440

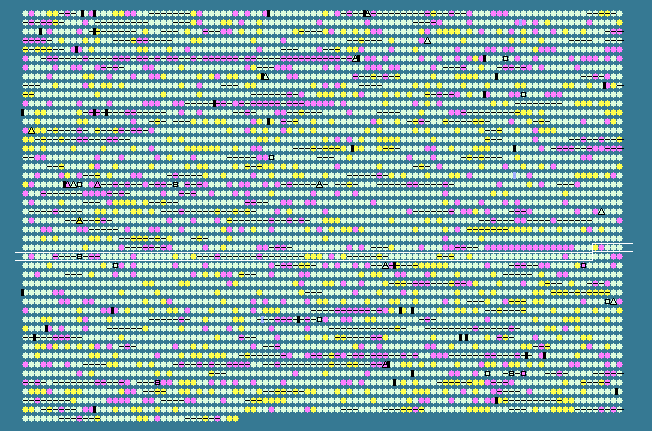

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.44 STD DEV: 3.32
Salinispora tropica CNB-440, complete genome - 1..5183331
4536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2696	 75.04	+1	3083472..3086780	+	1102	145595262	-	Strop_2737	-	transcriptional activator domain-containing protein
2697	 65.72	-1	3086782..3088467	-	561	145595263	-	Strop_2738	-	peptidase M16 domain-containing protein
2698	 66.56	0	3088464..3089408	-	314	145595264	-	Strop_2739	-	hypothetical protein
2699	 69.55	0	3089529..3090707	-	392	145595265	-	Strop_2740	-	radical SAM domain-containing protein
2700	 68.65	0	3090779..3091231	-	150	145595266	-	Strop_2741	-	hemerythrin HHE cation binding domain-containing protein
2701	 67.32	0	3091248..3092465	+	405	145595267	-	Strop_2742	-	zinc finger SWIM domain-containing protein
2702	 63.84	-1	3093472..3093789	-	105	145595268	-	Strop_2744	-	hypothetical protein
2703	 67.53	0	3093870..3094334	-	154	145595269	-	Strop_2745	-	hypothetical protein
2704	 68.44	0	3094475..3095095	+	206	145595270	-	Strop_2746	-	hypothetical protein
2705	 69.97	0	3095090..3095785	-	231	145595271	-	Strop_2747	-	hypothetical protein
2706	 64.15	-1	3095976..3096332	-	118	145595272	-	Strop_2748	-	hypothetical protein
2707	 68.59	0	3096728..3097609	+	293	145595273	-	Strop_2749	-	hypothetical protein
2708	 67.68	0	3098059..3098751	+	230	145595274	-	Strop_2750	-	hypothetical protein
2709	 66.67	0	3098829..3098990	+	53	145595275	-	Strop_2751	-	transcriptional regulator-like protein
2710	 68.23	0	3099667..3100563	+	298	145595276	-	Strop_2753	-	transposase
2711	 70.81	0	3100609..3101862	-	417	145595277	-	Strop_2754	-	major facilitator transporter
2712	 64.01	-1	3101859..3102536	-	225	145595278	-	Strop_2755	-	regulatory protein, ArsR
2713	 63.49	-1	3102904..3103218	+	104	145595279	-	Strop_2756	-	hypothetical protein
2714	 69.59	0	3103236..3104537	+	433	145595280	-	Strop_2757	-	histidine kinase, dimerisation and phosphoacceptor region
2715	 67.12	0	3104501..3105163	+	220	145595281	-	Strop_2758	-	response regulator receiver
2716	 70.41	0	3105244..3107808	-	854	145595282	-	Strop_2759	-	hypothetical protein
2717	 69.75	0	3107805..3108614	-	269	145595283	-	Strop_2760	-	ABC transporter related
2718	 72.39	0	3108746..3111577	-	943	145595284	-	Strop_2761	-	regulatory protein, LuxR
2719	 64.26	-1	3111964..3112296	+	110	145595285	-	Strop_2762	-	hypothetical protein
2720	 70.53	0	3112454..3113230	-	258	145595286	-	Strop_2763	-	thioesterase
2721	 72.71	0	3113280..3114719	-	479	145595287	-	Strop_2764	-	propionyl-CoA carboxylase
2722	 71.11	0	3114953..3116707	-	584	145595288	-	Strop_2765	-	major facilitator transporter
2723	 70.02	0	3116781..3117377	+	198	145595289	-	Strop_2766	-	regulatory protein, TetR
2724	 69.29	0	3117486..3117752	-	88	145595290	-	Strop_2767	-	hypothetical protein
2725	 70.65	0	3117970..3139602	-	7210	145595291	-	Strop_2768	-	beta-ketoacyl synthase
2726	 73.25	+1	3139622..3139849	-	75	145595292	-	Strop_2769	-	hypothetical protein
2727	 69.02	0	3139855..3141042	-	395	145595293	-	Strop_2770	-	cytochrome P450
2728	 70.68	0	3141398..3142744	+	448	145595294	-	Strop_2771	-	hypothetical protein
2729	 73.59	+1	3142772..3144028	+	418	145595295	-	Strop_2772	-	aminotransferase, class I and II
2730	 69.51	0	3144025..3144972	+	315	145595296	-	Strop_2773	-	hypothetical protein
2731	 72.75	0	3144999..3146543	+	514	145595297	-	Strop_2774	-	AMP-dependent synthetase and ligase
2732	 71.79	0	3146609..3148246	-	545	145595298	-	Strop_2775	-	AMP-dependent synthetase and ligase
2733	 62.25	-2	3148363..3148611	+	82	145595299	-	Strop_2776	-	hypothetical protein
2734	 69.71	0	3148774..3149694	-	306	145595300	-	Strop_2777	-	proline-specific peptidase
2735	 70.26	0	3149691..3160826	-	3711	145595301	-	Strop_2778	-	beta-ketoacyl synthase
2736	 71.06	0	3160885..3165639	-	1584	145595302	-	Strop_2779	-	acyl transferase domain-containing protein
2737	 68.69	0	3165680..3174781	-	3033	145595303	-	Strop_2780	-	beta-ketoacyl synthase
2738	 69.73	0	3174833..3185224	-	3463	145595304	-	Strop_2781	-	beta-ketoacyl synthase
2739	 69.33	0	3185638..3186312	-	224	145595305	-	Strop_2782	-	hypothetical protein
2740	 65.80	-1	3186353..3186697	-	114	145595306	-	Strop_2783	-	hypothetical protein
2741	 70.20	0	3187115..3187651	-	178	145595307	-	Strop_2785	-	hypothetical protein
2742	 67.45	0	3187819..3189087	-	422	145595308	-	Strop_2786	-	cytochrome P450
2743	 70.58	0	3189084..3190640	-	518	145595309	-	Strop_2787	-	AMP-dependent synthetase and ligase
2744	 70.34	0	3190664..3191398	-	244	145595310	-	Strop_2788	-	hypothetical protein
2745	 71.91	0	3191395..3192099	-	234	145595311	-	Strop_2789	-	DSBA oxidoreductase
2746	 71.14	0	3192096..3193034	-	312	145595312	-	Strop_2790	-	hypothetical protein
2747	 72.12	0	3193050..3193838	-	262	145595313	-	Strop_2791	-	alpha/beta hydrolase fold
2748	 76.26	+2	3193835..3194803	-	322	145595314	-	Strop_2792	-	beta-ketoacyl synthase
2749	 73.84	+1	3194800..3195915	-	371	145595315	-	Strop_2793	-	beta-ketoacyl synthase
2750	 74.46	+1	3195893..3197047	-	384	145595316	-	Strop_2794	-	beta-ketoacyl synthase
2751	 70.56	0	3197044..3198249	-	401	145595317	-	Strop_2795	-	beta-ketoacyl synthase
2752	 63.92	-1	3198254..3198508	-	84	145595318	-	Strop_2796	-	phosphopantetheine-binding
2753	 71.07	0	3198505..3199095	-	196	145595319	-	Strop_2797	-	Beta-hydroxyacyl-(acyl-carrier-protein) dehydratase, FabA/FabZ
2754	 73.43	+1	3199088..3199516	-	142	145595320	-	Strop_2798	-	Beta-hydroxyacyl-(acyl-carrier-protein) dehydratase, FabA/FabZ
2755	 68.83	0	3199513..3200253	-	246	145595321	-	Strop_2799	-	3-oxoacyl-(acyl-carrier-protein) reductase
2756	 72.20	0	3200337..3201602	-	421	145595322	-	Strop_2800	-	L-carnitine dehydratase/bile acid-inducible protein F
2757	 71.70	0	3201608..3202759	-	383	145595323	-	Strop_2801	-	acetyl-CoA acetyltransferase
2758	 66.16	0	3202764..3202961	-	65	145595324	-	Strop_2802	-	hypothetical protein
2759	 72.36	0	3203139..3204737	+	532	145595325	-	Strop_2803	-	AMP-dependent synthetase and ligase
2760	 73.33	+1	3204734..3206128	+	464	145595326	-	Strop_2804	-	FAD dependent oxidoreductase
2761	 68.83	0	3206159..3206389	+	76	145595327	-	Strop_2805	-	phosphopantetheine-binding
2762	 72.28	0	3206444..3210397	+	1317	145595328	-	Strop_2806	-	amino acid adenylation domain-containing protein
2763	 72.06	0	3210483..3211484	-	333	145595329	-	Strop_2807	-	hypothetical protein
2764	 71.86	0	3211652..3212479	+	275	145595330	-	Strop_2808	-	methyltransferase type 11
2765	 72.82	+1	3212541..3213548	+	335	145595331	-	Strop_2809	-	hypothetical protein
2766	 70.02	0	3213580..3215070	-	496	145595332	-	Strop_2810	-	FAD dependent oxidoreductase
2767	 66.48	0	3215119..3215655	-	178	145595333	-	Strop_2811	-	glyoxalase/bleomycin resistance protein/dioxygenase
2768	 70.23	0	3215729..3217105	+	458	145595334	-	Strop_2812	-	hypothetical protein
2769	 70.43	0	3217110..3218252	+	380	145595335	-	Strop_2813	-	acyl-CoA dehydrogenase domain-containing protein
2770	 75.19	+1	3218277..3219344	+	355	145595336	-	Strop_2814	-	acyl-CoA dehydrogenase domain-containing protein
2771	 71.44	0	3219365..3220390	+	341	145595337	-	Strop_2815	-	O-methyltransferase family protein
2772	 73.37	+1	3220387..3221997	+	536	145595338	-	Strop_2816	-	AMP-dependent synthetase and ligase
2773	 71.85	0	3222004..3222756	-	250	145595339	-	Strop_2817	-	thioesterase
2774	 70.48	0	3222756..3223883	-	375	145595340	-	Strop_2818	-	thiazolinyl imide reductase
2775	 74.47	+1	3223880..3224956	-	358	145595341	-	Strop_2819	-	saccharopine dehydrogenase
2776	 71.49	0	3224953..3230157	-	1734	145595342	-	Strop_2820	-	amino acid adenylation domain-containing protein
2777	 71.26	0	3230154..3236678	-	2174	145595343	-	Strop_2821	-	amino acid adenylation domain-containing protein
2778	 71.83	0	3236877..3237632	+	251	145595344	-	Strop_2822	-	4'-phosphopantetheinyl transferase
2779	 68.44	0	3237729..3239423	+	564	145595345	-	Strop_2823	-	EmrB/QacA family drug resistance transporter
2780	 66.67	0	3239497..3239919	-	140	145595346	-	Strop_2824	-	glyoxalase/bleomycin resistance protein/dioxygenase
2781	 70.61	0	3240153..3241445	-	430	145595347	-	Strop_2825	-	cytochrome P450
2782	 68.59	0	3241519..3242769	+	416	145595348	-	Strop_2826	-	condensation domain-containing protein
2783	 70.28	0	3242818..3243177	+	119	145595349	-	Strop_2827	-	hypothetical protein
2784	 67.12	0	3243578..3244018	+	146	145595350	-	Strop_2828	-	hypothetical protein
2785	 69.16	0	3244612..3245814	+	400	145595351	-	Strop_2829	-	cytochrome P450
2786	 72.06	0	3245859..3246878	-	339	145595352	-	Strop_2830	-	O-methyltransferase family protein
2787	 66.25	0	3246880..3247845	-	321	145595353	-	Strop_2831	-	hypothetical protein
2788	 71.65	0	3247954..3249216	+	420	145595354	-	Strop_2832	-	condensation domain-containing protein
2789	 70.38	0	3249424..3250527	+	367	145595355	-	Strop_2833	-	alkanesulfonate monooxygenase
2790	 70.95	0	3250524..3251177	+	217	145595356	-	Strop_2834	-	NADPH-dependent FMN reductase
2791	 64.02	-1	3251264..3251527	+	87	145595357	-	Strop_2835	-	phosphopantetheine-binding
2792	 72.27	0	3251682..3252770	-	362	145595358	-	Strop_2836	-	methyltransferase type 11
2793	 71.42	0	3252839..3254038	+	399	145595359	-	Strop_2837	-	acyl-CoA dehydrogenase type 2
2794	 69.75	0	3254276..3255085	+	269	145595360	-	Strop_2838	-	short-chain dehydrogenase/reductase SDR
2795	 66.38	0	3255162..3255509	-	115	145595361	-	Strop_2839	-	glyoxalase/bleomycin resistance protein/dioxygenase
69.44	MEAN

3.32	STD DEV
