IslandPath Analysis: Salinispora tropica CNB-440

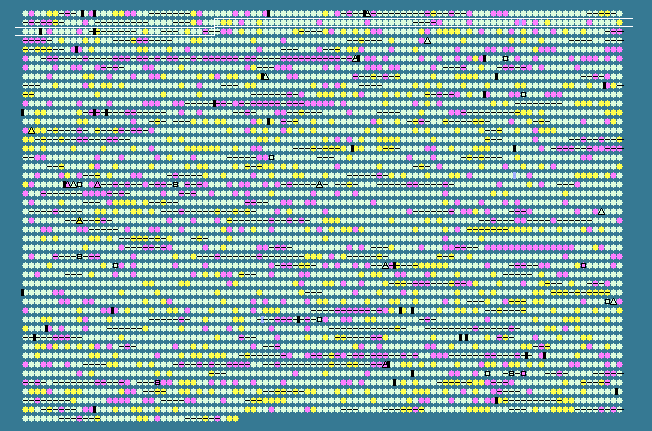

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.44 STD DEV: 3.32
Salinispora tropica CNB-440, complete genome - 1..5183331
4536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
133	 71.99	0	142474..144897	+	807	145592699	-	Strop_0133	-	adenylosuccinate synthase
134	 74.26	+1	144964..146214	+	416	145592700	-	Strop_0134	-	phosphoribosylamine--glycine ligase
135	 73.84	+1	146253..147590	-	445	145592701	-	Strop_0135	-	major facilitator transporter
136	 70.62	0	147749..148963	-	404	145592702	-	Strop_0136	-	acyl-CoA dehydrogenase domain-containing protein
137	 64.02	-1	148966..149418	-	150	145592703	-	Strop_0137	-	sterol-binding domain-containing protein
138	 72.30	0	149485..150141	+	218	145592704	-	Strop_0138	-	TetR family transcriptional regulator
139	 72.65	0	150162..150779	-	205	145592705	-	Strop_0139	-	hypothetical protein
140	 74.38	+1	150848..151741	-	297	145592706	-	Strop_0140	-	dehydratase
141	 72.20	0	151741..153096	-	451	145592707	fabG	Strop_0141	-	3-ketoacyl-(acyl-carrier-protein) reductase
142	 72.24	0	153150..154442	+	430	145592708	-	Strop_0142	-	acetyl-CoA acetyltransferase
143	 69.41	0	154472..154981	-	169	145592709	-	Strop_0143	-	hypothetical protein
144	 68.32	0	155490..156032	+	180	145592710	-	Strop_0144	-	UbiC transcription regulator-associated domain-containing protein
145	 69.33	0	156051..156764	+	237	145592711	-	Strop_0145	-	GntR family transcriptional regulator
146	 70.10	0	156964..158682	+	572	145592712	-	Strop_0146	-	arginyl-tRNA synthetase
147	 70.81	0	158771..160195	+	474	145592713	-	Strop_0147	-	adenylosuccinate lyase
148	 69.84	0	160272..160838	-	188	145592714	-	Strop_0148	-	hypothetical protein
149	 68.57	0	160862..161545	-	227	145592715	-	Strop_0149	-	peptidase S1 and S6, chymotrypsin/Hap
150	 65.14	-1	161742..162200	+	152	145592716	-	Strop_0150	-	phosphoribosylformylglycinamidine synthase, purS
151	 70.93	0	162197..162877	+	226	145592717	-	Strop_0151	-	phosphoribosylformylglycinamidine synthase I
152	 71.23	0	162945..165419	+	824	145592718	-	Strop_0152	-	phosphoribosylformylglycinamidine synthase II
153	 69.38	0	165584..167938	-	784	145592719	-	Strop_0153	-	hypothetical protein
154	 69.07	0	168245..169825	+	526	145592720	-	Strop_0154	-	amidophosphoribosyltransferase
155	 67.88	0	169887..171041	+	384	145592721	-	Strop_0155	-	phosphoribosylformylglycinamidine cyclo-ligase
156	 68.61	0	171178..172311	+	377	145592722	-	Strop_0156	-	radical SAM domain-containing protein
157	 69.62	0	172280..172516	+	78	145592723	-	Strop_0157	-	hypothetical protein
158	 63.43	-1	172731..172946	-	71	145592724	-	Strop_0158	-	hypothetical protein
159	 69.90	0	173238..174320	-	360	145592725	-	Strop_0159	-	Glu/Leu/Phe/Val dehydrogenase, dimerisation region
160	 70.71	0	174389..175378	+	329	145592726	-	Strop_0160	-	hypothetical protein
161	 67.62	0	175631..175840	+	69	145592727	-	Strop_0161	-	DNA binding domain-containing protein
162	 71.22	0	175963..176445	-	160	145592728	-	Strop_0162	-	hypothetical protein
163	 69.93	0	176579..177436	+	285	145592729	-	Strop_0163	-	3-hydroxybutyryl-CoA dehydrogenase
164	 71.63	0	177412..178176	+	254	145592730	-	Strop_0164	-	enoyl-CoA hydratase/isomerase
165	 68.61	0	178292..179626	-	444	145592731	-	Strop_0165	-	ABC-type branched-chain amino acid transport systems periplasmic component-like protein
166	 69.23	0	179773..180279	-	168	145592732	-	Strop_0166	-	activator of Hsp90 ATPase 1 family protein
167	 66.45	0	180519..180980	+	153	145592733	-	Strop_0167	-	hypothetical protein
168	 69.39	0	180983..182266	+	427	145592734	-	Strop_0168	-	sterol 3-beta-glucosyltransferase
169	 61.73	-2	182587..183477	+	296	145592735	-	Strop_0169	-	hypothetical protein
170	 61.96	-2	183716..184564	-	282	145592736	-	Strop_0170	-	abortive infection protein
171	 68.07	0	185047..185970	+	307	145592737	-	Strop_0171	-	cation diffusion facilitator family transporter
172	 71.32	0	186208..188163	+	651	145592738	-	Strop_0172	-	copper resistance D domain-containing protein
173	 68.03	0	188371..189030	+	219	145592739	-	Strop_0173	-	DSBA oxidoreductase
174	 67.14	0	189027..189659	+	210	145592740	-	Strop_0174	-	vitamin K epoxide reductase
175	 65.47	-1	189826..191241	-	471	145592741	-	Strop_0175	-	nitrate/nitrite transporter-like protein
176	 67.65	0	191238..192656	-	472	145592742	-	Strop_0176	-	major facilitator transporter
177	 69.23	0	192982..196680	+	1232	145592743	-	Strop_0177	-	nitrate reductase, alpha subunit
178	 68.15	0	196680..198299	+	539	145592744	-	Strop_0178	-	nitrate reductase, beta subunit
179	 69.35	0	198296..198967	+	223	145592745	-	Strop_0179	-	nitrate reductase molybdenum cofactor assembly chaperone
180	 68.41	0	198964..199707	+	247	145592746	-	Strop_0180	-	respiratory nitrate reductase, gamma subunit
181	 67.27	0	199855..200187	+	110	145592747	-	Strop_0181	-	carboxymuconolactone decarboxylase
182	 69.83	0	200237..201217	-	326	145592748	-	Strop_0182	-	helix-turn-helix domain-containing protein
183	 65.62	-1	201264..201935	+	223	145592749	-	Strop_0183	-	methyltransferase type 11
184	 65.88	-1	208244..209260	+	338	145592750	-	Strop_0184	-	alcohol dehydrogenase
185	 66.18	0	209436..210458	+	340	145592751	-	Strop_0185	-	alcohol dehydrogenase
186	 65.63	-1	210543..212369	-	608	145592752	-	Strop_0186	-	VanW family protein
187	 72.89	+1	212467..213462	+	331	145592753	-	Strop_0187	-	NUDIX hydrolase
188	 73.58	+1	213448..214719	-	423	145592754	-	Strop_0188	-	hypothetical protein
189	 71.29	0	214716..219023	-	1435	145592755	-	Strop_0189	-	hypothetical protein
190	 68.68	0	219236..221071	+	611	145592756	-	Strop_0190	-	hypothetical protein
191	 71.86	0	221072..222823	+	583	145592757	-	Strop_0191	-	hypothetical protein
192	 66.15	0	222816..223010	+	64	145592758	-	Strop_0192	-	hypothetical protein
193	 69.01	0	222995..224191	-	398	145592759	-	Strop_0193	-	glycosyl transferase, group 1
194	 68.23	0	224272..225483	-	403	145592760	-	Strop_0194	-	acyltransferase 3
195	 63.91	-1	225598..226650	+	350	145592761	-	Strop_0195	-	hypothetical protein
196	 70.14	0	226809..228479	-	556	145592762	-	Strop_0196	-	hypothetical protein
197	 70.40	0	228612..229682	+	356	145592763	-	Strop_0197	-	hypothetical protein
198	 71.15	0	229562..230632	-	356	145592764	-	Strop_0198	-	hypothetical protein
199	 72.60	0	230664..231404	-	246	145592765	-	Strop_0199	-	peptidase M23B
200	 74.38	+1	231462..231824	+	120	145592766	-	Strop_0200	-	hypothetical protein
201	 70.67	0	232139..232663	+	174	145592767	-	Strop_0201	-	hypothetical protein
202	 72.29	0	232734..233195	+	153	145592768	-	Strop_0202	-	CMP/dCMP deaminase, zinc-binding
203	 66.95	0	233303..234010	-	235	145592769	-	Strop_0203	-	purine nucleoside phosphorylase
204	 66.96	0	234505..235521	-	338	145592770	-	Strop_0204	-	O-methyltransferase family protein
205	 64.71	-1	235592..235999	+	135	145592771	-	Strop_0205	-	hypothetical protein
206	 70.42	0	235983..236594	-	203	145592772	-	Strop_0206	-	hypothetical protein
207	 66.33	0	236756..237049	-	97	145592773	-	Strop_0207	-	hypothetical protein
208	 72.18	0	237091..237960	-	289	145592774	-	Strop_0208	-	hypothetical protein
209	 72.37	0	238018..238929	-	303	145592775	-	Strop_0209	-	aminoglycoside phosphotransferase
210	 64.64	-1	239041..240423	-	460	145592776	-	Strop_0210	-	hypothetical protein
211	 66.17	0	240617..241417	-	266	145592777	-	Strop_0211	-	methyltransferase type 11
212	 67.14	0	241433..241852	+	139	145592778	-	Strop_0212	-	hypothetical protein
213	 73.26	+1	242420..244846	+	808	145592779	-	Strop_0213	-	DNA polymerase III, subunits gamma and tau
214	 69.05	0	244878..245255	+	125	145592780	-	Strop_0214	-	hypothetical protein
215	 68.35	0	245263..245856	+	197	145592781	-	Strop_0215	-	recombination protein RecR
216	 66.31	0	246131..247792	+	553	145592782	-	Strop_0216	-	extracellular solute-binding protein
217	 65.97	-1	247867..248871	+	334	145592783	-	Strop_0217	-	binding-protein-dependent transport systems inner membrane component
218	 68.95	0	248868..249830	+	320	145592784	-	Strop_0218	-	binding-protein-dependent transport systems inner membrane component
219	 70.35	0	249898..250956	+	352	145592785	-	Strop_0219	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
220	 70.79	0	250949..252064	+	371	145592786	-	Strop_0220	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
221	 77.06	+2	252120..252581	-	153	145592787	-	Strop_0221	-	hypothetical protein
222	 67.73	0	252578..253327	-	249	145592788	-	Strop_0222	-	hypothetical protein
223	 72.32	0	253327..254829	+	500	145592789	-	Strop_0223	-	EmrB/QacA family drug resistance transporter
224	 67.07	0	254897..256651	-	584	145592790	-	Strop_0224	-	2-isopropylmalate synthase
225	 72.31	0	256817..257419	-	200	145592791	-	Strop_0225	-	nitroreductase
226	 69.04	0	257654..258919	+	421	145592792	-	Strop_0226	-	aspartate kinase
227	 70.72	0	258923..259984	+	353	145592793	-	Strop_0227	-	aspartate-semialdehyde dehydrogenase
228	 73.11	+1	259989..261416	-	475	145592794	-	Strop_0228	-	diguanylate cyclase
229	 69.07	0	261690..263393	+	567	145592795	-	Strop_0229	-	5'-nucleotidase domain-containing protein
230	 69.54	0	263470..265695	-	741	145592796	-	Strop_0230	-	RecD/TraA family helicase
231	 65.00	-1	265739..266038	-	99	145592797	-	Strop_0231	-	hypothetical protein
232	 67.56	0	266097..267104	+	335	145592798	-	Strop_0232	-	ECF subfamily RNA polymerase sigma-24 factor
69.44	MEAN

3.32	STD DEV
