IslandPath Analysis: Salinispora tropica CNB-440

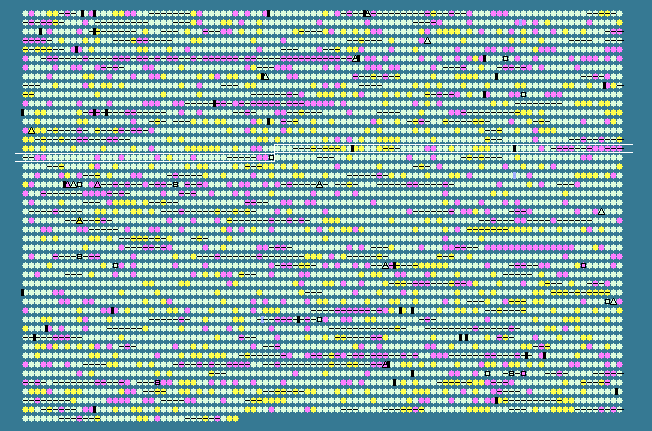

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.44 STD DEV: 3.32
Salinispora tropica CNB-440, complete genome - 1..5183331
4536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1543	 70.05	0	1775340..1776551	-	403	145594109	-	Strop_1562	-	acyl-CoA dehydrogenase domain-containing protein
1544	 72.21	0	1776551..1777615	-	354	145594110	-	Strop_1563	-	aminoglycoside phosphotransferase
1545	 72.25	0	1777811..1778437	+	208	145594111	-	Strop_1564	-	GCN5-related N-acetyltransferase
1546	 67.78	0	1778622..1778891	+	89	145594112	-	Strop_1565	-	hypothetical protein
1547	 68.96	0	1779067..1779939	-	290	145594113	-	Strop_1566	-	triple helix repeat-containing collagen
1548	 71.31	0	1780576..1782147	-	523	145594114	-	Strop_1567	-	aldehyde dehydrogenase
1549	 75.28	+1	1782464..1782730	-	88	145594115	-	Strop_1568	-	hypothetical protein
1550	 68.78	0	1782727..1783722	-	331	145594116	-	Strop_1569	-	biotin synthase
1551	 75.37	+1	1783906..1785042	+	378	145594117	-	Strop_1570	-	8-amino-7-oxononanoate synthase
1552	 76.25	+2	1785030..1785770	+	246	145594118	-	Strop_1571	-	dethiobiotin synthase
1553	 73.59	+1	1785780..1786949	-	389	145594119	-	Strop_1572	-	cytochrome P450
1554	 74.74	+1	1786951..1787619	-	222	145594120	-	Strop_1573	-	methyltransferase type 12
1555	 71.31	0	1787721..1788323	-	200	145594121	-	Strop_1574	-	regulatory protein, TetR
1556	 74.52	+1	1789817..1790809	+	330	145594122	-	Strop_1575	-	NAD-dependent epimerase/dehydratase
1557	 73.03	+1	1790836..1791810	-	324	145594123	-	Strop_1576	-	hypothetical protein
1558	 69.64	0	1792088..1792726	+	212	145594124	-	Strop_1577	-	response regulator receiver
1559	 71.95	0	1792787..1794508	-	573	145594125	-	Strop_1578	-	ATPase domain-containing protein
1560	 73.19	+1	1794551..1795699	-	382	145594126	-	Strop_1579	-	hypothetical protein
1561	 75.65	+1	1795730..1797610	+	626	145594127	-	Strop_1580	-	heavy metal translocating P-type ATPase
1562	 76.01	+1	1797653..1798519	-	288	145594128	-	Strop_1581	-	UspA domain-containing protein
1563	 68.62	0	1798516..1800918	-	800	145594129	-	Strop_1582	-	putative phosphoketolase
1564	 72.00	0	1801017..1801841	-	274	145594130	-	Strop_1583	-	UspA domain-containing protein
1565	 68.81	0	1802043..1803161	+	372	145594131	-	Strop_1584	-	hypothetical protein
1566	 67.83	0	1803340..1805052	+	570	145594132	-	Strop_1585	-	regulator of chromosome condensation, RCC1
1567	 70.83	0	1805110..1806621	-	503	145594133	-	Strop_1586	-	luciferase family protein
1568	 61.67	-2	1806835..1807695	+	286	145594134	-	Strop_1587	-	helix-turn-helix domain-containing protein
1569	 65.28	-1	1807695..1807910	+	71	145594135	-	Strop_1588	-	hypothetical protein
1570	 66.88	0	1808109..1809062	+	317	145594136	-	Strop_1589	-	SpoOM family protein
1571	 68.14	0	1809143..1809550	-	135	145594137	-	Strop_1590	-	hypothetical protein
1572	 76.23	+2	1809757..1810164	+	135	145594138	-	Strop_1591	-	hypothetical protein
1573	 72.67	0	1810273..1812603	-	776	145594139	-	Strop_1592	-	hypothetical protein
1574	 71.59	0	1812787..1813902	-	371	145594140	-	Strop_1593	-	hypothetical protein
1575	 72.58	0	1813977..1814636	+	219	145594141	-	Strop_1594	-	response regulator receiver
1576	 74.90	+1	1814633..1816078	+	481	145594142	-	Strop_1595	-	ATPase domain-containing protein
1577	 73.53	+1	1816090..1817778	-	562	145594143	-	Strop_1596	-	hypothetical protein
1578	 74.24	+1	1817872..1819020	+	382	145594144	-	Strop_1597	-	hypothetical protein
1579	 72.44	0	1818904..1819959	-	351	145594145	-	Strop_1598	-	helix-turn-helix domain-containing protein
1580	 69.86	0	1820126..1820908	+	260	145594146	-	Strop_1599	-	short-chain dehydrogenase/reductase SDR
1581	 69.68	0	1821027..1821458	-	143	145594147	-	Strop_1600	-	sporulation and cell division protein SsgA
1582	 68.22	0	1821732..1822310	+	192	145594148	-	Strop_1601	-	hypothetical protein
1583	 67.12	0	1822667..1823332	-	221	145594149	-	Strop_1602	-	hypothetical protein
1584	 66.57	0	1824038..1825027	+	329	145594150	-	Strop_1603	-	hypothetical protein
1585	 71.95	0	1825406..1826275	+	289	145594151	-	Strop_1604	-	hypothetical protein
1586	 66.95	0	1826349..1826699	-	116	145594152	-	Strop_1605	-	hypothetical protein
1587	 65.64	-1	1827328..1827912	-	194	145594153	-	Strop_1607	-	metal-dependent phosphohydrolase
1588	 66.84	0	1827909..1829036	-	375	145594154	-	Strop_1608	-	hypothetical protein
1589	 68.36	0	1829206..1829619	+	137	145594155	-	Strop_1609	-	hypothetical protein
1590	 65.78	-1	1830416..1831657	+	413	145594156	-	Strop_1610	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1591	 64.76	-1	1831665..1831979	+	104	145594157	-	Strop_1611	-	DsrC family protein
1592	 62.96	-1	1831994..1832506	+	170	145594158	-	Strop_1612	-	hypothetical protein
1593	 67.16	0	1832517..1832918	+	133	145594159	-	Strop_1613	-	OsmC family protein
1594	 69.92	0	1832976..1833221	-	81	145594160	-	Strop_1614	-	hypothetical protein
1595	 65.74	-1	1834380..1834703	-	107	145594161	-	Strop_1615	-	hypothetical protein
1596	 63.06	-1	1834829..1837102	-	757	145594162	-	Strop_1616	-	cell wall anchor domain-containing protein
1597	 62.88	-1	1837778..1838305	-	175	145594163	-	Strop_1617	-	hypothetical protein
1598	 62.93	-1	1838499..1839086	+	195	145594164	-	Strop_1618	-	hypothetical protein
1599	 63.96	-1	1839290..1840654	+	454	145594165	-	Strop_1619	-	hypothetical protein
1600	 65.22	-1	1841135..1842382	+	415	145594166	-	Strop_1620	-	polymorphic membrane protein, Chlamydia
1601	 68.77	0	1842470..1842754	-	94	145594167	-	Strop_1621	-	hypothetical protein
1602	 69.19	0	1842872..1844335	-	487	145594168	-	Strop_1622	-	2-nitropropane dioxygenase, NPD
1603	 65.53	-1	1844376..1846049	+	557	145594169	-	Strop_1623	-	hypothetical protein
1604	 63.71	-1	1846168..1846980	-	270	145594170	-	Strop_1624	-	peptidoglycan binding domain-containing protein
1605	 67.86	0	1847489..1848991	+	500	145594171	-	Strop_1625	-	major facilitator transporter
1606	 67.48	0	1849127..1850596	+	489	145594172	-	Strop_1626	-	hypothetical protein
1607	 72.04	0	1850571..1851836	-	421	145594173	-	Strop_1627	-	putative esterase
1608	 70.26	0	1851833..1852639	-	268	145594174	-	Strop_1628	-	ABC transporter related
1609	 70.47	0	1852654..1853706	-	350	145594175	-	Strop_1629	-	transport system permease protein
1610	 72.92	+1	1853703..1854773	-	356	145594176	-	Strop_1630	-	transport system permease protein
1611	 67.67	0	1854763..1855755	-	330	145594177	-	Strop_1631	-	iron-enterobactin transporter periplasmic binding protein
1612	 66.88	0	1856189..1858969	+	926	145594178	-	Strop_1632	-	asparagine synthase (glutamine-hydrolyzing)
1613	 64.53	-1	1859045..1860028	-	327	145594179	-	Strop_1633	-	substrate-binding region of ABC-type glycine betaine transport system
1614	 66.92	0	1860088..1860873	-	261	145594180	-	Strop_1634	-	binding-protein-dependent transport systems inner membrane component
1615	 67.00	0	1860870..1862063	-	397	145594181	-	Strop_1635	-	glycine betaine/L-proline ABC transporter, ATPase subunit
1616	 67.22	0	1862060..1862788	-	242	145594182	-	Strop_1636	-	binding-protein-dependent transport systems inner membrane component
1617	 65.02	-1	1863297..1864448	+	383	145594183	-	Strop_1637	-	UDP-galactopyranose mutase
1618	 69.76	0	1864452..1865420	+	322	145594184	-	Strop_1638	-	glycosyl transferase family protein
1619	 67.98	0	1865749..1867425	+	558	145594185	-	Strop_1639	-	choline dehydrogenase
1620	 70.73	0	1867490..1868965	+	491	145594186	-	Strop_1640	-	aldehyde dehydrogenase
1621	 69.44	0	1869132..1870211	+	359	145594187	-	Strop_1641	-	glycine betaine/L-proline ABC transporter, ATPase subunit
1622	 67.92	0	1870211..1872205	+	664	145594188	-	Strop_1642	-	binding-protein-dependent transport systems inner membrane component
1623	 63.89	-1	1872285..1873256	+	323	145594189	-	Strop_1643	-	substrate-binding region of ABC-type glycine betaine transport system
1624	 69.16	0	1873278..1874279	+	333	145594190	-	Strop_1644	-	hypothetical protein
1625	 73.76	+1	1874329..1874793	-	154	145594191	-	Strop_1645	-	regulatory protein, MerR
1626	 66.73	0	1874793..1876376	-	527	145594192	-	Strop_1646	-	sulphate transporter
1627	 71.80	0	1876820..1877890	+	356	145594193	-	Strop_1647	-	chitin-binding domain-containing protein
1628	 70.83	0	1877991..1878566	+	191	145594194	-	Strop_1648	-	hypothetical protein
1629	 61.60	-2	1878638..1879723	-	361	145594195	-	Strop_1649	-	hypothetical protein
1630	 71.15	0	1879883..1882267	-	794	145594196	-	Strop_1650	-	regulatory protein, LuxR
1631	 69.46	0	1882273..1884168	-	631	145594197	-	Strop_1651	-	heat shock protein 70
1632	 66.97	0	1884356..1885018	+	220	145594198	-	Strop_1652	-	hypothetical protein
1633	 68.39	0	1885024..1886529	-	501	145594199	-	Strop_1653	-	GTP-binding protein, HSR1-related
1634	 67.11	0	1886526..1888337	-	603	145594200	-	Strop_1654	-	dynamin family protein
1635	 72.92	+1	1888441..1889064	-	207	145594201	-	Strop_1655	-	Rieske (2Fe-2S) domain-containing protein
1636	 68.67	0	1889061..1889660	-	199	145594202	-	Strop_1656	-	hypothetical protein
1637	 69.92	0	1889657..1890301	-	214	145594203	-	Strop_1657	-	hypothetical protein
1638	 67.13	0	1890396..1892129	+	577	145594204	-	Strop_1658	-	adenylyl cyclase class-3/4/guanylyl cyclase
1639	 68.15	0	1892126..1892797	+	223	145594205	-	Strop_1659	-	cyclic nucleotide-binding
1640	 58.61	-2	1893098..1893457	+	119	145594206	-	Strop_1660	-	hypothetical protein
1641	 64.60	-1	1894561..1895238	-	225	145594207	-	Strop_1661	-	helix-turn-helix domain-containing protein
1642	 67.90	0	1896869..1897762	-	297	145594208	-	Strop_1662	-	transposase IS116/IS110/IS902 family protein
69.44	MEAN

3.32	STD DEV
