IslandPathversion 1.0

IslandPath Analysis: Salinispora tropica CNB-440

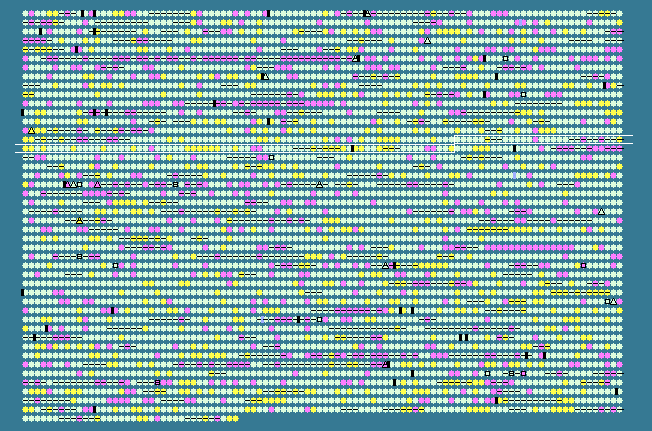

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.44 STD DEV: 3.32
Salinispora tropica CNB-440, complete genome - 1..5183331
4536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1473	 68.34	0	1702965..1704692	-	575	145594039	-	Strop_1492	-	major facilitator transporter
1474	 67.01	0	1704900..1705484	-	194	145594040	-	Strop_1493	-	NADPH-dependent FMN reductase
1475	 66.27	0	1705648..1706145	+	165	145594041	-	Strop_1494	-	redox-sensitive transcriptional activator SoxR
1476	 70.56	0	1706332..1708230	-	632	145594042	-	Strop_1495	-	hypothetical protein
1477	 70.85	0	1708325..1708993	+	222	145594043	-	Strop_1496	-	response regulator receiver
1478	 72.99	+1	1708990..1710159	+	389	145594044	-	Strop_1497	-	ATPase domain-containing protein
1479	 68.62	0	1710447..1711880	+	477	145594045	-	Strop_1498	-	monooxygenase, FAD-binding
1480	 68.48	0	1712082..1712357	+	91	145594046	-	Strop_1499	-	hypothetical protein
1481	 68.64	0	1712871..1713377	-	168	145594047	-	Strop_1500	-	hypothetical protein
1482	 67.41	0	1713371..1714042	-	223	145594048	-	Strop_1501	-	hydrolase
1483	 67.20	0	1714192..1714566	+	124	145594049	-	Strop_1502	-	hypothetical protein
1484	 66.33	0	1714748..1715641	+	297	145594050	-	Strop_1503	-	luciferase family protein
1485	 70.24	0	1715701..1717017	-	438	145594051	-	Strop_1504	-	UDP-glucose 6-dehydrogenase
1486	 65.16	-1	1716944..1717870	-	308	145594052	-	Strop_1505	-	methyltransferase type 11
1487	 70.27	0	1718567..1718899	+	110	145594053	-	Strop_1506	-	hypothetical protein
1488	 68.09	0	1718896..1719177	-	93	145594054	-	Strop_1507	-	hypothetical protein
1489	 71.51	0	1719314..1719871	-	185	145594055	-	Strop_1508	-	hypothetical protein
1490	 66.31	0	1720135..1720701	+	188	145594056	-	Strop_1509	-	hypothetical protein
1491	 69.84	0	1721007..1723115	-	702	145594057	-	Strop_1510	-	hypothetical protein
1492	 66.46	0	1723108..1723599	-	163	145594058	-	Strop_1511	-	hypothetical protein
1493	 67.46	0	1723889..1724266	+	125	145594059	-	Strop_1512	-	hypothetical protein
1494	 65.72	-1	1724537..1724959	-	140	145594060	-	Strop_1513	-	hypothetical protein
1495	 66.81	0	1724916..1725617	-	233	145594061	-	Strop_1514	-	hypothetical protein
1496	 67.61	0	1725871..1726083	-	70	145594062	-	Strop_1515	-	hypothetical protein
1497	 64.78	-1	1726170..1726487	-	105	145594063	-	Strop_1516	-	hypothetical protein
1498	 66.18	0	1726540..1726746	-	68	145594064	-	Strop_1517	-	hypothetical protein
1499	 66.91	0	1726760..1727596	-	278	145594065	-	Strop_1518	-	helix-turn-helix domain-containing protein
1500	 75.00	+1	1727872..1728195	+	107	145594066	-	Strop_1519	-	hypothetical protein
1501	 77.01	+2	1728192..1728452	+	86	145594067	-	Strop_1520	-	hypothetical protein
1502	 76.07	+1	1728532..1730562	+	676	145594068	-	Strop_1521	-	hypothetical protein
1503	 68.06	0	1730635..1731924	-	429	145594069	-	Strop_1522	-	amidohydrolase
1504	 73.10	+1	1732059..1732493	-	144	145594070	-	Strop_1523	-	GCN5-related N-acetyltransferase
1505	 68.82	0	1732704..1734332	+	542	145594071	-	Strop_1524	-	ABC transporter related
1506	 72.37	0	1734340..1735374	-	344	145594072	-	Strop_1525	-	hypothetical protein
1507	 69.96	0	1735517..1737583	-	688	145594073	-	Strop_1526	-	3-hydroxyacyl-CoA dehydrogenase, NAD-binding
1508	 70.59	0	1737639..1738835	-	398	145594074	-	Strop_1527	-	acetyl-CoA acetyltransferase
1509	 74.26	+1	1738939..1740294	-	451	145594075	-	Strop_1528	-	3'-5' exonuclease
1510	 72.56	0	1740514..1741650	+	378	145594076	-	Strop_1529	-	peptidase S1 and S6, chymotrypsin/Hap
1511	 71.78	0	1741736..1742557	+	273	145594077	-	Strop_1530	-	hypothetical protein
1512	 71.67	0	1742601..1743200	-	199	145594078	-	Strop_1531	-	hypothetical protein
1513	 70.25	0	1743345..1744460	+	371	145594079	-	Strop_1532	-	uroporphyrinogen decarboxylase
1514	 74.40	+1	1744466..1745875	+	469	145594080	-	Strop_1533	-	protoporphyrinogen oxidase
1515	 68.38	0	1745872..1746573	+	233	145594081	-	Strop_1534	-	chlorite dismutase
1516	 69.65	0	1746684..1747052	-	122	145594082	-	Strop_1535	-	hypothetical protein
1517	 67.91	0	1747148..1748032	+	294	145594083	-	Strop_1536	-	LysR, substrate-binding
1518	 72.19	0	1748153..1748605	-	150	145594084	-	Strop_1537	-	GCN5-related N-acetyltransferase
1519	 75.55	+1	1748589..1749500	-	303	145594085	-	Strop_1538	-	cytochrome c biogenesis protein, transmembrane region
1520	 72.16	0	1749502..1750083	-	193	145594086	-	Strop_1539	-	redoxin domain-containing protein
1521	 67.05	0	1750227..1750487	-	86	145594087	-	Strop_1540	-	hypothetical protein
1522	 65.42	-1	1750774..1751334	-	186	145594088	-	Strop_1541	-	hypothetical protein
1523	 67.56	0	1751794..1752240	-	148	145594089	-	Strop_1542	-	methionine-R-sulfoxide reductase
1524	 71.05	0	1752252..1753277	+	341	145594090	-	Strop_1543	-	DNA primase, small subunit
1525	 69.31	0	1753282..1753773	-	163	145594091	-	Strop_1544	-	GCN5-related N-acetyltransferase
1526	 72.01	0	1753782..1755410	-	542	145594092	-	Strop_1545	-	TAP domain-containing protein
1527	 70.27	0	1755385..1756494	-	369	145594093	ligC	Strop_1546	-	ATP-dependent DNA ligase
1528	 74.14	+1	1756609..1757103	-	164	145594094	-	Strop_1547	-	GCN5-related N-acetyltransferase
1529	 76.87	+2	1757235..1758155	-	306	145594095	-	Strop_1548	-	hypothetical protein
1530	 75.41	+1	1758328..1759185	-	285	145594096	-	Strop_1549	-	hypothetical protein
1531	 75.28	+1	1759185..1760171	-	328	145594097	-	Strop_1550	-	hypothetical protein
1532	 75.64	+1	1760200..1762674	-	824	145594098	-	Strop_1551	-	SMC domain-containing protein
1533	 73.19	+1	1762674..1763822	-	382	145594099	-	Strop_1552	-	nuclease SbcCD, D subunit
1534	 70.84	0	1763836..1765584	-	582	145594100	-	Strop_1553	-	hypothetical protein
1535	 69.35	0	1765770..1767449	+	559	145594101	-	Strop_1554	-	hypothetical protein
1536	 74.03	+1	1767554..1768300	-	248	145594102	-	Strop_1555	-	hypothetical protein
1537	 69.41	0	1768451..1768996	+	181	145594103	-	Strop_1556	-	plasmid pRiA4b ORF-3 family protein
1538	 67.21	0	1769350..1770636	+	428	145594104	-	Strop_1557	-	extracellular solute-binding protein
1539	 63.78	-1	1770862..1771830	+	322	145594105	-	Strop_1558	-	binding-protein-dependent transport systems inner membrane component
1540	 63.58	-1	1771841..1772683	+	280	145594106	-	Strop_1559	-	binding-protein-dependent transport systems inner membrane component
1541	 70.77	0	1772680..1774116	+	478	145594107	-	Strop_1560	-	glycoside hydrolase family protein
1542	 71.25	0	1774193..1775239	+	348	145594108	-	Strop_1561	-	periplasmic binding protein/LacI transcriptional regulator
1543	 70.05	0	1775340..1776551	-	403	145594109	-	Strop_1562	-	acyl-CoA dehydrogenase domain-containing protein
1544	 72.21	0	1776551..1777615	-	354	145594110	-	Strop_1563	-	aminoglycoside phosphotransferase
1545	 72.25	0	1777811..1778437	+	208	145594111	-	Strop_1564	-	GCN5-related N-acetyltransferase
1546	 67.78	0	1778622..1778891	+	89	145594112	-	Strop_1565	-	hypothetical protein
1547	 68.96	0	1779067..1779939	-	290	145594113	-	Strop_1566	-	triple helix repeat-containing collagen
1548	 71.31	0	1780576..1782147	-	523	145594114	-	Strop_1567	-	aldehyde dehydrogenase
1549	 75.28	+1	1782464..1782730	-	88	145594115	-	Strop_1568	-	hypothetical protein
1550	 68.78	0	1782727..1783722	-	331	145594116	-	Strop_1569	-	biotin synthase
1551	 75.37	+1	1783906..1785042	+	378	145594117	-	Strop_1570	-	8-amino-7-oxononanoate synthase
1552	 76.25	+2	1785030..1785770	+	246	145594118	-	Strop_1571	-	dethiobiotin synthase
1553	 73.59	+1	1785780..1786949	-	389	145594119	-	Strop_1572	-	cytochrome P450
1554	 74.74	+1	1786951..1787619	-	222	145594120	-	Strop_1573	-	methyltransferase type 12
1555	 71.31	0	1787721..1788323	-	200	145594121	-	Strop_1574	-	regulatory protein, TetR
1556	 74.52	+1	1789817..1790809	+	330	145594122	-	Strop_1575	-	NAD-dependent epimerase/dehydratase
1557	 73.03	+1	1790836..1791810	-	324	145594123	-	Strop_1576	-	hypothetical protein
1558	 69.64	0	1792088..1792726	+	212	145594124	-	Strop_1577	-	response regulator receiver
1559	 71.95	0	1792787..1794508	-	573	145594125	-	Strop_1578	-	ATPase domain-containing protein
1560	 73.19	+1	1794551..1795699	-	382	145594126	-	Strop_1579	-	hypothetical protein
1561	 75.65	+1	1795730..1797610	+	626	145594127	-	Strop_1580	-	heavy metal translocating P-type ATPase
1562	 76.01	+1	1797653..1798519	-	288	145594128	-	Strop_1581	-	UspA domain-containing protein
1563	 68.62	0	1798516..1800918	-	800	145594129	-	Strop_1582	-	putative phosphoketolase
1564	 72.00	0	1801017..1801841	-	274	145594130	-	Strop_1583	-	UspA domain-containing protein
1565	 68.81	0	1802043..1803161	+	372	145594131	-	Strop_1584	-	hypothetical protein
1566	 67.83	0	1803340..1805052	+	570	145594132	-	Strop_1585	-	regulator of chromosome condensation, RCC1
1567	 70.83	0	1805110..1806621	-	503	145594133	-	Strop_1586	-	luciferase family protein
1568	 61.67	-2	1806835..1807695	+	286	145594134	-	Strop_1587	-	helix-turn-helix domain-containing protein
1569	 65.28	-1	1807695..1807910	+	71	145594135	-	Strop_1588	-	hypothetical protein
1570	 66.88	0	1808109..1809062	+	317	145594136	-	Strop_1589	-	SpoOM family protein
1571	 68.14	0	1809143..1809550	-	135	145594137	-	Strop_1590	-	hypothetical protein
1572	 76.23	+2	1809757..1810164	+	135	145594138	-	Strop_1591	-	hypothetical protein
69.44	MEAN

3.32	STD DEV
