IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

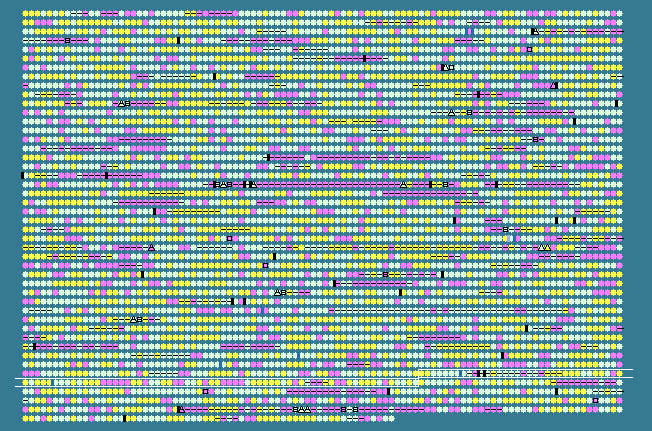

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4067	 56.86	0	4260254..4261630	+	458	197247656	argH	SeAg_B4364	-	argininosuccinate lyase
4068	 56.75	0	4261914..4262831	+	305	197248576	oxyR	SeAg_B4366	-	hydrogen peroxide-inducible genes activator
4069	 52.51	0	4262814..4264226	-	470	197248470	sthA	SeAg_B4367	-	soluble pyridine nucleotide transhydrogenase
4070	 52.22	0	4265064..4265423	+	119	197247684	-	SeAg_B4369	-	putative inner membrane protein
4071	 52.13	0	4265470..4266570	-	366	197249955	trmA	SeAg_B4370	-	tRNA (uracil-5-)-methyltransferase
4072	 51.87	0	4266944..4268788	+	614	197249135	btuB	SeAg_B4372	-	TonB-dependent vitamin B12 receptor
4073	 54.66	0	4268802..4269584	+	260	197248641	murI	SeAg_B4373	-	glutamate racemase
4074	 53.35	0	4275315..4276343	+	342	197248269	murB	SeAg_B4380	-	UDP-N-acetylenolpyruvoylglucosamine reductase
4075	 50.05	0	4276340..4277302	+	320	197251475	-	SeAg_B4381	-	biotin-[acetyl-CoA-carboxylase] ligase
4076	 45.85	0	4277337..4278287	-	316	197251812	coaA	SeAg_B4382	-	pantothenate kinase
4077	 48.72	0	4278872..4278988	+	38	197249805	-	SeAg_B4385	-	hypothetical protein
4078	 54.01	0	4279246..4280430	+	394	197249154	tuf1	SeAg_B4388	-	translation elongation factor Tu
4079	 55.47	0	4280660..4281043	+	127	197248847	secE	SeAg_B4389	-	preprotein translocase subunit secE
4080	 54.21	0	4281045..4281590	+	181	197249353	nusG	SeAg_B4390	-	transcription termination/antitermination factor NusG
4081	 52.68	0	4281748..4282176	+	142	197247405	rplK	SeAg_B4391	-	ribosomal protein L11
4082	 53.62	0	4282180..4282884	+	234	197248028	rplA	SeAg_B4392	-	ribosomal protein L1
4083	 51.81	0	4283304..4283801	+	165	197247856	rplJ	SeAg_B4393	-	ribosomal protein L10
4084	 46.17	0	4283868..4284233	+	121	197248222	rplL	SeAg_B4394	-	ribosomal protein L7/L12
4085	 54.38	0	4284551..4288579	+	1342	197251068	rpoB	SeAg_B4396	-	DNA-directed RNA polymerase, beta subunit
4086	 54.73	0	4288656..4292879	+	1407	197251557	rpoC	SeAg_B4397	-	DNA-directed RNA polymerase, beta' subunit
4087	 33.92	-2	4293961..4294989	+	342	197249082	-	SeAg_B4401	-	NleB
4088	 56.17	0	4295211..4296344	-	377	197251851	thiH	SeAg_B4402	-	thiazole biosynthesis protein ThiH
4089	 60.44	+1	4296341..4297111	-	256	197247381	thiG	SeAg_B4403	-	thiazole biosynthesis protein ThiG
4090	 57.21	0	4297113..4297313	-	66	197250869	thiS	SeAg_B4404	-	thiamine biosynthesis protein ThiS
4091	 59.03	+1	4297294..4298052	-	252	197251642	-	SeAg_B4405	-	adenylyltransferase ThiF
4092	 60.38	+1	4298045..4298680	-	211	197249820	thiE	SeAg_B4406	-	thiamine-phosphate pyrophosphorylase
4093	 58.02	0	4298680..4300575	-	631	197250591	thiC	SeAg_B4407	-	thiamine biosynthesis protein ThiC
4094	 49.69	0	4300939..4301427	-	162	197248305	-	SeAg_B4409	-	regulator of sigma D
4095	 54.78	0	4301520..4302293	+	257	197249365	nudC	SeAg_B4410	-	NADH pyrophosphatase
4096	 57.84	0	4302334..4303398	+	354	197247401	hemE	SeAg_B4411	-	uroporphyrinogen decarboxylase
4097	 59.23	+1	4303408..4304079	+	223	197251241	nfi	SeAg_B4412	-	endonuclease V
4098	 49.41	0	4304121..4304711	+	196	197248392	-	SeAg_B4413	-	hypothetical protein
4099	 47.62	0	4304898..4305170	+	90	197249995	hupA	SeAg_B4414	-	DNA-binding protein HU-alpha
4100	 55.12	0	4305182..4305874	+	230	197251083	-	SeAg_B4415	-	hypothetical protein
4101	 55.92	0	4305916..4306371	-	151	197250430	-	SeAg_B4416	-	zinc resistance-associated protein
4102	 54.29	0	4306625..4308022	+	465	197249706	-	SeAg_B4417	-	sensor protein ZraS
4103	 55.28	0	4308028..4309353	+	441	197248989	-	SeAg_B4418	-	transcriptional regulatory protein ZraR
4104	 60.62	+1	4309350..4310639	-	429	197249645	purD	SeAg_B4419	-	phosphoribosylamine--glycine ligase
4105	 57.67	0	4310655..4312244	-	529	197248309	purH	SeAg_B4420	-	phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
4106	 48.17	0	4318230..4318667	-	145	197250865	-	SeAg_B4427	-	acetyltransferase, gnat family
4107	 49.14	0	4318824..4319753	+	309	197249177	metA	SeAg_B4428	-	homoserine O-succinyltransferase
4108	 51.90	0	4320019..4321623	+	534	197247554	aceB	SeAg_B4429	-	malate synthase A
4109	 56.55	0	4321655..4322959	+	434	197250509	aceA	SeAg_B4430	-	isocitrate lyase
4110	 52.74	0	4323061..4324812	+	583	197250127	aceK	SeAg_B4432	-	isocitrate dehydrogenase kinase/phosphatase
4111	 58.39	+1	4324776..4325210	-	144	197251753	-	SeAg_B4433	-	putative cytoplasmic protein
4112	 58.42	+1	4325194..4326018	-	274	197248509	-	SeAg_B4434	-	acetate operon repressor
4113	 57.14	0	4326323..4330006	+	1227	197247964	metH	SeAg_B4435	-	methionine synthase
4114	 38.14	-2	4330182..4330472	+	96	197251360	-	SeAg_B4436	-	hypothetical protein
4115	 43.46	-1	4330539..4330943	+	134	197248297	-	SeAg_B4437	-	hypothetical protein
4116	 36.84	-2	4331160..4331273	+	37	197249093	-	SeAg_B4438	-	hypothetical protein
4117	 39.20	-1	4331353..4331727	+	124	197250346	-	SeAg_B4439	-	hypothetical protein
4118	 45.61	0	4331715..4331828	-	37	197250581	-	SeAg_B4440	-	hypothetical protein
4119	 56.07	0	4331918..4333549	+	543	197251865	-	SeAg_B4441	-	sodium-dependent inorganic phosphate
4120	 56.96	0	4333625..4334314	-	229	197251615	-	SeAg_B4442	-	peptidase E
4121	 43.89	-1	4334522..4335061	+	179	197250893	-	SeAg_B4443	-	nucleoprotein/polynucleotide-associated enzyme
4122	 50.46	0	4335108..4335977	+	289	197247683	-	SeAg_B4444	-	ribosomal large subunit pseudouridine synthase F
4123	 54.58	0	4335974..4336246	-	90	197248336	-	SeAg_B4445	-	hypothetical protein
4124	 55.31	0	4336344..4337285	-	313	197250426	-	SeAg_B4446	-	bile acid:sodium symporter
4125	 55.13	0	4337403..4337558	+	51	197249245	-	SeAg_B4447	-	hypothetical protein
4126	 38.41	-2	4337547..4338275	-	242	197249904	-	SeAg_B4448	-	putative cytoplasmic protein
4127	 34.64	-2	4338683..4338835	+	50	197248899	-	SeAg_B4449	-	hypothetical protein
4128	 54.82	0	4339013..4339468	-	151	197248210	-	SeAg_B4450	-	putative cytoplasmic protein
4129	 50.00	0	4339465..4339872	-	135	197250032	-	SeAg_B4451	-	putative cytoplasmic protein
4130	 57.22	0	4340075..4341820	-	581	197251834	-	SeAg_B4452	-	tail fiber domain protein
4131	 47.24	0	4341823..4342455	-	210	197248757	-	SeAg_B4453	-	putative phage tail protein
4132	 58.06	0	4342448..4343563	-	371	197250536	-	SeAg_B4454	-	hypothetical protein
4133	 58.06	0	4343554..4343913	-	119	197247392	-	SeAg_B4455	-	baseplate
4134	 46.34	0	4343974..4344096	+	40	197248111	-	SeAg_B4456	-	hypothetical protein
4135	 41.78	-1	4344077..4345615	-	512	197250734	-	SeAg_B4457	-	putative inner membrane protein
4136	 43.87	-1	4345624..4346553	-	309	197251896	-	SeAg_B4458	-	bactoprenol glucosyl transferase
4137	 43.53	-1	4346550..4346912	-	120	197250731	-	SeAg_B4459	-	bactoprenol-linked glucose translocase
4138	 52.38	0	4347106..4347231	-	41	197248819	-	SeAg_B4460	-	hypothetical protein
4139	 58.23	+1	4347240..4347962	-	240	197251477	-	SeAg_B4461	-	tail spike
4140	 55.27	0	4347972..4349015	-	347	197250087	-	SeAg_B4462	-	gp21
4141	 59.05	+1	4349003..4349212	-	69	197247399	-	SeAg_B4463	-	phage Tail Protein X
4142	 56.08	0	4349212..4350165	-	317	197248039	-	SeAg_B4464	-	putative methyl-accepting chemotaxis protein
4143	 58.13	+1	4350165..4352519	-	784	197249495	-	SeAg_B4465	-	putative phage tail protein
4144	 55.04	0	4352616..4352744	-	42	197248602	-	SeAg_B4466	-	hypothetical protein
4145	 55.97	0	4352704..4353021	-	105	197251124	-	SeAg_B4467	-	hypothetical protein
4146	 44.76	-1	4353073..4353597	-	174	197248505	-	SeAg_B4468	-	phage major tail tube protein
4147	 55.25	0	4353597..4355024	-	475	197251531	-	SeAg_B4469	-	phage tail sheath protein
4148	 51.52	0	4355014..4355211	-	65	197251088	-	SeAg_B4470	-	gp12
4149	 46.49	0	4355208..4355663	-	151	197248356	-	SeAg_B4471	-	putative cytoplasmic protein
4150	 47.62	0	4355822..4356136	-	104	197249187	-	SeAg_B4472	-	gp54
4151	 55.94	0	4356149..4356754	-	201	197250798	-	SeAg_B4473	-	endolysin
4152	 55.90	0	4356757..4357044	-	95	197248200	-	SeAg_B4474	-	gp51
4153	 28.03	-2	4357271..4357402	+	43	197250480	-	SeAg_B4475	-	hypothetical protein
4154	 46.84	0	4357621..4357968	+	115	197251867	-	SeAg_B4476	-	DNA-binding protein RdgB
4155	 56.59	0	4358099..4359448	-	449	197251235	lysC	SeAg_B4477	-	aspartokinase III, lysine-sensitive
4156	 53.27	0	4359793..4361442	+	549	197250631	pgi	SeAg_B4478	-	glucose-6-phosphate isomerase
4157	 61.38	+1	4361883..4362128	+	81	197250644	-	SeAg_B4479	-	hypothetical protein
4158	 56.18	0	4362192..4362830	+	212	197250102	-	SeAg_B4480	-	hypothetical protein
4159	 59.49	+1	4362827..4363564	+	245	197249613	-	SeAg_B4481	-	hypothetical protein
4160	 54.17	0	4363564..4365660	+	698	197248620	-	SeAg_B4482	-	putative lipoprotein
4161	 45.74	0	4365803..4366213	+	136	197247443	-	SeAg_B4483	-	protein PsiE
4162	 56.57	0	4366379..4367269	-	296	197251502	malG	SeAg_B4484	-	maltose/maltodextrin ABC transporter, permease protein MalG
4163	 52.69	0	4367284..4368828	-	514	197251076	malF	SeAg_B4485	-	maltose/maltodextrin ABC transporter, permease protein MalF
4164	 54.07	0	4368960..4370150	-	396	197251801	malE	SeAg_B4486	-	maltose/maltodextrin-binding periplasmic protein MalE
4165	 57.75	0	4370512..4371621	+	369	197250669	malK	SeAg_B4487	-	maltose/maltodextrin ABC transporter, ATP-binding protein MalK
4166	 52.54	0	4371710..4373068	+	452	197250174	-	SeAg_B4488	-	maltoporin
51.63	MEAN

6.48	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
