IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

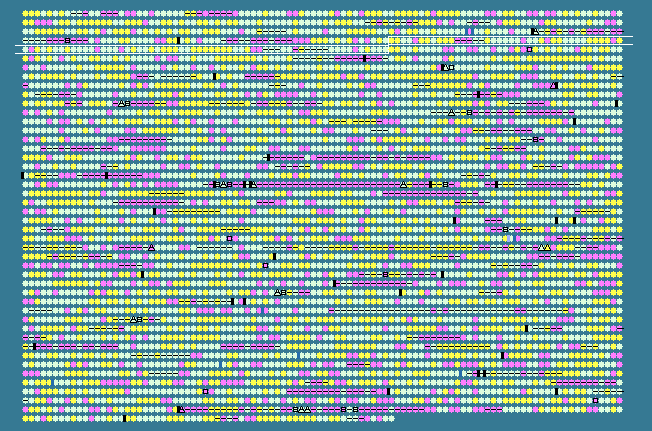

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
362	 55.30	0	393972..394103	+	43	197247359	-	SeAg_B0396	-	hypothetical protein
363	 58.11	0	394310..395314	+	334	197250738	-	SeAg_B0397	-	AraC-family transcriptional regulator
364	 52.69	0	395472..397568	+	698	197251193	-	SeAg_B0398	-	ferrichrome-iron receptor
365	 54.03	0	397609..398241	-	210	197249347	-	SeAg_B0399	-	putative transport protein
366	 44.20	-1	398473..398748	+	91	197249432	-	SeAg_B0400	-	protein YahO
367	 55.60	0	398884..400509	-	541	197251644	prpR	SeAg_B0401	-	propionate catabolism operon regulatory protein PrpR
368	 58.67	+1	400775..401662	+	295	197250852	prpB	SeAg_B0402	-	methylisocitrate lyase
369	 55.04	0	401785..402954	+	389	197250290	prpC	SeAg_B0403	-	2-methylcitrate synthase
370	 56.89	0	402994..404445	+	483	197250681	prpD	SeAg_B0404	-	2-methylcitrate dehydratase
371	 58.51	+1	404486..406372	+	628	197249636	prpE	SeAg_B0405	-	propionate--CoA ligase
372	 55.28	0	406476..407450	-	324	197248866	hemB	SeAg_B0406	-	delta-aminolevulinic acid dehydratase
373	 19.17	-2	407670..407789	+	39	197247517	-	SeAg_B0407	-	hypothetical protein
374	 32.48	-2	407780..407896	-	38	197248151	-	SeAg_B0408	-	hypothetical protein
375	 47.14	0	408893..410935	+	680	197249831	-	SeAg_B0409	-	putative autotransporter/pertactin
376	 53.20	0	411688..412845	-	385	197251539	-	SeAg_B0411	-	beta-lactamase
377	 51.52	0	413192..414412	+	406	197250908	smbA	SeAg_B0412	-	protein SbmA
378	 55.43	0	414427..415521	+	364	197248459	-	SeAg_B0413	-	putative outer membrane lipoprotein
379	 54.05	0	415559..415867	-	102	197247801	-	SeAg_B0414	-	inner membrane protein YaiY
380	 48.61	0	416135..416350	+	71	197250130	-	SeAg_B0415	-	hypothetical protein
381	 51.96	0	416376..417470	-	364	197249513	-	SeAg_B0416	-	D-alanine--D-alanine ligase
382	 54.82	0	417578..418261	+	227	197251128	-	SeAg_B0417	-	extensin family protein
383	 52.39	0	418430..419641	+	403	197249926	-	SeAg_B0418	-	major facilitator superfamily MFS_1
384	 46.74	0	419938..420198	+	86	197247479	-	SeAg_B0419	-	putative cytoplasmic protein
385	 51.71	0	420548..420868	+	106	197251519	-	SeAg_B0420	-	psiF repeat domain protein
386	 55.08	0	420960..422072	+	370	197251011	-	SeAg_B0421	-	AdrA protein
387	 56.05	0	422087..422896	-	269	197248293	proC	SeAg_B0422	-	pyrroline-5-carboxylate reductase
388	 44.67	-1	422930..423079	+	49	197249733	-	SeAg_B0423	-	hypothetical protein
389	 58.11	0	423036..423491	+	151	197251635	-	SeAg_B0424	-	protein YaiI
390	 58.42	+1	423676..424221	+	181	197249572	aroK	SeAg_B0425	-	shikimate kinase
391	 52.60	0	424248..424439	+	63	197250343	-	SeAg_B0426	-	hypothetical protein
392	 50.88	0	424690..425367	+	225	197248244	-	SeAg_B0427	-	aro operon protein
393	 52.63	0	425438..425722	+	94	197247889	-	SeAg_B0428	-	protein YaiE
394	 53.73	0	425765..426676	-	303	197247969	rdgC	SeAg_B0429	-	recombination-associated exonuclease RdgC
395	 57.65	0	426802..427710	+	302	197247612	-	SeAg_B0430	-	N-acetyl-D-glucosamine kinase
396	 55.92	0	427730..428902	-	390	197248102	-	SeAg_B0431	-	protein AraJ
397	 58.17	+1	429075..432215	-	1046	197247629	-	SeAg_B0432	-	exonuclease SbcC
398	 56.69	0	432212..433414	-	400	197249309	-	SeAg_B0433	-	ATP-dependent dsDNA exonuclease
399	 43.94	-1	433457..433588	-	43	197248526	-	SeAg_B0434	-	hypothetical protein
400	 55.36	0	433630..434319	+	229	197250808	phoB	SeAg_B0435	-	phosphate regulon transcriptional regulatory protein PhoB
401	 53.47	0	434389..435684	+	431	197250186	phoR	SeAg_B0436	-	phosphate regulon sensor protein PhoR
402	 45.33	0	435897..436046	-	49	197251880	-	SeAg_B0437	-	hypothetical protein
403	 56.59	0	436093..437412	+	439	197251091	brnQ	SeAg_B0438	-	branched-chain amino acid transport system II carrier protein
404	 53.60	0	437427..438857	+	476	197249029	-	SeAg_B0439	-	proline-specific permease ProY
405	 57.87	0	439019..440836	+	605	197249511	-	SeAg_B0440	-	maltodextrin glucosidase
406	 53.07	0	440908..441510	-	200	197248597	-	SeAg_B0441	-	peroxiredoxin-2
407	 54.47	0	441720..442301	-	193	197249111	acpH	SeAg_B0442	-	[acyl-carrier-protein] phosphodiesterase
408	 55.77	0	442395..443459	+	354	197248441	queA	SeAg_B0443	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
409	 52.48	0	443656..444783	+	375	197248843	tgt	SeAg_B0444	-	queuine tRNA-ribosyltransferase
410	 52.25	0	444806..445138	+	110	197251743	yajC	SeAg_B0445	-	preprotein translocase, YajC subunit
411	 54.60	0	445166..447013	+	615	197247540	secD	SeAg_B0446	-	protein-export membrane protein SecD
412	 54.63	0	447024..447995	+	323	197250831	secF	SeAg_B0447	-	protein-export membrane protein SecF
413	 46.15	0	447974..448090	-	38	197250466	-	SeAg_B0449	-	hypothetical protein
414	 50.00	0	448089..448436	+	115	197250240	-	SeAg_B0448	-	HNH endonuclease
415	 51.27	0	449066..449929	-	287	197250407	-	SeAg_B0451	-	nucleoside-specific channel-forming protein tsx
416	 53.82	0	450229..450726	-	165	197249918	-	SeAg_B0452	-	lipoprotein
417	 47.62	0	450801..450947	+	48	197251442	-	SeAg_B0453	-	hypothetical protein
418	 50.00	0	450920..451369	+	149	197250916	nrdR	SeAg_B0454	-	transcriptional regulator, NrdR family
419	 59.78	+1	451373..452476	+	367	197248845	ribD	SeAg_B0455	-	riboflavin biosynthesis protein RibD
420	 54.35	0	452565..453035	+	156	197248504	ribH	SeAg_B0456	-	6,7-dimethyl-8-ribityllumazine synthase
421	 52.86	0	453056..453475	+	139	197249816	nusB	SeAg_B0457	-	transcription termination/antitermination factor NusB
422	 56.98	0	453557..454537	+	326	197249517	thiL	SeAg_B0458	-	thiamine-monophosphate kinase
423	 54.64	0	454524..455030	+	168	197249910	pgpA	SeAg_B0459	-	phosphatidylglycerophosphatase A
424	 57.64	0	455134..456108	-	324	197249467	-	SeAg_B0460	-	oxidoreductase, aldo/keto reductase family
425	 55.50	0	456165..458027	-	620	197249621	dxs	SeAg_B0461	-	1-deoxy-D-xylulose-5-phosphate synthase
426	 57.33	0	458051..458950	-	299	197248755	ispA	SeAg_B0462	-	geranyltranstransferase
427	 54.32	0	458951..459193	-	80	197250253	xseB	SeAg_B0463	-	exodeoxyribonuclease VII, small subunit
428	 52.73	0	459403..460851	+	482	197250561	thiI	SeAg_B0464	-	thiamine biosynthesis/tRNA modification protein ThiI
429	 57.02	0	460895..461692	-	265	197250070	phnV	SeAg_B0465	-	2-aminoethylphosphonate ABC transport system, membrane component PhnV
430	 58.47	+1	462558..463667	-	369	197251314	phnT	SeAg_B0467	-	2-aminoethylphosphonate ABC transport system, ATP-binding component PhnT
431	 56.61	0	463673..464686	-	337	197247982	phnS	SeAg_B0468	-	2-aminoethylphosphonate ABC transporter, 2-aminoethylphosphonate binding protein
432	 58.89	+1	464884..465603	-	239	197247490	-	SeAg_B0469	-	transcriptional regulator protein
433	 56.70	0	465743..466846	+	367	197248362	phnW	SeAg_B0470	-	2-aminoethylphosphonate--pyruvate transaminase
434	 59.14	+1	466856..467665	+	269	197251419	phnX	SeAg_B0471	-	phosphonoacetaldehyde hydrolase
435	 56.85	0	467762..468352	-	196	197250355	-	SeAg_B0472	-	protein ThiJ
436	 52.74	0	468315..469226	-	303	197248569	panE	SeAg_B0473	-	2-dehydropantoate 2-reductase
437	 51.63	0	469352..469843	+	163	197249428	-	SeAg_B0474	-	hypothetical protein
438	 55.24	0	469890..471254	-	454	197247536	-	SeAg_B0475	-	inner membrane transport protein YajR
439	 43.65	-1	471800..473311	+	503	197251172	-	SeAg_B0476	-	putative periplasmic protein
440	 39.97	-1	473323..474813	+	496	197251704	-	SeAg_B0477	-	tetratricopeptide repeat protein
441	 53.72	0	474898..475785	-	295	197250192	cyoE	SeAg_B0478	-	protoheme IX farnesyltransferase
442	 51.52	0	475800..476129	-	109	197250726	cyoD	SeAg_B0479	-	cytochrome o ubiquinol oxidase, subunit IV
443	 53.66	0	476129..476743	-	204	197251191	cyoC	SeAg_B0480	-	cytochrome o ubiquinol oxidase, subunit III
444	 54.02	0	476733..478724	-	663	197250137	cyoB	SeAg_B0481	-	cytochrome o ubiquinol oxidase, subunit I
445	 51.18	0	478735..479664	-	309	197250769	cyoA	SeAg_B0482	-	ubiquinol oxidase, subunit II
446	 30.08	-2	479938..480060	-	40	197251119	-	SeAg_B0483	-	hypothetical protein
447	 56.55	0	480144..481625	-	493	197251780	-	SeAg_B0484	-	MFS family, muropeptide transporter
448	 49.69	0	482545..482862	+	105	197248768	-	SeAg_B0486	-	protein BolA
449	 52.42	0	483209..484507	+	432	197249214	tig	SeAg_B0487	-	trigger factor
450	 50.00	0	484646..485377	+	243	197249758	clpP	SeAg_B0488	-	ATP-dependent Clp protease, proteolytic subunit ClpP
451	 52.67	0	485629..486900	+	423	197250772	clpX	SeAg_B0489	-	ATP-dependent Clp protease, ATP-binding subunit ClpX
452	 53.80	0	487086..489440	+	784	197248560	lon	SeAg_B0490	-	ATP-dependent protease La
453	 49.45	0	489649..489921	+	90	197249293	hupB	SeAg_B0491	-	DNA-binding protein HU-beta
454	 52.35	0	490212..492083	+	623	197248545	ppiD	SeAg_B0492	-	peptidylprolyl isomerase
455	 52.27	0	492233..492607	+	124	197249033	-	SeAg_B0493	-	competence protein ComEA
456	 47.12	0	492711..493109	+	132	197248360	-	SeAg_B0494	-	thioesterase superfamily protein
457	 53.45	0	493215..493910	-	231	197247660	-	SeAg_B0495	-	ExsB protein
458	 56.26	0	493975..495675	-	566	197251580	-	SeAg_B0496	-	extracellular solute-binding protein, family 5
459	 54.70	0	495776..496594	+	272	197251002	-	SeAg_B0497	-	protein cof
460	 54.64	0	496643..497698	-	351	197250354	-	SeAg_B0498	-	pyridoxal-5'-phosphate-dependent enzyme, beta subunit
461	 52.29	0	497811..498269	+	152	197249689	-	SeAg_B0499	-	glutamate uptake regulatory protein
51.63	MEAN

6.48	STD DEV
