IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

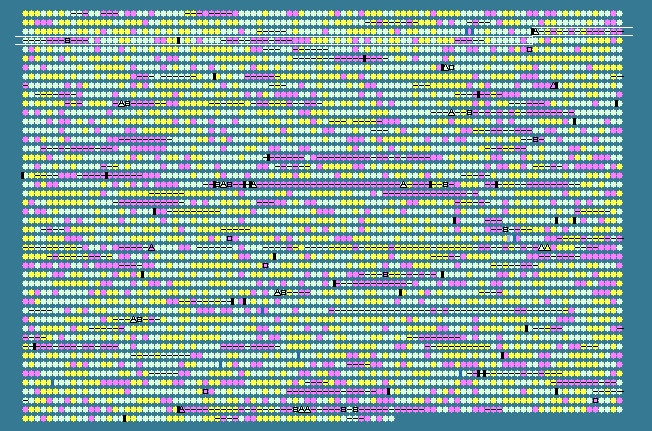

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
286	 52.07	0	314139..314501	+	120	197251773	-	SeAg_B0310	-	integrase
287	 49.48	0	314557..314748	-	63	197251106	-	SeAg_B0311	-	hypothetical protein
288	 62.59	+1	314876..315145	-	89	197250743	-	SeAg_B0312	-	DNA-binding prophage protein
289	 43.21	-1	315805..316290	+	161	197250115	-	SeAg_B0313	-	type VI secretion system Vgr family protein
290	 65.37	+2	317558..317944	+	128	197250136	-	SeAg_B0315	-	putative cytoplasmic protein
291	 48.58	0	317971..318357	+	128	197249237	-	SeAg_B0316	-	probable secreted protein
292	 28.63	-2	318627..318860	+	77	197248744	-	SeAg_B0317	-	hypothetical protein
293	 53.88	0	318927..319184	-	85	197248183	-	SeAg_B0318	-	hypothetical protein
294	 65.83	+2	319246..319365	+	39	197247678	-	SeAg_B0319	-	hypothetical protein
295	 40.40	-1	320312..320509	+	65	197250282	-	SeAg_B0321	-	hypothetical protein
296	 30.13	-2	320628..321095	+	155	197248307	-	SeAg_B0322	-	hypothetical protein
297	 40.88	-1	321714..321872	+	52	197248240	-	SeAg_B0324	-	hypothetical protein
298	 52.48	0	322136..322276	-	46	197250929	-	SeAg_B0326	-	hypothetical protein
299	 34.13	-2	323451..323576	+	41	197250194	-	SeAg_B0328	-	hypothetical protein
300	 32.58	-2	324068..324199	-	43	197248201	-	SeAg_B0329	-	hypothetical protein
301	 49.34	0	324234..324839	+	201	197248825	-	SeAg_B0330	-	gram-negative pili assembly chaperone
302	 54.76	0	324863..327373	+	836	197248731	-	SeAg_B0331	-	outer-membrane fimbrial usher protein
303	 54.99	0	327395..327865	+	156	197247822	-	SeAg_B0332	-	putative fimbrial structural subunit
304	 51.46	0	328273..329094	+	273	197248294	-	SeAg_B0333	-	polysaccharide deacetylase family protein
305	 46.97	0	329577..329708	+	43	197250853	-	SeAg_B0334	-	TnpA
306	 39.45	-1	329911..330858	+	315	197251913	-	SeAg_B0335	-	LysR-family transcriptional regulator SinR
307	 48.09	0	331018..331200	+	60	197249672	-	SeAg_B0336	-	hypothetical protein
308	 44.75	-1	331418..332626	+	402	197248128	-	SeAg_B0337	-	IS10 transposase
309	 43.18	-1	332595..333254	-	219	197250348	-	SeAg_B0339	-	putative outer membrane adhesin
310	 35.66	-2	333279..333407	-	42	197251384	-	SeAg_B0340	-	hypothetical protein
311	 46.57	0	333600..334007	-	135	197249167	-	SeAg_B0341	-	periplasmic protein
312	 53.91	0	334317..335084	-	255	197249943	-	SeAg_B0342	-	hydrolase YafV
313	 48.01	0	337877..338455	+	192	197248959	gmhA	SeAg_B0344	-	phosphoheptose isomerase
314	 51.56	0	338668..339435	+	255	197251692	-	SeAg_B0345	-	glutamine amidotransferase, class II
315	 48.58	0	339406..340146	-	246	197251197	-	SeAg_B0346	-	hypothetical protein
316	 51.70	0	340396..341451	+	351	197250353	-	SeAg_B0347	-	DNA polymerase IV
317	 56.75	0	341670..342809	+	379	197250684	-	SeAg_B0348	-	release factor H-coupled RctB family protein
318	 55.12	0	342806..343420	+	204	197248567	-	SeAg_B0349	-	putative peptide chain release factor H
319	 53.36	0	343575..345032	-	485	197250098	pepD	SeAg_B0350	-	aminoacyl-histidine dipeptidase
320	 52.94	0	345281..345739	+	152	197249007	gpt	SeAg_B0351	-	xanthine phosphoribosyltransferase
321	 54.86	0	345828..347072	+	414	197249425	-	SeAg_B0352	-	esterase FrsA
322	 50.25	0	347130..347531	+	133	197247709	-	SeAg_B0353	-	sigma factor-binding protein crl
323	 47.20	0	347582..348634	-	350	197247505	-	SeAg_B0354	-	outer membrane pore protein E
324	 36.60	-2	348700..348852	-	50	197249852	-	SeAg_B0355	-	hypothetical protein
325	 56.07	0	348917..350020	+	367	197251188	proB	SeAg_B0356	-	glutamate 5-kinase
326	 56.20	0	350032..351282	+	416	197249439	proA	SeAg_B0357	-	glutamate-5-semialdehyde dehydrogenase
327	 54.01	0	351909..352532	-	207	197250193	-	SeAg_B0359	-	ISEc16, orfB
328	 56.16	0	352699..353412	+	237	197247887	-	SeAg_B0360	-	glycerol dehydratase reactivation factor large subunit
329	 49.67	0	353693..353845	+	50	197249035	-	SeAg_B0361	-	hypothetical protein
330	 42.45	-1	354087..355424	+	445	197249845	-	SeAg_B0362	-	putative permease
331	 51.83	0	356979..357605	+	208	197251116	leuD	SeAg_B0364	-	3-isopropylmalate dehydratase, small subunit
332	 49.83	0	357620..358498	+	292	197251752	-	SeAg_B0365	-	5-oxopent-3-ene-1,2,5-tricarboxylate decarboxylase
333	 51.58	0	358498..359412	+	304	197247520	-	SeAg_B0366	-	haloacetate dehalogenase H-1
334	 48.86	0	359446..360411	+	321	197247663	-	SeAg_B0367	-	transcriptional regulator, LysR family
335	 34.87	-2	361524..361718	+	64	197247806	-	SeAg_B0368	-	putative outer membrane protein
336	 47.30	0	361765..362523	-	252	197249532	-	SeAg_B0369	-	fimbrial chaperone protein
337	 52.11	0	362489..363814	-	441	197250266	-	SeAg_B0370	-	putative fimbrial usher
338	 53.83	0	363819..366380	-	853	197248725	-	SeAg_B0371	-	outer membrane fimbrial usher protein
339	 45.52	0	366364..367167	-	267	197249620	-	SeAg_B0372	-	fimbrial chaperone protein
340	 47.86	0	367187..367723	-	178	197249963	-	SeAg_B0373	-	fimbrial protein
341	 36.46	-2	368387..369121	+	244	197249726	-	SeAg_B0374	-	putative transmembrane regulator
342	 48.61	0	369929..371479	+	516	197250980	-	SeAg_B0376	-	cyclic diguanylate phosphodiesterase (EAL) domain protein
343	 40.05	-1	371579..372322	+	247	197251588	-	SeAg_B0377	-	putative response regulator
344	 39.06	-1	372295..372783	+	162	197247872	-	SeAg_B0378	-	putative inner membrane protein
345	 40.95	-1	373185..373709	+	174	197248393	-	SeAg_B0379	-	attachment invasion locus protein
346	 40.03	-1	373853..374494	+	213	197248072	-	SeAg_B0380	-	putative response regulator
347	 35.56	-2	374550..374729	+	59	197248867	-	SeAg_B0381	-	hypothetical protein
348	 47.40	0	374763..375146	+	127	197248184	-	SeAg_B0382	-	cytochrome c type biogenesis protein CycH
349	 59.33	+1	375216..376673	-	485	197249851	-	SeAg_B0383	-	outer membrane protein OprM
350	 56.79	0	376690..379857	-	1055	197249206	-	SeAg_B0384	-	OqxB
351	 60.39	+1	379854..381080	-	408	197247802	-	SeAg_B0385	-	putative auxiliary transport protein, membrane fusion protein (MFP) family
352	 48.25	0	381224..381337	+	37	197248485	-	SeAg_B0386	-	hypothetical protein
353	 59.94	+1	381357..383645	+	762	197247863	-	SeAg_B0387	-	copper-translocating P-type ATPase
354	 54.62	0	383657..384121	+	154	197247472	cueR	SeAg_B0388	-	Cu(I)-responsive transcriptional regulator
355	 56.92	0	384199..384393	+	64	197249541	-	SeAg_B0389	-	hypothetical protein
356	 34.21	-2	384437..384550	-	37	197248923	-	SeAg_B0390	-	hypothetical protein
357	 54.15	0	384685..385938	+	417	197249958	-	SeAg_B0391	-	major facilitator superfamily MFS_1
358	 46.50	0	386127..388085	+	652	197250580	-	SeAg_B0392	-	type III restriction-modification system StyLTI enzyme mod
359	 49.29	0	388098..391067	+	989	197248044	-	SeAg_B0393	-	type III restriction-modification system StyLTI enzyme res
360	 55.20	0	391562..392965	+	467	197248698	cioA	SeAg_B0394	-	cyanide-insensitive oxidase CioA
361	 55.09	0	392962..393972	+	336	197251858	cydB	SeAg_B0395	-	cytochrome D ubiquinol oxidase, subunit II
362	 55.30	0	393972..394103	+	43	197247359	-	SeAg_B0396	-	hypothetical protein
363	 58.11	0	394310..395314	+	334	197250738	-	SeAg_B0397	-	AraC-family transcriptional regulator
364	 52.69	0	395472..397568	+	698	197251193	-	SeAg_B0398	-	ferrichrome-iron receptor
365	 54.03	0	397609..398241	-	210	197249347	-	SeAg_B0399	-	putative transport protein
366	 44.20	-1	398473..398748	+	91	197249432	-	SeAg_B0400	-	protein YahO
367	 55.60	0	398884..400509	-	541	197251644	prpR	SeAg_B0401	-	propionate catabolism operon regulatory protein PrpR
368	 58.67	+1	400775..401662	+	295	197250852	prpB	SeAg_B0402	-	methylisocitrate lyase
369	 55.04	0	401785..402954	+	389	197250290	prpC	SeAg_B0403	-	2-methylcitrate synthase
370	 56.89	0	402994..404445	+	483	197250681	prpD	SeAg_B0404	-	2-methylcitrate dehydratase
371	 58.51	+1	404486..406372	+	628	197249636	prpE	SeAg_B0405	-	propionate--CoA ligase
372	 55.28	0	406476..407450	-	324	197248866	hemB	SeAg_B0406	-	delta-aminolevulinic acid dehydratase
373	 19.17	-2	407670..407789	+	39	197247517	-	SeAg_B0407	-	hypothetical protein
374	 32.48	-2	407780..407896	-	38	197248151	-	SeAg_B0408	-	hypothetical protein
375	 47.14	0	408893..410935	+	680	197249831	-	SeAg_B0409	-	putative autotransporter/pertactin
376	 53.20	0	411688..412845	-	385	197251539	-	SeAg_B0411	-	beta-lactamase
377	 51.52	0	413192..414412	+	406	197250908	smbA	SeAg_B0412	-	protein SbmA
378	 55.43	0	414427..415521	+	364	197248459	-	SeAg_B0413	-	putative outer membrane lipoprotein
379	 54.05	0	415559..415867	-	102	197247801	-	SeAg_B0414	-	inner membrane protein YaiY
380	 48.61	0	416135..416350	+	71	197250130	-	SeAg_B0415	-	hypothetical protein
381	 51.96	0	416376..417470	-	364	197249513	-	SeAg_B0416	-	D-alanine--D-alanine ligase
382	 54.82	0	417578..418261	+	227	197251128	-	SeAg_B0417	-	extensin family protein
383	 52.39	0	418430..419641	+	403	197249926	-	SeAg_B0418	-	major facilitator superfamily MFS_1
384	 46.74	0	419938..420198	+	86	197247479	-	SeAg_B0419	-	putative cytoplasmic protein
385	 51.71	0	420548..420868	+	106	197251519	-	SeAg_B0420	-	psiF repeat domain protein
51.63	MEAN

6.48	STD DEV
