IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

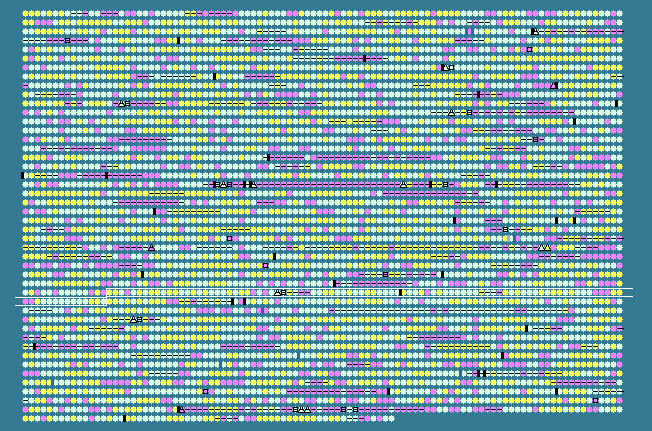

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3115	 55.81	0	3249737..3249865	+	42	197247374	-	SeAg_B3348	-	hypothetical protein
3116	 57.14	0	3250550..3252721	-	723	197247742	-	SeAg_B3349	-	protein YgiQ
3117	 51.83	0	3253209..3254192	+	327	197248424	-	SeAg_B3350	-	trap transporter solute receptor, dctp family
3118	 47.41	0	3254234..3254716	+	160	197251674	-	SeAg_B3351	-	tripartite ATP-independent periplasmic
3119	 50.92	0	3254727..3256034	+	435	197250202	-	SeAg_B3352	-	YgiK
3120	 58.67	+1	3256079..3257491	-	470	197250702	-	SeAg_B3353	-	protein SufI
3121	 50.27	0	3257565..3258302	-	245	197248627	-	SeAg_B3354	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
3122	 56.22	0	3258559..3260817	-	752	197249133	parC	SeAg_B3355	-	DNA topoisomerase IV, A subunit
3123	 57.44	0	3260928..3261794	-	288	197247585	-	SeAg_B3356	-	transcription activator, effector binding
3124	 54.20	0	3261866..3262258	-	130	197249162	-	SeAg_B3357	-	hypothetical protein
3125	 56.06	0	3262410..3263069	+	219	197247614	-	SeAg_B3358	-	transcriptional regulatory protein QseB
3126	 56.44	0	3263066..3264415	+	449	197248119	-	SeAg_B3359	-	sensor protein QseC
3127	 51.72	0	3264522..3265103	+	193	197251739	-	SeAg_B3360	-	NADPH-specific quinone oxidoreductase
3128	 53.02	0	3265135..3265449	+	104	197249456	-	SeAg_B3361	-	protein YgiN
3129	 55.31	0	3265574..3267466	-	630	197250406	parE	SeAg_B3362	-	DNA topoisomerase IV, B subunit
3130	 54.64	0	3267494..3268075	-	193	197251168	yqiA	SeAg_B3363	-	esterase YqiA
3131	 56.04	0	3268075..3268902	-	275	197251366	icc	SeAg_B3364	-	protein icc
3132	 50.35	0	3268927..3269349	-	140	197247613	-	SeAg_B3365	-	hypothetical protein
3133	 53.24	0	3269346..3269978	-	210	197249833	-	SeAg_B3366	-	hydrolase, NUDIX family
3134	 52.52	0	3270185..3271654	+	489	197250447	-	SeAg_B3367	-	outer membrane protein TolC
3135	 58.04	0	3271867..3272538	+	223	197250782	-	SeAg_B3368	-	protein YgiB
3136	 51.55	0	3272544..3273707	+	387	197251364	-	SeAg_B3369	-	glutathionylspermidine synthase
3137	 55.48	0	3273769..3274599	-	276	197247747	-	SeAg_B3370	-	extradiol ring-cleavage dioxygenase, class III enzyme, subunit B
3138	 56.72	0	3274698..3275471	+	257	197249735	-	SeAg_B3371	-	zinc transporter ZupT
3139	 44.07	-1	3275538..3275714	-	58	197249929	-	SeAg_B3372	-	hypothetical protein
3140	 48.91	0	3276114..3277910	+	598	197251131	-	SeAg_B3373	-	arylsulfate sulfotransferase
3141	 46.13	0	3277930..3278601	+	223	197250888	-	SeAg_B3374	-	disulfide isomerase
3142	 50.59	0	3278616..3279293	+	225	197248073	-	SeAg_B3375	-	disulfide bond formation protein B
3143	 49.67	0	3279412..3280017	-	201	197248718	-	SeAg_B3376	-	integrase, catalytic region
3144	 50.25	0	3280266..3280667	-	133	197248045	-	SeAg_B3377	-	ISPsy11, transposase OrfA
3145	 55.50	0	3280779..3281432	-	217	197251695	ribB	SeAg_B3378	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
3146	 52.86	0	3281869..3282165	+	98	197251586	-	SeAg_B3380	-	hypothetical protein
3147	 48.10	0	3282240..3282449	-	69	197250725	-	SeAg_B3381	-	hypothetical protein
3148	 39.33	-1	3282546..3282695	-	49	197248783	-	SeAg_B3382	-	hypothetical protein
3149	 52.98	0	3282707..3283327	+	206	197248780	-	SeAg_B3383	-	inner membrane protein YqiJ
3150	 53.69	0	3283346..3285025	+	559	197249137	-	SeAg_B3384	-	inner membrane protein YqiK
3151	 57.74	0	3285484..3286917	-	477	197247458	-	SeAg_B3386	-	bifunctional protein HldE
3152	 57.21	0	3286965..3289808	-	947	197251226	glnE	SeAg_B3387	-	glutamate-ammonia-ligase adenylyltransferase
3153	 54.69	0	3289926..3291227	-	433	197251217	-	SeAg_B3388	-	adenylate cyclase
3154	 50.89	0	3291469..3292083	+	204	197251903	-	SeAg_B3389	-	hypothetical protein
3155	 59.18	+1	3292146..3293387	+	413	197249983	-	SeAg_B3390	-	multifunctional CCA protein
3156	 53.65	0	3293495..3294316	-	273	197250608	bacA	SeAg_B3391	-	undecaprenyl-diphosphatase BacA
3157	 49.72	0	3294414..3294773	-	119	197248092	folB	SeAg_B3392	-	dihydroneopterin aldolase
3158	 56.05	0	3294880..3295491	+	203	197248322	-	SeAg_B3393	-	hypothetical protein
3159	 58.19	+1	3295741..3296754	-	337	197248190	gcp	SeAg_B3394	-	O-sialoglycoprotein endopeptidase
3160	 51.85	0	3296982..3297197	+	71	197250864	rpsU	SeAg_B3395	-	ribosomal protein S21
3161	 51.95	0	3297433..3299178	+	581	197251239	dnaG	SeAg_B3396	-	DNA primase
3162	 52.71	0	3299328..3301175	+	615	197251872	rpoD	SeAg_B3397	-	RNA polymerase sigma factor RpoD
3163	 52.66	0	3301299..3301805	-	168	197250778	-	SeAg_B3398	-	G/U mismatch-specific DNA glycosylase
3164	 55.47	0	3302086..3302853	-	255	197248913	-	SeAg_B3400	-	siderophore-interacting protein
3165	 53.49	0	3303088..3303732	+	214	197247590	-	SeAg_B3401	-	transcriptional regulator, PadR family
3166	 50.03	0	3303729..3305297	-	522	197249280	-	SeAg_B3402	-	methyl-accepting chemotaxis protein II
3167	 55.62	0	3305685..3307205	-	506	197251726	-	SeAg_B3403	-	aerotaxis receptor
3168	 34.62	-2	3307217..3307372	+	51	197251228	-	SeAg_B3404	-	hypothetical protein
3169	 54.06	0	3307635..3309014	+	459	197247610	ygjG	SeAg_B3405	-	putrescine aminotransferase
3170	 58.74	+1	3309185..3311203	+	672	197247696	-	SeAg_B3406	-	FAD/FMN-binding/pyridine nucleotide-disulphide oxidoreductase family protein
3171	 53.12	0	3311284..3312420	-	378	197248542	-	SeAg_B3407	-	methyltransferase family protein
3172	 52.81	0	3312506..3313003	+	165	197249234	-	SeAg_B3408	-	hypothetical protein
3173	 53.79	0	3313035..3313166	-	43	197247792	-	SeAg_B3410	-	hypothetical protein
3174	 54.40	0	3313155..3313847	+	230	197248296	-	SeAg_B3409	-	SanA protein
3175	 53.53	0	3313899..3314933	+	344	197248530	-	SeAg_B3411	-	putative oxidoreductase YgjR
3176	 51.97	0	3315159..3316172	+	337	197249570	-	SeAg_B3412	-	inner membrane protein alx
3177	 55.98	0	3316427..3317671	+	414	197249839	-	SeAg_B3413	-	serine/threonine transporter SstT
3178	 52.64	0	3318121..3318783	+	220	197249103	-	SeAg_B3414	-	inner membrane protein YqjA
3179	 51.99	0	3318844..3319170	+	108	197249515	-	SeAg_B3415	-	hypothetical protein
3180	 47.97	0	3319315..3319683	+	122	197248732	-	SeAg_B3416	-	hypothetical protein
3181	 55.56	0	3319725..3320030	+	101	197250529	-	SeAg_B3417	-	hypothetical protein
3182	 53.88	0	3320033..3320431	+	132	197250068	-	SeAg_B3418	-	hypothetical protein
3183	 60.00	+1	3320428..3320727	+	99	197249480	-	SeAg_B3419	-	hypothetical protein
3184	 49.18	0	3320872..3321357	+	161	197248977	-	SeAg_B3420	-	putative inner membrane protein YqjF
3185	 52.89	0	3321425..3322411	+	328	197250405	-	SeAg_B3421	-	hypothetical protein
3186	 52.46	0	3322535..3322900	+	121	197249911	-	SeAg_B3422	-	inner membrane protein YhaH
3187	 56.63	0	3322939..3323835	-	298	197250921	-	SeAg_B3423	-	transcriptional regulator, LysR family
3188	 54.42	0	3323940..3324641	+	233	197248215	-	SeAg_B3424	-	pirin family protein
3189	 59.39	+1	3324665..3324829	+	54	197250017	-	SeAg_B3425	-	putative cytoplasmic protein
3190	 56.52	0	3324942..3326252	-	436	197249313	-	SeAg_B3426	-	putative inner membrane protein
3191	 49.79	0	3326278..3327717	-	479	197251039	-	SeAg_B3427	-	inner membrane transport protein YhaO
3192	 56.56	0	3327925..3329289	-	454	197250228	-	SeAg_B3428	-	L-serine ammonia-lyase
3193	 54.86	0	3329359..3331653	-	764	197247431	pflB	SeAg_B3429	-	formate acetyltransferase
3194	 49.88	0	3331687..3332895	-	402	197247786	ackA	SeAg_B3430	-	acetate kinase
3195	 50.83	0	3332962..3334293	-	443	197249606	tdcC	SeAg_B3431	-	threonine/serine transporter
3196	 46.06	0	3334314..3335303	-	329	197248964	tdcB	SeAg_B3432	-	threonine dehydratase, catabolic
3197	 44.41	-1	3335401..3336339	-	312	197248337	-	SeAg_B3433	-	TDC operon transcriptional activator
3198	 42.64	-1	3336880..3337008	-	42	197248374	-	SeAg_B3434	-	hypothetical protein
3199	 56.68	0	3339033..3339923	-	296	197250953	-	SeAg_B3438	-	2-hydroxy-3-oxopropionate reductase
3200	 55.12	0	3339949..3340719	-	256	197250457	garL	SeAg_B3439	-	2-dehydro-3-deoxyglucarate aldolase
3201	 34.75	-2	3340823..3340963	-	46	197247358	-	SeAg_B3440	-	hypothetical protein
3202	 39.53	-1	3340963..3341091	+	42	197251465	-	SeAg_B3441	-	hypothetical protein
3203	 56.93	0	3341237..3342808	+	523	197248398	garD	SeAg_B3442	-	galactarate dehydratase
3204	 50.15	0	3342928..3343920	+	330	197247886	-	SeAg_B3443	-	class II aldolase, tagatose bisphosphate family
3205	 51.28	0	3343986..3345311	+	441	197251584	-	SeAg_B3444	-	D-tagatose-bisphosphate aldolase, class II, non-catalytic subunit
3206	 53.98	0	3345326..3345790	+	154	197251142	-	SeAg_B3445	-	galactitol-specific phosphotransferase enzyme iia component
3207	 48.77	0	3345821..3346105	+	94	197249652	-	SeAg_B3446	-	galactitol-specific phosphotransferase enzyme iib component
3208	 55.09	0	3346109..3347482	+	457	197250085	-	SeAg_B3447	-	PTS family galactitol-specific enzyme IIC
3209	 54.98	0	3347526..3348569	+	347	197248610	-	SeAg_B3448	-	galactitol-1-phosphate 5-dehydrogenase
3210	 50.65	0	3348680..3349453	+	257	197249109	-	SeAg_B3449	-	galactitol utilization operon repressor
3211	 54.98	0	3349611..3350474	-	287	197249953	-	SeAg_B3450	-	hypothetical protein
3212	 58.35	+1	3350538..3352580	+	680	197250590	-	SeAg_B3451	-	LppC superfamily
3213	 56.06	0	3352538..3352933	+	131	197249358	-	SeAg_B3452	-	conserved hypothetical protein TIGR00252
3214	 51.78	0	3352955..3353545	+	196	197249348	diaA	SeAg_B3453	-	DnaA initiator-associating protein DiaA
51.63	MEAN

6.48	STD DEV
