IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

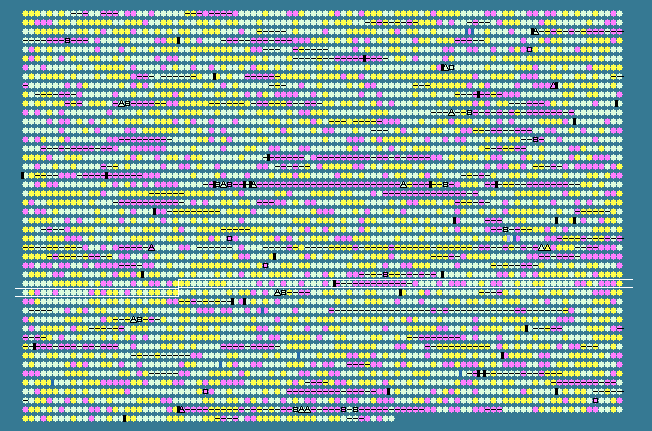

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3027	 57.43	0	3171680..3172177	+	165	197249827	sprT	SeAg_B3255	-	protein SprT
3028	 55.93	0	3172272..3172979	+	235	197247733	endA	SeAg_B3256	-	endonuclease I
3029	 54.23	0	3173008..3173787	+	259	197248239	-	SeAg_B3257	-	protein YggJ
3030	 54.54	0	3173807..3174754	+	315	197249067	gshB	SeAg_B3258	-	glutathione synthase
3031	 52.30	0	3174970..3175533	+	187	197249535	-	SeAg_B3259	-	hypothetical protein
3032	 55.40	0	3175533..3175949	+	138	197247485	-	SeAg_B3260	-	putative Holliday junction resolvase
3033	 56.48	0	3175996..3176682	-	228	197251573	-	SeAg_B3261	-	regulatory protein, IclR
3034	 57.59	0	3176815..3177795	-	326	197248204	-	SeAg_B3262	-	twitching mobility protein
3035	 54.04	0	3177813..3178517	+	234	197247706	-	SeAg_B3263	-	pyridoxal phosphate enzyme, YggS family
3036	 52.38	0	3178536..3179102	+	188	197249579	-	SeAg_B3264	-	YGGT family protein
3037	 52.58	0	3179099..3179389	+	96	197249095	-	SeAg_B3265	-	conserved hypothetical protein TIGR00251
3038	 54.55	0	3179397..3179990	+	197	197250440	rdgB	SeAg_B3266	-	non-canonical purine NTP pyrophosphatase, RdgB/HAM1 family
3039	 54.79	0	3179983..3181119	+	378	197249679	-	SeAg_B3267	-	putative oxygen-independent coproporphyrinogen III oxidase
3040	 46.33	0	3181210..3182217	-	335	197251541	-	SeAg_B3268	-	hypothetical protein
3041	 52.72	0	3182350..3183396	-	348	197248611	-	SeAg_B3269	-	L-asparaginase 2
3042	 38.56	-2	3183415..3183567	-	50	197250531	-	SeAg_B3270	-	hypothetical protein
3043	 55.00	0	3183585..3184304	-	239	197249009	-	SeAg_B3271	-	hypothetical protein
3044	 47.71	0	3184354..3184680	-	108	197249785	-	SeAg_B3272	-	hypothetical protein
3045	 53.47	0	3184680..3185399	-	239	197250260	trmB	SeAg_B3273	-	tRNA (guanine-N(7)-)-methyltransferase
3046	 54.61	0	3185554..3186606	+	350	197251051	mutY	SeAg_B3274	-	A/G-specific adenine glycosylase
3047	 47.10	0	3186634..3186909	+	91	197251514	-	SeAg_B3275	-	probable Fe(2+)-trafficking protein
3048	 52.03	0	3187022..3188107	+	361	197247722	-	SeAg_B3276	-	membrane-bound lytic murein transglycosylase C
3049	 51.39	0	3188324..3189580	+	418	197248376	nupG	SeAg_B3277	-	nucleoside permease NupG
3050	 54.45	0	3189642..3191777	-	711	197249160	speC	SeAg_B3278	-	ornithine decarboxylase, constitutive
3051	 46.49	0	3192051..3192164	+	37	197251909	-	SeAg_B3279	-	hypothetical protein
3052	 51.13	0	3192203..3192910	+	235	197250787	-	SeAg_B3280	-	YqgA
3053	 48.02	0	3193679..3193855	-	58	197250766	-	SeAg_B3283	-	hypothetical protein
3054	 52.74	0	3193886..3194086	+	66	197250101	-	SeAg_B3284	-	hcp
3055	 51.67	0	3194314..3194433	+	39	197248645	-	SeAg_B3285	-	hypothetical protein
3056	 36.20	-2	3195955..3196233	+	92	197247627	-	SeAg_B3287	-	colicin-E7 immunity protein
3057	 26.32	-2	3196970..3197140	+	56	197251679	-	SeAg_B3288	-	hypothetical protein
3058	 33.10	-2	3197889..3198311	+	140	197251210	-	SeAg_B3289	-	hypothetical protein
3059	 29.98	-2	3198433..3198939	+	168	197250690	-	SeAg_B3290	-	hypothetical protein
3060	 34.11	-2	3199209..3199595	+	128	197251511	-	SeAg_B3291	-	hypothetical protein
3061	 40.30	-1	3199855..3200055	+	66	197247412	-	SeAg_B3292	-	hypothetical protein
3062	 29.56	-2	3200086..3200244	+	52	197251150	-	SeAg_B3293	-	hypothetical protein
3063	 44.58	-1	3200310..3201056	+	248	197251701	-	SeAg_B3294	-	LysR-family transcriptional regulator
3064	 46.59	0	3201161..3201718	-	185	197250183	-	SeAg_B3295	-	putative cytoplasmic protein
3065	 51.60	0	3201696..3203195	-	499	197250658	-	SeAg_B3296	-	transpoter
3066	 43.06	-1	3203188..3203331	-	47	197248598	-	SeAg_B3297	-	hypothetical protein
3067	 49.60	0	3203404..3203778	-	124	197249253	-	SeAg_B3298	-	putative cytoplasmic protein
3068	 49.23	0	3203793..3205094	-	433	197251881	-	SeAg_B3299	-	tyramine oxidase
3069	 51.25	0	3205256..3206740	+	494	197247926	-	SeAg_B3300	-	phenylacetaldehyde dehydrogenase
3070	 47.42	0	3206872..3207084	-	70	197250486	-	SeAg_B3301	-	putative cytoplasmic protein
3071	 51.03	0	3207255..3207740	-	161	197249817	-	SeAg_B3302	-	putative cytoplasmic protein
3072	 17.95	-2	3208048..3208203	+	51	197247509	-	SeAg_B3303	-	hypothetical protein
3073	 47.51	0	3208466..3209389	-	307	197251441	-	SeAg_B3304	-	polysaccharide deacetylase domain protein
3074	 43.57	-1	3209428..3210306	-	292	197248474	-	SeAg_B3305	-	putative amidohydrolase
3075	 52.57	0	3210702..3212006	-	434	197247956	exuT	SeAg_B3306	-	hexuronate transporter
3076	 52.66	0	3212411..3213595	+	394	197248873	uxuA	SeAg_B3307	-	mannonate dehydratase
3077	 57.09	0	3213706..3215178	+	490	197248317	-	SeAg_B3308	-	D-mannonate oxidoreductase
3078	 54.07	0	3215190..3216602	+	470	197249740	uxaC	SeAg_B3309	-	glucuronate isomerase
3079	 43.25	-1	3216902..3217960	-	352	197249246	-	SeAg_B3310	-	putative methyl-accepting chemotaxis protein
3080	 34.19	-2	3218022..3218138	-	38	197250104	-	SeAg_B3311	-	hypothetical protein
3081	 53.42	0	3218630..3220486	-	618	197249185	-	SeAg_B3312	-	glutathionylspermidine synthase
3082	 54.79	0	3220713..3221579	+	288	197250319	-	SeAg_B3313	-	glutathione S-transferase
3083	 58.96	+1	3221647..3222360	-	237	197249700	-	SeAg_B3314	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
3084	 53.85	0	3222357..3223409	-	350	197247901	-	SeAg_B3315	-	periplasmic binding protein
3085	 52.21	0	3223485..3223733	-	82	197251699	hypC	SeAg_B3316	-	hydrogenase assembly chaperone HypC/HupF
3086	 56.14	0	3223761..3224102	-	113	197247615	hypA	SeAg_B3317	-	hydrogenase nickel insertion protein HypA
3087	 57.46	0	3224095..3224583	-	162	197251554	-	SeAg_B3318	-	hydrogenase-2 component protein
3088	 54.14	0	3224576..3225070	-	164	197248517	hybD	SeAg_B3319	-	hydrogenase expression/formation protein
3089	 54.81	0	3225070..3226773	-	567	197248446	hybC	SeAg_B3320	-	hydrogenase-2, large subunit
3090	 52.76	0	3226770..3227948	-	392	197250314	hybB	SeAg_B3321	-	Ni/Fe-hydrogenase 2 b-type cytochrome subunit
3091	 53.80	0	3227938..3228924	-	328	197248550	hybA	SeAg_B3322	-	hydrogenase-2 electron transfer subunit
3092	 54.07	0	3228927..3230045	-	372	197248842	hybO	SeAg_B3323	-	hydrogenase-2 small chain
3093	 39.78	-1	3230053..3230238	-	61	197249481	-	SeAg_B3324	-	hypothetical protein
3094	 46.88	0	3230235..3230522	-	95	197247831	-	SeAg_B3325	-	hypothetical protein
3095	 57.06	0	3230607..3232250	-	547	197248478	-	SeAg_B3326	-	methyl-accepting chemotaxis sensory transducer
3096	 48.69	0	3232557..3233051	-	164	197250820	-	SeAg_B3327	-	hypothetical protein
3097	 42.66	-1	3233329..3233832	-	167	197251415	-	SeAg_B3328	-	hypothetical protein
3098	 42.34	-1	3233936..3234346	+	136	197249788	-	SeAg_B3329	-	putative cytoplasmic protein
3099	 47.41	0	3234333..3234737	+	134	197250475	-	SeAg_B3330	-	putative cytoplasmic protein
3100	 56.61	0	3234861..3235745	+	294	197249600	-	SeAg_B3331	-	general stress protein 39
3101	 50.70	0	3235858..3236283	-	141	197248980	exbD	SeAg_B3332	-	TonB system transport protein ExbD
3102	 55.65	0	3236290..3237024	-	244	197249773	exbB	SeAg_B3333	-	tonB-system energizer ExbB
3103	 38.41	-2	3237017..3237154	-	45	197251403	-	SeAg_B3334	-	hypothetical protein
3104	 53.87	0	3237276..3238463	+	395	197248430	metC	SeAg_B3335	-	cystathionine beta-lyase
3105	 53.48	0	3238603..3239262	+	219	197247780	-	SeAg_B3336	-	hypothetical protein
3106	 41.88	-1	3240215..3240331	-	38	197249574	-	SeAg_B3338	-	hypothetical protein
3107	 54.90	0	3240418..3241581	+	387	197248676	-	SeAg_B3339	-	alcohol dehydrogenase YqhD
3108	 52.90	0	3241687..3242514	+	275	197250451	-	SeAg_B3340	-	2,5-diketo-d-gluconic acid reductase a
3109	 50.50	0	3244306..3245214	+	302	197250324	-	SeAg_B3342	-	hypothetical protein
3110	 48.24	0	3245269..3246321	+	350	197250651	-	SeAg_B3343	-	hypothetical protein
3111	 49.15	0	3246360..3246593	+	77	197249416	-	SeAg_B3344	-	YqhH
3112	 47.62	0	3246582..3246707	-	41	197249047	-	SeAg_B3345	-	hypothetical protein
3113	 57.76	0	3246719..3248425	+	568	197247670	-	SeAg_B3346	-	amidohydrolase family
3114	 46.42	0	3248422..3249567	+	381	197249072	-	SeAg_B3347	-	hypothetical protein
3115	 55.81	0	3249737..3249865	+	42	197247374	-	SeAg_B3348	-	hypothetical protein
3116	 57.14	0	3250550..3252721	-	723	197247742	-	SeAg_B3349	-	protein YgiQ
3117	 51.83	0	3253209..3254192	+	327	197248424	-	SeAg_B3350	-	trap transporter solute receptor, dctp family
3118	 47.41	0	3254234..3254716	+	160	197251674	-	SeAg_B3351	-	tripartite ATP-independent periplasmic
3119	 50.92	0	3254727..3256034	+	435	197250202	-	SeAg_B3352	-	YgiK
3120	 58.67	+1	3256079..3257491	-	470	197250702	-	SeAg_B3353	-	protein SufI
3121	 50.27	0	3257565..3258302	-	245	197248627	-	SeAg_B3354	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
3122	 56.22	0	3258559..3260817	-	752	197249133	parC	SeAg_B3355	-	DNA topoisomerase IV, A subunit
3123	 57.44	0	3260928..3261794	-	288	197247585	-	SeAg_B3356	-	transcription activator, effector binding
3124	 54.20	0	3261866..3262258	-	130	197249162	-	SeAg_B3357	-	hypothetical protein
3125	 56.06	0	3262410..3263069	+	219	197247614	-	SeAg_B3358	-	transcriptional regulatory protein QseB
3126	 56.44	0	3263066..3264415	+	449	197248119	-	SeAg_B3359	-	sensor protein QseC
51.63	MEAN

6.48	STD DEV
