IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

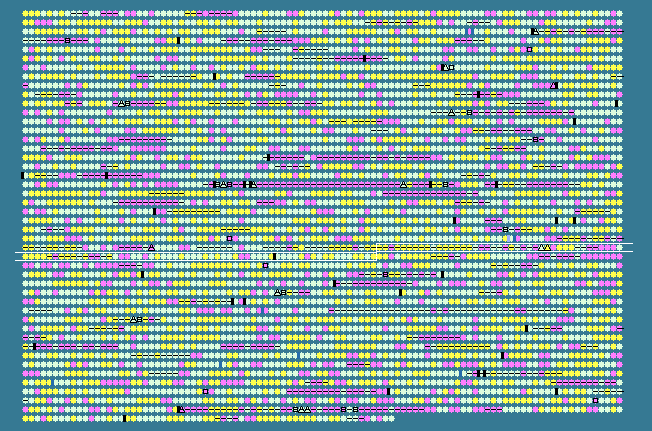

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2660	 57.50	0	2797952..2798311	-	119	197251063	-	SeAg_B2853	-	baseplate assembly protein W
2661	 59.07	+1	2798308..2798886	-	192	197251533	-	SeAg_B2854	-	phage baseplate assembly protein V
2662	 29.88	-2	2798966..2800411	+	481	197249798	-	SeAg_B2855	-	hypothetical protein
2663	 57.11	0	2800423..2800872	-	149	197251624	-	SeAg_B2856	-	phage virion morphogenesis protein
2664	 55.79	0	2800865..2801296	-	143	197249728	-	SeAg_B2857	-	P2 phage tail completion protein R
2665	 58.62	+1	2801259..2801432	-	57	197250337	-	SeAg_B2858	-	conserved phage protein
2666	 62.44	+1	2801392..2801817	-	141	197249603	-	SeAg_B2859	-	putative regulatory protein
2667	 57.41	0	2801817..2802194	-	125	197247900	-	SeAg_B2860	-	hypothetical protein
2668	 59.41	+1	2802199..2802708	-	169	197248284	-	SeAg_B2861	-	phage lysozyme
2669	 50.46	0	2802689..2802904	-	71	197250970	-	SeAg_B2862	-	holin family protein
2670	 60.78	+1	2802908..2803111	-	67	197249592	-	SeAg_B2863	-	phage Tail Protein X
2671	 57.85	0	2803111..2803575	-	154	197247763	-	SeAg_B2864	-	phage head completion protein
2672	 62.21	+1	2803669..2804319	-	216	197251799	-	SeAg_B2865	-	terminase, endonuclease subunit
2673	 56.31	0	2804323..2805384	-	353	197251289	-	SeAg_B2866	-	phage major capsid protein, P2 family
2674	 56.24	0	2805401..2806234	-	277	197250229	-	SeAg_B2867	-	phage capsid scaffolding protein
2675	 56.31	0	2806377..2808143	+	588	197249763	-	SeAg_B2868	-	terminase, ATPase subunit
2676	 51.80	0	2808143..2809171	+	342	197249375	-	SeAg_B2869	-	phage portal protein, pbsx family
2677	 33.21	-2	2809218..2810882	-	554	197249417	-	SeAg_B2870	-	hypothetical protein
2678	 32.77	-2	2811476..2812531	-	351	197248896	-	SeAg_B2871	-	hypothetical protein
2679	 49.74	0	2812936..2813124	-	62	197249292	-	SeAg_B2873	-	hypothetical protein
2680	 55.04	0	2813270..2813398	-	42	197251222	-	SeAg_B2874	-	hypothetical protein
2681	 46.15	0	2815682..2816539	-	285	197247667	-	SeAg_B2876	-	retron EC67 DNA adenine methylase
2682	 57.46	0	2816536..2816763	-	75	197251899	-	SeAg_B2877	-	C4-type zinc finger protein, DksA/TraR family
2683	 53.42	0	2816763..2816996	-	77	197248134	-	SeAg_B2878	-	hypothetical protein
2684	 44.74	-1	2817064..2817405	-	113	197248338	-	SeAg_B2879	-	hypothetical protein
2685	 53.73	0	2818272..2818781	-	169	197249297	-	SeAg_B2880	-	phage regulatory protein
2686	 45.00	-1	2818817..2819056	-	79	197248537	-	SeAg_B2881	-	phage regulatory protein
2687	 49.22	0	2819809..2820834	+	341	197250527	-	SeAg_B2882	-	phage integrase
2688	 55.33	0	2821164..2821745	+	193	197247818	-	SeAg_B2883	-	phage integrase family protein
2689	 32.64	-2	2822085..2823959	+	624	197251374	-	SeAg_B2884	-	putative inner membrane protein
2690	 56.90	0	2824849..2825964	+	371	197248468	-	SeAg_B2885	-	IroB
2691	 58.87	+1	2826045..2829701	+	1218	197250364	-	SeAg_B2886	-	ATP binding cassette
2692	 61.45	+1	2829811..2831055	+	414	197249762	-	SeAg_B2887	-	enterochelin esterase
2693	 53.42	0	2831087..2832022	+	311	197249038	-	SeAg_B2888	-	IroE
2694	 51.17	0	2832064..2834238	-	724	197250663	-	SeAg_B2889	-	TonB dependent outer membrane siderophore receptor protein
2695	 43.18	-1	2834685..2834816	+	43	197247568	-	SeAg_B2890	-	hypothetical protein
2696	 44.25	-1	2835265..2836317	-	350	197249533	-	SeAg_B2891	-	effector protein pipB2
2697	 45.05	-1	2836834..2837763	+	309	197250813	-	SeAg_B2892	-	virulence protein
2698	 41.25	-1	2838057..2838953	+	298	197248006	-	SeAg_B2893	-	Mig-14
2699	 31.58	-2	2839468..2839581	+	37	197250664	-	SeAg_B2894	-	putative inner membrane protein
2700	 50.59	0	2839674..2840687	-	337	197251320	hoxN	SeAg_B2895	-	high-affinity nickel transport protein
2701	 56.50	0	2840820..2842235	-	471	197250124	-	SeAg_B2896	-	tricarboxylic transport: regulatory protein
2702	 55.41	0	2842222..2842896	-	224	197250760	-	SeAg_B2897	-	DNA-binding response regulator TctD
2703	 56.24	0	2843051..2844028	+	325	197248581	-	SeAg_B2898	-	tricarboxylic transport
2704	 57.47	0	2844040..2844474	+	144	197249203	-	SeAg_B2899	-	tricarboxylic transport
2705	 56.90	0	2844485..2845999	+	504	197248193	-	SeAg_B2900	-	integral membrane protein
2706	 35.09	-2	2846163..2846276	+	37	197248561	-	SeAg_B2901	-	hypothetical protein
2707	 59.26	+1	2847305..2848573	+	422	197251431	-	SeAg_B2903	-	putative FAD dependent oxidoreductase
2708	 57.83	0	2848595..2850043	+	482	197247932	-	SeAg_B2904	-	succinate-semialdehyde dehydrogenase (NADP+)
2709	 58.02	0	2850058..2851341	+	427	197247877	gabT	SeAg_B2905	-	4-aminobutyrate transaminase
2710	 51.89	0	2851471..2852871	+	466	197249468	gabP	SeAg_B2906	-	gaba permease
2711	 56.64	0	2852913..2853590	+	225	197248962	-	SeAg_B2907	-	transcriptional regulator, GntR family
2712	 44.22	-1	2853612..2854061	-	149	197250052	-	SeAg_B2908	-	peptidoglycan-binding LysM
2713	 42.77	-1	2854161..2854319	-	52	197249846	-	SeAg_B2909	-	hypothetical protein
2714	 51.67	0	2854502..2854801	+	99	197251611	-	SeAg_B2910	-	regulatory protein, ArsR
2715	 56.25	0	2854811..2855338	+	175	197250899	-	SeAg_B2911	-	inner membrane protein YgaP
2716	 52.22	0	2855417..2855596	+	59	197247450	-	SeAg_B2912	-	hypothetical protein
2717	 46.52	0	2855686..2856087	-	133	197250698	-	SeAg_B2913	-	H-NS histone family
2718	 40.35	-1	2856658..2856771	+	37	197249070	-	SeAg_B2914	-	hypothetical protein
2719	 50.00	0	2856986..2857435	+	149	197250159	-	SeAg_B2915	-	membrane protein
2720	 50.14	0	2857470..2857820	-	116	197250519	-	SeAg_B2916	-	YgaC
2721	 42.74	-1	2857804..2857920	-	38	197251145	-	SeAg_B2917	-	hypothetical protein
2722	 54.13	0	2857982..2858308	+	108	197250955	-	SeAg_B2918	-	putative inner membrane protein
2723	 56.85	0	2858392..2859726	-	444	197247551	-	SeAg_B2919	-	transcriptional regulator, GntR family with aminotransferase domain
2724	 51.95	0	2859812..2860246	+	144	197248182	-	SeAg_B2920	-	alkylhydroperoxidase AhpD family core domain protein
2725	 53.46	0	2860261..2860419	+	52	197248544	-	SeAg_B2921	-	hypothetical protein
2726	 54.88	0	2860518..2860763	+	81	197249200	-	SeAg_B2922	-	glutaredoxin
2727	 57.42	0	2860760..2861170	+	136	197250338	nrdI	SeAg_B2923	-	NrdI protein
2728	 54.17	0	2861143..2863287	+	714	197249723	-	SeAg_B2924	-	ribonucleoside-diphosphate reductase, alpha subunit
2729	 49.38	0	2863298..2864257	+	319	197251114	-	SeAg_B2925	-	ribonucleoside-diphosphate reductase, beta subunit
2730	 50.37	0	2864612..2865814	+	400	197251048	proV	SeAg_B2926	-	glycine betaine/L-proline ABC transporter, ATP binding protein
2731	 59.34	+1	2865807..2866871	+	354	197247835	-	SeAg_B2927	-	glycine betaine/L-proline transport system permease protein ProW
2732	 53.61	0	2866941..2867936	+	331	197251766	-	SeAg_B2928	-	glycine betaine-binding periplasmic protein
2733	 58.99	+1	2868101..2869285	+	394	197248536	-	SeAg_B2929	-	major facilitator family transporter
2734	 48.40	0	2869782..2870312	+	176	197248460	mprA	SeAg_B2930	-	transcriptional repressor MprA
2735	 54.56	0	2870439..2871611	+	390	197249944	emrA	SeAg_B2931	-	multidrug resistance protein A
2736	 56.99	0	2871628..2873166	+	512	197248872	emrB	SeAg_B2932	-	multidrug resistance protein B
2737	 47.41	0	2873215..2874585	-	456	197249509	-	SeAg_B2933	-	putative glycoporin
2738	 33.33	-2	2874730..2874873	+	47	197249060	-	SeAg_B2934	-	hypothetical protein
2739	 53.29	0	2874931..2875446	-	171	197248498	luxS	SeAg_B2935	-	S-Ribosylhomocysteinase
2740	 52.09	0	2875596..2877152	-	518	197247836	gshA	SeAg_B2937	-	glutamate--cysteine ligase
2741	 53.52	0	2877229..2877654	-	141	197251375	-	SeAg_B2938	-	hypothetical protein
2742	 56.44	0	2877651..2878217	-	188	197251041	-	SeAg_B2939	-	HAD-superfamily hydrolase, subfamily IA
2743	 51.08	0	2879465..2879650	-	61	197250412	csrA	SeAg_B2945	-	carbon storage regulator
2744	 54.88	0	2879885..2882515	-	876	197249925	alaS	SeAg_B2946	-	alanyl-tRNA synthetase
2745	 51.90	0	2882751..2883251	-	166	197248878	recX	SeAg_B2947	-	regulatory protein RecX
2746	 54.61	0	2883368..2884429	-	353	197250628	recA	SeAg_B2948	-	protein RecA
2747	 59.44	+1	2884514..2885011	-	165	197249641	-	SeAg_B2949	-	competence/damage-inducible protein CinA domain protein
2748	 44.72	-1	2885207..2885452	+	81	197249427	-	SeAg_B2950	-	hypothetical protein
2749	 56.30	0	2885490..2886569	-	359	197249330	mltB	SeAg_B2951	-	lytic murein transglycosylase B
2750	 50.53	0	2886823..2887386	+	187	197248668	-	SeAg_B2952	-	glucitol/sorbitol permease iic component
2751	 58.02	0	2887383..2888354	+	323	197250325	-	SeAg_B2953	-	glucitol/sorbitol-specific phosphotransferase enzyme iib component
2752	 58.13	+1	2888366..2888728	+	120	197251454	-	SeAg_B2954	-	glucitol/sorbitol-specific phosphotransferase enzyme iia component
2753	 55.00	0	2888740..2889519	+	259	197251343	srlD	SeAg_B2955	-	sorbitol-6-phosphate 2-dehydrogenase
2754	 54.44	0	2889596..2889955	+	119	197248404	-	SeAg_B2956	-	glucitol operon activator protein
2755	 49.74	0	2890153..2890926	+	257	197247771	srlR	SeAg_B2957	-	glucitol operon repressor
2756	 57.25	0	2890919..2891884	+	321	197251720	gutQ	SeAg_B2958	-	gutQ protein
2757	 59.43	+1	2891881..2893401	-	506	197247680	-	SeAg_B2959	-	anaerobic nitric oxide reductase transcription regulator NorR
2758	 53.75	0	2893587..2895026	+	479	197248489	-	SeAg_B2960	-	anaerobic nitric oxide reductase flavorubredoxin
2759	 56.44	0	2895023..2896156	+	377	197248846	-	SeAg_B2961	-	nitric oxide reductase FlRd-NAD
51.63	MEAN

6.48	STD DEV
