IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

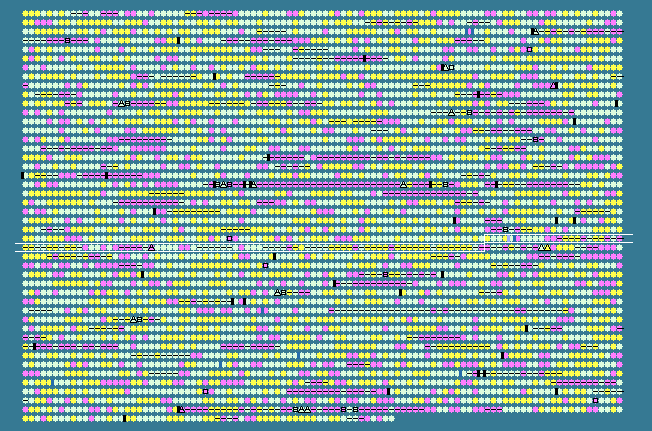

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2578	 56.67	0	2707309..2707638	+	109	197249290	-	SeAg_B2763	-	hypothetical protein
2579	 51.92	0	2707635..2708936	-	433	197247476	-	SeAg_B2764	-	alpha-ketoglutarate permease
2580	 49.12	0	2709040..2709495	-	151	197251648	-	SeAg_B2765	-	putative cytoplasmic protein
2581	 57.50	0	2709743..2709862	+	39	197251212	-	SeAg_B2766	-	hypothetical protein
2582	 50.00	0	2711244..2711363	-	39	197250080	-	SeAg_B2768	-	hypothetical protein
2583	 37.61	-2	2715433..2715549	+	38	197248400	-	SeAg_B2771	-	hypothetical protein
2584	 53.19	0	2715551..2718124	-	857	197248685	clpB	SeAg_B2772	-	ATP-dependent chaperone protein ClpB
2585	 54.23	0	2718254..2718985	-	243	197249378	-	SeAg_B2773	-	conserved hypothetical protein TIGR00726
2586	 53.21	0	2718982..2719962	-	326	197247406	rluD	SeAg_B2774	-	ribosomal large subunit pseudouridine synthase D
2587	 52.44	0	2720094..2720831	+	245	197248037	-	SeAg_B2775	-	outer membrane assembly lipoprotein YfiO
2588	 47.20	0	2721103..2721441	+	112	197251246	-	SeAg_B2776	-	ribosomal subunit interface protein
2589	 40.80	-1	2721812..2721985	+	57	197251840	-	SeAg_B2777	-	hypothetical protein
2590	 35.10	-2	2722121..2723593	-	490	197250476	-	SeAg_B2778	-	hypothetical protein
2591	 57.81	0	2724711..2726414	-	567	197250523	-	SeAg_B2779	-	phage protein
2592	 55.49	0	2726414..2726959	-	181	197249608	-	SeAg_B2780	-	phage protein
2593	 57.44	0	2726931..2727656	-	241	197249065	-	SeAg_B2781	-	hypothetical protein
2594	 45.01	-1	2727646..2728176	-	176	197249027	-	SeAg_B2782	-	putative phage tail fiber assembly protein
2595	 51.12	0	2728179..2730191	-	670	197248492	-	SeAg_B2783	-	phage tail fiber repeat-containing protein
2596	 57.14	0	2730201..2730788	-	195	197250262	-	SeAg_B2784	-	phage protein
2597	 55.70	0	2730781..2731965	-	394	197249802	-	SeAg_B2785	-	phage protein
2598	 43.33	-1	2731962..2732291	-	109	197251025	-	SeAg_B2786	-	phage protein
2599	 51.32	0	2732288..2734255	-	655	197250251	-	SeAg_B2787	-	phage tail tape measure protein, TP901 family, core region
2600	 37.98	-2	2734443..2734700	-	85	197247764	-	SeAg_B2788	-	phage protein
2601	 55.56	0	2734847..2735179	-	110	197251516	-	SeAg_B2789	-	hypothetical phage-related protein
2602	 56.73	0	2735179..2735520	-	113	197248416	-	SeAg_B2790	-	hypothetical phage-related protein
2603	 50.84	0	2735517..2735813	-	98	197250459	-	SeAg_B2791	-	phage holin family 2
2604	 51.75	0	2735826..2736281	-	151	197249506	-	SeAg_B2792	-	phage protein
2605	 55.67	0	2736278..2737405	-	375	197248884	-	SeAg_B2793	-	tail sheath
2606	 55.74	0	2737402..2738106	-	234	197248437	-	SeAg_B2794	-	phage protein
2607	 53.21	0	2738103..2738585	-	160	197247892	-	SeAg_B2795	-	hypothetical protein
2608	 56.07	0	2738582..2739034	-	150	197249505	-	SeAg_B2796	-	phage head completion protein
2609	 58.94	+1	2739133..2739831	-	232	197248856	-	SeAg_B2797	-	phage terminase subunit
2610	 52.67	0	2739843..2740871	-	342	197248447	-	SeAg_B2798	-	phage major capsid protein, P2 family
2611	 46.97	0	2740906..2741895	-	329	197247821	-	SeAg_B2799	-	scaffold protein
2612	 52.55	0	2741953..2743737	+	594	197251462	-	SeAg_B2800	-	putative conserved hypothetical protein
2613	 53.04	0	2743734..2744753	+	339	197250748	-	SeAg_B2801	-	phage portal protein, pbsx family
2614	 45.56	0	2744807..2745076	+	89	197247787	-	SeAg_B2802	-	zinc-finger protein
2615	 48.80	0	2745104..2747761	-	885	197251558	-	SeAg_B2803	-	putative phage-related protein
2616	 37.61	-2	2747715..2747831	-	38	197247917	-	SeAg_B2804	-	hypothetical protein
2617	 38.36	-2	2747800..2748018	-	72	197247436	-	SeAg_B2805	-	hypothetical protein
2618	 41.58	-1	2748021..2748590	-	189	197248107	-	SeAg_B2806	-	endodeoxyribonuclease
2619	 39.34	-1	2748600..2748932	-	110	197247543	-	SeAg_B2807	-	hypothetical protein
2620	 41.59	-1	2748958..2749296	-	112	197251686	-	SeAg_B2808	-	bacteriophage regulatory protein
2621	 49.17	0	2749554..2749673	-	39	197251187	-	SeAg_B2809	-	hypothetical protein
2622	 44.91	-1	2749748..2750758	+	336	197250677	-	SeAg_B2810	-	integrase
2623	 54.09	0	2751069..2752229	+	386	197251663	-	SeAg_B2811	-	P-protein
2624	 54.35	0	2752190..2753098	-	302	197251526	-	SeAg_B2812	-	SMP-30/Gluconolaconase/LRE domain protein
2625	 55.08	0	2753156..2754277	-	373	197250436	tyrA	SeAg_B2813	-	T-protein
2626	 53.03	0	2754287..2755357	-	356	197249736	aroF	SeAg_B2814	-	3-deoxy-7-phosphoheptulonate synthase, Tyr-sensitive
2627	 34.21	-2	2755532..2755645	-	37	197249119	-	SeAg_B2815	-	hypothetical protein
2628	 46.44	0	2755797..2756315	+	172	197249053	-	SeAg_B2816	-	putative periplasmic protein
2629	 50.70	0	2756308..2757528	+	406	197248314	-	SeAg_B2817	-	inner membrane protein YfiN
2630	 48.56	0	2757685..2758032	-	115	197247677	rplS	SeAg_B2818	-	ribosomal protein L19
2631	 53.78	0	2758073..2758840	-	255	197248318	trmD	SeAg_B2819	-	tRNA (guanine-N1)-methyltransferase
2632	 49.82	0	2758885..2759436	-	183	197247653	rimM	SeAg_B2820	-	16S rRNA processing protein RimM
2633	 52.21	0	2759452..2759700	-	82	197250392	rpsP	SeAg_B2821	-	ribosomal protein S16
2634	 48.98	0	2759757..2759903	-	48	197248573	-	SeAg_B2822	-	hypothetical protein
2635	 54.99	0	2759953..2761314	-	453	197247718	ffh	SeAg_B2823	-	signal recognition particle protein
2636	 52.82	0	2762336..2763577	+	413	197251010	-	SeAg_B2825	-	CBS/transporter associated domain protein
2637	 43.40	-1	2763698..2764303	+	201	197251643	-	SeAg_B2826	-	hypothetical protein
2638	 50.55	0	2764338..2765063	-	241	197250981	grpE	SeAg_B2828	-	co-chaperone GrpE
2639	 50.97	0	2765052..2765930	+	292	197251609	ppnK	SeAg_B2827	-	NAD(+) kinase
2640	 54.63	0	2766016..2767677	+	553	197249669	recN	SeAg_B2829	-	DNA repair protein RecN
2641	 51.33	0	2767826..2768164	+	112	197250284	-	SeAg_B2830	-	small protein A
2642	 54.30	0	2768330..2768620	-	96	197247785	-	SeAg_B2831	-	protein YfjF
2643	 49.48	0	2768610..2769086	-	158	197248003	-	SeAg_B2832	-	polyketide cyclase/dehydrase family protein
2644	 49.28	0	2769236..2769718	+	160	197248802	smpB	SeAg_B2833	-	SsrA-binding protein
2645	 18.95	-2	2769865..2770017	-	50	197249286	-	SeAg_B2834	-	hypothetical protein
2646	 58.54	+1	2770333..2781807	+	3824	197250420	-	SeAg_B2835	-	VCBS repeat-containing protein
2647	 56.63	0	2783278..2785458	+	726	197251129	-	SeAg_B2837	-	protein secretion ABC efflux system, permease and ATP-binding protein
2648	 53.99	0	2785439..2786629	+	396	197251864	-	SeAg_B2838	-	type I secretion membrane fusion protein, HlyD family
2649	 50.69	0	2787111..2787254	+	47	197249418	-	SeAg_B2841	-	hypothetical protein
2650	 54.04	0	2787468..2788568	-	366	197250221	-	SeAg_B2842	-	phage late control D family protein
2651	 53.09	0	2788565..2789050	-	161	197250142	-	SeAg_B2843	-	phage P2 GpU family protein
2652	 58.08	0	2789047..2791854	-	935	197249129	-	SeAg_B2844	-	phage tail tape measure protein
2653	 56.44	0	2791981..2792283	-	100	197250377	-	SeAg_B2846	-	phage tail protein E
2654	 55.81	0	2792338..2792853	-	171	197250833	-	SeAg_B2847	-	phage major tail tube protein FII
2655	 57.97	0	2792863..2794035	-	390	197247697	-	SeAg_B2848	-	major tail sheath protein
2656	 40.91	-1	2794166..2794693	-	175	197248312	-	SeAg_B2849	-	putative phage tail fiber assembly protein
2657	 51.56	0	2794696..2796462	-	588	197248971	-	SeAg_B2850	-	tail fiber domain protein
2658	 56.77	0	2796459..2797064	-	201	197249634	-	SeAg_B2851	-	phage tail protein I
2659	 59.08	+1	2797057..2797965	-	302	197248981	-	SeAg_B2852	-	baseplate assembly protein J
2660	 57.50	0	2797952..2798311	-	119	197251063	-	SeAg_B2853	-	baseplate assembly protein W
2661	 59.07	+1	2798308..2798886	-	192	197251533	-	SeAg_B2854	-	phage baseplate assembly protein V
2662	 29.88	-2	2798966..2800411	+	481	197249798	-	SeAg_B2855	-	hypothetical protein
2663	 57.11	0	2800423..2800872	-	149	197251624	-	SeAg_B2856	-	phage virion morphogenesis protein
2664	 55.79	0	2800865..2801296	-	143	197249728	-	SeAg_B2857	-	P2 phage tail completion protein R
2665	 58.62	+1	2801259..2801432	-	57	197250337	-	SeAg_B2858	-	conserved phage protein
2666	 62.44	+1	2801392..2801817	-	141	197249603	-	SeAg_B2859	-	putative regulatory protein
2667	 57.41	0	2801817..2802194	-	125	197247900	-	SeAg_B2860	-	hypothetical protein
2668	 59.41	+1	2802199..2802708	-	169	197248284	-	SeAg_B2861	-	phage lysozyme
2669	 50.46	0	2802689..2802904	-	71	197250970	-	SeAg_B2862	-	holin family protein
2670	 60.78	+1	2802908..2803111	-	67	197249592	-	SeAg_B2863	-	phage Tail Protein X
2671	 57.85	0	2803111..2803575	-	154	197247763	-	SeAg_B2864	-	phage head completion protein
2672	 62.21	+1	2803669..2804319	-	216	197251799	-	SeAg_B2865	-	terminase, endonuclease subunit
2673	 56.31	0	2804323..2805384	-	353	197251289	-	SeAg_B2866	-	phage major capsid protein, P2 family
2674	 56.24	0	2805401..2806234	-	277	197250229	-	SeAg_B2867	-	phage capsid scaffolding protein
2675	 56.31	0	2806377..2808143	+	588	197249763	-	SeAg_B2868	-	terminase, ATPase subunit
2676	 51.80	0	2808143..2809171	+	342	197249375	-	SeAg_B2869	-	phage portal protein, pbsx family
2677	 33.21	-2	2809218..2810882	-	554	197249417	-	SeAg_B2870	-	hypothetical protein
51.63	MEAN

6.48	STD DEV
