IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

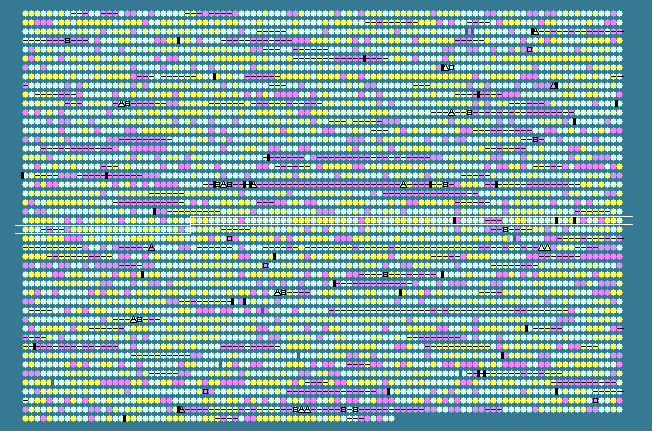

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2329	 56.12	0	2421307..2421951	-	214	197249044	-	SeAg_B2489	-	glutathione S-transferase domain protein
2330	 53.24	0	2422094..2422741	+	215	197248225	-	SeAg_B2490	-	glutathione S-transferase, N- domain
2331	 57.49	0	2422867..2423760	+	297	197247743	-	SeAg_B2491	-	hypothetical protein
2332	 53.15	0	2423812..2424588	-	258	197251537	hisP	SeAg_B2492	-	histidine ABC transporter, ATP-binding protein
2333	 51.69	0	2424599..2425306	-	235	197251061	hisM	SeAg_B2493	-	histidine ABC transporter, permease protein HisM
2334	 54.59	0	2425303..2425989	-	228	197249262	hisQ	SeAg_B2494	-	histidine ABC transporter, permease protein HisQ
2335	 51.34	0	2426170..2426952	-	260	197249041	-	SeAg_B2495	-	putative lysine-arginine-ornithine-binding periplasmic protein
2336	 50.70	0	2427190..2427972	-	260	197248703	-	SeAg_B2496	-	lysine-arginine-ornithine-binding periplasmic protein
2337	 39.84	-1	2428050..2428172	+	40	197249008	-	SeAg_B2497	-	hypothetical protein
2338	 54.56	0	2428261..2428830	-	189	197250456	-	SeAg_B2498	-	phenylacrylic acid decarboxylase
2339	 53.30	0	2428857..2430263	-	468	197249900	-	SeAg_B2499	-	putative amino acid transporter
2340	 50.63	0	2430327..2431430	-	367	197251372	-	SeAg_B2500	-	amino acid racemase
2341	 50.28	0	2431432..2432853	-	473	197250902	-	SeAg_B2501	-	putative amino acid transporter
2342	 49.64	0	2432944..2434341	-	465	197247933	-	SeAg_B2502	-	diaminopimelate decarboxylase
2343	 52.31	0	2434552..2435979	+	475	197249567	-	SeAg_B2503	-	putative regulatory protein
2344	 53.62	0	2436015..2437532	-	505	197249284	purF	SeAg_B2504	-	amidophosphoribosyltransferase
2345	 51.12	0	2437570..2438058	-	162	197251329	cvpA	SeAg_B2505	-	CvpA protein
2346	 58.07	0	2438369..2439043	-	224	197251466	-	SeAg_B2506	-	DedD protein
2347	 58.47	+1	2439033..2440301	-	422	197249666	folC	SeAg_B2507	-	tetrahydrofolate synthase/dihydrofolate synthase
2348	 57.05	0	2440369..2441283	-	304	197250500	accD	SeAg_B2508	-	acetyl-CoA carboxylase, carboxyl transferase, beta subunit
2349	 50.91	0	2441433..2442092	-	219	197248570	-	SeAg_B2509	-	membrane protein, DedA family
2350	 55.84	0	2442141..2442953	-	270	197248953	truA	SeAg_B2510	-	tRNA pseudouridine synthase A
2351	 57.69	0	2442953..2443966	-	337	197247559	-	SeAg_B2511	-	aspartate-semialdehyde dehydrogenase family protein
2352	 56.73	0	2444034..2445170	-	378	197247804	pdxB	SeAg_B2512	-	erythronate-4-phosphate dehydrogenase
2353	 54.89	0	2445274..2446275	+	333	197250844	-	SeAg_B2513	-	protein div
2354	 60.64	+1	2446272..2447450	-	392	197248464	-	SeAg_B2514	-	protein YfcJ
2355	 50.40	0	2447630..2448004	-	124	197250184	-	SeAg_B2515	-	putative cytoplasmic protein
2356	 50.87	0	2448571..2449089	+	172	197251724	-	SeAg_B2516	-	putative periplasmic protein
2357	 40.52	-1	2449155..2449766	-	203	197251103	-	SeAg_B2517	-	caax amino protease family
2358	 56.95	0	2449909..2451123	-	404	197248177	-	SeAg_B2518	-	3-oxoacyl-[acyl-carrier-protein] synthase 1
2359	 57.87	0	2451283..2453283	+	666	197247546	-	SeAg_B2519	-	protein YfcK
2360	 53.62	0	2453335..2453610	-	91	197249210	-	SeAg_B2520	-	YfcL protein
2361	 53.55	0	2453643..2454191	-	182	197248578	-	SeAg_B2521	-	hypothetical protein
2362	 54.32	0	2454191..2455000	-	269	197249005	-	SeAg_B2522	-	hypothetical protein
2363	 58.42	+1	2455000..2455824	-	274	197250331	mepA	SeAg_B2523	-	penicillin-insensitive murein endopeptidase
2364	 58.29	+1	2455828..2456913	-	361	197250048	aroC	SeAg_B2524	-	chorismate synthase
2365	 53.99	0	2458047..2458598	+	183	197247834	-	SeAg_B2526	-	Smr domain protein
2366	 55.14	0	2458698..2459183	-	161	197248315	sixA	SeAg_B2527	-	phosphohistidine phosphatase SixA
2367	 54.10	0	2459392..2461539	-	715	197248926	fadJ	SeAg_B2528	-	fatty oxidation complex, alpha subunit FadJ
2368	 59.50	+1	2461539..2462849	-	436	197249400	fadI	SeAg_B2529	-	acetyl-CoA C-acyltransferase FadI
2369	 52.98	0	2463027..2463311	-	94	197250455	-	SeAg_B2530	-	hypothetical protein
2370	 53.06	0	2463682..2464989	+	435	197250951	-	SeAg_B2531	-	long-chain fatty acid transport protein
2371	 54.10	0	2465050..2465805	-	251	197248658	-	SeAg_B2532	-	lipoprotein, VacJ family
2372	 49.68	0	2466094..2467035	+	313	197248064	-	SeAg_B2533	-	inner membrane protein YfdC
2373	 46.54	0	2467342..2468280	-	312	197249873	-	SeAg_B2535	-	protease 7
2374	 51.68	0	2468548..2469795	-	415	197249341	-	SeAg_B2536	-	phosphoglycerate transport system transcriptional regulatory protein pgtA
2375	 54.06	0	2469785..2471791	-	668	197251285	-	SeAg_B2537	-	phosphoglycerate transport system sensor protein PgtB
2376	 52.78	0	2471788..2473098	-	436	197247974	-	SeAg_B2539	-	phosphoglycerate transport: protein for signal transmission
2377	 49.71	0	2473417..2474808	+	463	197250699	-	SeAg_B2540	-	phosphoglycerate transport: transporter
2378	 43.21	-1	2475047..2475289	-	80	197248188	-	SeAg_B2541	-	hypothetical protein
2379	 32.46	-2	2475450..2475563	-	37	197247383	-	SeAg_B2542	-	hypothetical protein
2380	 42.28	-1	2476846..2476968	+	40	197250960	-	SeAg_B2544	-	hypothetical protein
2381	 53.91	0	2477255..2478493	-	412	197250713	-	SeAg_B2545	-	aminotransferase, classes I and II superfamily
2382	 52.90	0	2479216..2480181	-	321	197250855	glk	SeAg_B2546	-	glucokinase
2383	 59.30	+1	2480385..2481620	+	411	197249443	-	SeAg_B2547	-	Cl- channel, voltage-gated family protein
2384	 59.53	+1	2481640..2483292	-	550	197247765	-	SeAg_B2548	-	indole-3-pyruvate decarboxylase
2385	 53.85	0	2483472..2484470	+	332	197251906	-	SeAg_B2549	-	oxidoreductase, aldo/keto reductase family
2386	 55.05	0	2484584..2484910	+	108	197249730	-	SeAg_B2550	-	hypothetical protein
2387	 54.54	0	2484971..2486149	-	392	197248329	-	SeAg_B2551	-	manganese transport protein MntH
2388	 50.54	0	2486555..2487757	+	400	197251216	nupC	SeAg_B2552	-	nucleoside transporter NupC
2389	 50.82	0	2487810..2489999	-	729	197248874	-	SeAg_B2553	-	diguanylate cyclase
2390	 51.15	0	2490620..2490967	+	115	197249507	-	SeAg_B2556	-	hypothetical protein
2391	 48.35	0	2490969..2491361	+	130	197250488	-	SeAg_B2557	-	hypothetical protein
2392	 55.23	0	2491415..2492830	-	471	197251161	gltX	SeAg_B2558	-	glutamyl-tRNA synthetase
2393	 50.40	0	2493748..2494632	-	294	197250656	-	SeAg_B2563	-	HTH-type transcriptional regulator XapR
2394	 32.70	-2	2494684..2494842	-	52	197250177	-	SeAg_B2564	-	putative XapX domain
2395	 48.53	0	2494901..2496157	-	418	197247862	nupG	SeAg_B2565	-	nucleoside permease NupG
2396	 53.12	0	2496212..2497045	-	277	197248543	xapA	SeAg_B2566	-	xanthosine phosphorylase
2397	 45.54	0	2497301..2498062	+	253	197248005	-	SeAg_B2567	-	conserved outer membrane protein
2398	 56.53	0	2498124..2499050	-	308	197247552	-	SeAg_B2568	-	OsmT protein
2399	 55.26	0	2499140..2500138	+	332	197250357	-	SeAg_B2569	-	transporter, bile acid/Na+ symporter family
2400	 51.60	0	2500135..2500353	-	72	197248528	-	SeAg_B2570	-	hypothetical protein
2401	 56.94	0	2500355..2502370	-	671	197247622	ligA	SeAg_B2571	-	DNA ligase, NAD-dependent
2402	 57.35	0	2502442..2503428	-	328	197248196	zipA	SeAg_B2572	-	cell division protein ZipA
2403	 51.97	0	2503558..2504421	+	287	197249847	-	SeAg_B2573	-	CysZ protein
2404	 53.81	0	2504585..2505556	+	323	197251483	cysK	SeAg_B2574	-	cysteine synthase A
2405	 38.89	-1	2505675..2505800	-	41	197250276	-	SeAg_B2575	-	hypothetical protein
2406	 51.16	0	2505940..2506197	+	85	197250208	ptsH	SeAg_B2576	-	phosphocarrier protein PtsH
2407	 51.74	0	2506246..2507973	+	575	197249587	ptsI	SeAg_B2577	-	phosphoenolpyruvate-protein phosphotransferase
2408	 47.45	0	2508014..2508523	+	169	197248954	crr	SeAg_B2578	-	PTS system, glucose-specific IIA component
2409	 57.92	0	2508673..2508912	-	79	197249145	-	SeAg_B2579	-	putative cytoplasmic protein
2410	 56.75	0	2508909..2509775	-	288	197248803	-	SeAg_B2580	-	pyridoxal kinase
2411	 58.86	+1	2509858..2511150	+	430	197250424	-	SeAg_B2581	-	GntR-family transcriptional regulator
2412	 55.14	0	2511165..2511884	+	239	197249248	-	SeAg_B2582	-	glutamine amidotransferase
2413	 50.13	0	2511943..2512323	+	126	197247451	-	SeAg_B2583	-	putative periplasmic protein
2414	 50.00	0	2512336..2512875	+	179	197248057	-	SeAg_B2584	-	putative membrane carboxypeptidase
2415	 56.80	0	2513007..2513918	-	303	197248797	cysM	SeAg_B2585	-	cysteine synthase B
2416	 58.01	0	2513986..2515083	-	365	197249255	cysA	SeAg_B2586	-	sulfate/thiosulfate ABC transporter, ATP-binding protein
2417	 54.91	0	2515073..2515948	-	291	197247464	cysW	SeAg_B2587	-	sulfate ABC transporter, permease protein CysW
2418	 55.64	0	2515948..2516781	-	277	197248192	cysT	SeAg_B2588	-	sulfate ABC transporter, permease protein CysT
2419	 53.69	0	2516781..2517797	-	338	197251229	cysP	SeAg_B2589	-	sulfate/thiosulfate ABC transporter, periplasmic sulfate/thiosulfate-binding protein
2420	 54.17	0	2517955..2518746	-	263	197250907	fabG	SeAg_B2590	-	3-oxoacyl-(acyl-carrier-protein) reductase
2421	 55.44	0	2518984..2519883	-	299	197249966	-	SeAg_B2591	-	dyp-type peroxidase family protein
2422	 56.25	0	2519978..2520553	-	191	197248748	-	SeAg_B2592	-	hypothetical protein
2423	 56.44	0	2520615..2521064	-	149	197251184	-	SeAg_B2593	-	inner membrane protein YfeZ
2424	 53.05	0	2521051..2521476	-	141	197247547	-	SeAg_B2594	-	acetyltransferase, GNAT family
2425	 50.57	0	2521689..2522558	+	289	197247477	amiA	SeAg_B2595	-	N-acetylmuramoyl-L-alanine amidase
2426	 57.22	0	2522561..2523460	+	299	197247962	hemF	SeAg_B2596	-	coproporphyrinogen III oxidase, aerobic
2427	 45.50	0	2523622..2523810	+	62	197250558	-	SeAg_B2597	-	hypothetical protein
2428	 53.18	0	2524023..2525216	+	397	197251351	-	SeAg_B2598	-	hypothetical protein
51.63	MEAN

6.48	STD DEV
