IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

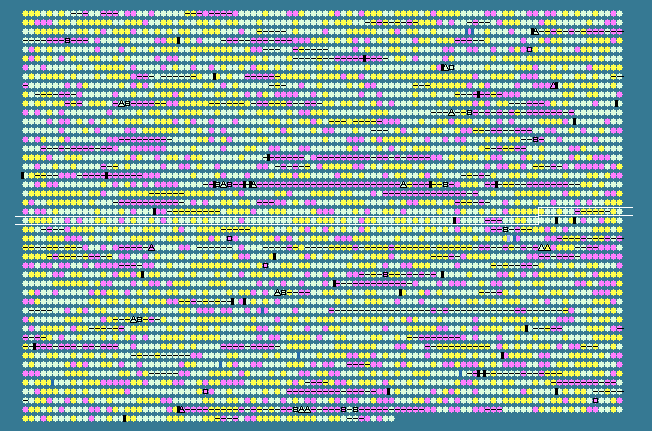

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2287	 56.64	0	2368877..2370172	-	431	197247503	-	SeAg_B2446	-	menaquinone-specific isochorismate synthase
2288	 50.98	0	2370273..2370578	-	101	197248137	-	SeAg_B2447	-	protein ElaB
2289	 54.55	0	2370633..2371094	-	153	197248518	-	SeAg_B2448	-	acetyltransferase, GNAT family
2290	 56.10	0	2371155..2372072	+	305	197249331	rnz	SeAg_B2449	-	ribonuclease Z
2291	 51.90	0	2372138..2373139	+	333	197251542	-	SeAg_B2450	-	CheW protein
2292	 52.53	0	2373180..2374976	-	598	197250621	-	SeAg_B2451	-	von Willebrand factor type A domain protein
2293	 32.50	-2	2375087..2375206	-	39	197251356	-	SeAg_B2452	-	hypothetical protein
2294	 61.36	+1	2375695..2385663	-	3322	197250783	-	SeAg_B2454	-	ShdA
2295	 59.47	+1	2386272..2387729	-	485	197250258	nuoN	SeAg_B2455	-	NADH-quinone oxidoreductase, N subunit
2296	 56.27	0	2387736..2389265	-	509	197249434	nuoM	SeAg_B2456	-	NADH-quinone oxidoreductase, M subunit
2297	 58.06	0	2389342..2391177	-	611	197248894	nuoL	SeAg_B2457	-	NADH-quinone oxidoreductase, L subunit
2298	 54.79	0	2391180..2391482	-	100	197251331	nuoK	SeAg_B2458	-	NADH-quinone oxidoreductase, K subunit
2299	 57.84	0	2391479..2392033	-	184	197248229	nuoJ	SeAg_B2459	-	NADH-quinone oxidoreductase, J subunit
2300	 53.96	0	2392044..2392586	-	180	197249761	nuoI	SeAg_B2460	-	NADH-quinone oxidoreductase, I subunit
2301	 54.70	0	2392601..2393578	-	325	197251825	nuoH	SeAg_B2461	-	NADH-quinone oxidoreductase, H subunit
2302	 58.89	+1	2393575..2396301	-	908	197247861	nuoG	SeAg_B2462	-	NADH-quinone oxidoreductase, G subunit
2303	 58.74	+1	2396332..2397669	-	445	197249657	nuoF	SeAg_B2463	-	NADH oxidoreductase (quinone), f subunit
2304	 56.49	0	2397666..2398166	-	166	197251007	nuoE	SeAg_B2464	-	NADH-quinone oxidoreductase, E subunit
2305	 56.91	0	2398169..2399971	-	600	197248024	nuoC	SeAg_B2465	-	NADH-quinone oxidoreductase, C/D subunit
2306	 54.15	0	2400058..2400720	-	220	197249243	-	SeAg_B2466	-	NADH-quinone oxidoreductase, B subunit
2307	 53.15	0	2400736..2401179	-	147	197250694	nuoA	SeAg_B2467	-	NADH-quinone oxidoreductase, A subunit
2308	 37.91	-2	2401574..2401726	-	50	197248185	-	SeAg_B2468	-	putative cytoplasmic protein
2309	 52.61	0	2401806..2402744	-	312	197247395	-	SeAg_B2469	-	HTH-type transcriptional regulator PecT
2310	 27.42	-2	2403409..2403594	-	61	197251703	-	SeAg_B2470	-	hypothetical protein
2311	 51.60	0	2403676..2404890	+	404	197250966	-	SeAg_B2471	-	aspartate aminotransferase
2312	 50.33	0	2404984..2405583	+	199	197250710	-	SeAg_B2472	-	5'-nucleotidase YfbR
2313	 55.50	0	2405675..2407501	-	608	197250227	-	SeAg_B2473	-	citrate transporter
2314	 57.88	0	2407578..2408237	-	219	197248629	-	SeAg_B2474	-	phosphatase YfbT
2315	 51.48	0	2408248..2408787	-	179	197251183	-	SeAg_B2475	-	YfbU domain protein
2316	 53.51	0	2408825..2409280	-	151	197248776	-	SeAg_B2476	-	putative inner membrane protein YfbV
2317	 42.22	-1	2409449..2409583	+	44	197249327	-	SeAg_B2477	-	hypothetical protein
2318	 52.37	0	2409620..2410822	+	400	197247514	ackA	SeAg_B2478	-	acetate kinase
2319	 57.86	0	2410899..2413043	+	714	197248002	-	SeAg_B2479	-	phosphate acetyltransferase
2320	 54.96	0	2413261..2414781	+	506	197250825	-	SeAg_B2480	-	C4-dicarboxylate anaerobic carrier protein
2321	 54.72	0	2414830..2415783	-	317	197251843	-	SeAg_B2481	-	transketolase domain protein
2322	 56.56	0	2415776..2416606	-	276	197251311	-	SeAg_B2482	-	transketolase domain protein
2323	 52.08	0	2416603..2417994	-	463	197251798	-	SeAg_B2483	-	ascorbate-specific PTS system enzyme IIC
2324	 47.62	0	2418015..2418287	-	90	197250059	-	SeAg_B2484	-	phosphotransferase system, lactose/cellobiose-specific IIB subunit
2325	 50.00	0	2418368..2418811	-	147	197251639	-	SeAg_B2485	-	PTS family enzyme IIA, mannitol-specific, cryptic
2326	 55.98	0	2419064..2420083	+	339	197249886	-	SeAg_B2486	-	regulatory protein, LacI
2327	 54.59	0	2420089..2420643	-	184	197249102	-	SeAg_B2487	-	nudix hydrolase 3
2328	 55.07	0	2420700..2421251	-	183	197249538	-	SeAg_B2488	-	phosphodiesterase YfcE
2329	 56.12	0	2421307..2421951	-	214	197249044	-	SeAg_B2489	-	glutathione S-transferase domain protein
2330	 53.24	0	2422094..2422741	+	215	197248225	-	SeAg_B2490	-	glutathione S-transferase, N- domain
2331	 57.49	0	2422867..2423760	+	297	197247743	-	SeAg_B2491	-	hypothetical protein
2332	 53.15	0	2423812..2424588	-	258	197251537	hisP	SeAg_B2492	-	histidine ABC transporter, ATP-binding protein
2333	 51.69	0	2424599..2425306	-	235	197251061	hisM	SeAg_B2493	-	histidine ABC transporter, permease protein HisM
2334	 54.59	0	2425303..2425989	-	228	197249262	hisQ	SeAg_B2494	-	histidine ABC transporter, permease protein HisQ
2335	 51.34	0	2426170..2426952	-	260	197249041	-	SeAg_B2495	-	putative lysine-arginine-ornithine-binding periplasmic protein
2336	 50.70	0	2427190..2427972	-	260	197248703	-	SeAg_B2496	-	lysine-arginine-ornithine-binding periplasmic protein
2337	 39.84	-1	2428050..2428172	+	40	197249008	-	SeAg_B2497	-	hypothetical protein
2338	 54.56	0	2428261..2428830	-	189	197250456	-	SeAg_B2498	-	phenylacrylic acid decarboxylase
2339	 53.30	0	2428857..2430263	-	468	197249900	-	SeAg_B2499	-	putative amino acid transporter
2340	 50.63	0	2430327..2431430	-	367	197251372	-	SeAg_B2500	-	amino acid racemase
2341	 50.28	0	2431432..2432853	-	473	197250902	-	SeAg_B2501	-	putative amino acid transporter
2342	 49.64	0	2432944..2434341	-	465	197247933	-	SeAg_B2502	-	diaminopimelate decarboxylase
2343	 52.31	0	2434552..2435979	+	475	197249567	-	SeAg_B2503	-	putative regulatory protein
2344	 53.62	0	2436015..2437532	-	505	197249284	purF	SeAg_B2504	-	amidophosphoribosyltransferase
2345	 51.12	0	2437570..2438058	-	162	197251329	cvpA	SeAg_B2505	-	CvpA protein
2346	 58.07	0	2438369..2439043	-	224	197251466	-	SeAg_B2506	-	DedD protein
2347	 58.47	+1	2439033..2440301	-	422	197249666	folC	SeAg_B2507	-	tetrahydrofolate synthase/dihydrofolate synthase
2348	 57.05	0	2440369..2441283	-	304	197250500	accD	SeAg_B2508	-	acetyl-CoA carboxylase, carboxyl transferase, beta subunit
2349	 50.91	0	2441433..2442092	-	219	197248570	-	SeAg_B2509	-	membrane protein, DedA family
2350	 55.84	0	2442141..2442953	-	270	197248953	truA	SeAg_B2510	-	tRNA pseudouridine synthase A
2351	 57.69	0	2442953..2443966	-	337	197247559	-	SeAg_B2511	-	aspartate-semialdehyde dehydrogenase family protein
2352	 56.73	0	2444034..2445170	-	378	197247804	pdxB	SeAg_B2512	-	erythronate-4-phosphate dehydrogenase
2353	 54.89	0	2445274..2446275	+	333	197250844	-	SeAg_B2513	-	protein div
2354	 60.64	+1	2446272..2447450	-	392	197248464	-	SeAg_B2514	-	protein YfcJ
2355	 50.40	0	2447630..2448004	-	124	197250184	-	SeAg_B2515	-	putative cytoplasmic protein
2356	 50.87	0	2448571..2449089	+	172	197251724	-	SeAg_B2516	-	putative periplasmic protein
2357	 40.52	-1	2449155..2449766	-	203	197251103	-	SeAg_B2517	-	caax amino protease family
2358	 56.95	0	2449909..2451123	-	404	197248177	-	SeAg_B2518	-	3-oxoacyl-[acyl-carrier-protein] synthase 1
2359	 57.87	0	2451283..2453283	+	666	197247546	-	SeAg_B2519	-	protein YfcK
2360	 53.62	0	2453335..2453610	-	91	197249210	-	SeAg_B2520	-	YfcL protein
2361	 53.55	0	2453643..2454191	-	182	197248578	-	SeAg_B2521	-	hypothetical protein
2362	 54.32	0	2454191..2455000	-	269	197249005	-	SeAg_B2522	-	hypothetical protein
2363	 58.42	+1	2455000..2455824	-	274	197250331	mepA	SeAg_B2523	-	penicillin-insensitive murein endopeptidase
2364	 58.29	+1	2455828..2456913	-	361	197250048	aroC	SeAg_B2524	-	chorismate synthase
2365	 53.99	0	2458047..2458598	+	183	197247834	-	SeAg_B2526	-	Smr domain protein
2366	 55.14	0	2458698..2459183	-	161	197248315	sixA	SeAg_B2527	-	phosphohistidine phosphatase SixA
2367	 54.10	0	2459392..2461539	-	715	197248926	fadJ	SeAg_B2528	-	fatty oxidation complex, alpha subunit FadJ
2368	 59.50	+1	2461539..2462849	-	436	197249400	fadI	SeAg_B2529	-	acetyl-CoA C-acyltransferase FadI
2369	 52.98	0	2463027..2463311	-	94	197250455	-	SeAg_B2530	-	hypothetical protein
2370	 53.06	0	2463682..2464989	+	435	197250951	-	SeAg_B2531	-	long-chain fatty acid transport protein
2371	 54.10	0	2465050..2465805	-	251	197248658	-	SeAg_B2532	-	lipoprotein, VacJ family
2372	 49.68	0	2466094..2467035	+	313	197248064	-	SeAg_B2533	-	inner membrane protein YfdC
2373	 46.54	0	2467342..2468280	-	312	197249873	-	SeAg_B2535	-	protease 7
2374	 51.68	0	2468548..2469795	-	415	197249341	-	SeAg_B2536	-	phosphoglycerate transport system transcriptional regulatory protein pgtA
2375	 54.06	0	2469785..2471791	-	668	197251285	-	SeAg_B2537	-	phosphoglycerate transport system sensor protein PgtB
2376	 52.78	0	2471788..2473098	-	436	197247974	-	SeAg_B2539	-	phosphoglycerate transport: protein for signal transmission
2377	 49.71	0	2473417..2474808	+	463	197250699	-	SeAg_B2540	-	phosphoglycerate transport: transporter
2378	 43.21	-1	2475047..2475289	-	80	197248188	-	SeAg_B2541	-	hypothetical protein
2379	 32.46	-2	2475450..2475563	-	37	197247383	-	SeAg_B2542	-	hypothetical protein
2380	 42.28	-1	2476846..2476968	+	40	197250960	-	SeAg_B2544	-	hypothetical protein
2381	 53.91	0	2477255..2478493	-	412	197250713	-	SeAg_B2545	-	aminotransferase, classes I and II superfamily
2382	 52.90	0	2479216..2480181	-	321	197250855	glk	SeAg_B2546	-	glucokinase
2383	 59.30	+1	2480385..2481620	+	411	197249443	-	SeAg_B2547	-	Cl- channel, voltage-gated family protein
2384	 59.53	+1	2481640..2483292	-	550	197247765	-	SeAg_B2548	-	indole-3-pyruvate decarboxylase
2385	 53.85	0	2483472..2484470	+	332	197251906	-	SeAg_B2549	-	oxidoreductase, aldo/keto reductase family
2386	 55.05	0	2484584..2484910	+	108	197249730	-	SeAg_B2550	-	hypothetical protein
51.63	MEAN

6.48	STD DEV
