IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

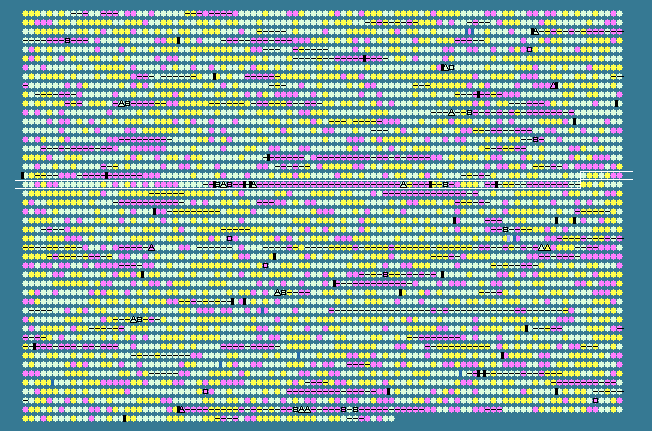

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1894	 54.16	0	1957589..1959163	-	524	197249902	mviN	SeAg_B2018	-	integral membrane protein MviN
1895	 58.12	+1	1959428..1960351	-	307	197251370	-	SeAg_B2019	-	Virulence factor MviM homolog
1896	 55.71	0	1960353..1961000	-	215	197250891	-	SeAg_B2020	-	protein YceH
1897	 51.11	0	1961036..1961620	-	194	197251240	-	SeAg_B2021	-	ribosomal-protein-alanine acetyltransferase
1898	 56.41	0	1961857..1963065	+	402	197251455	-	SeAg_B2022	-	multidrug resistance protein MdtH
1899	 45.99	0	1963129..1963776	+	215	197248353	grxB	SeAg_B2023	-	glutaredoxin, GrxB family
1900	 45.45	0	1963901..1964461	+	186	197247854	-	SeAg_B2024	-	putative lipoprotein
1901	 54.54	0	1964565..1965611	+	348	197251149	pyrC	SeAg_B2025	-	dihydroorotase, homodimeric type
1902	 51.22	0	1965685..1965930	+	81	197251709	-	SeAg_B2026	-	DNA damage-inducible protein I, inhibits UmuD processing
1903	 47.06	0	1966220..1966474	+	84	197251579	-	SeAg_B2027	-	hypothetical protein
1904	 55.67	0	1966587..1967705	+	372	197247515	-	SeAg_B2028	-	N-methyl-l-tryptophan oxidase
1905	 38.60	-2	1967746..1967859	+	37	197248004	-	SeAg_B2029	-	hypothetical protein
1906	 33.33	-2	1967908..1968066	-	52	197248532	-	SeAg_B2030	-	hypothetical protein
1907	 52.68	0	1968116..1968694	+	192	197249487	-	SeAg_B2031	-	YceJ
1908	 50.52	0	1968691..1969266	+	191	197250589	-	SeAg_B2032	-	protein YceI
1909	 50.81	0	1969318..1970370	-	350	197248865	-	SeAg_B2033	-	protein YceA
1910	 53.96	0	1970590..1971510	+	306	197249376	-	SeAg_B2034	-	lipid A biosynthesis lauroyl acyltransferase
1911	 54.81	0	1971665..1972879	+	404	197247433	-	SeAg_B2035	-	multidrug resistance protein MdtG
1912	 51.73	0	1972961..1973335	+	124	197247975	-	SeAg_B2036	-	acidic protein MsyB
1913	 52.45	0	1973336..1973539	-	67	197248706	-	SeAg_B2037	-	hypothetical protein
1914	 56.60	0	1973629..1976172	-	847	197249132	-	SeAg_B2038	-	glucans biosynthesis glucosyltransferase H
1915	 50.71	0	1976165..1977718	-	517	197247439	mdoG	SeAg_B2039	-	glucans biosynthesis protein G
1916	 46.49	0	1977972..1979126	+	384	197247793	-	SeAg_B2040	-	glucans biosynthesis protein C
1917	 52.95	0	1979143..1980447	-	434	197250736	-	SeAg_B2041	-	phopholipase D
1918	 55.37	0	1980566..1981105	-	179	197250409	-	SeAg_B2042	-	protein YmdB
1919	 47.66	0	1981191..1981511	-	106	197250912	-	SeAg_B2043	-	hypothetical protein
1920	 49.31	0	1981521..1981664	-	47	197251420	-	SeAg_B2044	-	hypothetical protein
1921	 44.95	-1	1981643..1981969	-	108	197247903	-	SeAg_B2045	-	curli production protein CsgC
1922	 51.54	0	1982031..1982486	-	151	197248411	-	SeAg_B2046	-	major curlin subunit
1923	 43.42	-1	1982528..1982983	-	151	197248940	csgB	SeAg_B2047	-	minor curlin protein CsgB
1924	 40.55	-1	1983738..1984388	+	216	197249466	csgD	SeAg_B2048	-	transcriptional regulator CsgD
1925	 44.44	-1	1984393..1984788	+	131	197249914	-	SeAg_B2049	-	curli production assembly/transport component CsgE
1926	 44.36	-1	1984815..1985231	+	138	197250434	-	SeAg_B2050	-	curli production assembly/transport component CsgF
1927	 48.56	0	1985258..1986091	+	277	197250887	-	SeAg_B2051	-	curli production assembly/transport component CsgG
1928	 52.93	0	1986130..1986624	-	164	197248566	-	SeAg_B2052	-	inner membrane protein YcdZ
1929	 53.15	0	1986713..1987267	-	184	197249263	-	SeAg_B2053	-	chaperone, TorD family
1930	 52.03	0	1987291..1988028	-	245	197250044	-	SeAg_B2054	-	putative hydrolase
1931	 54.95	0	1988113..1989051	-	312	197250541	-	SeAg_B2056	-	putative 2-hydroxyacid dehydrogenase YcdW
1932	 43.64	-1	1989050..1989214	+	54	197249988	-	SeAg_B2055	-	hypothetical protein
1933	 50.25	0	1989475..1989876	+	133	197250544	-	SeAg_B2058	-	ISPsy11, transposase OrfA
1934	 49.67	0	1990125..1990730	+	201	197247968	-	SeAg_B2059	-	integrase, catalytic region
1935	 47.33	0	1991543..1991692	+	49	197251785	-	SeAg_B2060	-	transposase
1936	 38.95	-1	1993362..1994180	-	272	197247469	-	SeAg_B2063	-	hypothetical protein
1937	 42.50	-1	1994625..1994744	+	39	197248399	-	SeAg_B2064	-	hypothetical protein
1938	 51.25	0	1995376..1996173	+	265	197248662	-	SeAg_B2066	-	hypothetical protein
1939	 48.16	0	1996529..1997803	+	424	197249356	-	SeAg_B2068	-	integrase
1940	 35.00	-2	1998652..1999788	+	378	197248779	-	SeAg_B2069	-	hypothetical protein
1941	 31.11	-2	1999792..2000781	+	329	197249298	-	SeAg_B2070	-	RelA / SpoT domain protein
1942	 44.05	-1	2001320..2002756	-	478	197249826	-	SeAg_B2071	-	prepilin-type N- cleavage/methylation domain protein
1943	 43.37	-1	2002809..2003366	-	185	197250465	-	SeAg_B2072	-	putative type IV pilin protein
1944	 34.31	-2	2003773..2004078	-	101	197248036	-	SeAg_B2073	-	hypothetical protein
1945	 44.42	-1	2004722..2006227	+	501	197250983	-	SeAg_B2074	-	MobA/MobL family
1946	 31.62	-2	2006281..2007564	-	427	197250133	-	SeAg_B2075	-	hypothetical protein
1947	 45.65	0	2007701..2007976	-	91	197249794	-	SeAg_B2076	-	hypothetical protein
1948	 47.08	0	2007987..2008517	-	176	197248880	-	SeAg_B2077	-	hypothetical protein
1949	 34.03	-2	2008572..2008715	-	47	197250659	-	SeAg_B2078	-	hypothetical protein
1950	 34.39	-2	2008949..2009422	+	157	197249282	-	SeAg_B2079	-	hypothetical protein
1951	 44.44	-1	2009461..2009838	+	125	197248759	-	SeAg_B2080	-	hypothetical protein
1952	 32.34	-2	2010043..2010543	+	166	197247947	-	SeAg_B2081	-	hypothetical protein
1953	 27.78	-2	2010547..2010672	-	41	197247380	-	SeAg_B2082	-	hypothetical protein
1954	 28.89	-2	2010902..2011216	+	104	197249685	-	SeAg_B2083	-	pentatricopeptide
1955	 31.37	-2	2012028..2012180	-	50	197249013	-	SeAg_B2085	-	hypothetical protein
1956	 37.30	-2	2012792..2012917	+	41	197248477	-	SeAg_B2086	-	hypothetical protein
1957	 35.24	-2	2013290..2014024	+	244	197251406	-	SeAg_B2087	-	putative DNA-binding protein
1958	 35.58	-2	2014052..2014852	+	266	197250945	-	SeAg_B2088	-	hypothetical protein
1959	 35.40	-2	2014931..2015413	+	160	197250900	-	SeAg_B2089	-	hypothetical protein
1960	 33.33	-2	2015811..2016101	-	96	197249882	-	SeAg_B2091	-	hypothetical protein
1961	 41.10	-1	2016183..2016401	-	72	197249457	-	SeAg_B2092	-	hypothetical protein
1962	 43.03	-1	2016552..2017397	-	281	197248815	-	SeAg_B2094	-	hypothetical protein
1963	 39.33	-1	2017381..2017530	+	49	197248153	-	SeAg_B2093	-	hypothetical protein
1964	 52.75	0	2017970..2018278	+	102	197251178	-	SeAg_B2095	-	integrase
1965	 55.33	0	2018442..2019314	+	290	197250593	-	SeAg_B2096	-	DNA-binding prophage protein
1966	 39.37	-1	2019524..2020318	+	264	197249104	-	SeAg_B2097	-	hypothetical protein
1967	 41.23	-1	2020531..2022492	-	653	197248589	-	SeAg_B2098	-	tetratricopeptide repeat (TPR)-containing protein
1968	 47.58	0	2022619..2026479	-	1286	197247749	-	SeAg_B2099	-	hypothetical protein
1969	 57.71	0	2027901..2028425	+	174	197251287	-	SeAg_B2102	-	putative endoprotease
1970	 57.38	0	2028422..2028604	+	60	197250547	-	SeAg_B2103	-	hypothetical protein
1971	 48.72	0	2029918..2030073	+	51	197251666	-	SeAg_B2106	-	transposase
1972	 43.06	-1	2030281..2032449	+	722	197251613	-	SeAg_B2107	-	tetratricopeptide repeat protein
1973	 46.45	0	2032506..2034236	+	576	197251043	-	SeAg_B2108	-	putative periplasmic protein
1974	 60.74	+1	2034267..2034401	+	44	197250066	-	SeAg_B2109	-	hypothetical protein
1975	 61.49	+1	2034446..2034619	+	57	197249189	-	SeAg_B2110	-	hypothetical protein
1976	 56.30	0	2034898..2035032	+	44	197248375	-	SeAg_B2111	-	hypothetical protein
1977	 54.16	0	2035146..2036600	-	484	197248181	amn	SeAg_B2112	-	AMP nucleosidase
1978	 39.02	-1	2036685..2036807	+	40	197251749	-	SeAg_B2113	-	hypothetical protein
1979	 41.90	-1	2036796..2037122	-	108	197247404	-	SeAg_B2114	-	putative cytoplasmic protein
1980	 49.83	0	2040075..2040377	+	100	197251429	-	SeAg_B2118	-	IntB
1981	 57.98	0	2041456..2043216	-	586	197249294	-	SeAg_B2121	-	arsenical pump-driving ATPase
1982	 55.92	0	2043260..2043622	-	120	197248769	-	SeAg_B2122	-	arsenical resistance operon trans-acting repressor ArsD
1983	 54.93	0	2043656..2044132	-	158	197251152	-	SeAg_B2123	-	arsenate reductase
1984	 51.47	0	2044129..2044503	-	124	197251498	-	SeAg_B2124	-	arsenic resistance transcriptional regulator
1985	 40.91	-1	2046291..2046422	-	43	197250588	-	SeAg_B2129	-	hypothetical protein
1986	 43.80	-1	2046873..2047751	+	292	197250054	-	SeAg_B2130	-	transcriptional regulator, LysR family
1987	 43.88	-1	2047901..2048896	-	331	197248746	gap	SeAg_B2131	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1988	 45.59	0	2048984..2049946	-	320	197250386	-	SeAg_B2132	-	transporter, EamA family
1989	 40.61	-1	2050068..2051564	-	498	197247989	-	SeAg_B2133	-	putative AMP-binding enzyme
1990	 37.82	-2	2051599..2052981	-	460	197247518	-	SeAg_B2134	-	lysine decarboxylase
1991	 44.65	-1	2053149..2053307	+	52	197251847	-	SeAg_B2135	-	hypothetical protein
1992	 51.79	0	2053407..2053574	-	55	197250794	-	SeAg_B2136	-	hypothetical protein
1993	 52.04	0	2054137..2055066	-	309	197248966	-	SeAg_B2137	-	protein ErfK/srfK
51.63	MEAN

6.48	STD DEV
