IslandPath Analysis: Salmonella enterica subsp. enterica serovar Agona str. SL483

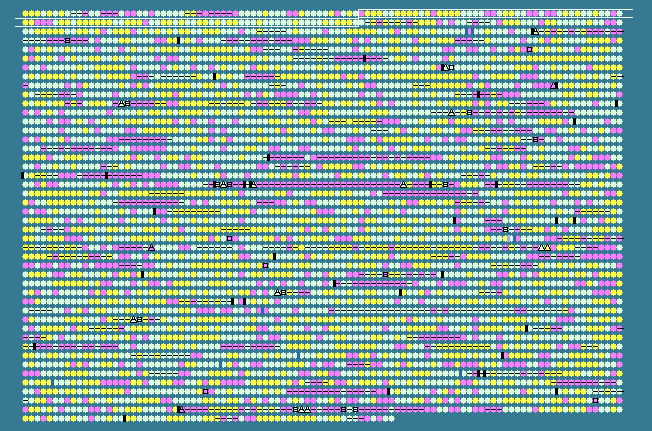

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.63 STD DEV: 6.48
Salmonella enterica subsp. enterica serovar Agona str. SL483, complete genome - 1..4798660
4562 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
57	 47.44	0	61791..63449	-	552	197249131	-	SeAg_B0060	-	sensor kinase DpiB
58	 63.59	+1	63545..64846	-	433	197250360	-	SeAg_B0061	-	oxaloacetate decarboxylase beta chain
59	 64.29	+1	64862..66628	-	588	197250006	oadA	SeAg_B0062	-	oxaloacetate decarboxylase alpha subunit
60	 57.50	0	66644..66883	-	79	197249120	-	SeAg_B0063	-	hypothetical protein
61	 49.52	0	67042..68382	-	446	197248761	-	SeAg_B0064	-	citrate-sodium symporter
62	 53.68	0	68639..69670	+	343	197247805	citC	SeAg_B0065	-	[citrate (pro-3S)-lyase] ligase
63	 56.46	0	69700..69993	+	97	197247457	citD	SeAg_B0066	-	citrate lyase acyl carrier protein
64	 55.29	0	69990..70859	+	289	197251141	citE	SeAg_B0067	-	citrate (pro-3S)-lyase, beta subunit
65	 55.16	0	70870..72390	+	506	197249273	citF	SeAg_B0068	-	citrate lyase, alpha subunit
66	 56.16	0	72390..72941	+	183	197247435	citX	SeAg_B0069	-	holo-ACP synthase CitX
67	 54.79	0	72919..73827	+	302	197247849	citG	SeAg_B0070	-	triphosphoribosyl-dephospho-CoA synthase CitG
68	 56.69	0	74007..74828	+	273	197251291	dapB	SeAg_B0071	-	dihydrodipicolinate reductase
69	 30.73	-2	75287..75478	-	63	197251772	-	SeAg_B0072	-	hypothetical protein
70	 55.35	0	75692..76840	+	382	197249998	carA	SeAg_B0073	-	carbamoyl-phosphate synthase, small subunit
71	 59.36	+1	76859..80086	+	1075	197250511	carB	SeAg_B0074	-	carbamoyl-phosphate synthase, large subunit
72	 55.95	0	80832..81428	-	198	197248515	-	SeAg_B0076	-	carnitine operon protein CaiE
73	 56.23	0	81538..82323	-	261	197251288	-	SeAg_B0077	-	carnitinyl-CoA dehydratase
74	 50.77	0	82377..83930	-	517	197247510	-	SeAg_B0078	-	probable crotonobetaine/carnitine-CoA ligase
75	 53.56	0	83993..85213	-	406	197250411	-	SeAg_B0079	-	crotonobetainyl-CoA:carnitine CoA-transferase
76	 52.84	0	85322..86464	-	380	197251657	caiA	SeAg_B0080	-	crotonobetainyl-CoA dehydrogenase
77	 53.82	0	86499..88016	-	505	197249408	caiT	SeAg_B0081	-	L-carnitine/gamma-butyrobetaine antiporter
78	 26.50	-2	88158..88274	+	38	197250163	-	SeAg_B0082	-	hypothetical protein
79	 28.49	-2	88244..88429	+	61	197248396	-	SeAg_B0083	-	hypothetical protein
80	 51.88	0	88497..89267	+	256	197248654	fixA	SeAg_B0084	-	protein FixA
81	 59.34	+1	89283..90224	+	313	197250896	fixB	SeAg_B0085	-	electron transfer flavoprotein, alpha subunit
82	 55.32	0	90274..91560	+	428	197251386	fixC	SeAg_B0086	-	protein FixC
83	 54.51	0	91557..91844	+	95	197250583	-	SeAg_B0087	-	ferredoxin-like protein ydiT
84	 54.58	0	91925..93331	+	468	197249355	-	SeAg_B0088	-	putative metabolite transport protein YaaU
85	 48.05	0	93420..93650	+	76	197247422	-	SeAg_B0089	-	hypothetical protein
86	 46.81	0	93936..94358	+	140	197248035	-	SeAg_B0090	-	probable secreted protein
87	 52.14	0	94362..94478	-	38	197248535	-	SeAg_B0091	-	hypothetical protein
88	 46.74	0	94582..94872	-	96	197249316	-	SeAg_B0092	-	probable secreted protein
89	 46.88	0	95769..97658	+	629	197247800	-	SeAg_B0093	-	sulfatase
90	 53.30	0	98212..98742	+	176	197247954	kefF	SeAg_B0094	-	glutathione-regulated potassium-efflux system ancillary protein kefF
91	 57.86	0	98735..100597	+	620	197251104	-	SeAg_B0095	-	glutathione-regulated potassium-efflux system protein KefC
92	 53.54	0	100796..101275	+	159	197251822	folA	SeAg_B0096	-	dihydrofolate reductase
93	 55.95	0	101381..102229	-	282	197251522	-	SeAg_B0097	-	bis(5'-nucleosyl)-tetraphosphatase (symmetrical)
94	 54.50	0	102240..102617	-	125	197250718	apaG	SeAg_B0098	-	protein ApaG
95	 52.55	0	102620..103441	-	273	197249198	ksgA	SeAg_B0099	-	dimethyladenosine transferase
96	 58.79	+1	103438..104427	-	329	197247407	pdxA	SeAg_B0100	-	4-hydroxythreonine-4-phosphate dehydrogenase
97	 54.47	0	104427..105713	-	428	197248833	surA	SeAg_B0101	-	chaperone/peptidyl-prolyl cis-trans isomerase SurA
98	 52.60	0	105767..108127	-	786	197250730	imp	SeAg_B0102	-	LPS-assembly protein
99	 47.53	0	108137..108298	-	53	197250494	-	SeAg_B0103	-	hypothetical protein
100	 54.00	0	108381..109193	+	270	197249861	-	SeAg_B0104	-	DnaJ domain protein
101	 57.12	0	109288..109947	-	219	197250796	-	SeAg_B0105	-	pseudouridine synthase, RluA family
102	 57.10	0	109959..112865	-	968	197248148	rapA	SeAg_B0106	-	RNA polymerase associated protein RapA
103	 47.62	0	115435..115665	-	76	197247795	-	SeAg_B0108	-	putative secreted protein
104	 46.99	0	117469..117966	-	165	197248860	-	SeAg_B0110	-	hypothetical protein
105	 42.62	-1	118391..118810	+	139	197250479	-	SeAg_B0111	-	putative cytoplasmic protein
106	 54.89	0	118816..119511	-	231	197249821	araD	SeAg_B0112	-	L-ribulose-5-phosphate 4-epimerase
107	 55.42	0	119652..121154	-	500	197251437	araA	SeAg_B0113	-	L-arabinose isomerase
108	 60.70	+1	121165..122874	-	569	197248443	araB	SeAg_B0114	-	L-ribulokinase
109	 53.78	0	123215..124060	+	281	197247811	-	SeAg_B0115	-	arabinose operon regulatory protein
110	 56.64	0	124179..124946	+	255	197249423	-	SeAg_B0116	-	inner membrane protein YabI
111	 57.49	0	124985..125692	-	235	197248796	thiQ	SeAg_B0117	-	thiamine ABC transporter, ATP-binding protein
112	 59.78	+1	125676..127286	-	536	197248623	thiP	SeAg_B0118	-	thiamine/thiamine pyrophosphate ABC transporter, permease protein
113	 55.28	0	127262..128245	-	327	197250327	thiB	SeAg_B0119	-	thiamin/thiamin pyrophosphate ABC transporter, periplasmic thiamin/thiamin pyrophospate-binding protein
114	 56.67	0	128290..128409	-	39	197249885	-	SeAg_B0121	-	putative lipoprotein
115	 56.90	0	128423..130081	-	552	197251499	sgrR	SeAg_B0122	-	sugar transport-related sRNA regulator SgrR
116	 52.63	0	130498..130611	+	37	197251096	-	SeAg_B0125	-	hypothetical protein
117	 52.81	0	130632..131237	-	201	197248436	leuD	SeAg_B0126	-	3-isopropylmalate dehydratase, small subunit
118	 58.96	+1	131248..132648	-	466	197247828	leuC	SeAg_B0127	-	3-isopropylmalate dehydratase, large subunit
119	 55.95	0	132651..133742	-	363	197249188	leuB	SeAg_B0128	-	3-isopropylmalate dehydrogenase
120	 55.41	0	133742..135313	-	523	197248574	leuA	SeAg_B0129	-	2-isopropylmalate synthase
121	 46.88	0	136063..137088	+	341	197251410	-	SeAg_B0131	-	probable HTH-type transcriptional regulator LeuO
122	 54.47	0	137380..139134	+	584	197248826	ilvB	SeAg_B0132	-	acetolactate synthase, large subunit, biosynthetic type
123	 53.94	0	139134..139628	+	164	197248052	ilvH	SeAg_B0133	-	acetolactate synthase, small subunit, isozyme III
124	 57.72	0	139618..139740	-	40	197248162	-	SeAg_B0134	-	hypothetical protein
125	 56.62	0	139912..140916	+	334	197247480	fruR	SeAg_B0135	-	fructose repressor
126	 51.85	0	141522..141980	+	152	197249345	mraZ	SeAg_B0136	-	mraZ protein
127	 56.48	0	141982..142923	+	313	197248687	mraW	SeAg_B0137	-	S-adenosyl-methyltransferase MraW
128	 52.19	0	142920..143285	+	121	197250573	ftsL	SeAg_B0138	-	cell division protein FtsL
129	 54.90	0	143301..145067	+	588	197249986	ftsI	SeAg_B0139	-	peptidoglycan synthetase FtsI
130	 59.07	+1	145054..146541	+	495	197251914	murE	SeAg_B0140	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
131	 56.59	0	146538..147896	+	452	197251461	murF	SeAg_B0141	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
132	 54.02	0	147890..148972	+	360	197248344	mraY	SeAg_B0142	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
133	 58.62	+1	148975..150291	+	438	197248149	murD	SeAg_B0143	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
134	 54.70	0	150291..151535	+	414	197248187	ftsW	SeAg_B0144	-	cell division protein FtsW
135	 61.14	+1	151532..152599	+	355	197250832	murG	SeAg_B0145	-	undecaprenyldiphospho-muramoylpentapeptide beta-N-acetylglucosaminyltransferase
136	 56.57	0	152718..154193	+	491	197247646	murC	SeAg_B0146	-	UDP-N-acetylmuramate--alanine ligase
137	 54.40	0	154186..155106	+	306	197247549	ddlB	SeAg_B0147	-	D-alanine--D-alanine ligase B
138	 52.35	0	155108..155938	+	276	197249004	ftsQ	SeAg_B0148	-	cell division protein FtsQ
139	 53.44	0	155935..157197	+	420	197249642	ftsA	SeAg_B0149	-	cell division protein FtsA
140	 57.03	0	157258..158409	+	383	197249720	ftsZ	SeAg_B0150	-	cell division protein FtsZ
141	 50.76	0	158510..159427	+	305	197249844	lpxC	SeAg_B0151	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
142	 53.92	0	160265..162970	+	901	197248857	secA	SeAg_B0153	-	preprotein translocase, SecA subunit
143	 51.52	0	163122..163517	+	131	197250671	-	SeAg_B0154	-	mutator MutT protein
144	 54.14	0	163551..164540	-	329	197247778	-	SeAg_B0155	-	aldo-keto reductase yakc (NADP+)
145	 51.73	0	164644..165567	+	307	197247928	-	SeAg_B0156	-	transcriptional regulator, LysR family
146	 55.21	0	165564..165755	-	63	197248595	-	SeAg_B0157	-	zinc-binding protein YacG
147	 52.69	0	165765..166508	-	247	197247589	-	SeAg_B0158	-	hypothetical protein
148	 55.07	0	166508..167128	-	206	197251746	coaE	SeAg_B0160	-	dephospho-CoA kinase
149	 53.26	0	167354..168397	+	347	197250913	guaC	SeAg_B0161	-	guanosine monophosphate reductase
150	 54.36	0	168428..169630	-	400	197250502	-	SeAg_B0162	-	protein transport protein HofC
151	 55.19	0	169620..171005	-	461	197250845	-	SeAg_B0163	-	protein transport protein HofB
152	 53.88	0	171015..171452	-	145	197251731	-	SeAg_B0164	-	prepilin peptidase dependent protein D
153	 56.62	0	171674..172609	-	311	197247687	nadC	SeAg_B0165	-	nicotinate-nucleotide diphosphorylase
154	 55.14	0	172655..173218	+	187	197248432	-	SeAg_B0166	-	N-acetyl-anhydromuramyl-L-alanine amidase
155	 55.91	0	173215..174069	+	284	197248970	-	SeAg_B0167	-	AmpE protein
156	 53.84	0	174161..175111	-	316	197249747	-	SeAg_B0168	-	alpha-N-arabinofuranosidase 2
51.63	MEAN

6.48	STD DEV
