IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

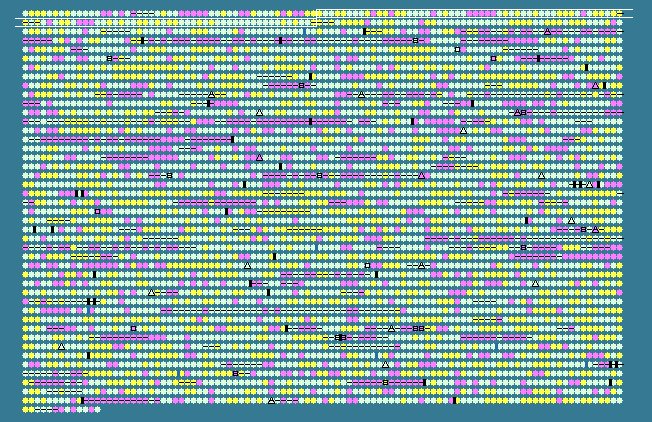

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
50	 56.79	0	60907..61149	-	80	62178620	oag3	SC0050	-	oxaloacetate decarboxylase subunit gamma
51	 49.22	0	61308..62648	-	446	62178621	citN	SC0051	-	putative citrate-sodium symport
52	 53.35	0	62893..63936	+	347	62178622	citC2	SC0052	-	putative citrate lyase synthetase (citrate (pro-3S)-lyase ligase
53	 56.80	0	63966..64259	+	97	62178623	citD2	SC0053	-	citrate lyase subunit gamma
54	 55.52	0	64256..65125	+	289	62178624	citE2	SC0054	-	putative citrate lyase beta chain (acyl lyase subunit)
55	 55.36	0	65136..66656	+	506	62178625	citF2	SC0055	-	putative citrate lyase alpha chain/citrate-ACP transferase
56	 55.49	0	66707..67207	+	166	62178626	citX2	SC0056	-	putative cytoplasmic protein
57	 54.57	0	67185..68093	+	302	62178627	citG2	SC0057	-	putative modifier of citrate lyase protein
58	 56.57	0	68273..69094	+	273	62178628	dapB	SC0058	-	dihydrodipicolinate reductase
59	 35.90	-2	69746..69901	-	51	62178629	-	SC0059	-	hypothetical protein
60	 56.40	0	69959..71107	+	382	62178630	carA	SC0060	-	carbamoyl phosphate synthase small subunit
61	 58.95	+1	71126..74353	+	1075	62178631	carB	SC0061	-	carbamoyl phosphate synthase large subunit
62	 46.46	0	74627..75022	+	131	62178632	caiF	SC0062	-	DNA-binding transcriptional activator CaiF
63	 55.78	0	75100..75696	-	198	62178633	caiE	SC0063	-	carnitine operon protein CaiE
64	 56.11	0	75806..76591	-	261	62178634	caiD	SC0064	-	carnitinyl-CoA dehydratase
65	 51.09	0	76645..78198	-	517	62178635	caiC	SC0065	-	putative crotonobetaine/carnitine-CoA ligase
66	 53.28	0	78261..79478	-	405	62178636	caiB	SC0066	-	crotonobetainyl-CoA:carnitine CoA-transferase
67	 52.58	0	79590..80732	-	380	62178637	caiA	SC0067	-	crotonobetainyl-CoA dehydrogenase
68	 53.75	0	80767..82284	-	505	62178638	caiT	SC0068	-	L-carnitine/gamma-butyrobetaine antiporter
69	 28.49	-2	82512..82697	+	61	62178639	-	SC0069	-	hypothetical protein
70	 52.27	0	82765..83535	+	256	62178640	fixA	SC0070	-	putative electron transfer flavoprotein FixA
71	 59.24	+1	83551..84492	+	313	62178641	fixB	SC0071	-	putative electron transfer flavoprotein FixB
72	 55.48	0	84542..85828	+	428	62178642	fixC	SC0072	-	putative oxidoreductase FixC
73	 55.21	0	85825..86112	+	95	62178643	fixX	SC0073	-	putative ferredoxin, carnitine metabolism
74	 53.99	0	86259..87599	+	446	62178644	yaaU	SC0074	-	MFS family transporter
75	 48.48	0	87688..87918	+	76	62178645	ygdI	SC0075	-	putative outer membrane lipoprotein
76	 46.76	0	88203..88619	+	138	62178646	-	SC0076	-	putative secreted protein
77	 46.39	0	88842..89132	-	96	62178647	-	SC0077	-	putative secreted protein
78	 38.46	-2	89342..89536	+	64	62178648	cysB	SC0078	-	putative inner membrane protein
79	 46.72	0	90030..91919	+	629	62178649	-	SC0079	-	putative sulfatase
80	 52.73	0	92473..93003	+	176	62178650	yabF	SC0080	-	glutathione-regulated potassium-efflux system ancillary protein KefF
81	 57.97	+1	92996..94858	+	620	62178651	kefC	SC0081	-	glutathione-regulated potassium-efflux system protein KefC
82	 53.75	0	95057..95536	+	159	62178652	folA	SC0082	-	dihydrofolate reductase
83	 55.59	0	95642..96490	-	282	62178653	apaH	SC0083	-	diadenosine tetraphosphatase
84	 54.50	0	96501..96878	-	125	62178654	apaG	SC0084	-	ApaG
85	 52.43	0	96881..97702	-	273	62178655	ksgA	SC0085	-	dimethyladenosine transferase
86	 58.48	+1	97699..98688	-	329	62178656	pdxA	SC0086	-	4-hydroxythreonine-4-phosphate dehydrogenase
87	 54.39	0	98688..99974	-	428	62178657	surA	SC0087	-	peptidyl-prolyl cis-trans isomerase SurA
88	 52.69	0	100028..102388	-	786	62178658	imp	SC0088	-	organic solvent tolerance protein
89	 53.75	0	102642..103454	+	270	62178659	djlA	SC0089	-	DNA-J like membrane chaperone protein
90	 57.42	0	103549..104208	-	219	62178660	rluA	SC0090	-	23S rRNA/tRNA pseudouridine synthase A
91	 57.07	0	104220..107126	-	968	62178661	hepA	SC0091	-	ATP-dependent helicase HepA
92	 56.80	0	107300..109651	-	783	62178662	polB	SC0092	-	DNA polymerase II
93	 49.44	0	109695..110315	-	206	62178663	-	SC0093	-	putative secreted protein
94	 42.86	-1	110833..111252	+	139	62178664	-	SC0094	-	hypothetical protein
95	 55.32	0	111258..111953	-	231	62178665	araD	SC0095	-	L-ribulose-5-phosphate 4-epimerase
96	 55.69	0	112094..113596	-	500	62178666	araA	SC0096	-	L-arabinose isomerase
97	 57.33	0	113546..113845	+	99	62178667	-	SC0097	-	hypothetical protein
98	 53.78	0	115653..116498	+	281	62178668	araC	SC0098	-	DNA-binding transcriptional regulator AraC
99	 57.16	0	116617..117384	+	255	62178669	yabI	SC0099	-	DedA family, membrane protein
100	 57.49	0	117423..118130	-	235	62178670	thiQ	SC0100	-	thiamine transporter ATP-binding subunit
101	 59.71	+1	118114..119724	-	536	62178671	thiP	SC0101	-	thiamine transporter membrane protein
102	 55.08	0	119700..120683	-	327	62178672	tbpA	SC0102	-	thiamine transporter substrate binding subunit
103	 56.84	0	120861..122519	-	552	62178673	yabN	SC0103	-	transcriptional regulator SgrR
104	 55.10	0	122588..122734	+	48	62178674	leuD	SC0104	-	hypothetical protein
105	 43.97	-1	123054..123335	+	93	62178675	-	SC0105	-	hypothetical protein
106	 53.96	0	123389..123994	-	201	62178676	leuD	SC0106	-	isopropylmalate isomerase small subunit
107	 58.82	+1	124005..125405	-	466	62178677	leuC	SC0107	-	isopropylmalate isomerase large subunit
108	 55.77	0	125408..126499	-	363	62178678	leuB	SC0108	-	3-isopropylmalate dehydrogenase
109	 54.96	0	126499..128070	-	523	62178679	leuA	SC0109	-	2-isopropylmalate synthase
110	 47.13	0	128158..128244	-	28	62178680	leuL	SC0110	-	leu operon leader peptide
111	 19.19	-2	128499..128597	+	32	62178681	-	SC0111	-	hypothetical protein
112	 36.81	-2	128687..128830	+	47	62178682	-	SC0112	-	hypothetical protein
113	 54.61	0	130167..131891	+	574	162139624	ilvI	SC0113	-	acetolactate synthase 3 catalytic subunit
114	 53.33	0	131891..132385	+	164	62178684	ilvH	SC0114	-	acetolactate synthase 3 regulatory subunit
115	 56.52	0	132669..133673	+	334	62178685	fruR	SC0115	-	DNA-binding transcriptional regulator FruR
116	 51.85	0	134279..134737	+	152	62178686	yabB	SC0116	-	cell division protein MraZ
117	 56.34	0	134742..135680	+	312	62178687	mraW	SC0117	-	S-adenosyl-methyltransferase MraW
118	 51.91	0	135677..136042	+	121	62178688	ftsL	SC0118	-	cell division protein FtsL
119	 54.84	0	136058..137824	+	588	62178689	ftsI	SC0119	-	division specific transpeptidase, penicillin-binding protein 3 re
120	 58.67	+1	137811..139298	+	495	62178690	murE	SC0120	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
121	 56.44	0	139295..140653	+	452	62178691	murF	SC0121	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
122	 54.11	0	140647..141729	+	360	62178692	mraY	SC0122	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
123	 58.24	+1	141732..143048	+	438	62178693	murD	SC0123	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
124	 54.78	0	143048..144292	+	414	62178694	ftsW	SC0124	-	cell division protein FtsW
125	 61.42	+1	144289..145356	+	355	62178695	murG	SC0125	-	N-acetylglucosaminyl transferase
126	 56.10	0	145475..146950	+	491	62178696	murC	SC0126	-	UDP-N-acetylmuramate--L-alanine ligase
127	 54.18	0	146943..147863	+	306	62178697	ddl	SC0127	-	D-alanine--D-alanine ligase
128	 52.47	0	147865..148695	+	276	62178698	ftsQ	SC0128	-	cell division protein FtsQ
129	 53.37	0	148692..149954	+	420	62178699	ftsA	SC0129	-	cell division protein FtsA
130	 56.94	0	150015..151166	+	383	62178700	ftsZ	SC0130	-	cell division protein FtsZ
131	 50.98	0	151267..152184	+	305	62178701	lpxC	SC0131	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
132	 57.63	0	152463..152960	+	165	62178702	yacA	SC0132	-	SecA regulator SecM
133	 53.88	0	153022..155727	+	901	62178703	secA	SC0133	-	preprotein translocase subunit SecA
134	 52.53	0	155879..156274	+	131	62178704	mutT	SC0134	-	nucleoside triphosphate pyrophosphohydrolase
135	 53.64	0	156308..157297	-	329	62178705	akr	SC0135	-	putative aldo/keto reductase
136	 51.70	0	157383..158324	+	313	62178706	lysR	SC0136	-	lysR family transcriptional regulator
137	 55.21	0	158321..158512	-	63	62178707	yacG	SC0137	-	zinc-binding protein
138	 53.23	0	158522..159265	-	247	62178708	yacF	SC0138	-	hypothetical protein
139	 54.27	0	159265..159885	-	206	62178709	coaE	SC0139	-	dephospho-CoA kinase
140	 52.97	0	160111..161154	+	347	62178710	guaC	SC0140	-	guanosine 5'-monophosphate oxidoreductase
141	 54.03	0	161185..162387	-	400	62178711	hofC	SC0141	-	type IV pilin biogenesis protein
142	 55.34	0	162377..163762	-	461	62178712	hofB	SC0142	-	hypothetical protein
143	 54.11	0	163772..164209	-	145	62178713	ppdD	SC0143	-	putative major pilin subunit
144	 57.83	+1	164431..165324	-	297	162139623	nadC	SC0144	-	quinolinate phosphoribosyltransferase
145	 55.32	0	165412..165975	+	187	62178715	ampD	SC0145	-	N-acetyl-anhydromuranmyl-L-alanine amidase
146	 55.79	0	165972..166826	+	284	62178716	ampE	SC0146	-	regulatory protein AmpE
147	 53.42	0	166918..167868	-	316	62178717	abf2	SC0147	-	putative cytoplasmic protein
148	 50.68	0	167868..169274	-	468	62178718	yicJ	SC0148	-	Na+:galactoside symporter family permease
149	 55.53	0	169438..170811	-	457	62178719	aroP	SC0149	-	aromatic amino acid transporter
52.01	MEAN

5.72	STD DEV
