IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

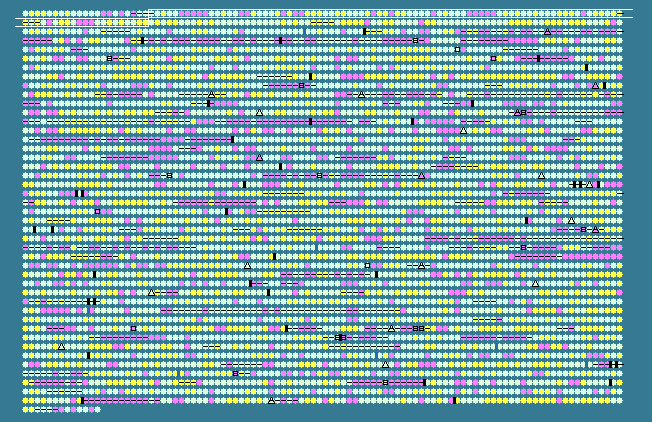

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
22	 50.20	0	28426..29433	+	335	62178592	bcfD	SC0022	-	fimbrial subunit
23	 49.27	0	29434..29979	+	181	62178593	bcfE	SC0023	-	fimbrial subunit
24	 55.88	0	29995..30513	+	172	62178594	bcfF	SC0024	-	fimbrial subunit
25	 54.23	0	30479..31210	+	243	62178595	bcfG	SC0025	-	fimbrial chaparone
26	 54.96	0	31274..32119	+	281	62178596	bcfH	SC0026	-	hypothetical protein
27	 41.67	-1	32158..32445	+	95	62178597	-	SC0027	-	hypothetical protein
28	 40.22	-2	32545..32994	-	149	62178598	-	SC0028	-	hypothetical protein
29	 46.36	0	33693..33953	+	86	62178599	asl	SC0029	-	putative arylsulfatase
30	 43.97	-1	33978..34325	+	115	62178600	-	SC0030	-	hypothetical protein
31	 39.08	-2	34909..35673	+	254	62178601	yfeN	SC0031	-	hypothetical protein
32	 48.96	0	37290..38486	+	398	62178602	aslB	SC0032	-	putative arylsulfatase regulatory protein
33	 50.16	0	38504..39757	+	417	62178603	-	SC0033	-	hypothetical protein
34	 56.47	0	40445..41611	+	388	62178604	nhaA	SC0034	-	pH-dependent sodium/proton antiporter
35	 50.78	0	41673..42572	+	299	62178605	nhaR	SC0035	-	transcriptional activator NhaR
36	 54.36	0	42627..44666	-	679	62178606	-	SC0036	-	putative glycosyl hydrolase
37	 46.59	0	46534..46797	-	87	62178607	rpsT	SC0037	-	30S ribosomal protein S20
38	 47.69	0	46903..47118	+	71	62178608	yaaY	SC0038	-	putative cytoplasmic protein
39	 56.98	0	47126..48064	+	312	62178609	ribF	SC0039	-	bifunctional riboflavin kinase/FMN adenylyltransferase
40	 54.79	0	48073..50943	+	956	62178610	ileS	SC0040	-	isoleucyl-tRNA synthetase
41	 52.89	0	50943..51443	+	166	62178611	lspA	SC0041	-	lipoprotein signal peptidase
42	 54.67	0	51598..52047	+	149	62178612	slpA	SC0042	-	FKBP-type peptidyl-prolyl cis-trans isomerase (rotamase)
43	 57.62	0	52050..53000	+	316	62178613	ispH	SC0043	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
44	 48.38	0	53200..54402	+	400	62178614	-	SC0044	-	putative nitrite reductase
45	 56.57	0	54418..55338	+	306	62178615	rihC	SC0045	-	ribonucleoside hydrolase RihC
46	 48.33	0	55360..56046	-	228	62178616	citB	SC0046	-	putative transcription regulator sensor for citrate
47	 47.62	0	56048..57706	-	552	62178617	citA	SC0047	-	putative transcription regulator, histidine kinase for citrate
48	 64.21	+2	57802..59103	-	433	62178618	oadB	SC0048	-	putative oxalacetate decarboxylase, subunit beta
49	 64.02	+2	59116..60891	-	591	62178619	oadA	SC0049	-	pyruvate carboxylase subunit B
50	 56.79	0	60907..61149	-	80	62178620	oag3	SC0050	-	oxaloacetate decarboxylase subunit gamma
51	 49.22	0	61308..62648	-	446	62178621	citN	SC0051	-	putative citrate-sodium symport
52	 53.35	0	62893..63936	+	347	62178622	citC2	SC0052	-	putative citrate lyase synthetase (citrate (pro-3S)-lyase ligase
53	 56.80	0	63966..64259	+	97	62178623	citD2	SC0053	-	citrate lyase subunit gamma
54	 55.52	0	64256..65125	+	289	62178624	citE2	SC0054	-	putative citrate lyase beta chain (acyl lyase subunit)
55	 55.36	0	65136..66656	+	506	62178625	citF2	SC0055	-	putative citrate lyase alpha chain/citrate-ACP transferase
56	 55.49	0	66707..67207	+	166	62178626	citX2	SC0056	-	putative cytoplasmic protein
57	 54.57	0	67185..68093	+	302	62178627	citG2	SC0057	-	putative modifier of citrate lyase protein
58	 56.57	0	68273..69094	+	273	62178628	dapB	SC0058	-	dihydrodipicolinate reductase
59	 35.90	-2	69746..69901	-	51	62178629	-	SC0059	-	hypothetical protein
60	 56.40	0	69959..71107	+	382	62178630	carA	SC0060	-	carbamoyl phosphate synthase small subunit
61	 58.95	+1	71126..74353	+	1075	62178631	carB	SC0061	-	carbamoyl phosphate synthase large subunit
62	 46.46	0	74627..75022	+	131	62178632	caiF	SC0062	-	DNA-binding transcriptional activator CaiF
63	 55.78	0	75100..75696	-	198	62178633	caiE	SC0063	-	carnitine operon protein CaiE
64	 56.11	0	75806..76591	-	261	62178634	caiD	SC0064	-	carnitinyl-CoA dehydratase
65	 51.09	0	76645..78198	-	517	62178635	caiC	SC0065	-	putative crotonobetaine/carnitine-CoA ligase
66	 53.28	0	78261..79478	-	405	62178636	caiB	SC0066	-	crotonobetainyl-CoA:carnitine CoA-transferase
67	 52.58	0	79590..80732	-	380	62178637	caiA	SC0067	-	crotonobetainyl-CoA dehydrogenase
68	 53.75	0	80767..82284	-	505	62178638	caiT	SC0068	-	L-carnitine/gamma-butyrobetaine antiporter
69	 28.49	-2	82512..82697	+	61	62178639	-	SC0069	-	hypothetical protein
70	 52.27	0	82765..83535	+	256	62178640	fixA	SC0070	-	putative electron transfer flavoprotein FixA
71	 59.24	+1	83551..84492	+	313	62178641	fixB	SC0071	-	putative electron transfer flavoprotein FixB
72	 55.48	0	84542..85828	+	428	62178642	fixC	SC0072	-	putative oxidoreductase FixC
73	 55.21	0	85825..86112	+	95	62178643	fixX	SC0073	-	putative ferredoxin, carnitine metabolism
74	 53.99	0	86259..87599	+	446	62178644	yaaU	SC0074	-	MFS family transporter
75	 48.48	0	87688..87918	+	76	62178645	ygdI	SC0075	-	putative outer membrane lipoprotein
76	 46.76	0	88203..88619	+	138	62178646	-	SC0076	-	putative secreted protein
77	 46.39	0	88842..89132	-	96	62178647	-	SC0077	-	putative secreted protein
78	 38.46	-2	89342..89536	+	64	62178648	cysB	SC0078	-	putative inner membrane protein
79	 46.72	0	90030..91919	+	629	62178649	-	SC0079	-	putative sulfatase
80	 52.73	0	92473..93003	+	176	62178650	yabF	SC0080	-	glutathione-regulated potassium-efflux system ancillary protein KefF
81	 57.97	+1	92996..94858	+	620	62178651	kefC	SC0081	-	glutathione-regulated potassium-efflux system protein KefC
82	 53.75	0	95057..95536	+	159	62178652	folA	SC0082	-	dihydrofolate reductase
83	 55.59	0	95642..96490	-	282	62178653	apaH	SC0083	-	diadenosine tetraphosphatase
84	 54.50	0	96501..96878	-	125	62178654	apaG	SC0084	-	ApaG
85	 52.43	0	96881..97702	-	273	62178655	ksgA	SC0085	-	dimethyladenosine transferase
86	 58.48	+1	97699..98688	-	329	62178656	pdxA	SC0086	-	4-hydroxythreonine-4-phosphate dehydrogenase
87	 54.39	0	98688..99974	-	428	62178657	surA	SC0087	-	peptidyl-prolyl cis-trans isomerase SurA
88	 52.69	0	100028..102388	-	786	62178658	imp	SC0088	-	organic solvent tolerance protein
89	 53.75	0	102642..103454	+	270	62178659	djlA	SC0089	-	DNA-J like membrane chaperone protein
90	 57.42	0	103549..104208	-	219	62178660	rluA	SC0090	-	23S rRNA/tRNA pseudouridine synthase A
91	 57.07	0	104220..107126	-	968	62178661	hepA	SC0091	-	ATP-dependent helicase HepA
92	 56.80	0	107300..109651	-	783	62178662	polB	SC0092	-	DNA polymerase II
93	 49.44	0	109695..110315	-	206	62178663	-	SC0093	-	putative secreted protein
94	 42.86	-1	110833..111252	+	139	62178664	-	SC0094	-	hypothetical protein
95	 55.32	0	111258..111953	-	231	62178665	araD	SC0095	-	L-ribulose-5-phosphate 4-epimerase
96	 55.69	0	112094..113596	-	500	62178666	araA	SC0096	-	L-arabinose isomerase
97	 57.33	0	113546..113845	+	99	62178667	-	SC0097	-	hypothetical protein
98	 53.78	0	115653..116498	+	281	62178668	araC	SC0098	-	DNA-binding transcriptional regulator AraC
99	 57.16	0	116617..117384	+	255	62178669	yabI	SC0099	-	DedA family, membrane protein
100	 57.49	0	117423..118130	-	235	62178670	thiQ	SC0100	-	thiamine transporter ATP-binding subunit
101	 59.71	+1	118114..119724	-	536	62178671	thiP	SC0101	-	thiamine transporter membrane protein
102	 55.08	0	119700..120683	-	327	62178672	tbpA	SC0102	-	thiamine transporter substrate binding subunit
103	 56.84	0	120861..122519	-	552	62178673	yabN	SC0103	-	transcriptional regulator SgrR
104	 55.10	0	122588..122734	+	48	62178674	leuD	SC0104	-	hypothetical protein
105	 43.97	-1	123054..123335	+	93	62178675	-	SC0105	-	hypothetical protein
106	 53.96	0	123389..123994	-	201	62178676	leuD	SC0106	-	isopropylmalate isomerase small subunit
107	 58.82	+1	124005..125405	-	466	62178677	leuC	SC0107	-	isopropylmalate isomerase large subunit
108	 55.77	0	125408..126499	-	363	62178678	leuB	SC0108	-	3-isopropylmalate dehydrogenase
109	 54.96	0	126499..128070	-	523	62178679	leuA	SC0109	-	2-isopropylmalate synthase
110	 47.13	0	128158..128244	-	28	62178680	leuL	SC0110	-	leu operon leader peptide
111	 19.19	-2	128499..128597	+	32	62178681	-	SC0111	-	hypothetical protein
112	 36.81	-2	128687..128830	+	47	62178682	-	SC0112	-	hypothetical protein
113	 54.61	0	130167..131891	+	574	162139624	ilvI	SC0113	-	acetolactate synthase 3 catalytic subunit
114	 53.33	0	131891..132385	+	164	62178684	ilvH	SC0114	-	acetolactate synthase 3 regulatory subunit
115	 56.52	0	132669..133673	+	334	62178685	fruR	SC0115	-	DNA-binding transcriptional regulator FruR
116	 51.85	0	134279..134737	+	152	62178686	yabB	SC0116	-	cell division protein MraZ
117	 56.34	0	134742..135680	+	312	62178687	mraW	SC0117	-	S-adenosyl-methyltransferase MraW
118	 51.91	0	135677..136042	+	121	62178688	ftsL	SC0118	-	cell division protein FtsL
119	 54.84	0	136058..137824	+	588	62178689	ftsI	SC0119	-	division specific transpeptidase, penicillin-binding protein 3 re
120	 58.67	+1	137811..139298	+	495	62178690	murE	SC0120	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
121	 56.44	0	139295..140653	+	452	62178691	murF	SC0121	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
52.01	MEAN

5.72	STD DEV
