IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

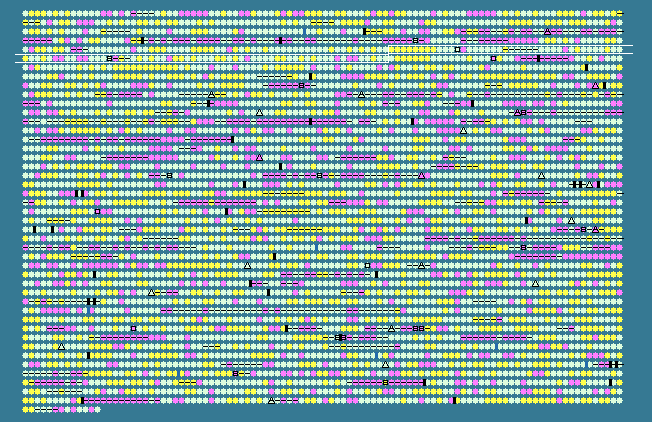

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
462	 56.77	0	523774..524571	-	265	62179037	phnV	SC0467	-	2-aminoethylphosphonate transporter, memrane component
463	 57.14	0	524574..525434	-	286	62179038	phnU	SC0468	-	2-aminoethylphosphonate transporter, memrane component
464	 58.47	+1	525437..526546	-	369	62179039	phnT	SC0469	-	2-aminoethylphosphonate transporter,ATPase component
465	 56.61	0	526552..527565	-	337	62179040	phnS	SC0470	-	2-aminoethylphosphonate transporter, periplasmic-binding component
466	 58.61	+1	527763..528482	-	239	62179041	phnR	SC0471	-	2-aminoethylphosphonate transport, repressor
467	 56.61	0	528622..529725	+	367	62179042	phnW	SC0472	-	2-aminoethylphosphonate--pyruvate transaminase
468	 59.78	+1	529732..530544	+	270	62179043	phnX	SC0473	-	phosphonoacetaldehyde hydrolase
469	 56.35	0	530641..531231	-	196	62179044	thiJ	SC0474	-	hypothetical protein
470	 52.52	0	531194..532105	-	303	62179045	apbA	SC0475	-	2-dehydropantoate 2-reductase
471	 51.42	0	532231..532722	+	163	62179046	yajQ	SC0476	-	nucleotide-binding protein
472	 55.45	0	532769..534061	-	430	62179047	yajR	SC0477	-	MFS family transporter
473	 54.32	0	534361..534522	-	53	62179048	tnp	SC0478	-	IS903 transposase
474	 43.58	-1	534670..536181	+	503	62179049	-	SC0479	-	putative periplasmic protein
475	 49.80	0	536193..537662	+	489	62179050	ybeQ	SC0480	-	hypothetical protein
476	 53.53	0	537710..538645	-	311	62179051	cyoE	SC0481	-	protoheme IX farnesyltransferase
477	 51.21	0	538612..538941	-	109	62179052	cyoD	SC0482	-	cytochrome o ubiquinol oxidase subunit IV
478	 53.66	0	538941..539555	-	204	62179053	cyoC	SC0483	-	cytochrome o ubiquinol oxidase subunit III
479	 54.02	0	539545..541536	-	663	62179054	cyoB	SC0484	-	cytochrome o ubiquinol oxidase subunit I
480	 50.68	0	541547..542503	-	318	62179055	cyoA	SC0485	-	cytochrome o ubiquinol oxidase subunit II
481	 56.88	0	542956..544437	-	493	62179056	ampG	SC0486	-	muropeptide transporter
482	 51.81	0	544475..545053	-	192	162139609	yajG	SC0487	-	hypothetical protein
483	 49.51	0	545367..545675	+	102	62179058	bolA	SC0488	-	transcriptional regulator BolA
484	 52.04	0	546022..547320	+	432	62179059	tig	SC0489	-	trigger factor
485	 50.96	0	547568..548191	+	207	162139608	clpP	SC0490	-	ATP-dependent Clp protease proteolytic subunit
486	 52.67	0	548443..549714	+	423	62179061	clpX	SC0491	-	ATP-dependent protease ATP-binding subunit
487	 53.76	0	549900..552254	+	784	62179062	lon	SC0492	-	DNA-binding ATP-dependent protease La
488	 49.45	0	552463..552735	+	90	62179063	hupB	SC0493	-	transcriptional regulator HU subunit beta
489	 52.40	0	553026..554897	+	623	62179064	cypD	SC0494	-	peptidyl-prolyl cis-trans isomerase (rotamase D)
490	 52.53	0	555047..555421	+	124	62179065	ybaV	SC0495	-	hypothetical protein
491	 47.37	0	555525..555923	+	132	62179066	ybaW	SC0496	-	hypothetical protein
492	 52.93	0	556029..556829	-	266	62179067	ybaX	SC0497	-	queuosine biosynthesis protein QueC
493	 56.35	0	556789..558504	-	571	62179068	ybaE	SC0498	-	putative ABC transporter periplasmic binding protein
494	 54.58	0	558590..559408	+	272	62179069	cof	SC0499	-	hypothetical protein
495	 54.55	0	559458..560513	-	351	62179070	-	SC0500	-	putative cysteine synthase/cystathionine beta-synthase
496	 51.63	0	560625..561083	+	152	62179071	ybaO	SC0501	-	putative transcriptional regulator (AsnC familiy)
497	 55.27	0	561124..562896	+	590	62179072	mdlA	SC0502	-	putative multidrug transporter membrane\ATP-binding components
498	 57.74	+1	562889..564670	+	593	62179073	mdlB	SC0503	-	putative multidrug transporter membrane\ATP-binding components
499	 54.09	0	564674..564832	+	52	62179074	-	SC0504	-	hypothetical protein
500	 52.80	0	564883..565221	+	112	62179075	glnK	SC0505	-	nitrogen regulatory protein P-II 2
501	 55.86	0	565253..566548	+	431	62179076	amtB	SC0506	-	ammonium transporter
502	 53.31	0	566648..567508	-	286	62179077	tesB	SC0507	-	acyl-CoA thioesterase II
503	 54.21	0	567723..568292	+	189	62179078	ybaY	SC0508	-	glycoprotein/polysaccharide metabolism
504	 55.90	0	568325..568714	-	129	62179079	ybaZ	SC0509	-	putative methyltransferase
505	 52.22	0	568945..570495	-	516	62179080	ylaB	SC0510	-	diguanylate cyclase/phosphodiesterase domain-containing protein
506	 43.68	-1	570720..570980	+	86	62179081	rpmE2	SC0511	-	50S ribosomal protein L31 type B
507	 43.26	-1	570986..571126	+	46	62179082	rpmJ	SC0512	-	50S ribosomal protein L36
508	 49.04	0	571182..571652	-	156	62179083	ylaC	SC0513	-	hypothetical protein
509	 49.46	0	571770..572321	-	183	62179084	maa	SC0514	-	maltose O-acetyltransferase
510	 40.18	-2	572500..572718	-	72	62179085	hha	SC0515	-	hemolysin expression-modulating protein
511	 42.13	-1	572746..573120	-	124	62179086	ybaJ	SC0516	-	hypothetical protein
512	 54.44	0	573616..576765	-	1049	62179087	acrB	SC0517	-	acridine efflux system protein
513	 55.16	0	576788..577873	-	361	62179088	acrA	SC0518	-	acridine efflux pump
514	 52.57	0	578895..582257	+	1120	162139607	aefA	SC0519	-	potassium efflux protein KefA
515	 52.81	0	582299..583222	-	307	62179090	-	SC0520	-	putative transposase
516	 44.05	-1	583292..583459	-	55	62179091	ybaM	SC0521	-	hypothetical protein
517	 58.90	+1	583473..584000	-	175	62179092	priC	SC0522	-	primosomal replication protein N''
518	 52.53	0	584051..584446	+	131	62179093	ybaN	SC0523	-	hypothetical protein
519	 53.99	0	584599..585150	+	183	62179094	apt	SC0524	-	adenine phosphoribosyltransferase
520	 59.05	+1	585264..587192	+	642	62179095	dnaX	SC0525	-	DNA polymerase III subunits gamma and tau
521	 54.85	0	587238..587567	+	109	62179096	ybaB	SC0526	-	hypothetical protein
522	 61.39	+1	587567..588172	+	201	62179097	recR	SC0527	-	recombination protein RecR
523	 52.55	0	588259..590157	+	632	62179098	htpG	SC0528	-	heat shock protein 90
524	 54.73	0	590399..591043	+	214	62179099	adk	SC0529	-	adenylate kinase
525	 48.31	0	591056..591262	+	68	62179100	-	SC0530	-	hypothetical protein
526	 56.80	0	591272..592234	+	320	62179101	hemH	SC0531	-	ferrochelatase
527	 56.07	0	592231..593202	-	323	62179102	aes	SC0532	-	acetyl esterase
528	 53.19	0	593310..594659	+	449	62179103	gsk	SC0533	-	inosine-guanosine kinase
529	 57.01	0	594708..596384	-	558	62179104	ybaL	SC0534	-	putative cation:proton antiport protein
530	 55.36	0	596599..597819	-	406	62179105	fsr	SC0535	-	MFS family transporter
531	 51.85	0	597992..599644	+	550	62179106	ushA	SC0536	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
532	 53.12	0	599761..600240	-	159	62179107	ybaK	SC0537	-	hypothetical protein
533	 56.60	0	600442..601236	-	264	62179108	ybaP	SC0538	-	hypothetical protein
534	 59.27	+1	602302..604803	-	833	62179109	copA	SC0539	-	copper exporting ATPase
535	 52.76	0	604913..605329	+	138	62179110	cueR	SC0540	-	DNA-binding transcriptional regulator CueR
536	 60.04	+1	605330..605782	-	150	62179111	ybbJ	SC0541	-	hypothetical protein
537	 54.79	0	605779..606696	-	305	62179112	ybbK	SC0542	-	hypothetical protein
538	 47.35	0	606843..607520	+	225	62179113	ybbL	SC0543	-	putative ABC transporter ATP-binding protein YbbL
539	 51.03	0	607507..608286	+	259	62179114	ybbM	SC0544	-	YbbM family transport protein metal resistance protein
540	 54.97	0	608372..609226	-	284	62179115	ybbN	SC0545	-	paral putative thioredoxin protein
541	 54.60	0	609286..610056	-	256	62179116	ybbO	SC0546	-	short chain dehydrogenase
542	 53.40	0	610211..610858	-	215	62179117	tesA	SC0547	-	multifunctional acyl-CoA thioesterase I and protease I and lysophospholipase L1
543	 59.10	+1	610796..611482	+	228	62179118	ybbA	SC0548	-	putative ABC transporter ATP-binding protein YbbA
544	 58.05	+1	611479..613893	+	804	62179119	ybbP	SC0549	-	hypothetical protein
545	 50.09	0	614079..615212	+	377	62179120	-	SC0550	-	putative outer membrane protein
546	 52.71	0	615469..616299	+	276	62179121	sfbA	SC0551	-	putative ABC-type transport system ATPase component/cell division protein
547	 55.75	0	616336..617352	+	338	62179122	sfbB	SC0552	-	putative ABC-type transport system ATPase component/cell division protein
548	 54.39	0	617345..618004	+	219	62179123	sfbC	SC0553	-	putative binding-protein-dependent transport systems inner membrane component
549	 56.35	0	618043..619137	-	364	62179124	ybbB	SC0554	-	tRNA 2-selenouridine synthase
550	 52.13	0	619171..620133	-	320	62179125	ybbS	SC0555	-	DNA-binding transcriptional activator AllS
551	 50.31	0	620360..620842	+	160	62179126	allA	SC0556	-	ureidoglycolate hydrolase
552	 55.07	0	620921..621739	+	272	62179127	allR	SC0557	-	DNA-binding transcriptional repressor AllR
553	 45.56	-1	623626..624402	+	258	62179128	gip	SC0558	-	hydroxypyruvate isomerase
554	 51.08	0	624503..625381	+	292	62179129	glxR	SC0559	-	tartronic semialdehyde reductase
555	 45.99	-1	625447..626694	+	415	62179130	yhjE	SC0560	-	putative permease
556	 45.57	-1	626790..628244	+	484	62179131	allP	SC0561	-	allantoin permease
557	 51.54	0	628323..629684	+	453	62179132	allB	SC0562	-	allantoinase
558	 51.50	0	629743..631041	+	432	62179133	ybbY	SC0563	-	putative purine permease YbbY
559	 57.18	0	631064..632212	+	382	62179134	glxK	SC0564	-	glycerate kinase II
560	 49.24	0	632292..633077	-	261	62179135	ylbA	SC0565	-	hypothetical protein
561	 53.80	0	633088..634323	-	411	62179136	allC	SC0566	-	allantoate amidohydrolase
52.01	MEAN

5.72	STD DEV
