IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

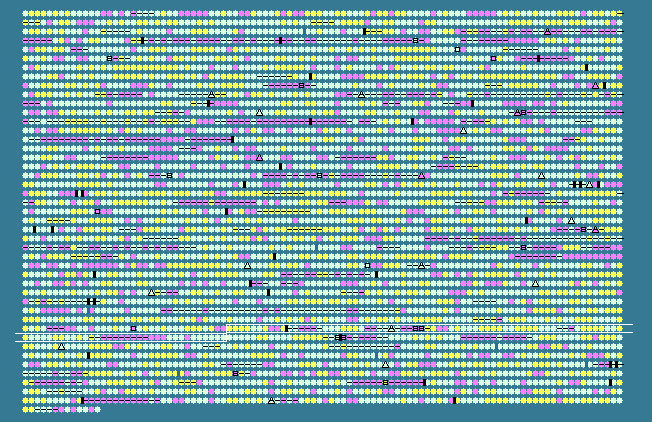

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3535	 57.30	0	3761125..3762138	-	337	62182127	dppF	SC3557	-	dipeptide transporter ATP-binding subunit
3536	 55.69	0	3762135..3763118	-	327	62182128	dppD	SC3558	-	dipeptide transporter ATP-binding subunit
3537	 60.02	+1	3763129..3764031	-	300	62182129	dppC	SC3559	-	dipeptide transporter
3538	 56.37	0	3764041..3765060	-	339	62182130	dppB	SC3560	-	dipeptide transporter permease DppB
3539	 52.05	0	3765217..3766824	-	535	62182131	dppA	SC3561	-	peptide ABC transporter permease
3540	 54.83	0	3767380..3768705	-	441	62182132	pucJ	SC3562	-	putative xanthine permease
3541	 57.42	0	3768763..3769887	-	374	62182133	-	SC3563	-	PQQ repeat-containing protein
3542	 41.78	-1	3769875..3770087	-	70	62182134	-	SC3564	-	hypothetical protein
3543	 40.12	-2	3769909..3770070	+	53	62182135	-	SC3565	-	hypothetical protein
3544	 59.62	+1	3770037..3771044	+	335	62182136	celR	SC3566	-	LacI family regulatory protein
3545	 51.71	0	3771357..3773048	-	563	162139529	yhjW	SC3567	-	phosphoethanolamine transferase
3546	 51.14	0	3773266..3773793	-	175	62182138	lpfE	SC3568	-	long polar fimbrial minor protein
3547	 46.76	0	3773799..3774878	-	359	62182139	lpfD	SC3569	-	long polar fimbrial operon protein
3548	 44.92	-1	3777447..3778145	-	232	62182140	lpfB	SC3570	-	long polar fimbrial chaperone
3549	 46.37	0	3778230..3778766	-	178	62182141	lpfA	SC3571	-	long polar fimbria
3550	 55.24	0	3779114..3779218	-	34	62182142	yhjX	SC3572	-	hypothetical protein
3551	 54.47	0	3779272..3779976	-	234	62182143	yhjY	SC3573	-	hypothetical protein
3552	 52.23	0	3780133..3780714	+	193	62182144	tag	SC3574	-	3-methyl-adenine DNA glycosylase I
3553	 51.47	0	3780692..3781132	+	146	62182145	yiaC	SC3575	-	hypothetical protein
3554	 57.75	+1	3781101..3783434	-	777	62182146	-	SC3576	-	biotin sulfoxide reductase
3555	 58.97	+1	3783587..3784249	+	220	62182147	yiaD	SC3577	-	putative outer membrane lipoprotein
3556	 56.72	0	3784468..3785442	+	324	62182148	yiaE	SC3578	-	2-hydroxyacid dehydrogenase
3557	 55.41	0	3785492..3786202	-	236	62182149	yiaF	SC3579	-	hypothetical protein
3558	 46.39	0	3786641..3786931	+	96	62182150	yiaG	SC3580	-	putative transcriptional regulator
3559	 47.42	0	3787219..3787431	+	70	62182151	cspA	SC3581	-	major cold shock protein
3560	 49.63	0	3787605..3788144	+	179	62182152	-	SC3582	-	hypothetical protein
3561	 50.50	0	3788396..3788797	+	133	62182153	-	SC3583	-	putative cytoplasmic protein
3562	 50.15	0	3788968..3789651	+	227	62182154	yis2	SC3584	-	putative integrase protein
3563	 49.18	0	3789830..3790315	-	161	62182155	-	SC3585	-	putative acetyltransferase
3564	 47.22	0	3790303..3790590	-	95	62182156	-	SC3586	-	putative cytoplasmic protein
3565	 41.24	-1	3790768..3791235	-	155	62182157	yafP	SC3587	-	putative acetyltransferase
3566	 37.50	-2	3791407..3791598	-	63	62182158	insK	SC3588	-	putative transposase insK for insertion sequence e
3567	 44.83	-1	3792031..3793239	-	402	62182159	tnp	SC3589	-	transposase of Tn10
3568	 57.15	0	3793408..3795477	-	689	62182160	glyS	SC3590	-	glycyl-tRNA synthetase subunit beta
3569	 55.70	0	3795487..3796398	-	303	62182161	glyQ	SC3591	-	glycyl-tRNA synthetase subunit alpha
3570	 48.18	0	3796537..3796839	-	100	62182162	-	SC3592	-	putative outer membrane lipoprotein
3571	 48.09	0	3797005..3798000	+	331	62182163	yiaH	SC3593	-	putative inner membrane protein
3572	 51.13	0	3798023..3798376	-	117	62182164	yiaB	SC3594	-	hypothetical protein
3573	 57.66	0	3798551..3800005	-	484	62182165	xylB	SC3595	-	xylulokinase
3574	 53.82	0	3800105..3801427	-	440	62182166	xylA	SC3596	-	xylose isomerase
3575	 52.67	0	3801790..3802968	+	392	62182167	xylR	SC3597	-	xylose operon regulatory protein
3576	 52.36	0	3803029..3803853	-	274	62182168	bax	SC3598	-	hypothetical protein
3577	 58.51	+1	3804169..3804891	+	240	62182169	malS	SC3599	-	alpha-amylase
3578	 63.51	+2	3804768..3804989	+	73	62182170	lyxK	SC3600	-	L-xylulose kinase, cryptic
3579	 60.78	+1	3804986..3805648	+	220	62182171	sgbH	SC3601	-	3-keto-L-gulonate-6-phosphate decarboxylase
3580	 57.84	+1	3805641..3806501	+	286	62182172	sgbU	SC3602	-	putative L-xylulose 5-phosphate 3-epimerase
3581	 54.04	0	3807351..3808166	-	271	62182173	yisR	SC3603	-	AraC family regulatory protein
3582	 54.91	0	3810559..3812097	-	512	62182174	aldB	SC3604	-	aldehyde dehydrogenase B (lactaldehyde dehydrogenase)
3583	 56.69	0	3812266..3813147	+	293	62182175	-	SC3605	-	putative transcriptional regulator
3584	 56.94	0	3813395..3815245	-	616	62182176	selB	SC3606	-	selenocysteinyl-tRNA-specific translation factor
3585	 59.63	+1	3815242..3816633	-	463	62182177	selA	SC3607	-	selenocysteine synthase
3586	 55.50	0	3816732..3817340	-	202	62182178	yibF	SC3608	-	putative glutathione S-transferase
3587	 54.77	0	3817816..3819732	+	638	62182179	mtlA	SC3609	-	PTS family, mannitol-specific enzyme IIABC components
3588	 54.38	0	3819938..3821101	+	387	62182180	mtlD	SC3610	-	mannitol-1-phosphate 5-dehydrogenase
3589	 53.47	0	3821098..3821688	+	196	62182181	mtlR	SC3611	-	mannitol repressor protein
3590	 49.05	0	3821698..3821907	-	69	62182182	-	SC3612	-	hypothetical protein
3591	 50.96	0	3822198..3822560	+	120	62182183	yibL	SC3613	-	hypothetical protein
3592	 37.72	-2	3823048..3823731	+	227	62182184	-	SC3614	-	putative inner membrane lipoprotein
3593	 52.82	0	3823775..3828115	+	1446	62182185	dspP	SC3615	-	putative inner membrane protein
3594	 57.31	0	3828414..3830069	+	551	62182186	lldP	SC3616	-	L-lactate permease
3595	 57.06	0	3830066..3830773	+	235	62182187	lldR	SC3617	-	DNA-binding transcriptional repressor LldR
3596	 59.87	+1	3830839..3832029	+	396	62182188	lldD	SC3618	-	L-lactate dehydrogenase
3597	 56.33	0	3832094..3832567	+	157	62182189	yibK	SC3619	-	putative tRNA/rRNA methyltransferase YibK
3598	 54.92	0	3832635..3833690	-	351	62182190	lacI	SC3620	-	putative transcriptional regulator
3599	 54.30	0	3833958..3835154	+	398	62182191	yin	SC3621	-	mandelate racemase/muconate lactonizing family protein
3600	 55.72	0	3836621..3837442	-	273	62182192	cysE	SC3622	-	serine acetyltransferase
3601	 57.55	0	3837520..3838539	-	339	62182193	gpsA	SC3623	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
3602	 50.85	0	3838539..3839006	-	155	62182194	secB	SC3624	-	preprotein translocase subunit SecB
3603	 51.19	0	3839050..3839301	-	83	62182195	grxC	SC3625	-	glutaredoxin 3
3604	 50.00	0	3839387..3839818	-	143	62182196	yibN	SC3626	-	putative rhodanese-related sulfurtransferase
3605	 54.82	0	3840066..3841610	+	514	62182197	pmgI	SC3627	-	phosphoglyceromutase
3606	 59.19	+1	3841620..3842903	+	427	62182198	yibP	SC3628	-	hypothetical protein
3607	 55.97	0	3842907..3843869	+	320	62182199	yigQ	SC3629	-	hypothetical protein
3608	 49.43	0	3843856..3844818	-	320	62182200	yibD	SC3630	-	putative glycosyl transferase
3609	 53.22	0	3845183..3846208	-	341	62182201	tdh	SC3631	-	L-threonine 3-dehydrogenase
3610	 55.97	0	3846218..3847414	-	398	62182202	kbl	SC3632	-	2-amino-3-ketobutyrate coenzyme A ligase
3611	 50.59	0	3847617..3848549	+	310	62182203	rfaD	SC3633	-	ADP-L-glycero-D-mannoheptose-6-epimerase
3612	 58.45	+1	3848552..3849598	+	348	62182204	rfaF	SC3634	-	ADP-heptose:LPS heptosyltransferase II
3613	 54.72	0	3849598..3850551	+	317	62182205	rfaC	SC3635	-	ADP-heptose:LPS heptosyl transferase I
3614	 40.08	-2	3850591..3851805	+	404	62182206	WaaL	SC3636	-	hypothetical protein
3615	 41.19	-1	3851863..3853008	-	381	62182207	rfaK	SC3637	-	putative hexose transferase, lipopolysaccharide core biosynthesis
3616	 37.78	-2	3853108..3853917	-	269	62182208	rfaZ	SC3638	-	lipopolysaccharide core biosynthesis protein
3617	 33.62	-2	3854067..3854765	-	232	62182209	rfaY	SC3639	-	lipopolysaccharide core biosynthesis protein
3618	 34.82	-2	3854788..3855798	-	336	62182210	rfaJ	SC3640	-	UDP-D-glucose:(galactosyl)lipopolysaccharide glucosyltransferase
3619	 38.07	-2	3855816..3856829	-	337	62182211	rfaI	SC3641	-	UDP-D-galactose:(glucosyl)lipopolysaccharide-alpha-1,3-D-galactosyltransferase
3620	 39.35	-2	3856835..3857914	-	359	62182212	rfaB	SC3642	-	UDP-D-galactose:(glucosyl)lipopolysaccharide-1,6-D-galactosyltrans ferase
3621	 31.62	-2	3857984..3858217	-	77	62182213	yibR	SC3643	-	putative inner membrane protein
3622	 46.24	-1	3858249..3859046	-	265	62182214	rfaP	SC3644	-	lipopolysaccharide core biosynthesis; phosphorylation of core heptose
3623	 48.18	0	3859039..3860163	-	374	62182215	rfaG	SC3645	-	glucosyltransferase I
3624	 47.53	0	3860160..3861230	-	356	62182216	rfaQ	SC3646	-	lipopolysaccharide core biosynthesis protein
3625	 54.85	0	3861639..3862916	+	425	62182217	kdtA	SC3647	-	3-deoxy-D-manno-octulosonic-acid transferase
3626	 52.92	0	3862925..3863404	+	159	62182218	coaD	SC3648	-	phosphopantetheine adenylyltransferase
3627	 55.19	0	3863431..3864240	-	269	62182219	mutM	SC3649	-	formamidopyrimidine-DNA glycosylase
3628	 41.07	-1	3864338..3864505	-	55	62182220	rpmG	SC3650	-	50S ribosomal protein L33
3629	 51.90	0	3864526..3864762	-	78	62182221	rpmB	SC3651	-	50S ribosomal protein L28
3630	 52.85	0	3864980..3865645	-	221	62182222	radC	SC3652	-	DNA repair protein RadC
3631	 55.36	0	3865821..3867041	+	406	162139528	dfp	SC3653	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
3632	 55.34	0	3867019..3867477	+	152	62182224	dut	SC3654	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
3633	 51.93	0	3867585..3868181	+	198	62182225	slmA	SC3655	-	nucleoid occlusion protein
3634	 54.21	0	3868259..3868900	-	213	62182226	pyrE	SC3656	-	orotate phosphoribosyltransferase
52.01	MEAN

5.72	STD DEV
