IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

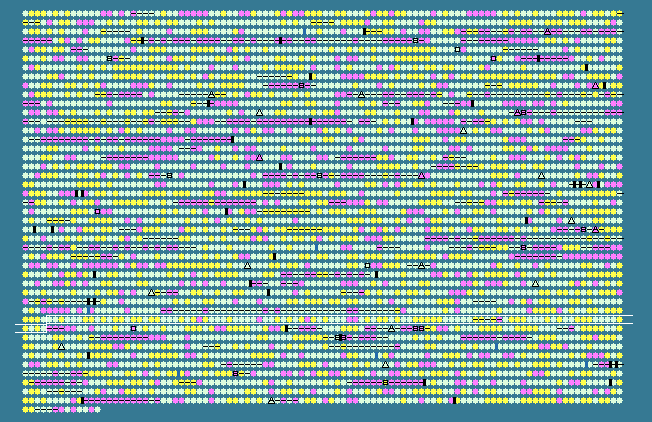

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3405	 54.99	0	3603677..3605809	+	710	62181997	yrfF	SC3427	-	hypothetical protein
3406	 53.81	0	3605874..3606542	+	222	62181998	yrfG	SC3428	-	putative hydrolase
3407	 55.97	0	3606553..3606954	+	133	62181999	yrfH	SC3429	-	ribosome-associated heat shock protein Hsp15
3408	 54.49	0	3606979..3607857	+	292	162139533	hslO	SC3430	-	Hsp33-like chaperonin
3409	 55.09	0	3607968..3609677	-	569	62182001	yhgE	SC3431	-	hypothetical protein
3410	 53.52	0	3610057..3611676	+	539	62182002	pckA	SC3432	-	phosphoenolpyruvate carboxykinase
3411	 57.43	0	3611751..3613103	-	450	62182003	envZ	SC3433	-	osmolarity sensor protein
3412	 55.78	0	3613100..3613834	-	244	62182004	ompR	SC3434	-	osmolarity response regulator
3413	 51.48	0	3614045..3614518	+	157	62182005	greB	SC3435	-	transcription elongation factor GreB
3414	 58.56	+1	3614617..3616947	+	776	62182006	yhgF	SC3436	-	paral putative RNase R
3415	 50.88	0	3617401..3617628	+	75	62182007	feoA	SC3437	-	ferrous iron transport protein A
3416	 56.45	0	3617647..3619965	+	772	62182008	feoB	SC3438	-	ferrous iron transport protein B
3417	 56.96	0	3619978..3620214	+	78	62182009	yhgG	SC3439	-	hypothetical protein
3418	 52.35	0	3620460..3621374	+	304	62182010	yfcI	SC3440	-	putative cytoplasmic protein
3419	 57.07	0	3621410..3622180	-	256	62182011	bioH	SC3441	-	carboxylesterase BioH
3420	 58.77	+1	3622218..3622901	+	227	62182012	yhgH	SC3442	-	gluconate periplasmic binding protein
3421	 53.82	0	3622960..3623535	+	191	62182013	yhgI	SC3443	-	putative DNA uptake protein
3422	 55.81	0	3623912..3625228	+	438	62182014	gntT	SC3444	-	GntP family, high-affinity gluconate permease in GNT I system
3423	 58.15	+1	3625347..3627425	-	692	62182015	malQ	SC3445	-	4-alpha-glucanotransferase
3424	 55.35	0	3627435..3629828	-	797	62182016	malP	SC3446	-	maltodextrin phosphorylase
3425	 55.47	0	3630422..3633127	+	901	62182017	malT	SC3447	-	transcriptional regulator MalT
3426	 50.27	0	3633269..3633829	-	186	62182018	-	SC3448	-	hypothetical protein
3427	 62.59	+1	3633826..3634782	-	318	62182019	rtcA	SC3449	-	RNA 3'-terminal-phosphate cyclase
3428	 55.01	0	3634864..3636081	-	405	62182020	rtcB	SC3450	-	putative cytoplasmic protein
3429	 60.17	+1	3636425..3637978	-	517	62182021	-	SC3451	-	putative ribonucleoprotein related-protein
3430	 32.68	-2	3637971..3638123	-	50	62182022	-	SC3452	-	hypothetical protein
3431	 59.85	+1	3638168..3639751	+	527	62182023	rtcR	SC3453	-	sigma N (sigma 54)-dependent regulator of rtcBA expression (EBP familiy)
3432	 54.02	0	3639748..3640506	-	252	62182024	glpR	SC3454	-	DNA-binding transcriptional repressor GlpR
3433	 54.51	0	3640600..3641430	-	276	62182025	glpG	SC3455	-	intramembrane serine protease GlpG
3434	 54.43	0	3641506..3641832	-	108	62182026	glpE	SC3456	-	thiosulfate sulfurtransferase
3435	 55.67	0	3642031..3643539	+	502	62182027	glpD	SC3457	-	glycerol-3-phosphate dehydrogenase
3436	 49.63	0	3643586..3644131	-	181	62182028	-	SC3458	-	hypothetical protein
3437	 50.90	0	3644141..3645694	-	517	62182029	-	SC3459	-	putative periplasmic phosphate-binding protein
3438	 54.77	0	3645795..3646904	-	369	62182030	gldA	SC3460	-	glycerol dehydrogenase
3439	 54.08	0	3647244..3648578	+	444	62182031	tub	SC3461	-	hypothetical protein
3440	 47.57	0	3650334..3651239	+	301	62182032	yagE	SC3462	-	putative dihydrodipicolinate synthetase
3441	 50.53	0	3651283..3652038	-	251	62182033	yfaX	SC3463	-	putative transcriptional regulator
3442	 52.25	0	3652216..3654663	-	815	62182034	glgP	SC3464	-	glycogen phosphorylase
3443	 56.90	0	3654683..3656116	-	477	62182035	glgA	SC3465	-	glycogen synthase
3444	 53.09	0	3656116..3657411	-	431	62182036	glgC	SC3466	-	glucose-1-phosphate adenylyltransferase
3445	 57.16	0	3657426..3659402	-	658	62182037	glgX	SC3467	-	glycogen debranching enzyme
3446	 55.46	0	3659399..3661585	-	728	62182038	glgB	SC3468	-	glycogen branching enzyme
3447	 56.64	0	3661932..3663038	-	368	62182039	asd	SC3469	-	aspartate-semialdehyde dehydrogenase
3448	 46.53	0	3663089..3663232	+	47	62182040	-	SC3470	-	hypothetical protein
3449	 57.57	0	3663462..3664802	-	446	62182041	gntU	SC3471	-	low affinity gluconate transporter
3450	 53.00	0	3664799..3665332	-	177	162139532	gntK	SC3472	-	gluconate kinase 1
3451	 56.40	0	3665471..3666532	-	353	62182043	gntR	SC3473	-	transcriptional repressor gnt-I, gntUKR (GalR/LacI familiy)
3452	 55.32	0	3666596..3667291	-	231	62182044	yhhW	SC3474	-	hypothetical protein
3453	 50.19	0	3667415..3668452	-	345	62182045	yhhX	SC3475	-	putative dehydrogenase
3454	 54.60	0	3668920..3669408	+	162	62182046	yhhY	SC3476	-	putative acetyltransferase YhhY
3455	 41.65	-1	3669672..3670886	+	404	62182047	rbsK	SC3477	-	putative transcriptional regulator of sugar metabolism
3456	 42.91	-1	3670902..3671663	+	253	62182048	-	SC3478	-	putative cytoplasmic protein
3457	 51.75	0	3671717..3672688	+	323	62182049	-	SC3479	-	putative inner membrane protein
3458	 55.94	0	3673764..3675506	-	580	62182050	ggt	SC3480	-	gamma-glutamyltranspeptidase periplasmic precursor
3459	 53.96	0	3675632..3676048	+	138	62182051	yhhA	SC3481	-	hypothetical protein
3460	 58.70	+1	3676061..3676801	-	246	62182052	ugpQ	SC3482	-	cytoplasmic glycerophosphodiester phosphodiesterase
3461	 58.45	+1	3676798..3677868	-	356	62182053	ugpC	SC3483	-	glycerol-3-phosphate transporter ATP-binding subunit
3462	 53.19	0	3677871..3678716	-	281	62182054	ugpE	SC3484	-	glycerol-3-phosphate transporter membrane protein
3463	 55.86	0	3678713..3679600	-	295	62182055	ugpA	SC3485	-	glycerol-3-phosphate transporter permease
3464	 52.62	0	3679705..3681021	-	438	62182056	ugpB	SC3486	-	glycerol-3-phosphate transporter periplasmic binding protein
3465	 51.76	0	3681280..3681648	-	122	62182057	doc	SC3487	-	hypothetical protein
3466	 55.86	0	3681645..3681866	-	73	62182058	yhhV	SC3488	-	putative cytoplasmic protein
3467	 59.94	+1	3681997..3682710	-	237	62182059	livF	SC3489	-	leucine/isoleucine/valine transporter ATP-binding subunit
3468	 57.29	0	3682712..3683479	-	255	62182060	livG	SC3490	-	leucine/isoleucine/valine transporter ATP-binding subunit
3469	 57.75	+1	3683476..3684753	-	425	62182061	livM	SC3491	-	leucine/isoleucine/valine transporter permease subunit
3470	 55.88	0	3684750..3685676	-	308	62182062	livH	SC3492	-	branched-chain amino acid transporter permease subunit LivH
3471	 55.47	0	3687267..3687650	+	127	62182063	yhhK	SC3493	-	hypothetical protein
3472	 49.90	0	3687647..3688165	-	172	62182064	-	SC3494	-	hypothetical protein
3473	 49.63	0	3688169..3688438	-	89	62182065	-	SC3495	-	hypothetical protein
3474	 54.87	0	3688616..3689776	-	386	62182066	livJ	SC3496	-	Leu/Ile/Val/Thr-binding protein precursor
3475	 54.15	0	3690041..3690895	-	284	62182067	rpoH	SC3497	-	RNA polymerase factor sigma-32
3476	 57.77	+1	3691141..3692196	-	351	62182068	ftsX	SC3498	-	cell division protein FtsX
3477	 56.62	0	3692189..3692785	-	198	62182069	ftsE	SC3499	-	cell division protein FtsE
3478	 55.28	0	3692860..3694335	-	491	62182070	ftsY	SC3500	-	cell division protein FtsY
3479	 56.62	0	3694461..3695057	+	198	62182071	yhhF	SC3501	-	16S rRNA m(2)G966-methyltransferase
3480	 47.78	0	3695047..3695316	+	89	62182072	yhhL	SC3502	-	hypothetical protein
3481	 52.69	0	3695338..3695709	-	123	62182073	yhhM	SC3503	-	hypothetical protein
3482	 57.89	+1	3695851..3696477	+	208	62182074	yhhN	SC3504	-	hypothetical protein
3483	 60.39	+1	3696558..3698756	+	732	62182075	zntA	SC3505	-	zinc/cadmium/mercury/lead-transporting ATPase
3484	 55.66	0	3698956..3700599	+	547	62182076	tcp	SC3506	-	methyl-accepting transmembrane citrate/phenol chemoreceptor
3485	 54.07	0	3700623..3700868	-	81	162139531	yhhP	SC3507	-	cell developmental protein SirA
3486	 50.75	0	3701038..3701703	+	221	62182078	yhhQ	SC3508	-	hypothetical protein
3487	 53.41	0	3701776..3702333	+	185	62182079	dcrB	SC3509	-	hypothetical protein
3488	 59.11	+1	3702337..3703554	-	405	162139530	yhhS	SC3510	-	hypothetical protein
3489	 51.71	0	3703686..3704735	+	349	62182081	yhhT	SC3511	-	PerM family permease
3490	 58.55	+1	3704787..3705365	+	192	62182082	acpT	SC3512	-	holo-(acyl carrier protein) synthase 2
3491	 54.57	0	3705421..3705858	+	145	62182083	nikR	SC3513	-	nickel responsive regulator
3492	 54.49	0	3705961..3707085	-	374	62182084	yhhJ	SC3514	-	ABC transporter ATP-binding protein
3493	 57.73	+1	3707085..3709826	-	913	62182085	yhiH	SC3515	-	mtultidrug ABC transporter permease/ATPase
3494	 61.31	+1	3709883..3710815	-	310	62182086	yhiI	SC3516	-	paral putative membrane protein
3495	 56.31	0	3711196..3712392	-	398	62182087	yhiN	SC3517	-	hypothetical protein
3496	 53.84	0	3712623..3714119	+	498	62182088	pitA	SC3518	-	PiT family, low-affinity phosphate transporter
3497	 50.00	0	3714260..3714595	-	111	62182089	uspB	SC3519	-	universal stress protein UspB
3498	 51.26	0	3714983..3715417	+	144	62182090	uspA	SC3520	-	universal stress protein A
3499	 50.85	0	3715742..3717214	+	490	62182091	yhiP	SC3521	-	inner membrane transporter YhiP
3500	 62.06	+1	3717306..3718064	-	252	62182092	yhiQ	SC3522	-	putative methyltransferase
3501	 56.05	0	3718071..3720113	-	680	62182093	opdA	SC3523	-	oligopeptidase A
3502	 55.03	0	3720295..3721566	-	423	62182094	-	SC3524	-	putative phosphatase
3503	 56.35	0	3721777..3722619	+	280	62182095	yhiR	SC3525	-	hypothetical protein
3504	 54.69	0	3722724..3724076	+	450	62182096	gor	SC3526	-	glutathione reductase
52.01	MEAN

5.72	STD DEV
