IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

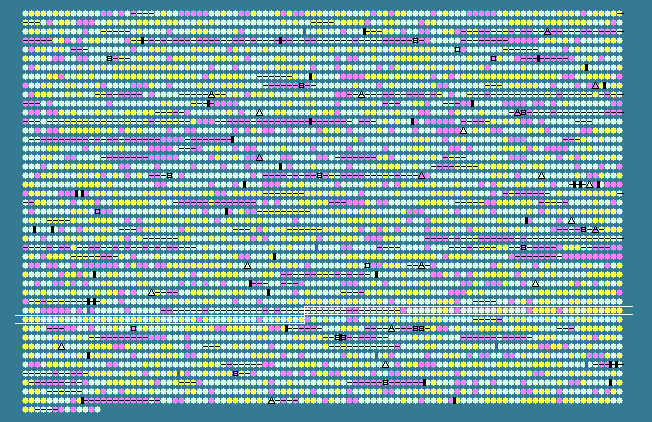

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3348	 49.10	0	3547951..3548229	-	92	62181940	rpsS	SC3370	-	30S ribosomal protein S19
3349	 53.16	0	3548246..3549067	-	273	62181941	rplB	SC3371	-	50S ribosomal protein L2
3350	 48.84	0	3549085..3549387	-	100	62181942	rplW	SC3372	-	50S ribosomal protein L23
3351	 52.97	0	3549384..3549989	-	201	62181943	rplD	SC3373	-	50S ribosomal protein L4
3352	 51.43	0	3550000..3550629	-	209	62181944	rplC	SC3374	-	50S ribosomal protein L3
3353	 54.81	0	3550662..3550973	-	103	62181945	rpsJ	SC3375	-	30S ribosomal protein S10
3354	 52.19	0	3551227..3551820	+	197	62181946	hopD	SC3376	-	leader peptidase HopD
3355	 42.77	-1	3551817..3552293	-	158	62181947	bfr	SC3377	-	bacterioferritin, iron storage and detoxification protein
3356	 42.05	-1	3552366..3552560	-	64	62181948	bfd	SC3378	-	bacterioferritin-associated ferredoxin
3357	 53.92	0	3552745..3553929	-	394	162139536	tuf	SC3379	-	elongation factor Tu
3358	 51.77	0	3554001..3556115	-	704	62181950	fusA	SC3380	-	elongation factor G
3359	 50.32	0	3556212..3556682	-	156	62181951	rpsG	SC3381	-	30S ribosomal protein S7
3360	 52.80	0	3556778..3557152	-	124	162139535	rpsL	SC3382	-	30S ribosomal protein S12
3361	 52.43	0	3557278..3557565	-	95	62181953	yheL	SC3383	-	tRNA 2-thiouridine synthesizing protein B
3362	 53.78	0	3557573..3557929	-	118	62181954	yheM	SC3384	-	hypothetical protein
3363	 58.40	+1	3557929..3558315	-	128	62181955	yheN	SC3385	-	hypothetical protein
3364	 46.80	0	3558315..3559049	-	244	62181956	yheO	SC3386	-	hypothetical protein
3365	 51.77	0	3559314..3560132	-	272	62181957	fkpA	SC3387	-	FKBP-type peptidyl-prolyl cis-trans isomerase
3366	 51.14	0	3560352..3560570	+	72	62181958	slyX	SC3388	-	hypothetical protein
3367	 55.33	0	3560765..3561355	-	196	62181959	slyD	SC3389	-	FKBP-type peptidyl-prolyl cis-trans isomerase
3368	 48.76	0	3561450..3561650	-	66	62181960	yheV	SC3390	-	hypothetical protein
3369	 54.71	0	3561660..3563465	-	601	62181961	kefB	SC3391	-	glutathione-regulated potassium-efflux system protein KefB
3370	 55.07	0	3563465..3564016	-	183	62181962	yheR	SC3392	-	glutathione-regulated potassium-efflux system ancillary protein KefG
3371	 57.76	+1	3564272..3566179	+	635	62181963	yheS	SC3393	-	putative ABC transporter ATP-binding protein
3372	 53.60	0	3566342..3566563	+	73	62181964	mauR	SC3394	-	ABC transporter ATPase
3373	 46.79	0	3566565..3566876	-	103	62181965	ydhR	SC3395	-	hypothetical protein
3374	 54.97	0	3567064..3568140	+	358	62181966	yheT	SC3396	-	putative hydrolase
3375	 50.23	0	3568137..3568355	+	72	62181967	yheU	SC3397	-	hypothetical protein
3376	 54.94	0	3568407..3569276	+	289	62181968	prkB	SC3398	-	putative phosphoribulokinase
3377	 53.33	0	3569372..3569776	-	134	62181969	yhfA	SC3399	-	hypothetical protein
3378	 50.24	0	3570084..3570716	+	210	62181970	crp	SC3400	-	cAMP-regulatory protein
3379	 54.57	0	3570753..3572852	+	699	62181971	yhfK	SC3401	-	putative inner membrane protein
3380	 55.58	0	3572895..3574112	-	405	62181972	argD	SC3402	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
3381	 54.79	0	3574198..3574761	-	187	62181973	pabA	SC3403	-	para-aminobenzoate synthase component II
3382	 55.39	0	3574793..3575395	-	200	62181974	fic	SC3404	-	cell filamentation protein Fic
3383	 50.44	0	3575661..3576233	-	190	62181975	ppiA	SC3405	-	peptidyl-prolyl cis-trans isomerase A (rotamase A)
3384	 54.74	0	3576510..3577691	+	393	62181976	yhfC	SC3406	-	hypothetical protein
3385	 38.42	-2	3577824..3578000	-	58	62181977	-	SC3407	-	hypothetical protein
3386	 56.72	0	3577953..3580496	+	847	62181978	nirB	SC3408	-	nitrite reductase, large subunit
3387	 55.66	0	3580493..3580819	+	108	62181979	nirD	SC3409	-	nitrite reductase small subunit
3388	 55.80	0	3581003..3581812	+	269	62181980	nirC	SC3410	-	nitrite transporter NirC
3389	 57.93	+1	3581824..3583197	+	457	62181981	cysG	SC3411	-	siroheme synthase
3390	 38.96	-2	3589344..3589592	+	82	62181982	yhfL	SC3412	-	putative outer membrane lipoprotein
3391	 51.74	0	3589737..3590741	-	334	62181983	trpS	SC3413	-	tryptophanyl-tRNA synthetase
3392	 55.73	0	3590734..3591492	-	252	62181984	gph	SC3414	-	phosphoglycolate phosphatase
3393	 53.69	0	3591485..3592162	-	225	62181985	rpe	SC3415	-	ribulose-phosphate 3-epimerase
3394	 49.10	0	3592180..3593016	-	278	62181986	dam	SC3416	-	DNA adenine methylase
3395	 57.28	0	3593197..3594474	-	425	62181987	damX	SC3417	-	hypothetical protein
3396	 55.74	0	3594572..3595660	-	362	62181988	aroB	SC3418	-	3-dehydroquinate synthase
3397	 50.38	0	3595717..3596238	-	173	62181989	aroK	SC3419	-	shikimate kinase I
3398	 56.98	0	3596703..3597941	-	412	62181990	hofQ	SC3420	-	outer membrane porin HofQ
3399	 57.21	0	3597856..3598257	-	133	62181991	yrfA	SC3421	-	hypothetical protein
3400	 59.46	+1	3598247..3598690	-	147	62181992	yrfB	SC3422	-	hypothetical protein
3401	 58.89	+1	3598704..3599243	-	179	62181993	yrfC	SC3423	-	hypothetical protein
3402	 58.46	+1	3599243..3600022	-	259	62181994	yrfD	SC3424	-	hypothetical protein
3403	 56.15	0	3600119..3602695	+	858	62181995	mrcA	SC3425	-	peptidoglycan synthetase
3404	 53.01	0	3602791..3603354	-	187	162139534	nudE	SC3426	-	ADP-ribose diphosphatase NudE
3405	 54.99	0	3603677..3605809	+	710	62181997	yrfF	SC3427	-	hypothetical protein
3406	 53.81	0	3605874..3606542	+	222	62181998	yrfG	SC3428	-	putative hydrolase
3407	 55.97	0	3606553..3606954	+	133	62181999	yrfH	SC3429	-	ribosome-associated heat shock protein Hsp15
3408	 54.49	0	3606979..3607857	+	292	162139533	hslO	SC3430	-	Hsp33-like chaperonin
3409	 55.09	0	3607968..3609677	-	569	62182001	yhgE	SC3431	-	hypothetical protein
3410	 53.52	0	3610057..3611676	+	539	62182002	pckA	SC3432	-	phosphoenolpyruvate carboxykinase
3411	 57.43	0	3611751..3613103	-	450	62182003	envZ	SC3433	-	osmolarity sensor protein
3412	 55.78	0	3613100..3613834	-	244	62182004	ompR	SC3434	-	osmolarity response regulator
3413	 51.48	0	3614045..3614518	+	157	62182005	greB	SC3435	-	transcription elongation factor GreB
3414	 58.56	+1	3614617..3616947	+	776	62182006	yhgF	SC3436	-	paral putative RNase R
3415	 50.88	0	3617401..3617628	+	75	62182007	feoA	SC3437	-	ferrous iron transport protein A
3416	 56.45	0	3617647..3619965	+	772	62182008	feoB	SC3438	-	ferrous iron transport protein B
3417	 56.96	0	3619978..3620214	+	78	62182009	yhgG	SC3439	-	hypothetical protein
3418	 52.35	0	3620460..3621374	+	304	62182010	yfcI	SC3440	-	putative cytoplasmic protein
3419	 57.07	0	3621410..3622180	-	256	62182011	bioH	SC3441	-	carboxylesterase BioH
3420	 58.77	+1	3622218..3622901	+	227	62182012	yhgH	SC3442	-	gluconate periplasmic binding protein
3421	 53.82	0	3622960..3623535	+	191	62182013	yhgI	SC3443	-	putative DNA uptake protein
3422	 55.81	0	3623912..3625228	+	438	62182014	gntT	SC3444	-	GntP family, high-affinity gluconate permease in GNT I system
3423	 58.15	+1	3625347..3627425	-	692	62182015	malQ	SC3445	-	4-alpha-glucanotransferase
3424	 55.35	0	3627435..3629828	-	797	62182016	malP	SC3446	-	maltodextrin phosphorylase
3425	 55.47	0	3630422..3633127	+	901	62182017	malT	SC3447	-	transcriptional regulator MalT
3426	 50.27	0	3633269..3633829	-	186	62182018	-	SC3448	-	hypothetical protein
3427	 62.59	+1	3633826..3634782	-	318	62182019	rtcA	SC3449	-	RNA 3'-terminal-phosphate cyclase
3428	 55.01	0	3634864..3636081	-	405	62182020	rtcB	SC3450	-	putative cytoplasmic protein
3429	 60.17	+1	3636425..3637978	-	517	62182021	-	SC3451	-	putative ribonucleoprotein related-protein
3430	 32.68	-2	3637971..3638123	-	50	62182022	-	SC3452	-	hypothetical protein
3431	 59.85	+1	3638168..3639751	+	527	62182023	rtcR	SC3453	-	sigma N (sigma 54)-dependent regulator of rtcBA expression (EBP familiy)
3432	 54.02	0	3639748..3640506	-	252	62182024	glpR	SC3454	-	DNA-binding transcriptional repressor GlpR
3433	 54.51	0	3640600..3641430	-	276	62182025	glpG	SC3455	-	intramembrane serine protease GlpG
3434	 54.43	0	3641506..3641832	-	108	62182026	glpE	SC3456	-	thiosulfate sulfurtransferase
3435	 55.67	0	3642031..3643539	+	502	62182027	glpD	SC3457	-	glycerol-3-phosphate dehydrogenase
3436	 49.63	0	3643586..3644131	-	181	62182028	-	SC3458	-	hypothetical protein
3437	 50.90	0	3644141..3645694	-	517	62182029	-	SC3459	-	putative periplasmic phosphate-binding protein
3438	 54.77	0	3645795..3646904	-	369	62182030	gldA	SC3460	-	glycerol dehydrogenase
3439	 54.08	0	3647244..3648578	+	444	62182031	tub	SC3461	-	hypothetical protein
3440	 47.57	0	3650334..3651239	+	301	62182032	yagE	SC3462	-	putative dihydrodipicolinate synthetase
3441	 50.53	0	3651283..3652038	-	251	62182033	yfaX	SC3463	-	putative transcriptional regulator
3442	 52.25	0	3652216..3654663	-	815	62182034	glgP	SC3464	-	glycogen phosphorylase
3443	 56.90	0	3654683..3656116	-	477	62182035	glgA	SC3465	-	glycogen synthase
3444	 53.09	0	3656116..3657411	-	431	62182036	glgC	SC3466	-	glucose-1-phosphate adenylyltransferase
3445	 57.16	0	3657426..3659402	-	658	62182037	glgX	SC3467	-	glycogen debranching enzyme
3446	 55.46	0	3659399..3661585	-	728	62182038	glgB	SC3468	-	glycogen branching enzyme
3447	 56.64	0	3661932..3663038	-	368	62182039	asd	SC3469	-	aspartate-semialdehyde dehydrogenase
52.01	MEAN

5.72	STD DEV
