IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

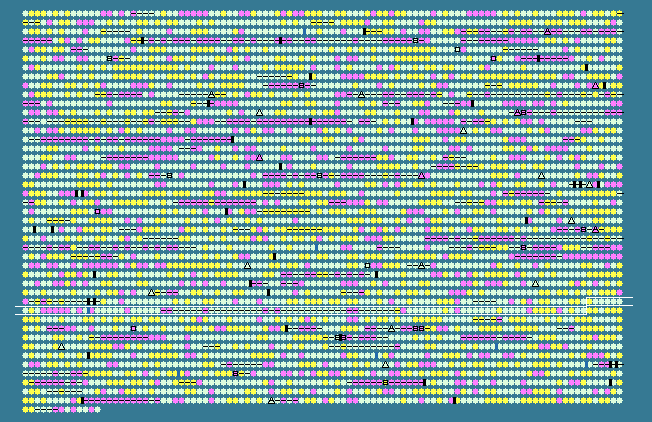

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3295	 57.44	0	3501746..3502720	+	324	62181884	yhdH	SC3314	-	putative oxidoreductase
3296	 51.44	0	3502832..3503836	+	334	62181885	yedY	SC3315	-	putative sulfite oxidase subunit YedY
3297	 50.83	0	3503837..3504436	+	199	62181886	yedZ	SC3316	-	putative sulfite oxidase subunit YedZ
3298	 52.65	0	3504829..3505299	+	156	62181887	accB	SC3317	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
3299	 54.89	0	3505310..3506659	+	449	62181888	accC	SC3318	-	acetyl-CoA carboxylase biotin carboxylase subunit
3300	 54.32	0	3506768..3507010	+	80	62181889	yhdT	SC3319	-	hypothetical protein
3301	 55.03	0	3507000..3508451	+	483	62181890	panF	SC3320	-	sodium/panthothenate symporter
3302	 55.90	0	3508463..3509344	+	293	62181891	prmA	SC3321	-	ribosomal protein L11 methyltransferase
3303	 53.62	0	3510006..3510971	+	321	62181892	yhdG	SC3322	-	tRNA-dihydrouridine synthase B
3304	 46.46	0	3510997..3511293	+	98	62181893	fis	SC3323	-	DNA-binding protein Fis
3305	 45.12	-1	3511373..3512263	+	296	62181894	yhdJ	SC3324	-	putative methyltransferase
3306	 42.19	-1	3512319..3512510	+	63	62181895	yhdU	SC3325	-	putative periplasmic protein
3307	 43.44	-1	3514763..3515425	-	220	62181896	envR	SC3326	-	DNA-binding transcriptional regulator EnvR
3308	 24.53	-2	3515498..3515656	+	52	62181897	-	SC3327	-	hypothetical protein
3309	 50.90	0	3517007..3520120	+	1037	62181898	acrF	SC3328	-	multidrug transporter acriflavin resistance protein F
3310	 40.00	-2	3520216..3520380	-	54	62181899	-	SC3329	-	hypothetical protein
3311	 49.55	0	3520356..3520577	+	73	62181900	yhdV	SC3330	-	putative outer membrane lipoprotein
3312	 47.97	0	3526627..3526749	+	40	62181904	-	SC3334	-	hypothetical protein
3313	 50.81	0	3526924..3527478	+	184	62181905	yrdA	SC3335	-	putative ferripyochelin binding protein
3314	 50.78	0	3527454..3527711	-	85	62181906	yrdB	SC3336	-	hypothetical protein
3315	 50.31	0	3527708..3528526	-	272	62181907	aroE	SC3337	-	shikimate 5-dehydrogenase
3316	 53.23	0	3528531..3529133	-	200	62181908	yrdC	SC3338	-	putative ribosome maturation factor
3317	 52.85	0	3529108..3529650	-	180	62181909	yrdD	SC3339	-	hypothetical protein
3318	 47.89	0	3529677..3530150	-	157	62181910	smg	SC3340	-	hypothetical protein
3319	 53.96	0	3530122..3531246	-	374	62181911	smf	SC3341	-	hypothetical protein
3320	 51.57	0	3531378..3531887	+	169	62181912	def	SC3342	-	peptide deformylase
3321	 54.85	0	3531903..3532850	+	315	62181913	fmt	SC3343	-	methionyl-tRNA formyltransferase
3322	 53.72	0	3532902..3534191	+	429	62181914	sun	SC3344	-	16S rRNA methyltransferase B
3323	 51.20	0	3534213..3535589	+	458	62181915	trkA	SC3345	-	potassium transporter peripheral membrane component
3324	 44.93	-1	3535730..3536143	+	137	62181916	mscL	SC3346	-	large-conductance mechanosensitive channel
3325	 48.12	0	3536406..3536831	-	141	62181917	zntR	SC3347	-	zinc-responsive transcriptional regulator
3326	 49.59	0	3536842..3537210	-	122	62181918	yhdN	SC3348	-	hypothetical protein
3327	 54.43	0	3537318..3537701	-	127	62181919	rplQ	SC3349	-	50S ribosomal protein L17
3328	 52.42	0	3537742..3538731	-	329	62181920	rpoA	SC3350	-	DNA-directed RNA polymerase subunit alpha
3329	 51.37	0	3538757..3539377	-	206	62181921	rpsD	SC3351	-	30S ribosomal protein S4
3330	 51.54	0	3539411..3539800	-	129	62181922	rpsK	SC3352	-	30S ribosomal protein S11
3331	 47.86	0	3540322..3540438	-	38	62181923	rpmJ	SC3353	-	50S ribosomal protein L36
3332	 49.55	0	3540470..3541801	-	443	62181924	secY	SC3354	-	preprotein translocase subunit SecY
3333	 54.48	0	3541809..3542243	-	144	62181925	rplO	SC3355	-	50S ribosomal protein L15
3334	 50.56	0	3542247..3542426	-	59	62181926	rpmD	SC3356	-	50S ribosomal protein L30
3335	 50.79	0	3542430..3542933	-	167	62181927	rpsE	SC3357	-	30S ribosomal protein S5
3336	 52.82	0	3542948..3543301	-	117	62181928	rplR	SC3358	-	50S ribosomal protein L18
3337	 51.50	0	3543311..3543844	-	177	62181929	rplF	SC3359	-	50S ribosomal protein L6
3338	 50.13	0	3543857..3544249	-	130	62181930	rpsH	SC3360	-	30S ribosomal protein S8
3339	 52.29	0	3544283..3544588	-	101	62181931	rpsN	SC3361	-	30S ribosomal protein S14
3340	 49.63	0	3544603..3545142	-	179	62181932	rplE	SC3362	-	50S ribosomal protein L5
3341	 46.03	-1	3545157..3545471	-	104	62181933	rplX	SC3363	-	50S ribosomal protein L24
3342	 50.00	0	3545482..3545853	-	123	62181934	rplN	SC3364	-	50S ribosomal protein L14
3343	 47.45	0	3546017..3546271	-	84	62181935	rpsQ	SC3365	-	30S ribosomal protein S17
3344	 53.12	0	3546271..3546462	-	63	62181936	rpmC	SC3366	-	50S ribosomal protein L29
3345	 52.31	0	3546462..3546872	-	136	62181937	rplP	SC3367	-	50S ribosomal protein L16
3346	 51.14	0	3546885..3547586	-	233	62181938	rpsC	SC3368	-	30S ribosomal protein S3
3347	 49.51	0	3547586..3547993	+	135	62181939	-	SC3369	-	hypothetical protein
3348	 49.10	0	3547951..3548229	-	92	62181940	rpsS	SC3370	-	30S ribosomal protein S19
3349	 53.16	0	3548246..3549067	-	273	62181941	rplB	SC3371	-	50S ribosomal protein L2
3350	 48.84	0	3549085..3549387	-	100	62181942	rplW	SC3372	-	50S ribosomal protein L23
3351	 52.97	0	3549384..3549989	-	201	62181943	rplD	SC3373	-	50S ribosomal protein L4
3352	 51.43	0	3550000..3550629	-	209	62181944	rplC	SC3374	-	50S ribosomal protein L3
3353	 54.81	0	3550662..3550973	-	103	62181945	rpsJ	SC3375	-	30S ribosomal protein S10
3354	 52.19	0	3551227..3551820	+	197	62181946	hopD	SC3376	-	leader peptidase HopD
3355	 42.77	-1	3551817..3552293	-	158	62181947	bfr	SC3377	-	bacterioferritin, iron storage and detoxification protein
3356	 42.05	-1	3552366..3552560	-	64	62181948	bfd	SC3378	-	bacterioferritin-associated ferredoxin
3357	 53.92	0	3552745..3553929	-	394	162139536	tuf	SC3379	-	elongation factor Tu
3358	 51.77	0	3554001..3556115	-	704	62181950	fusA	SC3380	-	elongation factor G
3359	 50.32	0	3556212..3556682	-	156	62181951	rpsG	SC3381	-	30S ribosomal protein S7
3360	 52.80	0	3556778..3557152	-	124	162139535	rpsL	SC3382	-	30S ribosomal protein S12
3361	 52.43	0	3557278..3557565	-	95	62181953	yheL	SC3383	-	tRNA 2-thiouridine synthesizing protein B
3362	 53.78	0	3557573..3557929	-	118	62181954	yheM	SC3384	-	hypothetical protein
3363	 58.40	+1	3557929..3558315	-	128	62181955	yheN	SC3385	-	hypothetical protein
3364	 46.80	0	3558315..3559049	-	244	62181956	yheO	SC3386	-	hypothetical protein
3365	 51.77	0	3559314..3560132	-	272	62181957	fkpA	SC3387	-	FKBP-type peptidyl-prolyl cis-trans isomerase
3366	 51.14	0	3560352..3560570	+	72	62181958	slyX	SC3388	-	hypothetical protein
3367	 55.33	0	3560765..3561355	-	196	62181959	slyD	SC3389	-	FKBP-type peptidyl-prolyl cis-trans isomerase
3368	 48.76	0	3561450..3561650	-	66	62181960	yheV	SC3390	-	hypothetical protein
3369	 54.71	0	3561660..3563465	-	601	62181961	kefB	SC3391	-	glutathione-regulated potassium-efflux system protein KefB
3370	 55.07	0	3563465..3564016	-	183	62181962	yheR	SC3392	-	glutathione-regulated potassium-efflux system ancillary protein KefG
3371	 57.76	+1	3564272..3566179	+	635	62181963	yheS	SC3393	-	putative ABC transporter ATP-binding protein
3372	 53.60	0	3566342..3566563	+	73	62181964	mauR	SC3394	-	ABC transporter ATPase
3373	 46.79	0	3566565..3566876	-	103	62181965	ydhR	SC3395	-	hypothetical protein
3374	 54.97	0	3567064..3568140	+	358	62181966	yheT	SC3396	-	putative hydrolase
3375	 50.23	0	3568137..3568355	+	72	62181967	yheU	SC3397	-	hypothetical protein
3376	 54.94	0	3568407..3569276	+	289	62181968	prkB	SC3398	-	putative phosphoribulokinase
3377	 53.33	0	3569372..3569776	-	134	62181969	yhfA	SC3399	-	hypothetical protein
3378	 50.24	0	3570084..3570716	+	210	62181970	crp	SC3400	-	cAMP-regulatory protein
3379	 54.57	0	3570753..3572852	+	699	62181971	yhfK	SC3401	-	putative inner membrane protein
3380	 55.58	0	3572895..3574112	-	405	62181972	argD	SC3402	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
3381	 54.79	0	3574198..3574761	-	187	62181973	pabA	SC3403	-	para-aminobenzoate synthase component II
3382	 55.39	0	3574793..3575395	-	200	62181974	fic	SC3404	-	cell filamentation protein Fic
3383	 50.44	0	3575661..3576233	-	190	62181975	ppiA	SC3405	-	peptidyl-prolyl cis-trans isomerase A (rotamase A)
3384	 54.74	0	3576510..3577691	+	393	62181976	yhfC	SC3406	-	hypothetical protein
3385	 38.42	-2	3577824..3578000	-	58	62181977	-	SC3407	-	hypothetical protein
3386	 56.72	0	3577953..3580496	+	847	62181978	nirB	SC3408	-	nitrite reductase, large subunit
3387	 55.66	0	3580493..3580819	+	108	62181979	nirD	SC3409	-	nitrite reductase small subunit
3388	 55.80	0	3581003..3581812	+	269	62181980	nirC	SC3410	-	nitrite transporter NirC
3389	 57.93	+1	3581824..3583197	+	457	62181981	cysG	SC3411	-	siroheme synthase
3390	 38.96	-2	3589344..3589592	+	82	62181982	yhfL	SC3412	-	putative outer membrane lipoprotein
3391	 51.74	0	3589737..3590741	-	334	62181983	trpS	SC3413	-	tryptophanyl-tRNA synthetase
3392	 55.73	0	3590734..3591492	-	252	62181984	gph	SC3414	-	phosphoglycolate phosphatase
3393	 53.69	0	3591485..3592162	-	225	62181985	rpe	SC3415	-	ribulose-phosphate 3-epimerase
3394	 49.10	0	3592180..3593016	-	278	62181986	dam	SC3416	-	DNA adenine methylase
52.01	MEAN

5.72	STD DEV
