IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

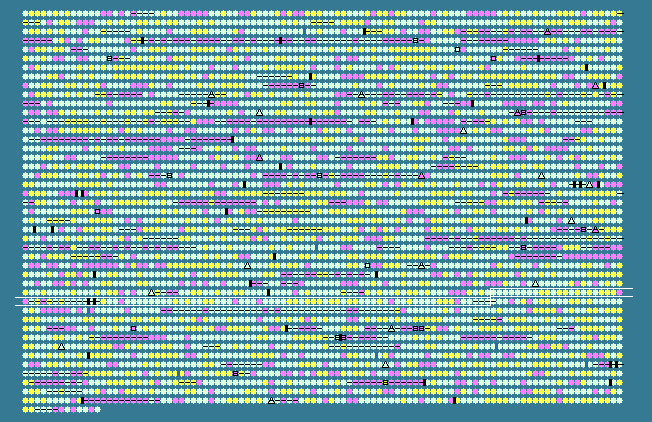

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3179	 53.10	0	3381881..3382735	+	284	62181767	gatY	SC3197	-	tagatose-bisphosphate aldolase
3180	 52.91	0	3382856..3384127	+	423	62181768	gatZ	SC3198	-	putative tagatose 6-phosphate kinase 1
3181	 54.19	0	3384142..3384606	+	154	62181769	ptkA	SC3199	-	galactitol-specific PTS system component IIA
3182	 49.47	0	3384637..3384921	+	94	62181770	ptkB	SC3200	-	galactitol-specific PTS system component IIB
3183	 54.95	0	3384925..3386298	+	457	62181771	ptkC	SC3201	-	PTS family galactitol-specific enzyme IIC
3184	 55.36	0	3386342..3387385	+	347	62181772	gadD	SC3202	-	galactitol-1-phosphate dehydrogenase
3185	 50.26	0	3387496..3388269	+	257	62181773	gadR	SC3203	-	transcriptional regulator of sugar metabolism
3186	 55.44	0	3388427..3389290	-	287	62181774	yraL	SC3204	-	hypothetical protein
3187	 58.25	+1	3389354..3391396	+	680	62181775	yraM	SC3205	-	paral putative transglycosylase
3188	 56.31	0	3391354..3391749	+	131	162139542	yraN	SC3206	-	hypothetical protein
3189	 51.44	0	3391771..3392361	+	196	62181777	yraO	SC3207	-	DnaA initiator-associating protein DiaA
3190	 56.25	0	3392371..3392946	+	191	62181778	yraP	SC3208	-	hypothetical protein
3191	 57.85	+1	3393013..3393681	-	222	62181779	yraR	SC3209	-	hypothetical protein
3192	 53.56	0	3393779..3394297	+	172	62181780	yhbO	SC3210	-	hypothetical protein
3193	 56.76	0	3394277..3394720	-	147	62181781	yhbP	SC3211	-	hypothetical protein
3194	 52.62	0	3394713..3395075	+	120	62181782	yhbQ	SC3212	-	GIY-YIG nuclease superfamily protein
3195	 56.15	0	3395062..3395565	-	167	62181783	yhbS	SC3213	-	ABC transporter membrane protein
3196	 51.24	0	3395559..3396083	-	174	62181784	yhbT	SC3214	-	hypothetical protein
3197	 58.63	+1	3396300..3397295	+	331	62181785	yhbU	SC3215	-	putative protease
3198	 55.96	0	3397286..3398182	+	298	62181786	yhbV	SC3216	-	hypothetical protein
3199	 58.23	+1	3398360..3399367	+	335	62181787	yhbW	SC3217	-	hypothetical protein
3200	 46.53	0	3399345..3400064	-	239	62181788	yafK	SC3218	-	putative inner membrane protein
3201	 40.11	-2	3400223..3400753	+	176	62181789	-	SC3219	-	putative cytoplasmic protein
3202	 55.02	0	3400814..3402058	-	414	62181790	mtr	SC3220	-	tryptophan permease
3203	 58.20	+1	3402212..3404101	-	629	162139541	deaD	SC3221	-	ATP-dependent RNA helicase DeaD
3204	 48.36	0	3404280..3405164	-	294	62181792	nlpI	SC3222	-	lipoprotein NlpI
3205	 55.82	0	3405274..3407439	-	721	62181793	pnp	SC3223	-	polynucleotide phosphorylase/polyadenylase
3206	 50.00	0	3407651..3407920	-	89	62181794	rpsO	SC3224	-	30S ribosomal protein S15
3207	 55.66	0	3408071..3409015	-	314	62181795	truB	SC3225	-	tRNA pseudouridine synthase B
3208	 53.73	0	3409015..3409416	-	133	62181796	rbfA	SC3226	-	ribosome-binding factor A
3209	 55.47	0	3409637..3412315	-	892	62181797	infB	SC3227	-	translation initiation factor IF-2
3210	 52.50	0	3412340..3413842	-	500	62181798	nusA	SC3228	-	transcription elongation factor NusA
3211	 50.11	0	3413870..3414322	-	150	162139540	yhbC	SC3229	-	hypothetical protein
3212	 53.65	0	3414950..3416293	+	447	162139539	argG	SC3231	-	argininosuccinate synthase
3213	 51.35	0	3416591..3416923	-	110	162139538	secG	SC3232	-	preprotein translocase subunit SecG
3214	 57.17	0	3417146..3418483	-	445	62181803	glmM	SC3233	-	phosphoglucosamine mutase
3215	 55.35	0	3419430..3421373	-	647	62181804	hflB	SC3234	-	ATP-dependent metalloprotease
3216	 51.20	0	3421468..3422094	-	208	62181805	rrmJ	SC3235	-	23S rRNA methyltransferase J
3217	 47.15	0	3422182..3422514	+	110	62181806	yhbY	SC3236	-	RNA-binding protein YhbY
3218	 50.94	0	3422670..3423146	-	158	62181807	greA	SC3237	-	transcription elongation factor GreA
3219	 54.95	0	3423394..3424827	+	477	62181808	dacB	SC3238	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
3220	 55.41	0	3424958..3426130	-	390	62181809	obgE	SC3239	-	GTPase ObgE
3221	 52.59	0	3426146..3427111	-	321	62181810	rhbE	SC3240	-	hypothetical protein
3222	 49.22	0	3427241..3427498	-	85	62181811	rpmA	SC3241	-	50S ribosomal protein L27
3223	 49.06	0	3427563..3427880	+	105	62181812	-	SC3242	-	hypothetical protein
3224	 51.92	0	3427913..3429058	+	381	62181813	ispB	SC3243	-	octaprenyl diphosphate synthase
3225	 50.00	0	3429291..3429578	+	95	62181814	nlp	SC3244	-	DNA-binding transcriptional regulator Nlp
3226	 58.17	+1	3429637..3430896	-	419	62181815	murA	SC3245	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3227	 50.00	0	3430950..3431243	-	97	62181816	yrbA	SC3246	-	BolA family transcriptional regulator
3228	 59.60	+1	3431392..3431688	-	98	62181817	yrbB	SC3247	-	STAS domain-containing protein
3229	 53.14	0	3431688..3432323	-	211	62181818	yrbC	SC3248	-	ABC transporter ATP-binding protein
3230	 51.27	0	3432342..3432893	-	183	62181819	yrbD	SC3249	-	ABC transporter substrate-binding protein
3231	 57.60	0	3432898..3433680	-	260	62181820	yrbE	SC3250	-	ABC transporter membrane protein
3232	 58.06	+1	3433688..3434500	-	270	62181821	yrbF	SC3251	-	putative ABC transporter ATP-binding protein YrbF
3233	 55.01	0	3434713..3435690	+	325	62181822	yrbG	SC3252	-	putative calcium/sodium:proton antiporter
3234	 54.50	0	3435680..3436690	+	336	62181823	yrbH	SC3253	-	D-arabinose 5-phosphate isomerase
3235	 54.85	0	3436711..3437277	+	188	62181824	yrbI	SC3254	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
3236	 47.40	0	3437274..3437849	+	191	62181825	yrbK	SC3255	-	hypothetical protein
3237	 51.91	0	3437797..3438372	+	191	62181826	yhbN	SC3256	-	hypothetical protein
3238	 54.82	0	3438379..3439104	+	241	62181827	yhbG	SC3257	-	putative ABC transporter ATP-binding protein YhbG
3239	 54.04	0	3439152..3440585	+	477	62181828	rpoN	SC3258	-	RNA polymerase factor sigma-54
3240	 46.18	-1	3440608..3440895	+	95	62181829	yhbH	SC3259	-	putative sigma(54) modulation protein
3241	 53.05	0	3441013..3441504	+	163	62181830	ptsN	SC3260	-	sugar-specific enzyme IIA component of PTS
3242	 53.22	0	3441550..3442404	+	284	62181831	yhbJ	SC3261	-	hypothetical protein
3243	 53.48	0	3442401..3442673	+	90	62181832	ptsO	SC3262	-	phosphohistidinoprotein-hexose phosphotransferase component of N-regulated PTS system (Npr)
3244	 54.03	0	3442922..3443554	+	210	62181833	yrbL	SC3263	-	hypothetical protein
3245	 55.97	0	3443629..3444357	-	242	62181834	mtgA	SC3264	-	monofunctional biosynthetic peptidoglycan transglycosylase
3246	 56.88	0	3444354..3445007	-	217	62181835	yhbL	SC3265	-	isoprenoid biosynthesis protein
3247	 52.03	0	3445234..3447570	-	778	62181836	arcB	SC3266	-	aerobic respiration control sensor protein ArcB
3248	 56.99	0	3447664..3448593	-	309	62181837	yhcC	SC3267	-	hypothetical protein
3249	 58.33	+1	3449265..3453725	+	1486	62181838	gltB	SC3268	-	glutamate synthase subunit alpha
3250	 56.24	0	3453735..3455153	+	472	62181839	gltD	SC3269	-	glutamate synthase subunit beta
3251	 49.91	0	3455360..3456463	+	367	62181840	yhcG	SC3270	-	hypothetical protein
3252	 55.58	0	3456579..3457832	+	417	62181841	codB	SC3271	-	cytosine permease
3253	 55.50	0	3457819..3459099	+	426	62181842	codA	SC3272	-	cytosine deaminase
3254	 52.99	0	3459182..3459649	-	155	62181843	yhcH	SC3273	-	hypothetical protein
3255	 59.25	+1	3459646..3460521	-	291	62181844	nanK	SC3274	-	N-acetylmannosamine kinase
3256	 58.84	+1	3460518..3461207	-	229	62181845	nanE	SC3275	-	N-acetylmannosamine-6-phosphate 2-epimerase
3257	 55.26	0	3461254..3462744	-	496	62181846	nanT	SC3276	-	putative sialic acid transporter
3258	 54.03	0	3462860..3463753	-	297	62181847	nanA	SC3277	-	N-acetylneuraminate lyase
3259	 52.53	0	3463888..3464679	-	263	62181848	yhcK	SC3278	-	transcriptional regulator NanR
3260	 55.69	0	3464788..3465288	-	166	62181849	sspB	SC3279	-	ClpXP protease specificity-enhancing factor
3261	 51.80	0	3465294..3465932	-	212	62181850	sspA	SC3280	-	stringent starvation protein A
3262	 47.47	0	3466000..3466947	-	315	62181851	-	SC3281	-	putative cytoplasmic protein
3263	 53.18	0	3467147..3467539	-	130	62181852	rpsI	SC3282	-	30S ribosomal protein S9
3264	 51.28	0	3467555..3467983	-	142	162139537	rplM	SC3283	-	50S ribosomal protein L13
3265	 55.73	0	3468286..3469410	-	374	62181854	yhcM	SC3284	-	putative ATPase
3266	 52.84	0	3469597..3470001	+	134	62181855	yhcB	SC3285	-	cytochrome d ubiquinol oxidase subunit III
3267	 54.24	0	3470158..3471525	+	455	62181856	degQ	SC3286	-	serine endoprotease
3268	 54.44	0	3471618..3472688	+	356	62181857	degS	SC3287	-	serine endoprotease
3269	 54.37	0	3472722..3473453	-	243	62181858	-	SC3288	-	putative inner membrane protein
3270	 63.82	+2	3473473..3474774	-	433	62181859	oadB	SC3289	-	putative oxalacetate decarboxylase, subunit beta
3271	 64.02	+2	3474787..3476562	-	591	62181860	oadA	SC3290	-	pyruvate carboxylase subunit B
3272	 59.26	+1	3476578..3476820	-	80	62181861	oadG	SC3291	-	oxaloacetate decarboxylase subunit gamma
3273	 46.44	0	3476977..3477594	-	205	62181862	ttdB	SC3292	-	L(+)-tartrate dehydratase subunit beta
3274	 51.89	0	3477594..3478493	-	299	62181863	ttdA	SC3293	-	tartrate dehydratase subunit alpha
3275	 51.60	0	3478526..3479866	-	446	62181864	-	SC3294	-	putative cation transporter
3276	 49.70	0	3480005..3480670	-	221	62181865	-	SC3295	-	GntR family transcriptional regulator
3277	 48.89	0	3480657..3481286	-	209	62181866	-	SC3296	-	GntR family transcriptional regulator
3278	 53.67	0	3481406..3482344	-	312	62181867	mdh	SC3297	-	malate dehydrogenase
52.01	MEAN

5.72	STD DEV
