IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

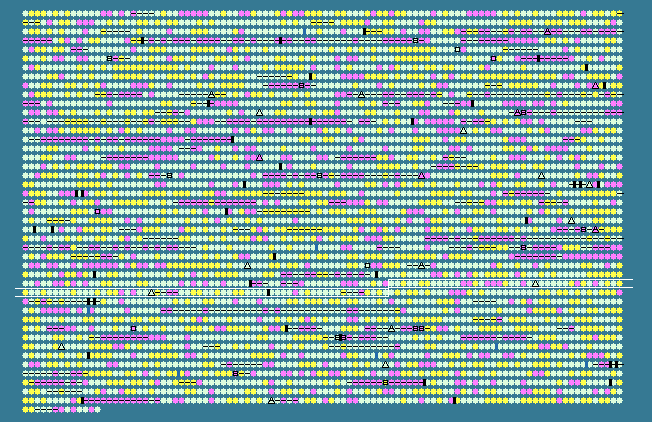

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3062	 53.58	0	3261814..3263670	-	618	62181650	gsp	SC3080	-	bifunctional glutathionylspermidine amidase/glutathionylspermidine synthetase
3063	 54.56	0	3263897..3264763	+	288	62181651	yghU	SC3081	-	putative glutathione S-transferase YghU
3064	 58.26	+1	3264831..3265484	-	217	62181652	mbp	SC3082	-	hypothetical protein
3065	 53.66	0	3265532..3266584	-	350	62181653	fbp	SC3083	-	putative ferrichrome-binding periplasmic protein
3066	 53.01	0	3266660..3266908	-	82	62181654	hybG	SC3084	-	hydrogenase 2 accessory protein HypG
3067	 55.85	0	3266936..3267277	-	113	62181655	hypA	SC3085	-	hydrogenase nickel incorporation protein HybF
3068	 57.26	0	3267270..3267758	-	162	62181656	hybE	SC3086	-	hydrogenase 2-specific chaperone
3069	 54.55	0	3267751..3268245	-	164	62181657	hybD	SC3087	-	hydrogenase 2 maturation endopeptidase
3070	 54.75	0	3268245..3269948	-	567	62181658	hybC	SC3088	-	hydrogenase 2 large subunit
3071	 52.67	0	3269945..3271123	-	392	62181659	hybB	SC3089	-	putative hydrogenase 2 b cytochrome subunit
3072	 53.80	0	3271113..3272099	-	328	62181660	hybA	SC3090	-	hydrogenase 2 protein HybA
3073	 54.33	0	3272102..3273220	-	372	62181661	hypO	SC3091	-	hydrogenase 2 small subunit
3074	 39.78	-2	3273228..3273413	-	61	62181662	-	SC3092	-	hypothetical protein
3075	 46.88	0	3273410..3273697	-	95	62181663	yghW	SC3093	-	hypothetical protein
3076	 56.93	0	3273782..3275425	-	547	62181664	mcp1	SC3094	-	putative methyl-accepting chemotaxis protein
3077	 48.69	0	3275732..3276226	-	164	62181665	yqhA	SC3095	-	hypothetical protein
3078	 43.60	-1	3276505..3277020	-	171	62181666	-	SC3096	-	putative ATP-dependent RNA helicase-like protein
3079	 43.07	-1	3277112..3277522	+	136	62181667	-	SC3097	-	hypothetical protein
3080	 48.15	0	3277509..3277913	+	134	62181668	-	SC3098	-	hypothetical protein
3081	 56.50	0	3278037..3278921	+	294	62181669	yghA	SC3099	-	oxidoreductase
3082	 50.70	0	3279034..3279459	-	141	62181670	exbD	SC3100	-	biopolymer transport protein ExbD
3083	 54.78	0	3279443..3280174	-	243	62181671	exbB	SC3101	-	biopolymer transport protein ExbB
3084	 38.00	-2	3280182..3280331	-	49	62181672	-	SC3102	-	hypothetical protein
3085	 50.50	0	3280415..3280816	+	133	62181673	-	SC3103	-	putative cytoplasmic protein
3086	 50.00	0	3280987..3281670	+	227	62181674	yis2	SC3104	-	putative integrase protein
3087	 52.45	0	3281615..3282943	+	442	62181675	metC	SC3105	-	cystathionine beta-lyase
3088	 53.64	0	3283083..3283742	+	219	62181676	yghB	SC3106	-	DedA family, membrane protein
3089	 50.81	0	3283806..3284726	-	306	62181677	yqhC	SC3107	-	AraC/XylS family transcription factor
3090	 55.41	0	3284898..3286061	+	387	62181678	yqhD	SC3108	-	putative alcohol dehydrogenase
3091	 52.90	0	3286167..3286994	+	275	62181679	dkgA	SC3109	-	2,5-diketo-D-gluconate reductase A
3092	 55.53	0	3287191..3288645	+	484	62181680	sot	SC3110	-	putative cation transporter
3093	 47.81	0	3288690..3289145	+	151	62181681	hit	SC3111	-	hypothetical protein
3094	 57.09	0	3289700..3291871	-	723	62181682	ygiR	SC3112	-	hypothetical protein
3095	 51.63	0	3292359..3293342	+	327	62181683	yiiZ	SC3113	-	putative dicarboxylate-binding periplasmic protein
3096	 47.20	0	3293384..3293866	+	160	62181684	yiaM	SC3114	-	putative inner membrane protein
3097	 51.22	0	3293877..3295184	+	435	62181685	ygiK	SC3115	-	putative integral membrane protein, transporter
3098	 58.60	+1	3295229..3296641	-	470	62181686	sufI	SC3116	-	repressor protein for FtsI
3099	 50.14	0	3296715..3297452	-	245	62181687	-	SC3117	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
3100	 55.87	0	3297709..3299958	-	749	62181688	parC	SC3118	-	DNA topoisomerase IV subunit A
3101	 57.55	0	3300078..3300944	-	288	62181689	ygiV	SC3119	-	AraC family regulatory protein
3102	 53.94	0	3301016..3301408	-	130	62181690	ygiW	SC3120	-	putative outer membrane protein
3103	 52.77	0	3301407..3302219	+	270	62181691	ygiX	SC3121	-	DNA-binding transcriptional regulator QseB
3104	 56.37	0	3302216..3303565	+	449	62181692	ygiY	SC3122	-	sensor protein QseC
3105	 51.89	0	3303672..3304253	+	193	62181693	mdaB	SC3123	-	NADPH specific quinone oxidoreductase (drug modulator)
3106	 52.38	0	3304285..3304599	+	104	62181694	ygiN	SC3124	-	hypothetical protein
3107	 55.36	0	3304724..3306616	-	630	62181695	parE	SC3125	-	DNA topoisomerase IV subunit B
3108	 54.64	0	3306644..3307225	-	193	62181696	yqiA	SC3126	-	esterase YqiA
3109	 55.92	0	3307225..3308052	-	275	62181697	icc	SC3127	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
3110	 50.59	0	3308077..3308499	-	140	62181698	yqiB	SC3128	-	hypothetical protein
3111	 53.55	0	3308496..3309128	-	210	62181699	nudF	SC3129	-	ADP-ribose pyrophosphatase NudF
3112	 52.45	0	3309335..3310804	+	489	162139544	tolC	SC3130	-	outer membrane channel protein
3113	 58.18	+1	3311017..3311688	+	223	62181701	ygiB	SC3131	-	hypothetical protein
3114	 51.03	0	3311694..3312857	+	387	62181702	ygiC	SC3132	-	hypothetical protein
3115	 55.84	0	3312919..3313749	-	276	62181703	ygiD	SC3133	-	hypothetical protein
3116	 56.33	0	3313848..3314621	+	257	62181704	ygiE	SC3134	-	zinc transporter ZupT
3117	 44.07	-1	3314688..3314864	-	58	62181705	-	SC3135	-	hypothetical protein
3118	 48.97	0	3315264..3317060	+	598	62181706	astJ	SC3136	-	putative arylsulfate sulfotransferase
3119	 45.68	-1	3317080..3317751	+	223	62181707	dsbA	SC3137	-	putative thiol-disulfide isomerase and thioredoxin
3120	 50.59	0	3317766..3318443	+	225	62181708	dsbI	SC3138	-	putative disulfide oxidoreductase
3121	 50.50	0	3318657..3319058	+	133	62181709	-	SC3139	-	putative cytoplasmic protein
3122	 50.15	0	3319229..3319912	+	227	62181710	yis2	SC3140	-	putative integrase protein
3123	 55.66	0	3319929..3320582	-	217	62181711	ribB	SC3141	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
3124	 52.65	0	3320674..3321315	+	213	62181712	yqiC	SC3142	-	putative cytoplasmic protein
3125	 48.04	0	3321390..3321593	-	67	62181713	glgS	SC3143	-	glycogen synthesis protein GlgS
3126	 39.33	-2	3321696..3321845	-	49	62181714	-	SC3144	-	hypothetical protein
3127	 52.98	0	3321857..3322477	+	206	62181715	yqiJ	SC3145	-	putative inner membrane protein
3128	 53.69	0	3322496..3324175	+	559	62181716	yqiK	SC3146	-	paral putative membrane protein
3129	 57.60	0	3324634..3326067	-	477	62181717	rfaE	SC3147	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
3130	 57.10	0	3326115..3328958	-	947	62181718	glnE	SC3148	-	bifunctional glutamine-synthetase adenylyltransferase/deadenyltransferase
3131	 54.76	0	3329076..3330377	-	433	62181719	ygiF	SC3149	-	hypothetical protein
3132	 50.41	0	3330619..3331233	+	204	62181720	ygiM	SC3150	-	putative signal transduction protein
3133	 58.86	+1	3331296..3332537	+	413	62181721	cca	SC3151	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
3134	 53.94	0	3332642..3333466	-	274	62181722	uppP	SC3152	-	undecaprenyl pyrophosphate phosphatase
3135	 50.41	0	3333561..3333923	-	120	62181723	folB	SC3153	-	bifunctional dihydroneopterin aldolase/dihydroneopterin triphosphate 2'-epimerase
3136	 56.05	0	3334027..3334638	+	203	62181724	ygiH	SC3154	-	putative glycerol-3-phosphate acyltransferase PlsY
3137	 58.19	+1	3334888..3335901	-	337	62181725	gcp	SC3155	-	O-sialoglycoprotein endopeptidase
3138	 51.85	0	3336129..3336344	+	71	62181726	rpsU	SC3156	-	30S ribosomal protein S21
3139	 51.66	0	3336580..3338325	+	581	62181727	dnaG	SC3157	-	DNA primase
3140	 52.50	0	3338340..3340316	+	658	62181728	rpoD	SC3158	-	RNA polymerase sigma factor RpoD
3141	 53.06	0	3340439..3340945	-	168	62181729	mug	SC3159	-	G/U mismatch-specific DNA glycosylase
3142	 55.47	0	3341226..3341993	-	255	62181730	yqjH	SC3160	-	hypothetical protein
3143	 53.86	0	3342225..3342872	+	215	62181731	yqjI	SC3161	-	putative transcriptional regulator
3144	 50.64	0	3342869..3344434	-	521	62181732	mcp2	SC3162	-	putative methyl-accepting chemotaxis protein
3145	 55.49	0	3344822..3346342	-	506	62181733	aer	SC3163	-	aerotaxis sensor receptor, senses cellular redox state or proton motive force
3146	 34.62	-2	3346354..3346509	+	51	62181734	-	SC3164	-	hypothetical protein
3147	 54.44	0	3346745..3348151	+	468	162139543	oat	SC3165	-	putrescine--2-oxoglutarate aminotransferase
3148	 58.84	+1	3348322..3350340	+	672	62181736	fadH	SC3166	-	2,4-dieonyl-coa reductase
3149	 53.47	0	3350421..3351557	-	378	62181737	ygjO	SC3167	-	hypothetical protein
3150	 53.61	0	3351643..3352140	+	165	62181738	ygjP	SC3168	-	hypothetical protein
3151	 54.11	0	3352292..3352984	+	230	62181739	ygjQ	SC3169	-	putative integral membrane protein
3152	 53.55	0	3353073..3354071	+	332	62181740	ygjR	SC3170	-	putative dehydrogenase
3153	 53.04	0	3354340..3355308	+	322	62181741	ygjT	SC3171	-	putative resistance protein
3154	 55.98	0	3355563..3356807	+	414	62181742	ygjU	SC3172	-	serine/threonine transporter SstT
3155	 52.34	0	3357257..3357919	+	220	62181743	yqjA	SC3173	-	DedA family, membrane protein
3156	 51.30	0	3357923..3358306	+	127	62181744	yqjB	SC3174	-	hypothetical protein
3157	 47.97	0	3358451..3358819	+	122	62181745	yqjC	SC3175	-	hypothetical protein
3158	 56.21	0	3358861..3359166	+	101	62181746	yqjD	SC3176	-	hypothetical protein
3159	 53.88	0	3359169..3359567	+	132	62181747	yqjE	SC3177	-	hypothetical protein
3160	 60.00	+1	3359564..3359863	+	99	62181748	yqjK	SC3178	-	hypothetical protein
3161	 50.00	0	3360008..3360493	+	161	62181749	yqjF	SC3179	-	putative membrane-associated protein
52.01	MEAN

5.72	STD DEV
