IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

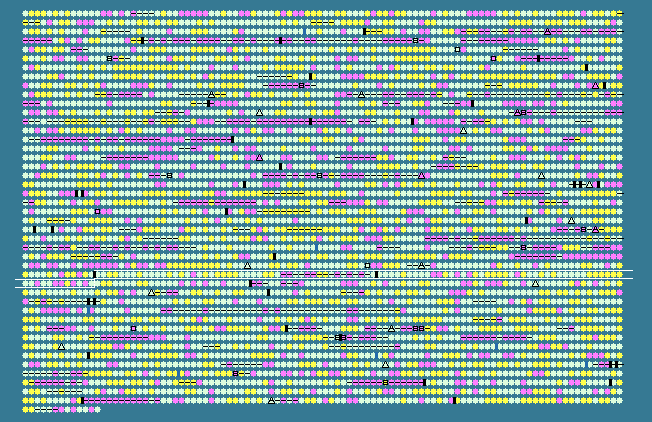

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2913	 53.51	0	3101049..3102302	-	417	62181499	amiC	SC2929	-	N-acetylmuramoyl-L-alanine amidase
2914	 52.85	0	3102535..3103866	+	443	62181500	argA	SC2930	-	N-acetylglutamate synthase
2915	 58.33	+1	3103969..3105804	-	611	62181501	RecD	SC2931	-	exonuclease V subunit alpha
2916	 55.61	0	3105801..3109346	-	1181	62181502	RecB	SC2932	-	exonuclease V subunit beta
2917	 52.30	0	3109339..3112227	-	962	62181503	ptr	SC2933	-	protease III
2918	 53.83	0	3112405..3115776	-	1123	62181504	recC	SC2934	-	exonuclease V subunit gamma
2919	 53.27	0	3115792..3116112	-	106	62181505	ppdC	SC2935	-	hypothetical protein
2920	 55.64	0	3116097..3116504	-	135	62181506	ygdB	SC2936	-	hypothetical protein
2921	 53.37	0	3116501..3117064	-	187	62181507	ppdB	SC2937	-	hypothetical protein
2922	 55.41	0	3117055..3117525	-	156	62181508	ppdA	SC2938	-	hypothetical protein
2923	 51.70	0	3117710..3118504	-	264	62181510	thyA	SC2940	-	thymidylate synthase
2924	 53.88	0	3118511..3119386	-	291	62181511	lgt	SC2941	-	prolipoprotein diacylglyceryl transferase
2925	 57.01	0	3119602..3121848	-	748	62181512	ptsP	SC2942	-	fused phosphoenolpyruvate-protein phosphotransferase PtsP/GAF domain-containing protein
2926	 50.66	0	3121861..3122391	-	176	62181513	ygdP	SC2943	-	dinucleoside polyphosphate hydrolase
2927	 57.90	+1	3123074..3123769	+	231	62181514	mutH	SC2944	-	DNA mismatch repair protein
2928	 50.98	0	3123951..3124664	+	237	62181515	ygdQ	SC2945	-	hypothetical protein
2929	 47.49	0	3124834..3125052	+	72	62181516	ygdR	SC2946	-	POT family peptide transport protein
2930	 54.85	0	3125243..3126283	+	346	62181517	tas	SC2947	-	putative aldo-keto reductase
2931	 58.69	+1	3126370..3127572	-	400	62181518	ygeD	SC2948	-	hypothetical protein
2932	 54.81	0	3127565..3129724	-	719	62181519	aas	SC2949	-	bifunctional acyl-[acyl carrier protein] synthetase/2-acylglycerophosphoethanolamine acyltransferase
2933	 56.17	0	3130316..3131344	+	342	62181520	galR	SC2950	-	DNA-binding transcriptional regulator GalR
2934	 57.23	0	3131265..3132377	+	370	62181521	-	SC2951	-	putative transcriptional regulator
2935	 57.17	0	3132387..3133649	-	420	62181522	lysA	SC2952	-	diaminopimelate decarboxylase
2936	 58.23	+1	3133767..3134702	+	311	62181523	lysR	SC2953	-	DNA-binding transcriptional regulator LysR
2937	 53.60	0	3134674..3135354	-	226	62181524	ygeA	SC2954	-	putative racemase
2938	 52.64	0	3135494..3136912	-	472	62181525	araE	SC2955	-	major facilitator superfamily L-arabinose: proton symporter
2939	 51.57	0	3137265..3138026	-	253	62181526	kduD	SC2956	-	2-deoxy-D-gluconate 3-dehydrogenase
2940	 51.25	0	3138083..3138919	-	278	62181527	kduI	SC2957	-	5-keto-4-deoxyuronate isomerase
2941	 58.35	+1	3139349..3140527	-	392	162139553	yqeF	SC2958	-	acetyl-CoA acetyltransferase
2942	 57.18	0	3140650..3140997	-	115	62181529	-	SC2959	-	LysR family transcriptional regulator
2943	 49.37	0	3141045..3141281	+	78	62181530	-	SC2960	-	putative inner membrane protein
2944	 46.99	0	3141423..3142652	+	409	62181531	yqeG	SC2961	-	putative transport protein
2945	 46.52	0	3142683..3142955	-	90	62181532	yohL	SC2962	-	hypothetical protein
2946	 55.20	0	3144154..3144912	-	252	62181533	-	SC2963	-	hypothetical protein
2947	 51.87	0	3144899..3145405	-	168	62181534	-	SC2964	-	hypothetical protein
2948	 36.61	-2	3145512..3145694	-	60	62181535	-	SC2965	-	putative outer membrane protein
2949	 40.20	-2	3145796..3146581	-	261	62181536	-	SC2966	-	hypothetical protein
2950	 58.47	+1	3146578..3147321	-	247	62181537	stdC	SC2967	-	putative fimbrial chaparone protein
2951	 60.80	+1	3147362..3149851	-	829	62181538	stdB	SC2968	-	putative outer membrane usher protein
2952	 48.80	0	3149971..3150681	-	236	62181539	stdA	SC2969	-	putative fimbrial-like protein
2953	 45.02	-1	3151274..3151906	-	210	62181540	yfdX	SC2970	-	hypothetical protein
2954	 48.98	0	3151953..3152489	-	178	62181541	pagC	SC2971	-	outer membrane protein (associated with virulence)
2955	 31.14	-2	3152535..3152762	-	75	62181542	-	SC2972	-	hypothetical protein
2956	 50.63	0	3153295..3153693	-	132	62181543	pilT	SC2973	-	plasmid maintenance protein
2957	 46.72	0	3153693..3154058	-	121	62181544	yge	SC2974	-	putative cytoplasmic protein
2958	 48.81	0	3154129..3154380	+	83	62181545	-	SC2975	-	putative periplasmic protein
2959	 52.80	0	3154821..3155462	+	213	62181546	-	SC2976	-	hypothetical protein
2960	 54.02	0	3155747..3156505	-	252	62181548	ygeR	SC2978	-	putative metalloendopeptidase
2961	 52.20	0	3156770..3157315	+	181	62181549	idi	SC2979	-	isopentenyl-diphosphate delta-isomerase
2962	 54.15	0	3157391..3158908	-	505	62181550	lysS	SC2980	-	lysyl-tRNA synthetase
2963	 54.31	0	3158918..3159799	-	293	62181551	prfB	SC2981	-	peptide chain release factor RF-2
2964	 57.61	0	3160121..3161854	-	577	62181552	recJ	SC2982	-	ssDNA exonuclease RecJ
2965	 50.42	0	3161860..3162573	-	237	62181553	dsbC	SC2983	-	thiol:disulfide interchange protein DsbC
2966	 54.07	0	3162597..3163493	-	298	62181554	xerD	SC2984	-	site-specific tyrosine recombinase XerD
2967	 52.68	0	3163606..3164127	+	173	162139552	fldB	SC2985	-	flavodoxin FldB
2968	 54.83	0	3164180..3164593	-	137	62181556	ygfX	SC2986	-	hypothetical protein
2969	 44.19	-1	3164574..3164840	-	88	62181557	ygfY	SC2987	-	hypothetical protein
2970	 43.88	-1	3164839..3165075	+	78	62181558	-	SC2988	-	hypothetical protein
2971	 56.78	0	3165090..3166070	+	326	62181559	ygfZ	SC2989	-	putative global regulator
2972	 50.91	0	3166186..3166845	-	219	62181560	yqfA	SC2990	-	hypothetical protein
2973	 45.19	-1	3167009..3167320	-	103	62181561	yqfB	SC2991	-	hypothetical protein
2974	 51.26	0	3167478..3168911	+	477	62181562	bglA	SC2992	-	6-phospho-beta-glucosidase A
2975	 43.96	-1	3168959..3169852	-	297	62181563	-	SC2993	-	putative outer membrane protein
2976	 56.68	0	3170308..3173181	-	957	162139551	gcvP	SC2994	-	glycine dehydrogenase
2977	 54.87	0	3173344..3173733	-	129	62181565	gcvH	SC2995	-	glycine cleavage system protein H
2978	 55.62	0	3173759..3174853	-	364	62181566	gcvT	SC2996	-	glycine cleavage system aminomethyltransferase T
2979	 57.36	0	3175308..3176510	-	400	62181567	-	SC2997	-	hypothetical protein
2980	 60.90	+1	3176633..3177811	-	392	62181568	ubiH	SC2998	-	2-octaprenyl-6-methoxyphenyl hydroxylase
2981	 56.04	0	3177808..3179124	-	438	62181569	pepP	SC2999	-	proline aminopeptidase P II
2982	 54.06	0	3179150..3179728	-	192	162139550	ygfB	SC3000	-	hypothetical protein
2983	 47.58	0	3179895..3180224	+	109	62181571	ygfE	SC3001	-	Z-ring-associated protein
2984	 56.95	0	3180471..3181067	+	198	62181572	ygfA	SC3002	-	putative ligase
2985	 55.31	0	3181449..3182681	-	410	62181573	serA	SC3003	-	D-3-phosphoglycerate dehydrogenase
2986	 54.70	0	3182948..3183607	-	219	62181574	rpiA	SC3004	-	ribose-5-phosphate isomerase A
2987	 57.94	+1	3183761..3184654	+	297	62181575	iciA	SC3005	-	chromosome replication initiation inhibitor protein
2988	 50.79	0	3184666..3184917	+	83	62181576	-	SC3006	-	hypothetical protein
2989	 55.56	0	3184920..3185666	-	248	62181577	yggE	SC3007	-	hypothetical protein
2990	 54.87	0	3185760..3186395	-	211	62181578	yggA	SC3008	-	arginine exporter protein
2991	 50.87	0	3186596..3187456	-	286	62181579	yggB	SC3009	-	mechanosensitive channel MscS
2992	 51.20	0	3187689..3188768	-	359	162139549	fba	SC3010	-	fructose-bisphosphate aldolase
2993	 54.38	0	3188870..3190033	-	387	62181581	pgk	SC3011	-	phosphoglycerate kinase
2994	 53.87	0	3190055..3191101	-	348	62181582	epd	SC3012	-	erythrose 4-phosphate dehydrogenase
2995	 56.57	0	3191475..3191900	+	141	62181583	-	SC3013	-	hypothetical protein
2996	 55.79	0	3191926..3192504	+	192	62181584	-	SC3014	-	hypothetical protein
2997	 59.46	+1	3192505..3193212	+	235	62181585	-	SC3015	-	hypothetical protein
2998	 55.90	0	3193200..3193877	+	225	62181586	cbiO	SC3016	-	putative ABC-type cobalt transport system, ATPase component
2999	 58.55	+1	3193826..3194527	+	233	62181587	cysA	SC3017	-	putative ABC-type cobalt transport system, ATPase component
3000	 57.48	0	3194571..3196562	-	663	62181588	tktA	SC3018	-	transketolase
3001	 54.55	0	3196838..3197596	+	252	62181589	yggG	SC3019	-	putative Zn-dependent protease with chaperone function
3002	 55.48	0	3197697..3198617	-	306	62181590	speB	SC3020	-	agmatinase
3003	 40.72	-1	3201329..3201802	-	157	62181591	yhcH	SC3021	-	putative mannitol dehydrogenase
3004	 51.19	0	3201841..3202848	-	335	62181592	yjmC	SC3022	-	putative malate/L-lactate dehydrogenase
3005	 51.33	0	3202862..3203878	-	338	62181593	yjjN	SC3023	-	putative zinc-binding dehydrogenase
3006	 44.94	-1	3206586..3207386	-	266	62181594	uxuR	SC3024	-	GntR family transcriptional regulator
3007	 47.95	0	3207540..3208271	-	243	62181595	-	SC3025	-	putative outer membrane lipoprotein
3008	 55.61	0	3208416..3210314	-	632	62181596	speA	SC3026	-	arginine decarboxylase
3009	 44.70	-1	3210401..3210532	-	43	62181597	yqgB	SC3027	-	hypothetical protein
3010	 50.91	0	3210666..3210830	+	54	62181598	yqgC	SC3028	-	putative cytoplasmic protein
3011	 45.33	-1	3210827..3211126	-	99	62181599	yqgD	SC3029	-	putative inner membrane protein
3012	 54.29	0	3211182..3212336	+	384	62181600	metK	SC3030	-	S-adenosylmethionine synthetase
52.01	MEAN

5.72	STD DEV
