IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

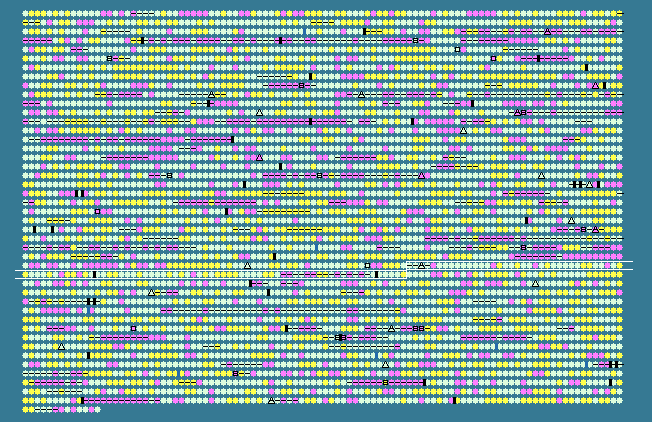

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2865	 51.25	0	3047033..3047830	-	265	62181451	-	SC2881	-	beta-lactamase family hydrolase
2866	 50.50	0	3047938..3048339	+	133	62181452	-	SC2882	-	putative cytoplasmic protein
2867	 50.15	0	3048510..3049193	+	227	62181453	int	SC2883	-	putative integrase protein
2868	 51.49	0	3049995..3050666	-	223	62181454	ygcF	SC2884	-	hypothetical protein
2869	 43.33	-1	3050650..3050799	-	49	62181455	-	SC2885	-	hypothetical protein
2870	 52.27	0	3050802..3052100	-	432	62181456	eno	SC2886	-	phosphopyruvate hydratase
2871	 52.32	0	3052183..3053820	-	545	62181457	pyrG	SC2887	-	CTP synthetase
2872	 52.56	0	3054048..3054848	-	266	62181458	mazG	SC2888	-	nucleoside triphosphate pyrophosphohydrolase
2873	 49.49	0	3055456..3056043	+	195	62181459	stfA	SC2889	-	putative fimbrial subunit
2874	 55.37	0	3056123..3058822	+	899	62181460	steB	SC2890	-	outer membrane usher protein
2875	 54.91	0	3058835..3059608	+	257	62181461	stfD	SC2891	-	putative periplasmic fimbrial chaperone
2876	 55.32	0	3059580..3060134	+	184	62181462	stfE	SC2892	-	putaive minor fimbrial subunit
2877	 50.21	0	3060134..3060619	+	161	62181463	stfF	SC2893	-	putative minor fimbrial subunit
2878	 52.51	0	3060616..3061152	+	178	62181464	yfcP	SC2894	-	fimbrial subunit
2879	 36.73	-2	3061207..3062031	+	274	62181465	-	SC2895	-	hypothetical protein
2880	 55.70	0	3062588..3064822	-	744	62181466	relA	SC2896	-	GDP/GTP pyrophosphokinase
2881	 54.48	0	3064874..3066169	-	431	62181467	rumA	SC2897	-	23S rRNA 5-methyluridine methyltransferase
2882	 52.59	0	3066226..3068982	+	918	62181468	barA	SC2898	-	hybrid sensory histidine kinase BarA
2883	 58.09	+1	3069026..3070168	-	380	62181469	grk	SC2899	-	hypothetical protein
2884	 55.33	0	3070246..3071586	-	446	62181470	gudD	SC2900	-	d-glucarate dehydratase
2885	 52.10	0	3072944..3074302	-	452	62181471	gudT	SC2901	-	MFS superfamily, D-glucarate permease
2886	 46.03	-1	3074382..3074633	+	83	62181472	-	SC2902	-	hypothetical protein
2887	 54.00	0	3074783..3075232	-	149	62181473	yqcA	SC2903	-	flavodoxin
2888	 58.49	+1	3075251..3076033	-	260	62181474	yqcB	SC2904	-	tRNA pseudouridine synthase C
2889	 54.26	0	3076033..3076419	-	128	62181475	yqcC	SC2905	-	hypothetical protein
2890	 52.38	0	3076974..3077519	-	181	62181476	syd	SC2906	-	SecY interacting protein Syd
2891	 53.12	0	3077588..3078436	+	282	62181477	queF	SC2907	-	7-cyano-7-deazaguanine reductase
2892	 54.87	0	3078549..3079913	+	454	62181478	ygdH	SC2908	-	hypothetical protein
2893	 53.26	0	3080478..3081767	+	429	62181479	sdaC	SC2909	-	HAAAP family, serine transport protein
2894	 56.21	0	3081826..3083193	+	455	62181480	sdaB	SC2910	-	L-serine dehydratase (L-threonine deaminase 2)
2895	 55.64	0	3083304..3084119	+	271	62181481	xni	SC2911	-	exonuclease IX
2896	 55.29	0	3084211..3085353	-	380	62181482	fucO	SC2912	-	L-1,2-propanediol oxidoreductase
2897	 52.62	0	3085370..3086017	-	215	62181483	fucA	SC2913	-	L-fuculose phosphate aldolase
2898	 37.50	-2	3086171..3086338	-	55	62181484	-	SC2914	-	hypothetical protein
2899	 50.19	0	3086573..3087889	+	438	62181485	fucP	SC2915	-	L-fucose transporter
2900	 57.49	0	3087921..3089696	+	591	62181486	fucI	SC2916	-	L-fucose isomerase
2901	 58.91	+1	3089797..3091215	+	472	62181487	fucK	SC2917	-	L-fuculokinase
2902	 54.37	0	3091217..3091639	+	140	62181488	fucU	SC2918	-	fucose operon protein
2903	 49.65	0	3091697..3092407	+	236	62181489	fucR	SC2919	-	DNA-binding transcriptional activator FucR
2904	 53.13	0	3092466..3093566	-	366	62181490	ygdE	SC2920	-	putative RNA 2'-O-ribose methyltransferase
2905	 56.31	0	3093559..3093954	-	131	62181491	ygdD	SC2921	-	hypothetical protein
2906	 50.65	0	3093973..3094890	-	305	62181492	gcvA	SC2922	-	DNA-binding transcriptional activator GcvA
2907	 45.61	-1	3095229..3095456	-	75	62181493	ygdI	SC2923	-	putative lipoprotein
2908	 59.95	+1	3095649..3096854	+	401	62181494	csdA	SC2924	-	cysteine sulfinate desulfinase
2909	 57.43	0	3096854..3097297	+	147	62181495	ygdK	SC2925	-	hypothetical protein
2910	 41.75	-1	3097570..3098484	+	304	62181496	rarD	SC2926	-	hypothetical protein
2911	 56.26	0	3098536..3099342	-	268	62181497	ygdL	SC2927	-	hypothetical protein
2912	 54.55	0	3099452..3100549	-	365	62181498	mltA	SC2928	-	murein transglycosylase A
2913	 53.51	0	3101049..3102302	-	417	62181499	amiC	SC2929	-	N-acetylmuramoyl-L-alanine amidase
2914	 52.85	0	3102535..3103866	+	443	62181500	argA	SC2930	-	N-acetylglutamate synthase
2915	 58.33	+1	3103969..3105804	-	611	62181501	RecD	SC2931	-	exonuclease V subunit alpha
2916	 55.61	0	3105801..3109346	-	1181	62181502	RecB	SC2932	-	exonuclease V subunit beta
2917	 52.30	0	3109339..3112227	-	962	62181503	ptr	SC2933	-	protease III
2918	 53.83	0	3112405..3115776	-	1123	62181504	recC	SC2934	-	exonuclease V subunit gamma
2919	 53.27	0	3115792..3116112	-	106	62181505	ppdC	SC2935	-	hypothetical protein
2920	 55.64	0	3116097..3116504	-	135	62181506	ygdB	SC2936	-	hypothetical protein
2921	 53.37	0	3116501..3117064	-	187	62181507	ppdB	SC2937	-	hypothetical protein
2922	 55.41	0	3117055..3117525	-	156	62181508	ppdA	SC2938	-	hypothetical protein
2923	 51.70	0	3117710..3118504	-	264	62181510	thyA	SC2940	-	thymidylate synthase
2924	 53.88	0	3118511..3119386	-	291	62181511	lgt	SC2941	-	prolipoprotein diacylglyceryl transferase
2925	 57.01	0	3119602..3121848	-	748	62181512	ptsP	SC2942	-	fused phosphoenolpyruvate-protein phosphotransferase PtsP/GAF domain-containing protein
2926	 50.66	0	3121861..3122391	-	176	62181513	ygdP	SC2943	-	dinucleoside polyphosphate hydrolase
2927	 57.90	+1	3123074..3123769	+	231	62181514	mutH	SC2944	-	DNA mismatch repair protein
2928	 50.98	0	3123951..3124664	+	237	62181515	ygdQ	SC2945	-	hypothetical protein
2929	 47.49	0	3124834..3125052	+	72	62181516	ygdR	SC2946	-	POT family peptide transport protein
2930	 54.85	0	3125243..3126283	+	346	62181517	tas	SC2947	-	putative aldo-keto reductase
2931	 58.69	+1	3126370..3127572	-	400	62181518	ygeD	SC2948	-	hypothetical protein
2932	 54.81	0	3127565..3129724	-	719	62181519	aas	SC2949	-	bifunctional acyl-[acyl carrier protein] synthetase/2-acylglycerophosphoethanolamine acyltransferase
2933	 56.17	0	3130316..3131344	+	342	62181520	galR	SC2950	-	DNA-binding transcriptional regulator GalR
2934	 57.23	0	3131265..3132377	+	370	62181521	-	SC2951	-	putative transcriptional regulator
2935	 57.17	0	3132387..3133649	-	420	62181522	lysA	SC2952	-	diaminopimelate decarboxylase
2936	 58.23	+1	3133767..3134702	+	311	62181523	lysR	SC2953	-	DNA-binding transcriptional regulator LysR
2937	 53.60	0	3134674..3135354	-	226	62181524	ygeA	SC2954	-	putative racemase
2938	 52.64	0	3135494..3136912	-	472	62181525	araE	SC2955	-	major facilitator superfamily L-arabinose: proton symporter
2939	 51.57	0	3137265..3138026	-	253	62181526	kduD	SC2956	-	2-deoxy-D-gluconate 3-dehydrogenase
2940	 51.25	0	3138083..3138919	-	278	62181527	kduI	SC2957	-	5-keto-4-deoxyuronate isomerase
2941	 58.35	+1	3139349..3140527	-	392	162139553	yqeF	SC2958	-	acetyl-CoA acetyltransferase
2942	 57.18	0	3140650..3140997	-	115	62181529	-	SC2959	-	LysR family transcriptional regulator
2943	 49.37	0	3141045..3141281	+	78	62181530	-	SC2960	-	putative inner membrane protein
2944	 46.99	0	3141423..3142652	+	409	62181531	yqeG	SC2961	-	putative transport protein
2945	 46.52	0	3142683..3142955	-	90	62181532	yohL	SC2962	-	hypothetical protein
2946	 55.20	0	3144154..3144912	-	252	62181533	-	SC2963	-	hypothetical protein
2947	 51.87	0	3144899..3145405	-	168	62181534	-	SC2964	-	hypothetical protein
2948	 36.61	-2	3145512..3145694	-	60	62181535	-	SC2965	-	putative outer membrane protein
2949	 40.20	-2	3145796..3146581	-	261	62181536	-	SC2966	-	hypothetical protein
2950	 58.47	+1	3146578..3147321	-	247	62181537	stdC	SC2967	-	putative fimbrial chaparone protein
2951	 60.80	+1	3147362..3149851	-	829	62181538	stdB	SC2968	-	putative outer membrane usher protein
2952	 48.80	0	3149971..3150681	-	236	62181539	stdA	SC2969	-	putative fimbrial-like protein
2953	 45.02	-1	3151274..3151906	-	210	62181540	yfdX	SC2970	-	hypothetical protein
2954	 48.98	0	3151953..3152489	-	178	62181541	pagC	SC2971	-	outer membrane protein (associated with virulence)
2955	 31.14	-2	3152535..3152762	-	75	62181542	-	SC2972	-	hypothetical protein
2956	 50.63	0	3153295..3153693	-	132	62181543	pilT	SC2973	-	plasmid maintenance protein
2957	 46.72	0	3153693..3154058	-	121	62181544	yge	SC2974	-	putative cytoplasmic protein
2958	 48.81	0	3154129..3154380	+	83	62181545	-	SC2975	-	putative periplasmic protein
2959	 52.80	0	3154821..3155462	+	213	62181546	-	SC2976	-	hypothetical protein
2960	 54.02	0	3155747..3156505	-	252	62181548	ygeR	SC2978	-	putative metalloendopeptidase
2961	 52.20	0	3156770..3157315	+	181	62181549	idi	SC2979	-	isopentenyl-diphosphate delta-isomerase
2962	 54.15	0	3157391..3158908	-	505	62181550	lysS	SC2980	-	lysyl-tRNA synthetase
2963	 54.31	0	3158918..3159799	-	293	62181551	prfB	SC2981	-	peptide chain release factor RF-2
2964	 57.61	0	3160121..3161854	-	577	62181552	recJ	SC2982	-	ssDNA exonuclease RecJ
52.01	MEAN

5.72	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
