IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

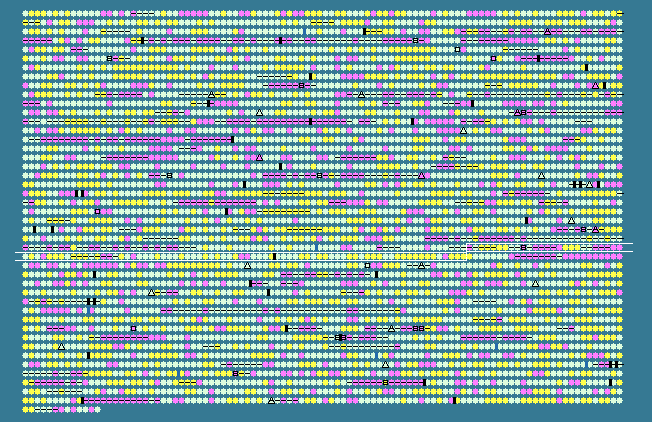

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2675	 48.48	0	2843616..2844143	+	175	62181258	smpB	SC2688	-	SsrA-binding protein
2676	 53.94	0	2844757..2845314	+	185	62181259	-	SC2689	-	large repetitive protein
2677	 58.13	+1	2845347..2850350	+	1667	62181260	amyH	SC2690	-	large repetitive protein
2678	 59.36	+1	2850508..2855163	+	1551	62181261	amyH	SC2691	-	large repetitive protein
2679	 56.56	0	2855368..2856228	+	286	62181262	-	SC2692	-	large repetitive protein
2680	 56.88	0	2856293..2857702	+	469	62181263	-	SC2693	-	putative outer membrane efflux protein
2681	 56.63	0	2857699..2859879	+	726	62181264	rtxI	SC2694	-	putative ABC transporter transmembrane region
2682	 53.82	0	2859860..2861050	+	396	62181265	cyaD	SC2695	-	HlyD family secretion protein
2683	 53.33	0	2861269..2861583	-	104	62181266	-	SC2696	-	hypothetical protein
2684	 45.72	-1	2861671..2862009	+	112	62181267	insN	SC2697	-	transposase insN
2685	 51.90	0	2862036..2862875	+	279	62181268	insM	SC2698	-	hypothetical protein
2686	 41.88	-1	2863501..2864460	+	319	62181269	-	SC2699	-	reverse transcriptase-like protein
2687	 40.12	-2	2864363..2865349	+	328	62181270	-	SC2700	-	hypothetical protein
2688	 40.37	-2	2865967..2866506	-	179	62181271	fljA	SC2701	-	flagellar synthesis: repressor of fliC
2689	 46.42	0	2869796..2870368	-	190	62181272	hin	SC2702	-	H inversion: regulation of flagellar gene expression by site-specific inversion of DNA
2690	 44.81	-1	2870772..2870954	+	60	62181273	-	SC2703	-	hypothetical protein
2691	 56.81	0	2871059..2872174	+	371	62181274	iroB	SC2704	-	putative glycosyl transferase, related to UDP-glucuronosyltransferase
2692	 58.68	+1	2872255..2875911	+	1218	62181275	iroC	SC2705	-	putative ATP binding cassette (ABC) transporter
2693	 62.17	+1	2876021..2877265	+	414	62181276	iroD	SC2706	-	enterochelin esterase
2694	 54.06	0	2877297..2878232	+	311	62181277	IroE	SC2707	-	hypothetical protein
2695	 51.08	0	2878274..2880454	-	726	62181278	iroN	SC2708	-	outer membrane receptor FepA
2696	 48.08	0	2880979..2881290	-	103	62181279	-	SC2709	-	putative inner membrane protein
2697	 44.25	-1	2881486..2882538	-	350	62181280	pipB	SC2710	-	pentapeptide repeat-containing protein
2698	 41.59	-1	2882610..2882948	+	112	62181281	-	SC2711	-	hypothetical protein
2699	 45.05	-1	2883057..2883986	+	309	62181282	virK	SC2712	-	virulence protein VirK
2700	 40.23	-2	2884378..2885175	+	265	62181283	mig	SC2713	-	putative transcription activator
2701	 50.30	0	2885896..2886909	-	337	62181284	nxiA	SC2714	-	putative nickel transporter
2702	 56.51	0	2887042..2888508	-	488	62181285	tctE	SC2715	-	tricarboxylic transport: regulatory protein
2703	 55.11	0	2888444..2889118	-	224	62181286	tctD	SC2716	-	tricarboxylic transport: regulatory protein
2704	 40.83	-1	2889157..2889276	+	39	62181287	-	SC2717	-	hypothetical protein
2705	 56.65	0	2889273..2890250	+	325	62181288	tctC	SC2718	-	tricarboxylic transport
2706	 57.47	0	2890262..2890696	+	144	62181289	tctB	SC2719	-	hypothetical protein
2707	 56.96	0	2890707..2892221	+	504	62181290	tctA	SC2720	-	hypothetical protein
2708	 53.99	0	2892524..2893501	+	325	162139554	ygaT	SC2721	-	hypothetical protein
2709	 59.50	+1	2893527..2894795	+	422	62181292	ygaF	SC2722	-	hypothetical protein
2710	 57.76	+1	2894817..2896265	+	482	62181293	gabD	SC2723	-	succinate-semialdehyde dehydrogenase I
2711	 57.71	0	2896280..2897563	+	427	62181294	gabT	SC2724	-	4-aminobutyrate aminotransferase
2712	 51.53	0	2897693..2899093	+	466	62181295	gabP	SC2725	-	gamma-aminobutyrate transporter
2713	 56.49	0	2899135..2899812	+	225	62181296	ygaE	SC2726	-	DNA-binding transcriptional regulator CsiR
2714	 44.22	-1	2899834..2900283	-	149	62181297	ygaU	SC2727	-	hypothetical protein
2715	 42.77	-1	2900383..2900541	-	52	62181298	yqaE	SC2728	-	YqaE family transport protein
2716	 51.33	0	2900724..2901023	+	99	62181299	ygaV	SC2729	-	ArsR family regulatory protein
2717	 56.63	0	2901033..2901560	+	175	62181300	ygaP	SC2730	-	hypothetical protein
2718	 51.67	0	2901639..2901818	+	59	62181301	-	SC2731	-	hypothetical protein
2719	 46.27	-1	2901908..2902309	-	133	62181302	stpA	SC2732	-	DNA binding protein, nucleoid-associated
2720	 50.22	0	2903008..2903457	+	149	62181303	ygaW	SC2733	-	hypothetical protein
2721	 49.29	0	2903492..2903842	-	116	62181304	ygaC	SC2734	-	hypothetical protein
2722	 54.74	0	2904004..2904330	+	108	62181305	ygaM	SC2735	-	hypothetical protein
2723	 56.93	0	2904414..2905748	-	444	62181306	mocR	SC2736	-	GntR family transcriptional regulator
2724	 51.16	0	2905837..2906268	+	143	62181307	ynjA	SC2737	-	putative cytoplasmic protein
2725	 54.80	0	2906265..2906441	+	58	62181308	-	SC2738	-	hypothetical protein
2726	 53.64	0	2906525..2906785	+	86	62181309	nrdH	SC2739	-	glutaredoxin-like protein
2727	 57.42	0	2906782..2907192	+	136	62181310	nrdI	SC2740	-	ribonucleotide reductase stimulatory protein
2728	 53.94	0	2907165..2909309	+	714	62181311	nrdE	SC2741	-	ribonucleotide-diphosphate reductase subunit alpha
2729	 49.69	0	2909320..2910279	+	319	62181312	nrdF	SC2742	-	ribonucleotide-diphosphate reductase subunit beta
2730	 50.04	0	2910635..2911837	+	400	62181313	proV	SC2743	-	glycine betaine transporter ATP-binding subunit
2731	 59.34	+1	2911830..2912894	+	354	62181314	proW	SC2744	-	glycine betaine transporter membrane protein
2732	 53.71	0	2912964..2913959	+	331	62181315	proX	SC2745	-	glycine betaine transporter periplasmic subunit
2733	 59.24	+1	2914124..2915308	+	394	62181316	ygaY	SC2746	-	putative inner membrane protein
2734	 48.78	0	2915805..2916335	+	176	62181317	emrR	SC2747	-	transcriptional repressor MprA
2735	 54.33	0	2916435..2917634	+	399	62181318	emrA	SC2748	-	multidrug resistance secretion protein
2736	 56.99	0	2917651..2919189	+	512	62181319	emrB	SC2749	-	MFS superfamily, multidrug transport protein
2737	 47.26	0	2919238..2920608	-	456	62181320	-	SC2750	-	putative glycoporin
2738	 30.56	-2	2920753..2920896	+	47	62181321	-	SC2751	-	hypothetical protein
2739	 53.29	0	2920954..2921469	-	171	62181322	luxS	SC2752	-	S-ribosylhomocysteinase
2740	 52.28	0	2921619..2923175	-	518	62181323	gshA	SC2753	-	glutamate--cysteine ligase
2741	 53.76	0	2923252..2923677	-	141	62181324	yqaA	SC2754	-	putative inner membrane protein
2742	 56.44	0	2923674..2924240	-	188	62181325	yqaB	SC2755	-	fructose-1-phosphatase
2743	 51.08	0	2925362..2925547	-	61	62181329	csrA	SC2759	-	carbon storage regulator
2744	 55.04	0	2925783..2928413	-	876	62181330	alaS	SC2760	-	alanyl-tRNA synthetase
2745	 51.30	0	2928649..2929149	-	166	62181331	recX	SC2761	-	recombination regulator RecX
2746	 54.71	0	2929266..2930327	-	353	62181332	recA	SC2762	-	recombinase A
2747	 59.44	+1	2930412..2930909	-	165	62181333	ygaD	SC2763	-	competence damage-inducible protein A
2748	 55.59	0	2931388..2932515	-	375	62181334	mltB	SC2764	-	murein hydrolase B
2749	 50.35	0	2932721..2933284	+	187	62181335	srlA	SC2765	-	PTS family, glucitol/sorbitol-specific enzyme IIC component,one of two IIC components
2750	 58.23	+1	2933281..2934252	+	323	62181336	srlE	SC2766	-	PTS family, glucitol/sorbitol-specific IIB component, one of two IIC components
2751	 58.40	+1	2934264..2934626	+	120	62181337	slrB	SC2767	-	glucitol/sorbitol-specific PTS system component IIA
2752	 54.74	0	2934638..2935417	+	259	62181338	srlD	SC2768	-	sorbitol-6-phosphate dehydrogenase
2753	 55.00	0	2935493..2935852	+	119	62181339	gutM	SC2769	-	DNA-binding transcriptional activator GutM
2754	 50.00	0	2936050..2936823	+	257	62181340	srlR	SC2770	-	DNA-bindng transcriptional repressor SrlR
2755	 56.83	0	2936816..2937781	+	321	62181341	gutQ	SC2771	-	D-arabinose 5-phosphate isomerase
2756	 59.87	+1	2937786..2939300	-	504	62181342	ygaA	SC2772	-	anaerobic nitric oxide reductase transcription regulator
2757	 53.40	0	2939486..2940925	+	479	62181343	norV	SC2773	-	anaerobic nitric oxide reductase flavorubredoxin
2758	 56.35	0	2940922..2942055	+	377	62181344	ygbD	SC2774	-	nitric oxide reductase
2759	 60.11	+1	2942152..2944392	-	746	62181345	hypF	SC2775	-	hydrogenase maturation protein
2760	 56.59	0	2944538..2945083	-	181	62181346	hydN	SC2776	-	electron transport protein HydN
2761	 53.21	0	2945284..2946093	-	269	62181347	-	SC2777	-	putative periplasmic or exported protein
2762	 55.41	0	2946120..2946590	-	156	62181348	hycI	SC2778	-	hydrogenase 3 maturation protease
2763	 56.93	0	2946583..2946993	-	136	62181349	hycH	SC2779	-	processing of HycE (part of the FHL complex)
2764	 59.51	+1	2946990..2947757	-	255	62181350	hycG	SC2780	-	hydrogenase activity
2765	 55.80	0	2947757..2948299	-	180	62181351	hycF	SC2781	-	formate hydrogenlyase complex iron-sulfur subunit
2766	 57.13	0	2948309..2950018	-	569	62181352	hycE	SC2782	-	formate hydrogenlyase subunit 5 precursor
2767	 58.98	+1	2950036..2950959	-	307	62181353	hycD	SC2783	-	hydrogenase 3, membrane subunit (part of FHL complex)
2768	 60.67	+1	2950971..2952788	-	605	62181354	hycC	SC2784	-	formate hydrogenlyase subunit 3
2769	 57.64	0	2952788..2953396	-	202	62181355	hycB	SC2785	-	hydrogenase-3, iron-sulfur subunit (part of FHL complex)
2770	 50.87	0	2953542..2954003	-	153	62181356	hycA	SC2786	-	formate hydrogenlyase regulatory protein HycA
2771	 48.18	0	2954213..2954569	+	118	62181357	hypA	SC2787	-	hydrogenase nickel incorporation protein
2772	 57.39	0	2954638..2955510	+	290	62181358	hypB	SC2788	-	hydrogenase nickel incorporation protein HypB
2773	 55.68	0	2955501..2955773	+	90	62181359	hypC	SC2789	-	hydrogenase isoenzymes formation protein
2774	 57.93	+1	2955773..2956894	+	373	62181360	hypD	SC2790	-	putative hydrogenase expression/formation protein
52.01	MEAN

5.72	STD DEV
