IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

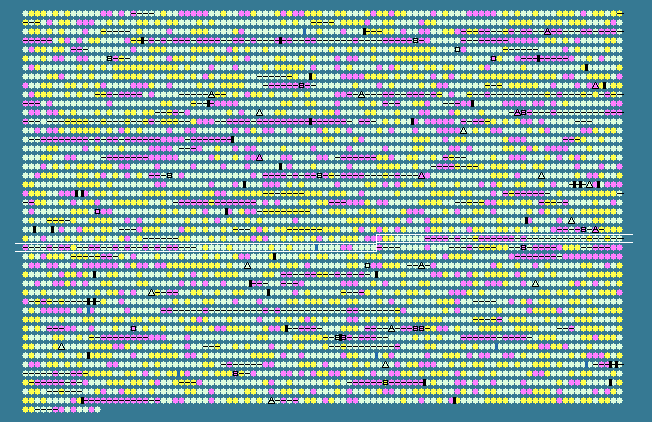

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2560	 46.74	0	2742152..2742412	+	86	62181141	yfhL	SC2571	-	putative ferredoxin
2561	 56.96	0	2742524..2742904	-	126	62181142	acpS	SC2572	-	4'-phosphopantetheinyl transferase
2562	 57.92	+1	2742904..2743635	-	243	62181143	pdxJ	SC2573	-	pyridoxal phosphate biosynthetic protein PdxJ
2563	 55.42	0	2743647..2744375	-	242	62181144	recO	SC2574	-	DNA repair protein RecO
2564	 51.43	0	2744387..2745292	-	301	62181145	era	SC2575	-	GTP-binding protein Era
2565	 52.03	0	2745289..2746026	-	245	62181146	rnc	SC2576	-	ribonuclease III
2566	 53.13	0	2746242..2747216	-	324	62181147	lepB	SC2577	-	lsignal peptidase I
2567	 52.56	0	2747233..2749032	-	599	62181148	lepA	SC2578	-	GTP-binding protein LepA
2568	 33.47	-2	2749431..2750927	+	498	62181149	gogB	SC2579	-	leucine-rich repeat-containing prophage
2569	 32.77	-2	2751154..2751330	+	58	62181150	-	SC2580	-	hypothetical protein
2570	 45.80	-1	2751745..2752161	-	138	62181151	tfa	SC2581	-	Fels-2 prophage Tfa
2571	 48.05	0	2752168..2753580	-	470	62181152	pin	SC2582	-	Fels-2 prophage Pin
2572	 52.05	0	2753125..2753466	+	113	62181153	-	SC2583	-	hypothetical protein
2573	 46.55	0	2753580..2754260	-	226	62181154	-	SC2584	-	putative bacteriophage protein
2574	 51.75	0	2754257..2755456	-	399	62181155	-	SC2585	-	putative bacteriophage protein
2575	 52.82	0	2755457..2755810	-	117	62181156	-	SC2586	-	putative bacteriophage protein
2576	 55.82	0	2755946..2756701	-	251	62181157	-	SC2587	-	putative bacteriophage protein
2577	 48.09	0	2756765..2757550	-	261	62181158	-	SC2588	-	hypothetical protein
2578	 43.26	-1	2757615..2758178	-	187	62181159	-	SC2589	-	putative bacteriophage protein
2579	 46.54	0	2758252..2758410	-	52	62181160	-	SC2590	-	hypothetical protein
2580	 44.44	-1	2758511..2758888	+	125	62181161	-	SC2591	-	putative regulatory protein
2581	 46.13	-1	2758895..2759230	-	111	62181162	-	SC2592	-	hypothetical protein
2582	 47.97	0	2759227..2760258	-	343	62181163	-	SC2593	-	putative bacteriophage protein
2583	 51.49	0	2760261..2760563	-	100	62181164	-	SC2594	-	putative bacteriophage protein
2584	 47.93	0	2760567..2761217	-	216	62181165	-	SC2595	-	putative bacteriophage protein
2585	 52.69	0	2761217..2763169	-	650	62181166	-	SC2596	-	putative bacteriophage protein
2586	 54.30	0	2763347..2763799	-	150	62181167	-	SC2597	-	putative bacteriophage protein
2587	 54.05	0	2763803..2764246	-	147	62181168	-	SC2598	-	putative bacteriophage protein
2588	 54.71	0	2764259..2765404	-	381	62181169	-	SC2599	-	putative bacteriophage protein
2589	 54.61	0	2765408..2765971	-	187	62181170	-	SC2600	-	putative bacteriophage protein
2590	 53.59	0	2765946..2766335	-	129	62181171	-	SC2601	-	putative bacteriophage protein
2591	 53.69	0	2766322..2766876	-	184	62181172	-	SC2602	-	putative bacteriophage protein
2592	 54.17	0	2766873..2767280	-	135	62181173	-	SC2603	-	putative bacteriophage protein
2593	 53.12	0	2767246..2767614	-	122	62181174	-	SC2604	-	putative bacteriophage protein
2594	 52.87	0	2767656..2768597	-	313	62181175	-	SC2605	-	putative bacteriophage protein
2595	 55.82	0	2768609..2769106	-	165	62181176	-	SC2606	-	putative bacteriophage protein
2596	 53.93	0	2769111..2770343	-	410	62181177	-	SC2607	-	hypothetical protein
2597	 54.52	0	2770358..2770966	-	202	62181178	-	SC2608	-	putative bacteriophage protein
2598	 56.26	0	2770980..2772449	-	489	62181179	-	SC2609	-	hypothetical protein
2599	 54.78	0	2772449..2774071	-	540	62181180	-	SC2610	-	hypothetical protein
2600	 50.60	0	2774074..2774652	-	192	62181181	-	SC2611	-	hypothetical protein
2601	 48.19	0	2774766..2775290	-	174	62181182	-	SC2612	-	hypothetical protein
2602	 51.78	0	2775508..2775957	-	149	62181183	enpP	SC2613	-	hypothetical protein
2603	 53.20	0	2775975..2776427	-	150	62181184	lycV	SC2614	-	Gifsy-2 prophage lysozyme
2604	 51.19	0	2776411..2776746	-	111	62181185	-	SC2615	-	Gifsy-1 prophage protein
2605	 42.79	-1	2777016..2777702	+	228	62181186	gtgA	SC2616	-	hypothetical protein
2606	 54.22	0	2778063..2778512	+	149	62181187	-	SC2617	-	Gifsy-2 prophage protein
2607	 42.86	-1	2778648..2778773	-	41	62181188	-	SC2618	-	Gifsy-2 prophage protein
2608	 46.37	0	2779172..2779969	-	265	62181189	req	SC2619	-	Gifsy-2 prophage putative molecular chaperone
2609	 58.82	+1	2780102..2780713	-	203	62181190	ninG	SC2620	-	Gifsy-1 prophage NinG
2610	 51.74	0	2780716..2780916	-	66	62181191	-	SC2621	-	hypothetical protein
2611	 52.57	0	2780922..2781524	-	200	62181192	-	SC2622	-	Gifsy-2 prophage protein
2612	 42.17	-1	2781559..2781807	-	82	62181193	-	SC2623	-	putative bacteriophage protein
2613	 45.30	-1	2781924..2782157	-	77	62181194	dinI	SC2624	-	Gifsy-1 prophage DinI
2614	 52.81	0	2782312..2782578	-	88	62181195	-	SC2625	-	putative bacteriophage protein
2615	 53.55	0	2782672..2782953	-	93	62181196	-	SC2626	-	hypothetical protein
2616	 46.51	0	2782964..2783221	-	85	62181197	-	SC2627	-	hypothetical protein
2617	 53.41	0	2783224..2783487	-	87	62181198	ead	SC2628	-	Ead protein
2618	 46.59	0	2783575..2783838	-	87	62181199	-	SC2629	-	hypothetical protein
2619	 53.45	0	2783835..2784182	-	115	62181200	-	SC2630	-	putative DNA-binding protein
2620	 52.93	0	2784193..2784942	-	249	62181201	dnaC	SC2631	-	putative replication protein
2621	 47.15	0	2784945..2785928	-	327	62181202	prpO	SC2632	-	Gifsy-1 prophage PrpO
2622	 52.55	0	2786013..2786444	-	143	62181203	-	SC2633	-	Gifsy-1 prophage cI protein
2623	 46.19	-1	2786704..2787123	+	139	62181204	-	SC2634	-	putative DNA-binding protein
2624	 54.70	0	2787413..2787529	+	38	62181205	-	SC2635	-	Gifsy-1 prophage protein
2625	 45.91	-1	2787522..2787680	+	52	62181206	-	SC2636	-	Gifsy-1 prophage protein
2626	 38.75	-2	2787702..2788052	+	116	62181207	-	SC2637	-	Gifsy-1 prophage protein
2627	 53.18	0	2788179..2791106	+	975	62181208	recE	SC2638	-	Gifsy-1 prophage RecE
2628	 51.89	0	2791117..2792226	+	369	62181209	-	SC2639	-	Gifsy-2 prophage protein
2629	 52.08	0	2792269..2792508	+	79	62181210	-	SC2640	-	putative cytoplasmic protein
2630	 49.17	0	2792811..2793713	-	300	62181211	int	SC2641	-	Gifsy-1 prophage Int
2631	 58.54	+1	2794538..2795017	-	159	62181212	rseC	SC2642	-	SoxR reducing system protein RseC
2632	 54.96	0	2795014..2795970	-	318	62181213	rseB	SC2643	-	periplasmic negative regulator of sigmaE
2633	 53.00	0	2795970..2796686	-	238	62181214	rseA	SC2644	-	anti-RNA polymerase sigma factor SigE
2634	 50.87	0	2796652..2797227	-	191	62181215	rpoE	SC2645	-	RNA polymerase sigma factor RpoE
2635	 55.64	0	2797652..2799274	+	540	62181216	nadB	SC2646	-	L-aspartate oxidase
2636	 52.78	0	2799205..2800068	-	287	62181217	yfiC	SC2647	-	hypothetical protein
2637	 54.38	0	2800126..2801460	+	444	62181218	srmB	SC2648	-	ATP-dependent RNA helicase SrmB
2638	 50.69	0	2801478..2802422	-	314	62181219	yfiE	SC2649	-	LysR family transcriptional regulator
2639	 51.53	0	2802480..2803067	+	195	62181220	yfiK	SC2650	-	neutral amino-acid efflux protein
2640	 50.00	0	2803129..2803512	-	127	62181221	yfiD	SC2651	-	autonomous glycyl radical cofactor GrcA
2641	 55.07	0	2803831..2804520	+	229	62181222	ung	SC2652	-	uracil-DNA glycosylase
2642	 56.84	0	2804636..2805673	-	345	62181223	yfiF	SC2653	-	putative methyltransferase
2643	 53.33	0	2805877..2806296	+	139	62181224	trxC	SC2654	-	thioredoxin 2
2644	 54.63	0	2806369..2807049	+	226	62181225	yfiP	SC2655	-	putative cytoplasmic protein
2645	 55.62	0	2807103..2809763	+	886	62181226	yfiQ	SC2656	-	putative acetyl-CoA synthetase
2646	 49.45	0	2809875..2811233	+	452	62181227	pssA	SC2657	-	phosphatidylserine synthase
2647	 54.94	0	2811278..2811601	+	107	62181228	yfiM	SC2658	-	hypothetical protein
2648	 52.00	0	2811598..2812899	-	433	62181229	kgtP	SC2659	-	alpha-ketoglutarate transporter
2649	 49.34	0	2813003..2813458	-	151	62181230	-	SC2660	-	hypothetical protein
2650	 53.34	0	2819353..2821926	-	857	62181233	clpB	SC2663	-	protein disaggregation chaperone
2651	 54.23	0	2822056..2822787	-	243	62181234	yfiH	SC2664	-	hypothetical protein
2652	 53.31	0	2822784..2823764	-	326	62181235	rluD	SC2665	-	23S rRNA pseudouridine synthase D
2653	 52.17	0	2823896..2824633	+	245	62181236	yfiO	SC2666	-	outer membrane protein assembly complex subunit YfiO
2654	 44.23	-1	2824608..2824763	+	51	62181237	-	SC2667	-	hypothetical protein
2655	 47.20	0	2824905..2825243	+	112	62181238	yfiA	SC2668	-	translation inhibitor protein RaiA
2656	 54.18	0	2825494..2826654	+	386	62181239	pheA	SC2669	-	bifunctional chorismate mutase/prephenate dehydratase
2657	 54.02	0	2826615..2827523	-	302	62181240	yvrE	SC2670	-	hypothetical protein
2658	 54.99	0	2827581..2828702	-	373	62181241	tyrA	SC2671	-	bifunctional chorismate mutase/prephenate dehydrogenase
2659	 53.03	0	2828712..2829782	-	356	62181242	aroF	SC2672	-	phospho-2-dehydro-3-deoxyheptonate aldolase
52.01	MEAN

5.72	STD DEV
