IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

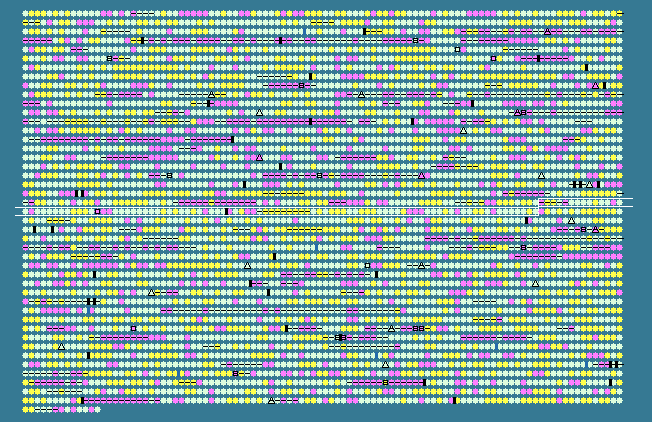

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2187	 46.21	-1	2300400..2300834	+	144	62180768	yohJ	SC2198	-	hypothetical protein
2188	 56.03	0	2300831..2301526	+	231	62180769	yohK	SC2199	-	hypothetical protein
2189	 56.38	0	2301680..2302564	+	294	62180770	cdd	SC2200	-	cytidine deaminase
2190	 52.11	0	2302678..2303460	+	260	62180771	sanA	SC2201	-	hypothetical protein
2191	 40.83	-1	2303463..2303702	+	79	62180772	yeiS	SC2202	-	hypothetical protein
2192	 50.40	0	2303907..2305148	+	413	62180773	yeiT	SC2203	-	putative oxidoreductase
2193	 51.38	0	2305142..2306377	+	411	62180774	yeiA	SC2204	-	dihydropyrimidine dehydrogenase
2194	 52.03	0	2306452..2307462	-	336	62180775	mglC	SC2205	-	beta-methylgalactoside transporter inner membrane component
2195	 51.25	0	2309131..2310129	-	332	62180776	mglB	SC2206	-	galactose ABC transporter permease
2196	 55.72	0	2310628..2311650	-	340	62180777	galS	SC2207	-	DNA-binding transcriptional regulator GalS
2197	 55.29	0	2311800..2312942	-	380	62180778	yeiB	SC2208	-	hypothetical protein
2198	 52.17	0	2312957..2313625	-	222	62180779	folE	SC2209	-	GTP cyclohydrolase I
2199	 45.74	-1	2313680..2313808	-	42	62180780	-	SC2210	-	hypothetical protein
2200	 52.05	0	2314803..2315192	-	129	62180781	-	SC2211	-	putative transcriptional regulator
2201	 55.04	0	2315197..2316564	-	455	62180782	sdhL	SC2212	-	putative D-serine dehydratase
2202	 45.16	-1	2316781..2317668	+	295	62180783	serB	SC2213	-	putative phosphoserine phosphatase
2203	 50.94	0	2317701..2319023	+	440	62180784	uhpC	SC2214	-	putative regulatory protein
2204	 54.22	0	2319067..2321058	-	663	62180785	cirA	SC2215	-	colicin I receptor
2205	 53.20	0	2321403..2322872	-	489	62180786	lysP	SC2216	-	lysine transporter
2206	 55.21	0	2323062..2323925	-	287	62180787	yeiE	SC2217	-	putative DNA-binding transcriptional regulator
2207	 54.48	0	2324046..2325095	+	349	62180788	yeiH	SC2218	-	hypothetical protein
2208	 53.85	0	2325174..2326031	+	285	62180789	nfo	SC2219	-	endonuclease IV
2209	 59.03	+1	2326096..2327784	-	562	62180790	fruA	SC2220	-	fructose-specific PTS system IIBC component
2210	 56.55	0	2327801..2328739	-	312	62180791	fruK	SC2221	-	1-phosphofructokinase
2211	 56.59	0	2328739..2329869	-	376	62180792	fruF	SC2222	-	bifunctional fructose-specific PTS IIA/HPr protein
2212	 54.40	0	2330238..2331419	+	393	62180793	setB	SC2223	-	proton efflux pump
2213	 44.83	-1	2331705..2332913	-	402	62180794	tnpR	SC2224	-	transposase of Tn10
2214	 37.37	-2	2333017..2333487	-	156	62180795	-	SC2225	-	hypothetical protein
2215	 38.21	-2	2333489..2333611	-	40	62180796	-	SC2226	-	putative inner membrane protein
2216	 50.26	0	2334577..2335149	+	190	62180797	yeiP	SC2227	-	elongation factor P
2217	 55.42	0	2335361..2336347	+	328	62180798	yeiR	SC2228	-	hypothetical protein
2218	 51.35	0	2336350..2337015	+	221	62180799	yeiU	SC2229	-	hypothetical protein
2219	 49.56	0	2337509..2338081	+	190	62180800	spr	SC2230	-	putative outer membrane lipoprotein
2220	 51.96	0	2338406..2339962	+	518	62180801	rtn	SC2231	-	hypothetical protein
2221	 51.83	0	2340069..2341874	+	601	62180802	yejA	SC2232	-	putative ABC transporter periplasmic binding protein
2222	 52.42	0	2341884..2342978	+	364	62180803	yejB	SC2233	-	putative ABC-type dipeptide/oligopeptide/nickel transport systems, permease component
2223	 55.46	0	2342978..2344003	+	341	62180804	yejE	SC2234	-	putative ABC-type dipeptide/oligopeptide/nickel transport systems, permease component
2224	 56.73	0	2344005..2345594	+	529	62180805	yejF	SC2235	-	ABC transporter ATPase
2225	 52.75	0	2345598..2345942	-	114	62180806	yejG	SC2236	-	hypothetical protein
2226	 62.63	+1	2346238..2346336	-	32	62180807	-	SC2237	-	hypothetical protein
2227	 54.16	0	2346333..2347523	-	396	62180808	bcr	SC2238	-	bicyclomycin/multidrug efflux system
2228	 54.02	0	2347551..2348246	-	231	62180809	rsuA	SC2239	-	16S rRNA pseudouridylate synthase A
2229	 57.07	0	2348398..2350158	+	586	62180810	yejH	SC2240	-	putative ATP-dependent helicase
2230	 51.23	0	2350283..2350567	+	94	62180811	rplY	SC2241	-	50S ribosomal protein L25
2231	 43.80	-1	2350676..2351296	-	206	62180812	-	SC2242	-	putative inner membrane protein
2232	 53.87	0	2351324..2352331	-	335	62180813	yejK	SC2243	-	nucleoid-associated protein NdpA
2233	 52.63	0	2352511..2352738	+	75	62180814	yejL	SC2244	-	hypothetical protein
2234	 52.07	0	2352770..2354530	+	586	62180815	yejM	SC2245	-	alkaline phosphatase superfamily hydrolase
2235	 45.43	-1	2357759..2358163	-	134	62180816	tfa	SC2246	-	bacteriophage tail fiber assembly protein
2236	 54.04	0	2358204..2358995	-	263	62180817	vtf	SC2247	-	putative tail fiber protein of phage
2237	 63.93	+2	2359087..2359269	+	60	62180818	-	SC2248	-	hypothetical protein
2238	 40.61	-1	2359241..2359501	+	86	62180819	msgA	SC2249	-	homolog of virulence protein MsgA
2239	 39.96	-2	2359693..2360250	-	185	62180820	-	SC2250	-	putative outer membrane protein
2240	 52.62	0	2360986..2361633	+	215	62180821	narP	SC2251	-	transcriptional regulator NarP
2241	 67.62	+2	2361677..2362720	-	347	62180822	ccmH	SC2252	-	putative heme lyase subunit, cytochrome c-type biogenesis
2242	 61.83	+1	2362717..2363274	-	185	62180823	ccmG	SC2253	-	heme lyase disulfide oxidoreductase, cytocyhrome c-type biogenesis
2243	 67.96	+2	2363271..2365202	-	643	62180824	ccmF	SC2254	-	cytochrome c-type biogenesis protein
2244	 65.42	+2	2365199..2365678	-	159	62180825	ccmE	SC2255	-	cytochrome c-type biogenesis protein CcmE
2245	 69.48	+2	2365675..2365887	-	70	62180826	ccmD	SC2256	-	heme exporter protein C, cytochrome c-type biogenesis protein
2246	 65.33	+2	2365884..2366630	-	248	62180827	ccmC	SC2257	-	heme ABC exporter
2247	 69.70	+2	2366673..2367332	-	219	62180828	ccmB	SC2258	-	heme ABC exporter
2248	 72.98	+2	2367329..2367946	-	205	62180829	ccmA	SC2259	-	cytochrome c biogenesis protein CcmA
2249	 51.91	0	2367967..2368569	-	200	62180830	napC	SC2260	-	cytochrome c-type protein NapC
2250	 57.78	+1	2368579..2369028	-	149	62180831	napB	SC2261	-	diheme cytochrome c550
2251	 54.14	0	2369144..2370013	-	289	62180832	napH	SC2262	-	quinol dehydrogenase membrane component
2252	 60.63	+1	2370000..2370695	-	231	62180833	napG	SC2263	-	quinol dehydrogenase periplasmic component
2253	 56.94	0	2370702..2373188	-	828	62180834	napA	SC2264	-	nitrate reductase
2254	 56.31	0	2373185..2373715	-	176	62180835	napD	SC2265	-	periplasmic nitrate reductase
2255	 55.21	0	2374349..2374837	+	162	62180836	eco	SC2266	-	ecotin precursor
2256	 55.11	0	2375046..2376689	-	547	62180837	yojI	SC2267	-	multidrug transporter membrane component/ATP-binding component
2257	 58.83	+1	2376765..2377415	-	216	62180838	alkB	SC2268	-	DNA repair system specific for alkylated DNA
2258	 61.02	+1	2377418..2378479	-	353	62180839	ada	SC2269	-	O6-methylguanine-DNA methyltransferase/transcription activator/repressor
2259	 56.70	0	2378560..2379612	-	350	62180840	apbE	SC2270	-	thiamine biosynthesis lipoprotein ApbE
2260	 52.42	0	2379727..2380863	-	378	62180841	ompC	SC2271	-	outer membrane porin protein C
2261	 51.35	0	2381592..2384261	+	889	62180842	yojN	SC2272	-	phosphotransfer intermediate protein in two-component regulatory system with RcsBC
2262	 49.57	0	2384233..2384928	+	231	62180843	rcsB	SC2273	-	transcriptional regulator RcsB
2263	 53.53	0	2385030..2387876	-	948	62180844	-	SC2274	-	hybrid sensory kinase in two-component regulatory system with RcsB and YojN
2264	 55.56	0	2387994..2390630	-	878	62180845	gyrA	SC2275	-	DNA gyrase subunit A
2265	 43.31	-1	2391040..2392242	-	400	62180846	dgoA	SC2276	-	putative dehydratase protein
2266	 43.99	-1	2392257..2393204	-	315	62180847	tub	SC2277	-	putative permease
2267	 38.79	-2	2393820..2394515	+	231	62180848	ntrA	SC2278	-	GntR family transcriptional regulator
2268	 54.23	0	2394547..2395326	+	259	62180849	ubiG	SC2279	-	3-demethylubiquinone-9 3-methyltransferase
2269	 53.46	0	2395682..2397967	+	761	62180850	nrdA	SC2280	-	ribonucleotide-diphosphate reductase subunit alpha
2270	 52.08	0	2398080..2399210	+	376	62180851	nrdB	SC2281	-	ribonucleotide-diphosphate reductase subunit beta
2271	 56.08	0	2399210..2399464	+	84	62180852	yfaE	SC2282	-	2Fe-2S ferredoxin YfaE
2272	 49.34	0	2399466..2400752	-	428	62180853	-	SC2283	-	putative permease
2273	 47.67	0	2400818..2401696	+	292	62180854	yvbU	SC2284	-	LysR family transcriptional regulator
2274	 48.74	0	2401812..2402882	-	356	62180855	glpQ	SC2285	-	glycerophosphodiester phosphodiesterase
2275	 55.04	0	2402887..2404245	-	452	62180856	glpT	SC2286	-	sn-glycerol-3-phosphate transporter
2276	 58.50	+1	2404517..2406145	+	542	62180857	glpA	SC2287	-	sn-glycerol-3-phosphate dehydrogenase subunit A
2277	 59.52	+1	2406135..2407394	+	419	62180858	glpB	SC2288	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
2278	 53.82	0	2407391..2408581	+	396	62180859	glpC	SC2289	-	sn-glycerol-3-phosphate dehydrogenase subunit C
2279	 37.24	-2	2409007..2410029	+	340	62180860	elaD	SC2290	-	deubiquitinase
2280	 51.61	0	2410139..2410324	-	61	62180861	cinA	SC2291	-	putative cytoplasmic protein
2281	 54.73	0	2410321..2411124	-	267	62180862	yfaU	SC2292	-	putative aldolase
2282	 53.88	0	2411150..2412439	-	429	62180863	yfaV	SC2293	-	MFS family transporter
2283	 53.81	0	2412495..2413700	-	401	62180864	yfaW	SC2294	-	paral putative galactonate dehydratase
2284	 51.34	0	2413714..2414496	-	260	62180865	yfaX	SC2295	-	putative transcriptional regulator
2285	 56.39	0	2414746..2415942	-	398	62180866	cinA	SC2296	-	competence damage-inducible protein A
2286	 49.53	0	2416877..2417302	+	141	62180867	yfaO	SC2297	-	hypothetical protein
52.01	MEAN

5.72	STD DEV
