IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

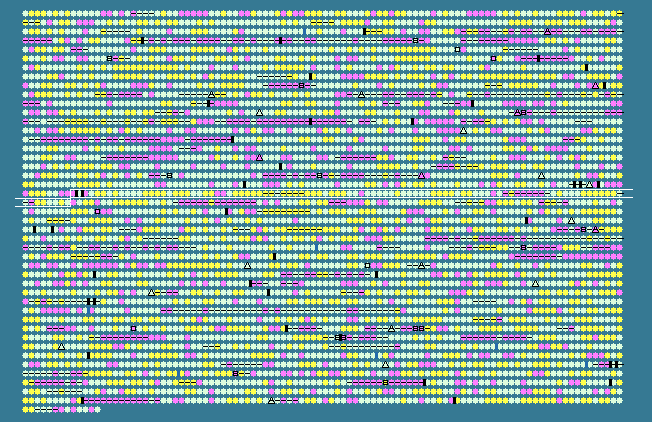

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2009	 38.27	-2	2115401..2115481	-	26	62180590	-	SC2020	-	hypothetical protein
2010	 53.43	0	2116117..2117574	-	485	162139572	yeeO	SC2021	-	hypothetical protein
2011	 47.37	0	2117814..2117984	-	56	62180592	-	SC2022	-	hypothetical protein
2012	 52.58	0	2118035..2118964	-	309	62180593	erfK	SC2023	-	hypothetical protein
2013	 58.76	+1	2119042..2120142	-	366	62180594	cobT	SC2024	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
2014	 56.59	0	2120139..2120882	-	247	62180595	cobS	SC2025	-	cobalamin synthase
2015	 55.13	0	2120879..2121424	-	181	62180596	cobU	SC2026	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
2016	 55.88	0	2121421..2122941	-	506	62180597	cbiP	SC2027	-	cobyric acid synthase
2017	 52.80	0	2122938..2123579	-	213	62180598	cbiO	SC2028	-	synthesis of vitamin B12 adenosyl cobalamide precursor
2018	 54.19	0	2123762..2124442	-	226	62180599	cboQ	SC2029	-	synthesis of vitamin B12 adenosyl cobalamide precursor
2019	 49.29	0	2124426..2124707	-	93	62180600	cbiN	SC2030	-	cobalt transport protein CbiN
2020	 54.63	0	2124709..2125356	-	215	162139571	cbiM	SC2031	-	cobalt transport protein CbiM
2021	 57.42	0	2125443..2126156	-	237	62180602	cbiL	SC2032	-	cobalt-precorrin-2 C(20)-methyltransferase
2022	 55.60	0	2126153..2126947	-	264	62180603	cbiK	SC2033	-	synthesis of vitamin B12 adenosyl cobalamide precursor
2023	 59.34	+1	2126950..2127741	-	263	62180604	cbiJ	SC2034	-	cobalt-precorrin-6x reductase
2024	 56.47	0	2127738..2128463	-	241	62180605	cbiH	SC2035	-	precorrin-3B C17-methyltransferase
2025	 55.21	0	2128463..2129518	-	351	62180606	cbiG	SC2036	-	cobalamin biosynthesis protein CbiG
2026	 57.11	0	2129499..2130272	-	257	62180607	cbiF	SC2037	-	synthesis of vitamin B12 adenosyl cobalamide precursor
2027	 56.13	0	2130256..2130834	-	192	62180608	cbiT	SC2038	-	cobalt-precorrin-6Y C(15)-methyltransferase
2028	 57.92	+1	2130824..2131429	-	201	62180609	cbiE	SC2039	-	cobalt-precorrin-6Y C(5)-methyltransferase
2029	 55.44	0	2131423..2132562	-	379	62180610	cbiD	SC2040	-	cobalt-precorrin-6A synthase
2030	 55.45	0	2132562..2133194	-	210	62180611	cbiC	SC2041	-	precorrin-8X methylmutase
2031	 59.06	+1	2133205..2134164	-	319	62180612	cobD	SC2042	-	cobalamin biosynthesis protein
2032	 55.87	0	2134161..2135540	-	459	62180613	cbiA	SC2043	-	cobyrinic acid a,c-diamide synthase
2033	 45.83	-1	2136138..2137049	-	303	62180614	pocR	SC2044	-	propanediol utilization transcriptional regulator
2034	 48.34	0	2137266..2138378	-	370	62180615	pduF	SC2045	-	propanediol utilization: propanediol diffusion facilitator
2035	 53.68	0	2138585..2138869	+	94	62180616	pduA	SC2046	-	propanediol utilization: polyhedral bodies
2036	 59.78	+1	2138866..2139678	+	270	62180617	pudB	SC2047	-	propanediol utilization: polyhedral bodies
2037	 56.82	0	2139697..2141361	+	554	62180618	pduC	SC2048	-	propanediol utilization: dehydratase, large subunit
2038	 56.74	0	2141372..2142046	+	224	62180619	pduD	SC2049	-	propanediol utilization: dehydratase, medium subunit
2039	 57.09	0	2142061..2142582	+	173	62180620	pduE	SC2050	-	propanediol utilization: dehydratase, small subunit
2040	 59.85	+1	2142598..2144430	+	610	62180621	pduG	SC2051	-	propanediol utilization: diol dehydratase reactivation
2041	 58.40	+1	2144420..2144770	+	116	62180622	pduH	SC2052	-	propanediol utilization: diol dehydratase reactivation
2042	 55.80	0	2144789..2145064	+	91	62180623	pduJ	SC2053	-	propanediol utilization: polyhedral bodies
2043	 55.49	0	2145068..2145550	+	160	62180624	pduK	SC2054	-	propanediol utilization: polyhedral bodies
2044	 59.87	+1	2145550..2146182	+	210	62180625	pduL	SC2055	-	hypothetical protein
2045	 61.38	+1	2146179..2146670	+	163	62180626	pduM	SC2056	-	hypothetical protein
2046	 60.87	+1	2146674..2146949	+	91	62180627	pduN	SC2057	-	propanediol utilization: polyhedral bodies
2047	 60.63	+1	2146959..2147969	+	336	62180628	pduO	SC2058	-	hypothetical protein
2048	 58.71	+1	2147966..2149360	+	464	62180629	pduP	SC2059	-	propanediol utilization: CoA-dependent propionaldehyde dehydrogenase
2049	 60.47	+1	2149372..2150484	+	370	62180630	pduQ	SC2060	-	propanediol utilization: propanol dehydrogenase
2050	 61.58	+1	2150481..2151836	+	451	62180631	pduS	SC2061	-	propanediol utilization: polyhedral bodies
2051	 54.55	0	2151839..2152168	+	109	62180632	pduT	SC2062	-	propanediol utilization: polyhedral bodies
2052	 57.49	0	2152092..2152298	-	68	62180633	-	SC2063	-	hypothetical protein
2053	 56.94	0	2152149..2152292	+	47	62180634	pduU	SC2064	-	propanediol utilization: polyhedral bodies
2054	 55.85	0	2152297..2152749	+	150	62180635	pduV	SC2065	-	propanediol utilization
2055	 52.43	0	2152734..2153948	+	404	62180636	pduW	SC2066	-	propionate kinase
2056	 55.37	0	2154006..2154908	+	300	62180637	pduX	SC2067	-	hypothetical protein
2057	 46.43	0	2154942..2155277	-	111	62180638	yeeX	SC2068	-	hypothetical protein
2058	 53.82	0	2155522..2156580	-	352	62180639	yeeA	SC2069	-	hypothetical protein
2059	 51.28	0	2156699..2157166	-	155	62180640	sbmC	SC2070	-	DNA gyrase inhibitor
2060	 52.43	0	2157317..2158489	-	390	62180641	dacD	SC2071	-	D-alanyl-D-alanine carboxypeptidase
2061	 51.90	0	2158613..2159377	-	254	62180642	-	SC2072	-	hydrogen sulfide production: membrane anchoring protein
2062	 53.89	0	2159374..2159952	-	192	62180643	phsB	SC2073	-	hydrogen sulfide production: iron- sulfur subunit; electron transfer
2063	 55.60	0	2159967..2162243	-	758	62180644	phsA	SC2074	-	hydrogen sulfide production: membrane anchoring protein
2064	 49.66	0	2162487..2162633	-	48	62180645	-	SC2075	-	putative cytoplasmic protein
2065	 50.18	0	2163504..2165207	+	567	62180646	sopA	SC2076	-	hypothetical protein
2066	 54.30	0	2165574..2167004	+	476	62180647	sbcB	SC2077	-	exonuclease I
2067	 53.77	0	2167140..2168504	-	454	62180648	yeeF	SC2078	-	amino acid APC transporter
2068	 52.46	0	2168784..2169698	-	304	62180649	yeeY	SC2079	-	LysR family transcriptional regulator
2069	 56.97	0	2169744..2170568	-	274	62180650	yeeZ	SC2080	-	hypothetical protein
2070	 55.89	0	2170918..2171817	+	299	62180651	hisG	SC2081	-	ATP phosphoribosyltransferase
2071	 58.24	+1	2171920..2173224	+	434	62180652	hisD	SC2082	-	histidinol dehydrogenase
2072	 55.93	0	2173221..2174300	+	359	62180653	-	SC2083	-	histidinol-phosphate aminotransferase
2073	 52.06	0	2174297..2175364	+	355	62180654	hisB	SC2084	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
2074	 56.73	0	2175361..2175954	+	197	62180655	hisH	SC2085	-	imidazole glycerol phosphate synthase subunit HisH
2075	 58.40	+1	2175954..2176691	+	245	62180656	hisA	SC2086	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2076	 55.21	0	2176673..2177449	+	258	62180657	hisF	SC2087	-	imidazole glycerol phosphate synthase subunit HisF
2077	 52.94	0	2177443..2178054	+	203	62180658	hisI	SC2088	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
2078	 50.29	0	2178135..2179172	-	345	62180659	wzzB	SC2089	-	regulator of length of O-antigen component of lipopolysaccharide chains
2079	 43.62	-1	2179261..2180427	-	388	62180660	udg	SC2090	-	UDP-glucose/GDP-mannose dehydrogenase
2080	 51.88	0	2180664..2182070	-	468	62180661	gnd	SC2091	-	6-phosphogluconate dehydrogenase
2081	 29.86	-2	2182207..2183733	-	508	62180662	-	SC2092	-	putative 12 transmembrane segment protein
2082	 61.12	+1	2184019..2185389	-	456	62180663	manB	SC2093	-	phosphomannomutase in colanic acid gene cluster
2083	 38.83	-2	2185404..2186822	-	472	62180664	manC	SC2094	-	phosphomannomutase in colanic acid gene cluster
2084	 31.31	-2	2186819..2188051	-	410	62180665	-	SC2095	-	hypothetical protein
2085	 30.36	-2	2188005..2189012	-	335	62180666	-	SC2096	-	hypothetical protein
2086	 30.34	-2	2188996..2189997	-	333	62180667	-	SC2097	-	hypothetical protein
2087	 28.98	-2	2189997..2191076	-	359	62180668	-	SC2098	-	O-antigen polymerase
2088	 50.34	0	2191461..2192483	-	340	62180669	galF	SC2099	-	UTP--glucose-1-phosphate uridylyltransferase subunit GalF
2089	 51.28	0	2192532..2193935	-	467	62180670	wcaM	SC2100	-	putative colanic acid biosynthesis protein
2090	 56.27	0	2193946..2195166	-	406	62180671	wcaL	SC2101	-	putative glycosyl transferase in colanic acid gene cluster
2091	 52.85	0	2195163..2196443	-	426	62180672	wcaK	SC2102	-	putative pyruvyl transferase
2092	 51.86	0	2196465..2197943	-	492	62180673	wzxC	SC2103	-	colanic acid exporter
2093	 53.26	0	2198045..2199439	-	464	62180674	wcaJ	SC2104	-	putative UDP-glucose lipid carrier transferase
2094	 62.14	+1	2199493..2200863	-	456	62180675	cpsG	SC2105	-	phosphomannomutase in colanic acid gene cluster
2095	 60.22	+1	2200974..2202416	-	480	62180676	manC	SC2106	-	mannose-1-phosphate in colanic acid gene cluster
2096	 57.84	+1	2202413..2203636	-	407	62180677	wcaI	SC2107	-	putative glycosyl transferase
2097	 59.70	+1	2203633..2204106	-	157	62180678	wcaI	SC2108	-	putative glycosyl transferase in colanic acid biosynthesis
2098	 60.04	+1	2204109..2205074	-	321	62180679	wcaG	SC2109	-	GDP fucose synthetase
2099	 56.95	0	2205077..2206198	-	373	62180680	gmd	SC2110	-	GDP-D-mannose dehydratase in colanic acid gene cluster
2100	 50.45	0	2206222..2206776	-	184	62180681	wcaF	SC2111	-	putative colanic acid biosynthesis acetyltransferase WcaF
2101	 48.86	0	2206792..2207538	-	248	62180682	wcaE	SC2112	-	putative glycosyl transferase
2102	 42.88	-1	2207551..2208765	-	404	62180683	wcaD	SC2113	-	putative colanic acid biosynthesis protein
2103	 55.83	0	2208740..2209957	-	405	62180684	wcaC	SC2114	-	putative glycosyl transferase
2104	 56.03	0	2209954..2210442	-	162	62180685	wcaB	SC2115	-	putative colanic acid biosynthesis acetyltransferase WcaB
2105	 50.89	0	2210445..2211287	-	280	62180686	wcaA	SC2116	-	glycosyl transferase
2106	 53.75	0	2211374..2213533	-	719	62180687	wzc	SC2117	-	tyrosine kinase
2107	 59.34	+1	2213530..2213952	-	140	62180688	wzb	SC2118	-	tyrosine phosphatase
2108	 53.86	0	2213985..2215124	-	379	62180689	wza	SC2119	-	putative polysaccharide export protein, outer membrane
52.01	MEAN

5.72	STD DEV
