IslandPathversion 1.0

IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

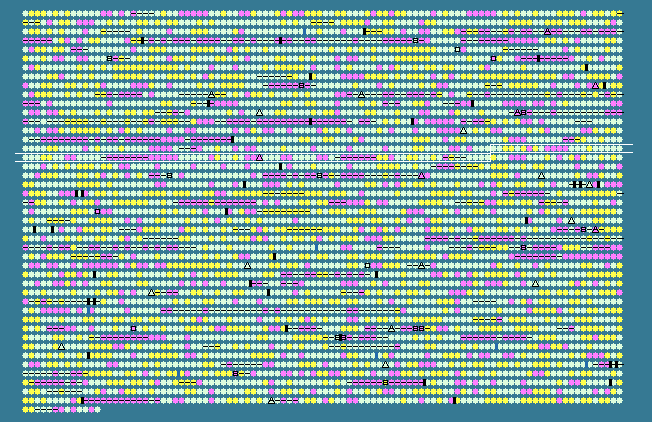

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1579	 55.23	0	1691487..1692002	+	171	62180157	yncA	SC1587	-	putative acyltransferase
1580	 55.33	0	1692002..1692451	+	149	62180158	ydcZ	SC1588	-	hypothetical protein
1581	 56.84	0	1692456..1692689	-	77	62180159	ydcY	SC1589	-	hypothetical protein
1582	 55.96	0	1692913..1694238	+	441	62180160	srfA	SC1590	-	ssrAB activated gene
1583	 55.20	0	1694243..1697224	+	993	62180161	srfB	SC1591	-	ssrAB activated gene
1584	 57.06	0	1697221..1699365	+	714	62180162	srfC	SC1592	-	ssrAB activated gene: coiled-coil structure
1585	 43.94	-1	1699410..1699673	-	87	62180163	ydcX	SC1593	-	putative inner membrane protein
1586	 55.79	0	1699982..1701406	-	474	162139585	ydcW	SC1594	-	gamma-aminobutyraldehyde dehydrogenase
1587	 53.05	0	1701542..1702966	-	474	62180165	ydcR	SC1595	-	GntR family transcriptional regulator
1588	 47.34	0	1703102..1703872	-	256	62180166	pdgL	SC1596	-	periplasmic dipeptidase for D-ala-D-ala digestion in peptidoglycan
1589	 41.99	-1	1704131..1704361	-	76	62180167	-	SC1597	-	putative inner membrane protein
1590	 40.10	-2	1704394..1704792	-	132	62180168	ugtL	SC1598	-	hypothetical protein
1591	 37.43	-2	1705329..1706279	+	316	162139584	sifB	SC1599	-	secreted effector protein
1592	 51.95	0	1706553..1706783	+	76	62180170	yncJ	SC1600	-	hypothetical protein
1593	 52.72	0	1706784..1708748	-	654	62180171	ydcP	SC1601	-	putative collagenase
1594	 53.07	0	1708827..1709363	-	178	62180172	ydcN	SC1602	-	putative oxidoreductase/putative repressor
1595	 56.74	0	1709394..1710632	+	412	62180173	ydcO	SC1603	-	putative benzoate membrane transport protein
1596	 49.92	0	1710686..1711312	-	208	62180174	ydcL	SC1604	-	putative outer membrane lipoprotein
1597	 49.92	0	1711518..1712114	-	198	62180175	tehB	SC1605	-	tellurite resistance protein TehB
1598	 55.13	0	1712101..1713114	-	337	62180176	tehA	SC1606	-	potassium-tellurite ethidium and proflavin transporter
1599	 50.56	0	1714199..1714738	-	179	62180177	rimL	SC1607	-	ribosomal-protein-L7/L12-serine acetyltransferase
1600	 55.41	0	1714955..1716073	+	372	62180178	sgcX	SC1608	-	putative cellulase protein
1601	 50.00	0	1716070..1716351	+	93	62180179	sgcB	SC1609	-	putative PTS system, enzymeIIB component
1602	 52.13	0	1716362..1717675	+	437	62180180	sgcC	SC1610	-	putative PTS system enzyme IIC component
1603	 52.91	0	1717689..1718495	+	268	62180181	sgcQ	SC1611	-	putative nucleoside triphosphatase
1604	 57.31	0	1718627..1719064	+	145	62180182	sgcA	SC1612	-	putative sugar specific PTS enzyme II
1605	 56.40	0	1719076..1719708	+	210	62180183	sgcE	SC1613	-	ribulose-phosphate 3-epimerase
1606	 51.39	0	1719724..1720515	+	263	62180184	sgcR	SC1614	-	DeoR family transcriptional regulator
1607	 51.83	0	1720515..1720952	+	145	62180185	aac6	SC1615	-	cryptic aminoglycoside resistance gene
1608	 48.13	0	1720999..1722201	-	400	62180186	gox	SC1616	-	putative oxidase
1609	 42.71	-1	1722213..1722788	-	191	62180187	yceI	SC1617	-	putative periplasmic protein
1610	 54.37	0	1722984..1724699	-	571	62180188	mdoD	SC1618	-	glucan biosynthesis protein D
1611	 54.24	0	1726416..1727759	-	447	62180189	ydcj	SC1619	-	putative cytoplasmic protein
1612	 53.58	0	1727983..1728975	+	330	62180190	ydcI	SC1620	-	LysR family transcriptional regulator
1613	 54.00	0	1729036..1730661	-	541	62180191	trg	SC1621	-	methyl-accepting chemotaxis protein III, ribose and galactose sensor receptor
1614	 53.17	0	1730830..1731948	-	372	62180192	adh3	SC1622	-	alcohol dehydrogenase class III
1615	 48.29	0	1731980..1732360	-	126	62180193	yohL	SC1623	-	putative cytoplasmic protein
1616	 41.54	-1	1732778..1733179	+	133	62180194	dpr	SC1624	-	putative dipicolinate reductase
1617	 41.87	-1	1733607..1733969	-	120	62180195	tfpB	SC1625	-	putative inner membrane protein
1618	 39.12	-2	1734452..1735678	+	408	62180196	sseJ	SC1626	-	translocated effector: regulated by SPI-2
1619	 46.96	0	1735799..1736143	-	114	62180197	-	SC1627	-	putative inner membrane protein
1620	 41.99	-1	1737050..1737280	+	76	62180198	-	SC1628	-	putative periplasmic binding protein
1621	 41.98	-1	1737817..1738464	+	215	62180199	yckA	SC1629	-	putative amino acid ABC transporter permease component
1622	 43.99	-1	1738489..1739220	+	243	62180200	gltL	SC1630	-	putative ABC-type polar amino acid transport system, ATPase component
1623	 43.32	-1	1739217..1739897	+	226	62180201	-	SC1631	-	putative ABC-type transport system membrane spanning protein
1624	 48.10	0	1740034..1740534	+	166	62180202	-	SC1632	-	putative inner membrane protein
1625	 46.67	0	1740813..1740962	+	49	62180203	-	SC1633	-	hypothetical protein
1626	 46.61	0	1742046..1742708	+	220	62180204	ybcY	SC1634	-	putative SAM-dependent methyltransferase
1627	 54.81	0	1743626..1744426	-	266	62180205	ydcF	SC1635	-	hypothetical protein
1628	 53.80	0	1744490..1748335	-	1281	162139583	hrpA	SC1636	-	ATP-dependent RNA helicase HrpA
1629	 53.47	0	1748593..1749198	+	201	62180207	acpD	SC1637	-	azoreductase
1630	 50.00	0	1749195..1749644	-	149	62180208	-	SC1638	-	putative inner membrane protein
1631	 52.16	0	1749787..1750110	-	107	62180209	ydbL	SC1639	-	putative periplasmic protein
1632	 45.31	-1	1750118..1750309	-	63	62180210	ynbE	SC1640	-	putative outer membrane lipoprotein
1633	 55.59	0	1750309..1752945	-	878	62180211	ydbH	SC1641	-	hypothetical protein
1634	 51.41	0	1753212..1754201	+	329	62180212	ldhA	SC1642	-	D-lactate dehydrogenase
1635	 52.55	0	1754312..1754722	+	136	62180213	hslJ	SC1643	-	heat-inducible protein
1636	 57.68	0	1754766..1755032	-	88	62180214	ydbJ	SC1644	-	putative cytoplasmic protein
1637	 54.95	0	1755308..1758832	+	1174	62180215	nifJ	SC1645	-	putative pyruvate-flavodoxin oxidoreductase
1638	 47.59	0	1759314..1759748	+	144	62180216	ynaF	SC1646	-	hypothetical protein
1639	 41.30	-1	1759798..1760136	-	112	62180217	emrE	SC1647	-	putative membrane transporter of cations
1640	 48.23	0	1760300..1760440	+	46	62180218	intR	SC1648	-	putative lambdoid prophage Rac integrase
1641	 50.53	0	1760492..1761427	+	311	62180219	ydaO	SC1649	-	C32 tRNA thiolase
1642	 54.73	0	1761471..1762844	-	457	62180220	dbpA	SC1650	-	ATP-dependent RNA helicase DbpA
1643	 52.54	0	1763332..1764315	-	327	62180221	zntB	SC1651	-	zinc transporter
1644	 47.82	0	1764539..1765615	-	358	62180222	mcp	SC1652	-	putative methyl-accepting chemotaxis protein
1645	 35.63	-2	1765626..1765799	-	57	62180223	-	SC1653	-	hypothetical protein
1646	 52.84	0	1766008..1766571	-	187	62180224	ydaL	SC1654	-	Smr domain-containing protein
1647	 55.04	0	1766829..1767344	+	171	62180225	ogt	SC1655	-	O-6-alkylguanine-DNA:cysteine-protein methyltransferase
1648	 50.07	0	1767540..1768292	+	250	162139582	fnr	SC1656	-	fumarate/nitrate reduction transcriptional regulator
1649	 51.79	0	1768443..1769390	+	315	62180227	ydaA	SC1657	-	universal stress protein UspE
1650	 43.93	-1	1769445..1769831	-	128	62180228	ynaJ	SC1658	-	hypothetical protein
1651	 44.86	-1	1769938..1770969	+	343	62180229	ynaI	SC1659	-	hypothetical protein
1652	 51.41	0	1771052..1771654	-	200	62180230	ydcN	SC1660	-	putative transcriptional regulator
1653	 54.44	0	1771698..1772384	+	228	62180231	-	SC1661	-	hypothetical protein
1654	 42.18	-1	1772412..1772750	+	112	62180232	-	SC1662	-	hypothetical protein
1655	 40.79	-1	1773513..1774343	-	276	62180233	-	SC1663	-	hypothetical protein
1656	 47.99	0	1776384..1777229	-	281	62180234	-	SC1664	-	putative serine/threonine protein kinase
1657	 38.46	-2	1777523..1778380	+	285	62180235	cafR	SC1665	-	AraC family regulatory protein
1658	 42.71	-1	1778827..1779882	+	351	62180236	-	SC1666	-	putative cytoplasmic protein
1659	 46.67	0	1780096..1780350	-	84	62180237	-	SC1667	-	putative outer membrane lipoprotein
1660	 57.70	0	1780461..1781051	-	196	62180238	yjgJ	SC1668	-	AraC family regulatory protein
1661	 57.14	0	1781129..1781842	+	237	62180239	yjgI	SC1669	-	oxidoreductase
1662	 47.01	0	1781933..1782802	-	289	62180240	-	SC1670	-	aldo/keto reductase family protein
1663	 55.19	0	1783079..1783984	-	301	62180241	yjgC	SC1671	-	LysR family transcriptional regulator
1664	 50.37	0	1784843..1786744	-	633	62180242	mppA	SC1672	-	periplasmic murein tripeptide transport protein, also negative regulator of mulitple antibiotic resistance
1665	 57.89	+1	1786934..1787662	+	242	62180243	ycjI	SC1673	-	murein peptide amidase A
1666	 57.56	0	1787637..1788602	-	321	62180244	ycjG	SC1674	-	putative chloromuconate cycloisomerase (muconate cycloisomerase)
1667	 49.70	0	1788718..1789224	+	168	62180245	tpx	SC1675	-	thiol peroxidase
1668	 53.44	0	1789313..1790854	-	513	62180246	tyrR	SC1676	-	DNA-binding transcriptional regulator TyrR
1669	 57.16	0	1791002..1792063	-	353	62180247	ycjF	SC1677	-	hypothetical protein
1670	 53.70	0	1792060..1793463	-	467	62180248	ycjX	SC1678	-	putative ATPase
1671	 43.17	-1	1793606..1793920	-	104	62180249	pspE	SC1679	-	thiosulfate:cyanide sulfurtransferase (rhodanese)
1672	 55.91	0	1793996..1794181	-	61	62180250	pspD	SC1680	-	peripheral inner membrane phage-shock protein
1673	 51.94	0	1794237..1794596	-	119	62180251	pspC	SC1681	-	DNA-binding transcriptional activator PspC
1674	 54.22	0	1794596..1794820	-	74	62180252	pspB	SC1682	-	phage shock protein B
1675	 51.42	0	1794880..1795548	-	222	62180253	pspA	SC1683	-	phage shock protein PspA
1676	 54.33	0	1795719..1796699	+	326	162139581	pspF	SC1684	-	phage shock protein operon transcriptional activator
1677	 53.70	0	1796787..1798460	+	557	62180255	sapA	SC1685	-	peptide ABC transporter periplasmic-binding protein
1678	 53.00	0	1798457..1799422	+	321	62180256	sapB	SC1686	-	peptide ABC transporter
52.01	MEAN

5.72	STD DEV
