IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

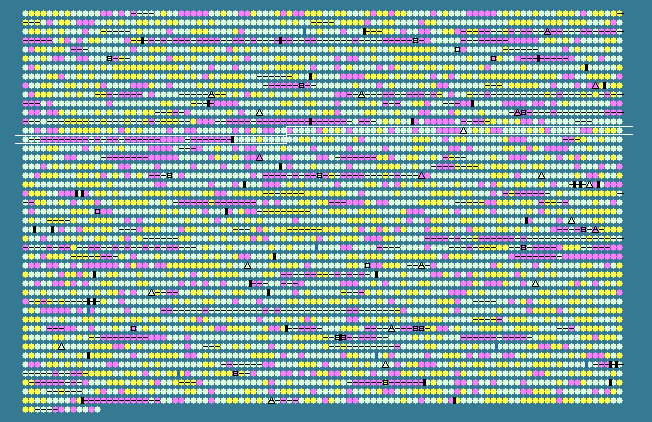

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1345	 47.13	0	1450348..1450782	+	144	62179923	infC	SC1353	-	translation initiation factor IF-3
1346	 48.99	0	1450878..1451075	+	65	162139592	rpmI	SC1354	-	50S ribosomal protein L35
1347	 49.86	0	1451126..1451482	+	118	62179925	rplT	SC1355	-	50S ribosomal protein L20
1348	 53.66	0	1451784..1452767	+	327	62179926	pheS	SC1356	-	phenylalanyl-tRNA synthetase subunit alpha
1349	 53.43	0	1452783..1455170	+	795	62179927	pheT	SC1357	-	phenylalanyl-tRNA synthetase subunit beta
1350	 48.33	0	1455175..1455474	+	99	62179928	ihfA	SC1358	-	integration host factor subunit alpha
1351	 59.12	+1	1455677..1456657	+	326	62179929	btuC	SC1359	-	vtamin B12-transporter permease
1352	 49.64	0	1456749..1457300	+	183	62179930	btuE	SC1360	-	putative glutathione peroxidase
1353	 56.40	0	1457300..1458049	+	249	62179931	btuD	SC1361	-	vitamin B12-transporter ATPase
1354	 48.60	0	1458126..1458590	+	154	62179932	nlpC	SC1362	-	lipoprotein
1355	 46.22	-1	1458904..1459617	+	237	62179933	ydiV	SC1363	-	diguanylate cyclase/phosphodiesterase domain-containing protein
1356	 54.40	0	1459679..1461121	+	480	62179934	ydiU	SC1364	-	hypothetical protein
1357	 50.52	0	1461157..1461348	-	63	62179935	ydiE	SC1365	-	hypothetical protein
1358	 53.01	0	1461505..1462551	-	348	62179936	aroH	SC1366	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1359	 51.92	0	1462707..1463540	-	277	62179937	ydiA	SC1367	-	hypothetical protein
1360	 55.65	0	1463877..1466255	+	792	62179938	pps	SC1368	-	phosphoenolpyruvate synthase
1361	 52.79	0	1466297..1467982	-	561	62179939	ydiD	SC1369	-	short chain acyl-CoA synthetase
1362	 47.96	0	1468027..1468320	-	97	62179940	ydiT	SC1370	-	putative ferredoxin
1363	 55.32	0	1468317..1469603	-	428	62179941	ydiS	SC1371	-	hypothetical protein
1364	 53.85	0	1469660..1470595	-	311	62179942	ydiR	SC1372	-	electron transfer flavoprotein subunit YdiR
1365	 54.12	0	1470617..1471381	-	254	62179943	ydiQ	SC1373	-	putative electron transfer flavoprotein YdiQ
1366	 42.54	-1	1471844..1472734	+	296	62179944	ydiP	SC1374	-	AraC family transcriptional regulator
1367	 49.74	0	1472810..1473961	-	383	62179945	ydiO	SC1375	-	putative acyl-CoA dehydrogenase
1368	 49.12	0	1473975..1475570	-	531	62179946	ydiF	SC1376	-	putative acetyl-CoA:acetoacetyl-CoA transferase beta subunit
1369	 51.38	0	1475725..1476483	-	252	62179947	aroD	SC1377	-	3-dehydroquinate dehydratase
1370	 48.33	0	1476528..1477394	-	288	62179948	aroE	SC1378	-	quinate/shikimate dehydrogenase
1371	 46.28	-1	1477461..1478696	-	411	62179949	ydiN	SC1379	-	MFS family transporter
1372	 47.28	0	1479060..1480271	-	403	62179950	ydiM	SC1380	-	MFS family transporter
1373	 42.22	-1	1480412..1480771	-	119	62179951	ydiL	SC1381	-	putative cytoplasmic protein
1374	 50.15	0	1480941..1481624	-	227	62179952	yis2	SC1382	-	putative integrase protein
1375	 50.50	0	1481795..1482196	-	133	62179953	-	SC1383	-	putative cytoplasmic protein
1376	 55.94	0	1482543..1483661	-	372	62179954	ydiK	SC1384	-	putative inner membrane protein
1377	 54.43	0	1483926..1486982	+	1018	62179955	ydiJ	SC1385	-	paral putative oxidase
1378	 56.93	0	1486979..1487389	+	136	62179956	ydiI	SC1386	-	hypothetical protein
1379	 46.05	-1	1487449..1487676	+	75	62179957	ydiH	SC1387	-	hypothetical protein
1380	 47.81	0	1487964..1489310	-	448	62179958	ydjN	SC1388	-	putative Na+-dicarboxylate symporter
1381	 52.03	0	1489737..1490105	+	122	62179959	sufA	SC1389	-	iron-sulfur cluster assembly scaffold protein
1382	 52.42	0	1490114..1491601	+	495	62179960	sufB	SC1390	-	cysteine desulfurase activator complex subunit SufB
1383	 52.88	0	1491618..1492364	+	248	62179961	sufC	SC1391	-	cysteine desulfurase ATPase component
1384	 53.69	0	1492339..1493610	+	423	62179962	sufD	SC1392	-	cysteine desulfurase activator complex subunit SufD
1385	 56.59	0	1493607..1494827	+	406	62179963	sufS	SC1393	-	selenocysteine lyase
1386	 50.60	0	1494840..1495256	+	138	62179964	ynhA	SC1394	-	cysteine desufuration protein SufE
1387	 57.19	0	1495411..1496412	+	333	62179965	ynhG	SC1395	-	LysM domain-containing protein
1388	 47.50	0	1496478..1496717	-	79	62179966	lppB	SC1396	-	putative methyl-accepting chemotaxis protein
1389	 48.97	0	1496798..1497040	-	80	162139591	lppB	SC1397	-	putative methyl-accepting chemotaxis protein
1390	 51.48	0	1497123..1497359	-	78	62179968	lpp	SC1398	-	murein lipoprotein, links outer and inner membranes
1391	 52.30	0	1497670..1499082	-	470	62179969	pykF	SC1399	-	pyruvate kinase
1392	 50.82	0	1499484..1500827	-	447	62179970	ycjj	SC1400	-	putative amino acid permease
1393	 51.01	0	1500849..1501742	-	297	62179971	pip	SC1401	-	putative hydrolase or acyltransferase
1394	 42.68	-1	1501801..1502538	-	245	62179972	-	SC1402	-	putative cytoplasmic protein
1395	 46.21	-1	1502550..1503776	-	408	62179973	rbsk	SC1403	-	DeoR family transcriptional regulator
1396	 57.59	0	1504099..1507161	-	1020	62179974	ttrA	SC1404	-	tetrathionate reductase complex, subunit A
1397	 55.03	0	1507154..1508176	-	340	62179975	ttrC	SC1405	-	tetrathionate reductase complex, subunit C
1398	 56.60	0	1508177..1508911	-	244	62179976	ttrB	SC1406	-	tetrathionate reductase complex, subunit B
1399	 56.83	0	1509093..1510871	+	592	62179977	ttrS	SC1407	-	tetrathionate reductase complex: sensory transduction histidine kinase
1400	 55.23	0	1510846..1511466	+	206	62179978	ttrR	SC1408	-	tetrathionate reductase complex: response regulator
1401	 50.38	0	1511513..1511776	+	87	62179979	-	SC1409	-	hypothetical protein
1402	 55.42	0	1511872..1512831	-	319	62179980	-	SC1410	-	putative inner membrane protein
1403	 53.91	0	1513003..1513731	-	242	62179981	-	SC1411	-	MerR family regulatory protein
1404	 39.75	-2	1513910..1514548	-	212	62179982	ssrB	SC1412	-	secretion system transcriptonal activator
1405	 42.35	-1	1514579..1517341	-	920	62179983	ssrA	SC1413	-	secretion system regulator:sensor component
1406	 41.54	-1	1517742..1518143	+	133	62179984	ssaB	SC1414	-	secretion system apparatus SsaB
1407	 42.17	-1	1518145..1519638	+	497	62179985	ssaC	SC1415	-	secretion system apparatus SsaC
1408	 43.32	-1	1519619..1520830	+	403	62179986	ssaD	SC1416	-	secretion system apparatus SsaD
1409	 42.39	-1	1520838..1521080	+	80	62179987	ssaE	SC1417	-	secretion system effector SsaE
1410	 41.28	-1	1521289..1521615	+	108	62179988	sseA	SC1418	-	secretion system effector SseA
1411	 43.49	-1	1521622..1522212	+	196	62179989	sseB	SC1419	-	secretion system effector SseB
1412	 50.00	0	1522209..1522682	+	157	62179990	-	SC1420	-	secretion system chaparone SscA
1413	 45.91	-1	1522685..1524139	+	484	62179991	sseC	SC1421	-	secretion system effector SseC
1414	 48.81	0	1524155..1524742	+	195	62179992	sseD	SC1422	-	secretion system effector SseD
1415	 45.32	-1	1524745..1525161	+	138	62179993	sseE	SC1423	-	secretion system effector SseE
1416	 47.59	0	1525213..1525647	+	144	62179994	-	SC1424	-	secretion system chaparone SscB
1417	 49.04	0	1525663..1526445	+	260	62179995	sseF	SC1425	-	secretion system effector SseF
1418	 47.83	0	1526442..1527131	+	229	62179996	sseG	SC1426	-	secretion system effector SseG
1419	 37.08	-2	1527174..1527440	+	88	62179997	ssaG	SC1427	-	secretion system apparatus SsaG
1420	 43.64	-1	1527418..1527708	+	96	62179998	ssaH	SC1428	-	secretion system apparatus SsaH
1421	 42.17	-1	1527720..1527968	+	82	62179999	ssaI	SC1429	-	secretion system apparatus SsaI
1422	 41.87	-1	1527965..1528714	+	249	62180000	ssaJ	SC1430	-	secretion system apparatus SsaJ
1423	 46.81	0	1528732..1529280	+	182	62180001	-	SC1431	-	putative cytoplasmic protein
1424	 42.67	-1	1529277..1529951	+	224	62180002	ssaK	SC1432	-	secretion system apparatus SsaK
1425	 45.62	-1	1529917..1530933	+	338	62180003	ssaL	SC1433	-	secretion system apparatus SsaL
1426	 42.01	-1	1530991..1531359	+	122	62180004	ssaM	SC1434	-	secretion system apparatus SsaM
1427	 46.63	0	1531344..1533389	+	681	62180005	ssaV	SC1435	-	secretion system apparatus protein SsaV
1428	 51.08	0	1533379..1534680	+	433	62180006	ssaN	SC1436	-	type III secretion system ATPase
1429	 43.52	-1	1534629..1535060	+	143	62180007	ssaO	SC1437	-	secretion system apparatus SsaO
1430	 44.53	-1	1535041..1535415	+	124	62180008	ssaP	SC1438	-	secretion system apparatus SsaP
1431	 45.72	-1	1535396..1536364	+	322	62180009	ssaQ	SC1439	-	type III secretion system protein
1432	 43.06	-1	1536432..1537079	+	215	62180010	ssaR	SC1440	-	type III secretion system protein
1433	 42.70	-1	1537076..1537342	+	88	62180011	ssaS	SC1441	-	secretion system apparatus SsaS
1434	 38.97	-2	1537343..1538122	+	259	62180012	ssaT	SC1442	-	secretion system apparatus SsaT
1435	 39.66	-2	1538119..1539177	+	352	62180013	ssaU	SC1443	-	secretion system apparatus protein SsaU
1436	 53.57	0	1539650..1541023	-	457	62180014	ydhE	SC1444	-	multidrug efflux protein
1437	 51.09	0	1541240..1541881	+	213	62180015	ribE	SC1445	-	riboflavin synthase subunit alpha
1438	 48.56	0	1541923..1543071	-	382	62180016	cfa	SC1446	-	cyclopropane fatty acyl phospholipid synthase
1439	 55.06	0	1543361..1544566	-	401	62180017	ydhC	SC1447	-	inner membrane transport protein YdhC
1440	 56.91	0	1544679..1545611	+	310	62180018	ydhB	SC1448	-	putative DNA-binding transcriptional regulator
1441	 54.58	0	1545608..1546633	-	341	62180019	purR	SC1449	-	DNA-binding transcriptional repressor PurR
1442	 51.37	0	1547101..1547682	-	193	62180020	sodB	SC1450	-	superoxide dismutase
1443	 51.23	0	1547809..1548663	-	284	62180021	ydhO	SC1451	-	putative cell wall-associated hydrolase
1444	 50.86	0	1548966..1549313	+	115	62180022	ydhD	SC1452	-	hypothetical protein
52.01	MEAN

5.72	STD DEV
