IslandPath Analysis: Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67

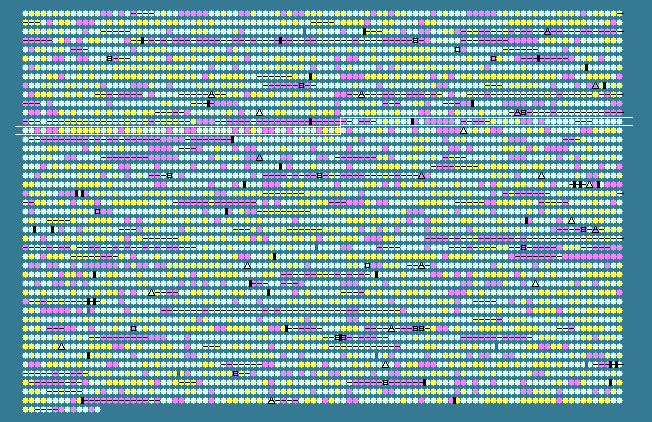

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.01 STD DEV: 5.72
Salmonella enterica subsp. enterica serovar Choleraesuis str. SC-B67, complete genome - 1..4755700
4413 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1254	 45.44	-1	1367132..1367602	+	156	62179832	ibp	SC1262	-	putative molecular chaperone (small heat shock protein)
1255	 48.67	0	1367711..1367860	-	49	62179833	-	SC1263	-	putative inner membrane protein
1256	 50.38	0	1367941..1368984	+	347	62179834	-	SC1264	-	hypothetical protein
1257	 46.78	0	1369069..1369596	-	175	62179835	-	SC1265	-	putative inner membrane protein
1258	 41.59	-1	1369745..1370059	-	104	62179836	-	SC1266	-	putative outer membrane lipoprotein
1259	 54.11	0	1370741..1372381	+	546	62179837	oxd6A	SC1267	-	putative ABC transporter periplasmic binding protein
1260	 52.86	0	1372378..1373355	+	325	62179838	oxd6B	SC1268	-	putative ABC transporter
1261	 56.21	0	1373345..1374157	+	270	62179839	oxd6C	SC1269	-	putative ABC transporter
1262	 54.89	0	1374151..1374948	+	265	62179840	oxd6D	SC1270	-	ABC transporter ATPase
1263	 56.85	0	1374942..1375532	+	196	62179841	-	SC1271	-	ABC transporter ATPase
1264	 49.03	0	1375614..1376747	-	377	62179842	oxd6E	SC1272	-	hypothetical protein
1265	 52.29	0	1376941..1377267	+	108	62179843	-	SC1273	-	hypothetical protein
1266	 46.39	0	1377461..1378111	+	216	62179844	yodA	SC1274	-	hypothetical protein
1267	 54.50	0	1378220..1379008	+	262	62179845	aadA	SC1275	-	aminoglycoside resistance protein
1268	 36.88	-2	1379099..1379746	+	215	62179846	-	SC1276	-	response regulator
1269	 46.29	-1	1379815..1380663	+	282	62179847	ycgE	SC1277	-	putative transcriptional regulator
1270	 38.55	-2	1380918..1381166	-	82	62179848	-	SC1278	-	hypothetical protein
1271	 47.07	0	1381482..1382027	+	181	62179849	-	SC1279	-	chorismate mutase
1272	 46.95	0	1382224..1382862	+	212	62179850	yeaS	SC1280	-	leucine export protein LeuE
1273	 50.96	0	1383035..1383397	+	120	62179851	yeaR	SC1281	-	hypothetical protein
1274	 48.09	0	1383400..1383582	+	60	62179852	yoaG	SC1282	-	putative cytoplasmic protein
1275	 50.00	0	1383812..1384453	+	213	62179853	nor	SC1283	-	hypothetical protein
1276	 37.10	-2	1384574..1384759	+	61	62179854	-	SC1284	-	hypothetical protein
1277	 46.18	-1	1384767..1385015	+	82	62179855	yeaQ	SC1285	-	hypothetical protein
1278	 55.56	0	1385448..1385699	+	83	62179856	yaoF	SC1286	-	putative hemolysin
1279	 56.09	0	1385768..1386079	+	103	62179857	-	SC1287	-	hypothetical protein
1280	 51.72	0	1386065..1386412	-	115	62179858	yeaO	SC1288	-	putative cytoplasmic protein
1281	 58.31	+1	1386531..1387715	-	394	62179859	yeaN	SC1289	-	MFS family transporter
1282	 55.09	0	1387816..1388610	+	264	62179860	yeaM	SC1290	-	AraC family helix-turn-helix transcriptional regulator
1283	 56.82	0	1388590..1389036	-	148	62179861	yeaL	SC1291	-	hypothetical protein
1284	 43.14	-1	1389023..1389175	+	50	62179862	-	SC1292	-	hypothetical protein
1285	 42.03	-1	1389206..1389343	+	45	62179863	-	SC1293	-	putative inner membrane protein
1286	 54.92	0	1389340..1389867	-	175	62179864	yeaK	SC1294	-	hypothetical protein
1287	 45.11	-1	1389908..1391401	-	497	62179865	yeaJ	SC1295	-	methyl-accepting chemotaxis protein
1288	 51.67	0	1392042..1393328	-	428	62179866	yeaH	SC1296	-	hypothetical protein
1289	 50.38	0	1393451..1395415	-	654	62179867	yeaG	SC1297	-	hypothetical protein
1290	 50.87	0	1395812..1396558	+	248	62179868	mipA	SC1298	-	scaffolding protein for murein-synthesizing holoenzyme
1291	 50.04	0	1396848..1398044	+	398	62179869	chuR	SC1299	-	arylsulfatase regulator
1292	 55.24	0	1398141..1398998	+	285	62179870	yeaE	SC1300	-	putative aldehyde reductase
1293	 52.54	0	1399097..1399981	-	294	62179871	yeaD	SC1301	-	putative enzyme related to aldose 1-epimerase
1294	 50.16	0	1399981..1400295	-	104	62179872	-	SC1302	-	hypothetical protein
1295	 50.95	0	1400314..1401318	-	334	62179873	gapA	SC1303	-	glyceraldehyde-3-phosphate dehydrogenase
1296	 51.13	0	1401621..1402064	+	147	62179874	yeaA	SC1304	-	methionine sulfoxide reductase B
1297	 50.18	0	1402106..1402384	+	92	62179875	yeaC	SC1305	-	hypothetical protein
1298	 51.08	0	1402772..1403002	-	76	62179876	-	SC1306	-	hypothetical protein
1299	 52.92	0	1403277..1404353	+	358	62179877	ydjL	SC1307	-	hypothetical protein
1300	 52.61	0	1404380..1405759	+	459	62179878	ydjK	SC1308	-	metabolite transport protein
1301	 50.00	0	1405770..1406813	+	347	62179879	ydiJ	SC1309	-	hypothetical protein
1302	 49.82	0	1406835..1407671	+	278	62179880	ydjI	SC1310	-	hypothetical protein
1303	 47.21	0	1407622..1408623	+	333	62179881	ydjH	SC1311	-	putative sugar kinase ydjH
1304	 52.35	0	1408639..1409616	+	325	62179882	ydjG	SC1312	-	oxidoreductase ydjG
1305	 42.16	-1	1409746..1410504	+	252	62179883	ydjF	SC1313	-	putative transcriptional regulator YdjF
1306	 46.50	0	1410640..1411998	+	452	62179884	ydjE	SC1314	-	metabolite transport protein
1307	 57.05	0	1412134..1412757	-	207	62179885	pncA	SC1315	-	nicotinamidase/pyrazinamidase
1308	 52.53	0	1412784..1413872	-	362	62179886	ansA	SC1316	-	cytoplasmic asparaginase I
1309	 55.95	0	1413896..1415752	-	618	62179887	sppA	SC1317	-	protease 4
1310	 56.70	0	1415926..1416477	+	183	62179888	ydjA	SC1318	-	hypothetical protein
1311	 57.57	0	1416595..1417638	+	347	62179889	selD	SC1319	-	selenophosphate synthetase
1312	 56.35	0	1417586..1419592	+	668	62179890	topB	SC1320	-	DNA topoisomerase III
1313	 57.89	+1	1419622..1420965	-	447	62179891	gdhA	SC1321	-	glutamate dehydrogenase
1314	 54.71	0	1421204..1421479	+	91	62179892	ynjH	SC1322	-	putative periplasmic protein
1315	 57.79	+1	1421439..1421855	-	138	62179893	nudG	SC1323	-	pyrimidine (deoxy)nucleoside triphosphate pyrophosphohydrolase
1316	 52.66	0	1421928..1422734	-	268	62179894	xthA	SC1324	-	exonuclease III
1317	 38.89	-2	1422869..1423048	+	59	62179895	-	SC1325	-	hypothetical protein
1318	 55.83	0	1423180..1424406	+	408	62179896	argD	SC1326	-	bifunctional succinylornithine transaminase/acetylornithine transaminase
1319	 54.29	0	1424397..1425923	+	508	62179897	astA	SC1327	-	arginine succinyltransferase
1320	 58.31	+1	1425916..1426884	+	322	62179898	astE	SC1328	-	succinylglutamate desuccinylase
1321	 50.00	0	1427220..1427705	+	161	62179899	spy	SC1329	-	periplasmic protein
1322	 55.12	0	1427780..1428688	-	302	62179900	cho	SC1330	-	nucleotide excision repair endonuclease
1323	 53.02	0	1428782..1429609	-	275	62179901	nadE	SC1331	-	NAD synthetase
1324	 50.88	0	1429828..1430169	+	113	62179902	osmE	SC1332	-	DNA-binding transcriptional activator OsmE
1325	 46.42	0	1430470..1430790	+	106	62179903	celA	SC1333	-	N,N'-diacetylchitobiose-specific PTS system transporter subunit IIB
1326	 50.77	0	1430873..1432231	+	452	62179904	celB	SC1334	-	N,N'-diacetylchitobiose-specific PTS system transporter subunit IIC
1327	 48.85	0	1432282..1432629	+	115	62179905	celC	SC1335	-	N,N'-diacetylchitobiose-specific PTS system transporter subunit IIA
1328	 43.42	-1	1432640..1433482	+	280	62179906	celD	SC1336	-	DNA-binding transcriptional regulator ChbR
1329	 48.16	0	1433607..1434962	+	451	62179907	celF	SC1337	-	phospho-beta-glucosidase (cellobiose-6-phosphate hydrolase)
1330	 53.75	0	1434975..1435733	+	252	62179908	celG	SC1338	-	hypothetical protein
1331	 54.19	0	1435777..1438029	-	750	62179909	katE	SC1339	-	hydroperoxidase II
1332	 51.85	0	1438394..1438636	+	80	62179910	cedA	SC1340	-	cell division modulator
1333	 54.53	0	1438739..1440130	-	463	62179911	ydjN	SC1341	-	hypothetical protein
1334	 53.74	0	1440267..1440854	-	195	162139593	ydjM	SC1342	-	hypothetical protein
1335	 55.01	0	1441004..1441672	-	222	62179913	yniC	SC1343	-	2-deoxyglucose-6-phosphatase
1336	 45.81	-1	1441821..1442357	+	178	62179914	yniB	SC1344	-	hypothetical protein
1337	 54.12	0	1442400..1443260	-	286	62179915	yniA	SC1345	-	hypothetical protein
1338	 48.45	0	1443367..1443657	-	96	62179916	ydiZ	SC1346	-	hypothetical protein
1339	 57.45	0	1443754..1444686	-	310	62179917	pfkB	SC1347	-	6-phosphofructokinase 2
1340	 50.33	0	1444975..1445733	+	252	62179918	ydiY	SC1348	-	putative salt-induced outer membrane protein
1341	 47.29	0	1445782..1446741	-	319	62179919	-	SC1349	-	putative outer membrane protein
1342	 33.33	-2	1446881..1446976	-	31	62179920	-	SC1350	-	hypothetical protein
1343	 50.76	0	1447194..1448048	+	284	62179921	nucA	SC1351	-	putative DNA/RNA non-specific endonuclease
1344	 50.80	0	1448308..1450236	+	642	62179922	thrS	SC1352	-	threonyl-tRNA synthetase
1345	 47.13	0	1450348..1450782	+	144	62179923	infC	SC1353	-	translation initiation factor IF-3
1346	 48.99	0	1450878..1451075	+	65	162139592	rpmI	SC1354	-	50S ribosomal protein L35
1347	 49.86	0	1451126..1451482	+	118	62179925	rplT	SC1355	-	50S ribosomal protein L20
1348	 53.66	0	1451784..1452767	+	327	62179926	pheS	SC1356	-	phenylalanyl-tRNA synthetase subunit alpha
1349	 53.43	0	1452783..1455170	+	795	62179927	pheT	SC1357	-	phenylalanyl-tRNA synthetase subunit beta
1350	 48.33	0	1455175..1455474	+	99	62179928	ihfA	SC1358	-	integration host factor subunit alpha
1351	 59.12	+1	1455677..1456657	+	326	62179929	btuC	SC1359	-	vtamin B12-transporter permease
1352	 49.64	0	1456749..1457300	+	183	62179930	btuE	SC1360	-	putative glutathione peroxidase
1353	 56.40	0	1457300..1458049	+	249	62179931	btuD	SC1361	-	vitamin B12-transporter ATPase
52.01	MEAN

5.72	STD DEV
